AR40.20-P-0266QBS Adjust Camber at the Front Axle



AR40.20-P-0266QBS Adjust camber at the front axle
- with CODE (P98) Black Series

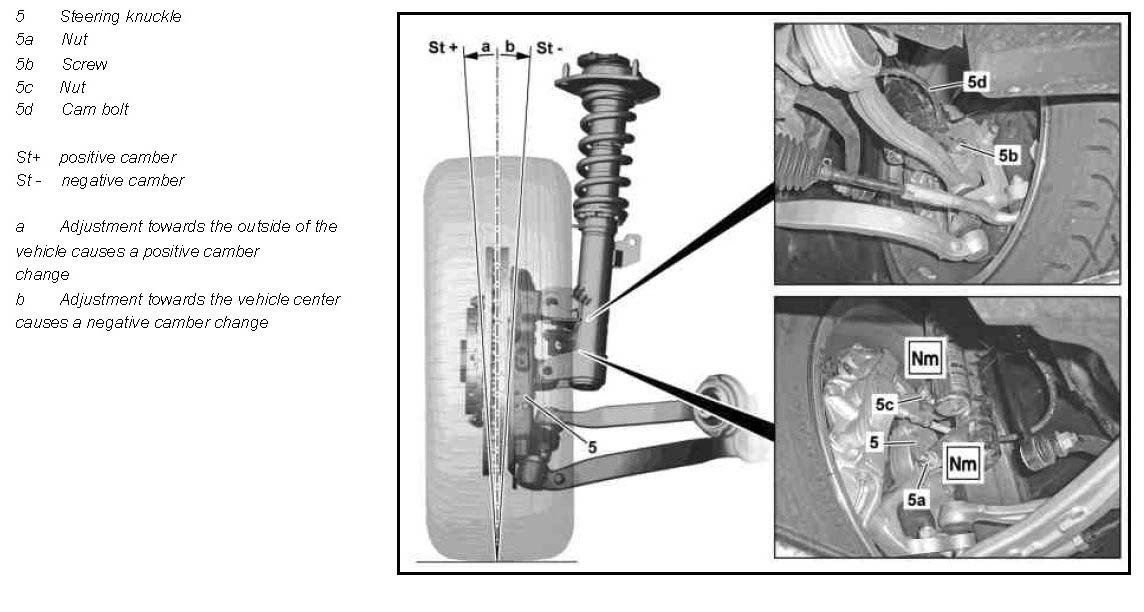

Component Identification:

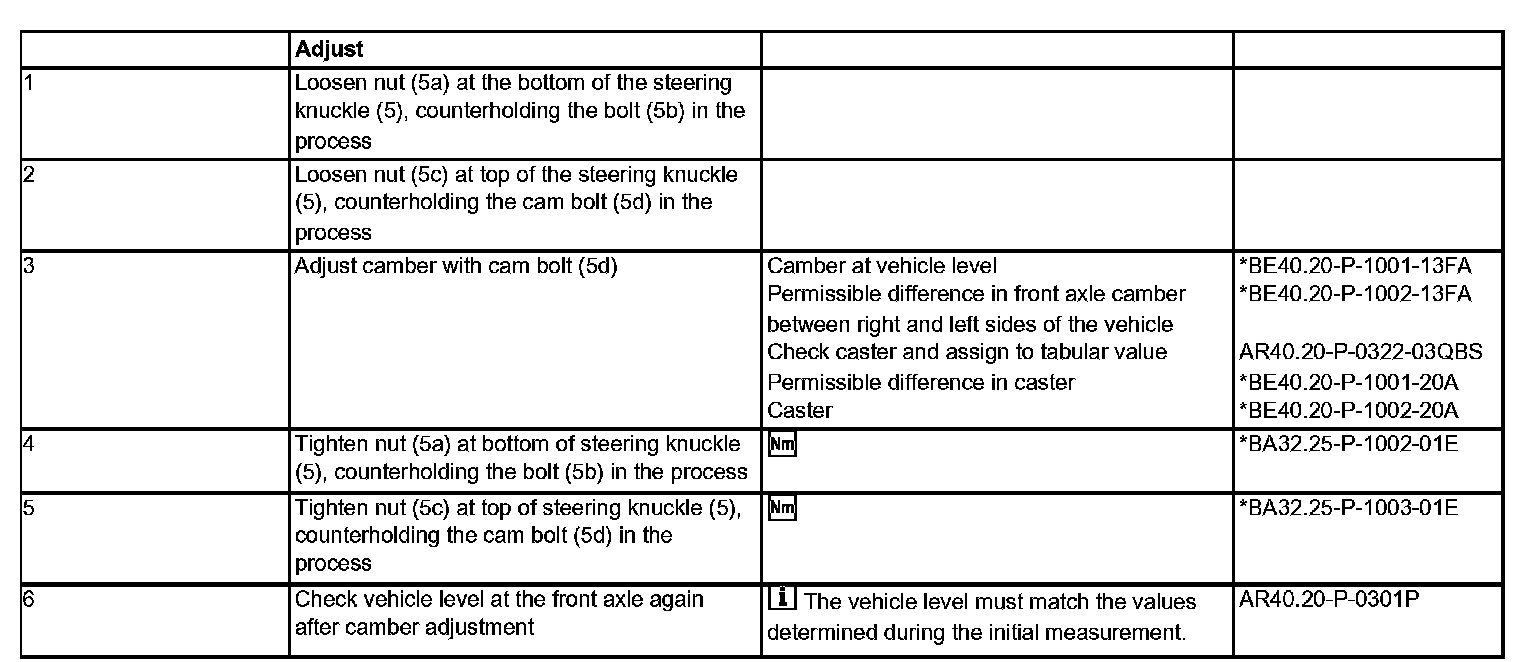

Steps 1-6:

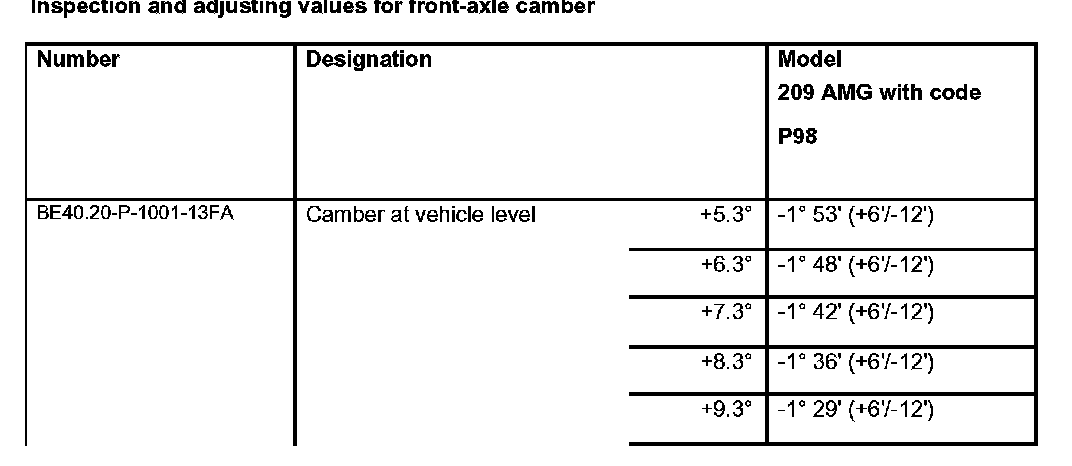

Inspection and adjusting values for front-axle camber:

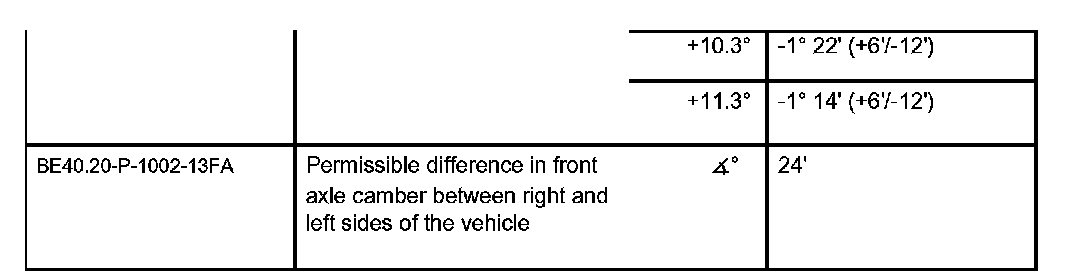

Inspection and adjusting values for front-axle camber:

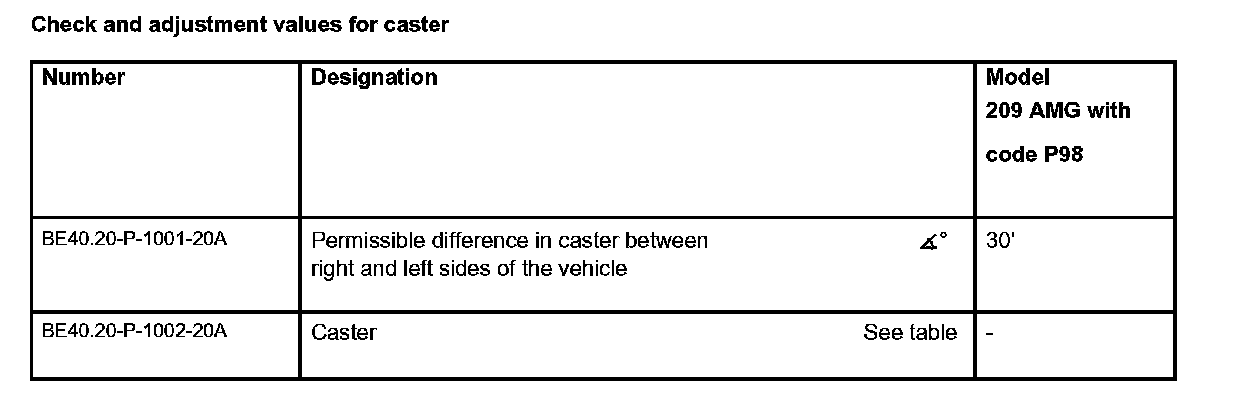

Check and adjustment values for caster:

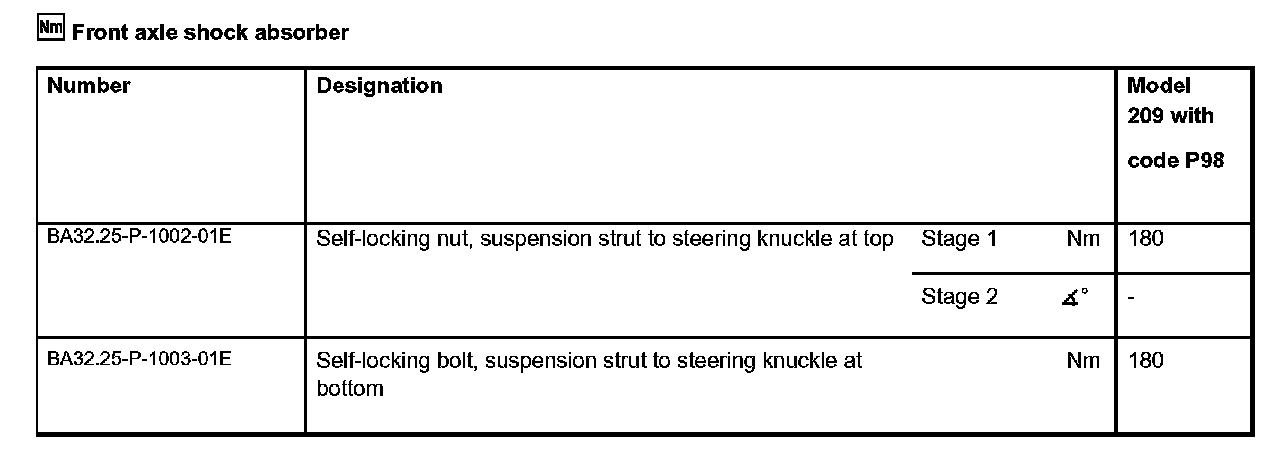

Front axle shock absorber:
