FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2004
>>
CLK 320 (209.365) V6-3.2L (112.955)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Sensors and Switches - Lighting and Horns
>>
Combination Switch
>>
Service and Repair
>>
Removal and Replacement
>>

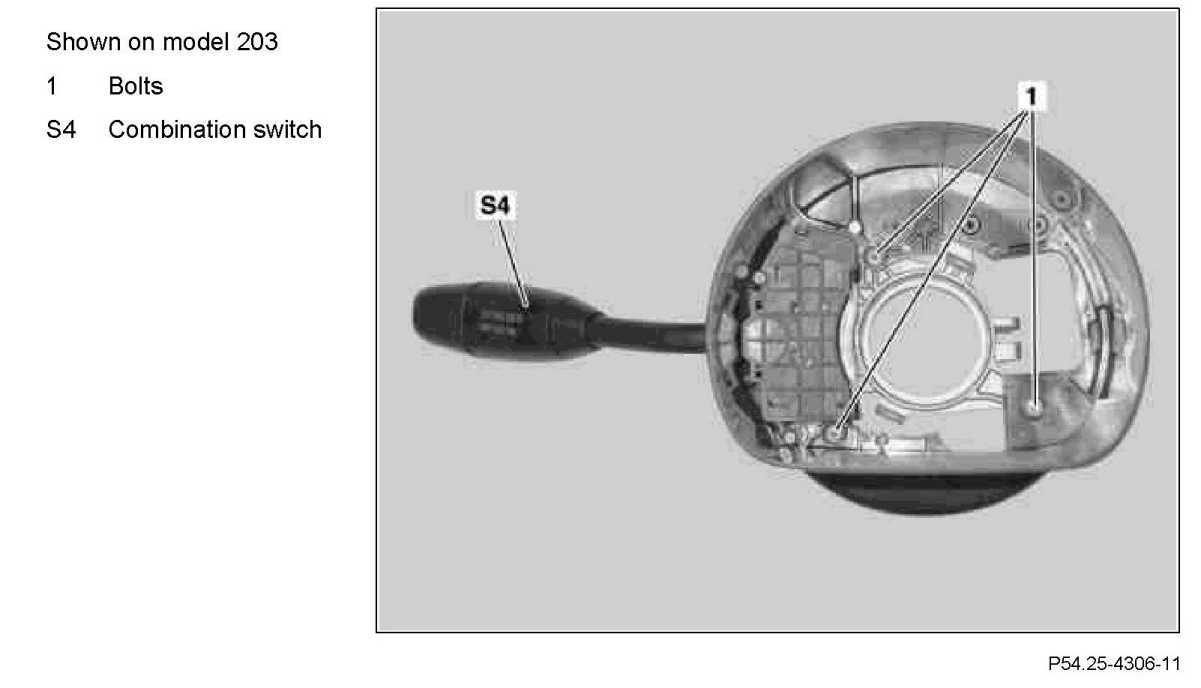

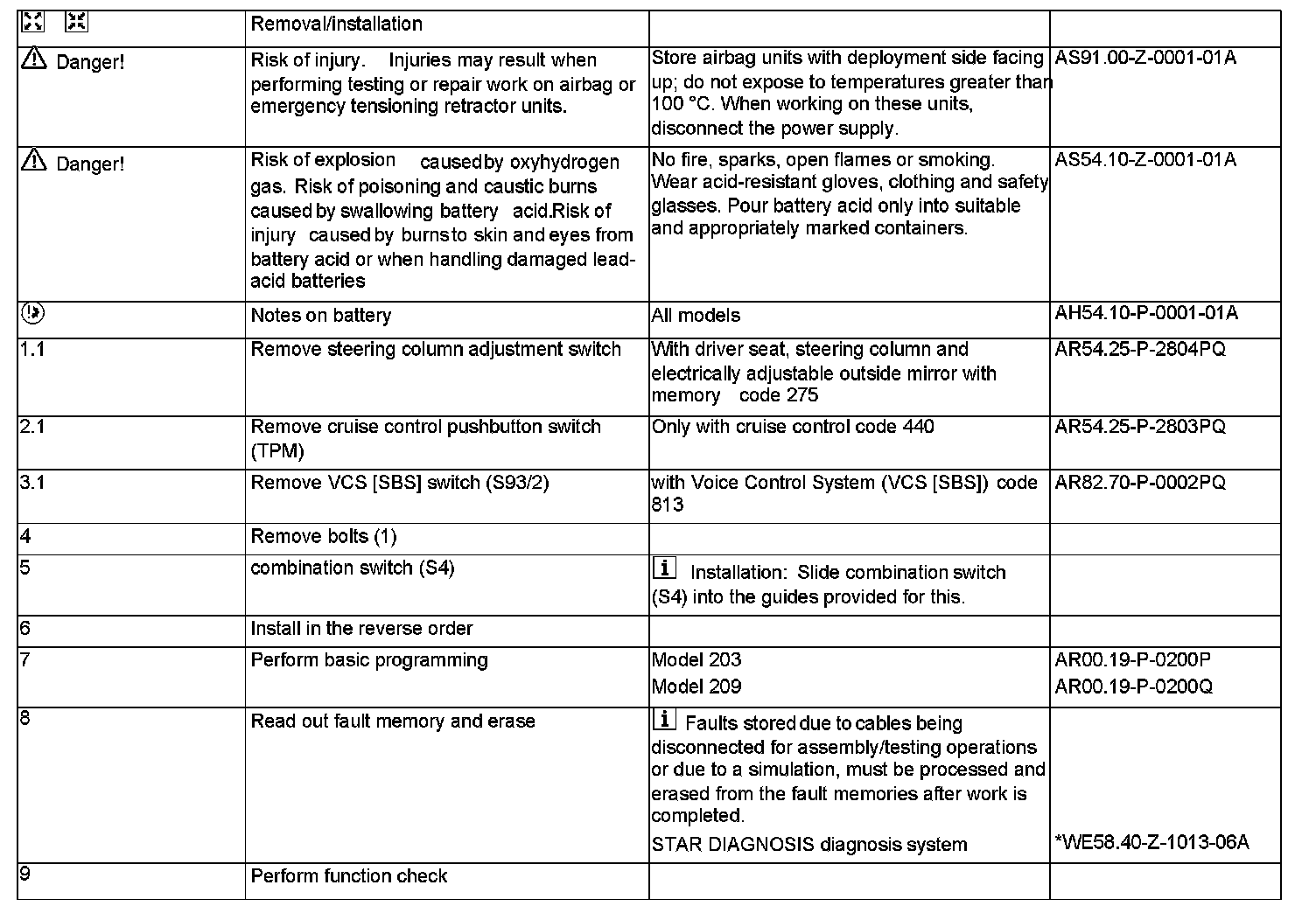

AR54.25-P-2800PQ Remove/Install Combination Switch
AR54.25-P-2800PQ Remove/Install Combination Switch
AR54.25-P-2800PQ Remove/Install
Combination Switch
