AR82.10-P-1201QA Remove/Install Bulbs of Headlamp Unit
AR82.10-P-1201QA Remove/Install Bulbs of Headlamp Unit
- with CODE (614) Bi-xenon headlamp unit

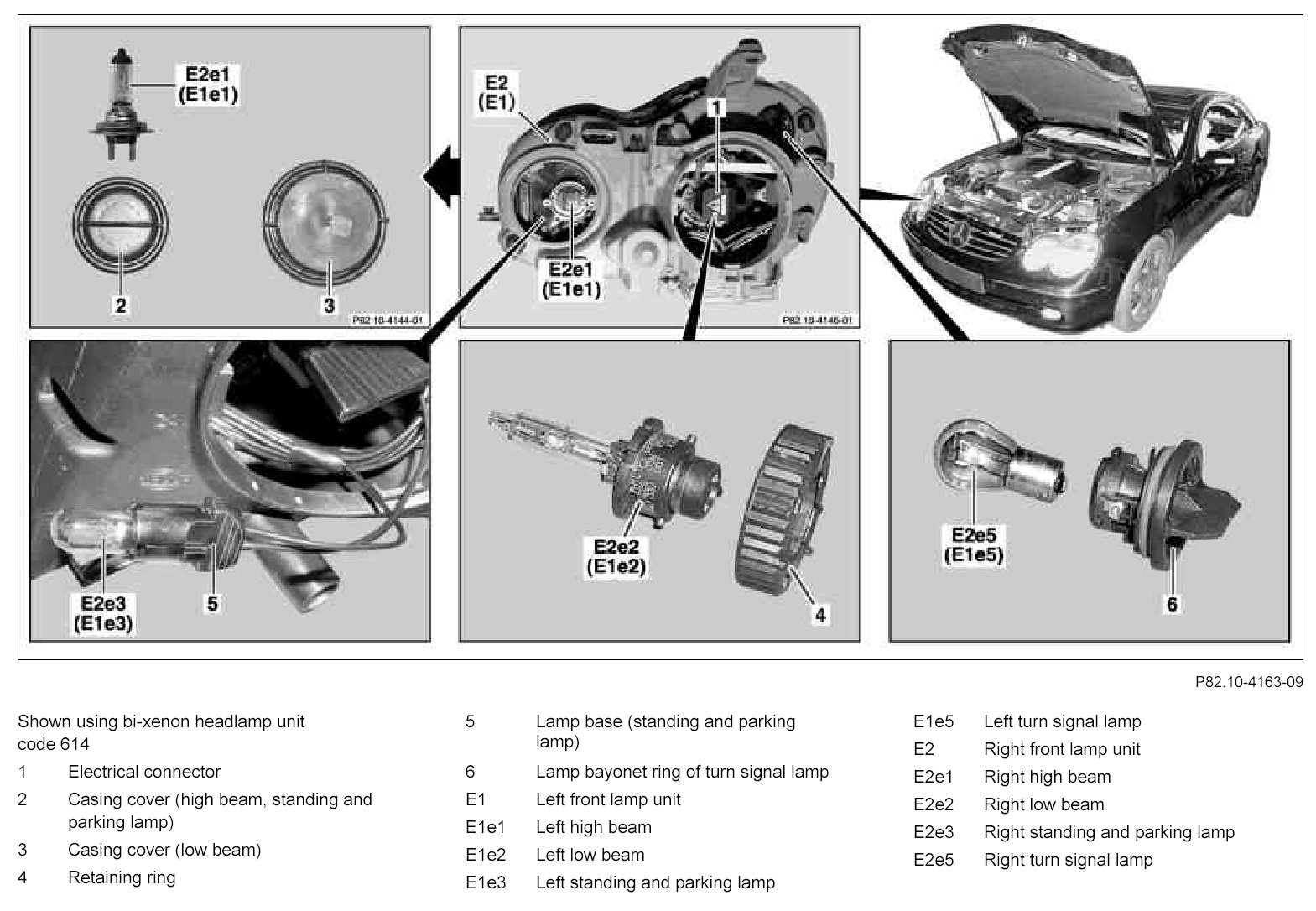

Component Identification:

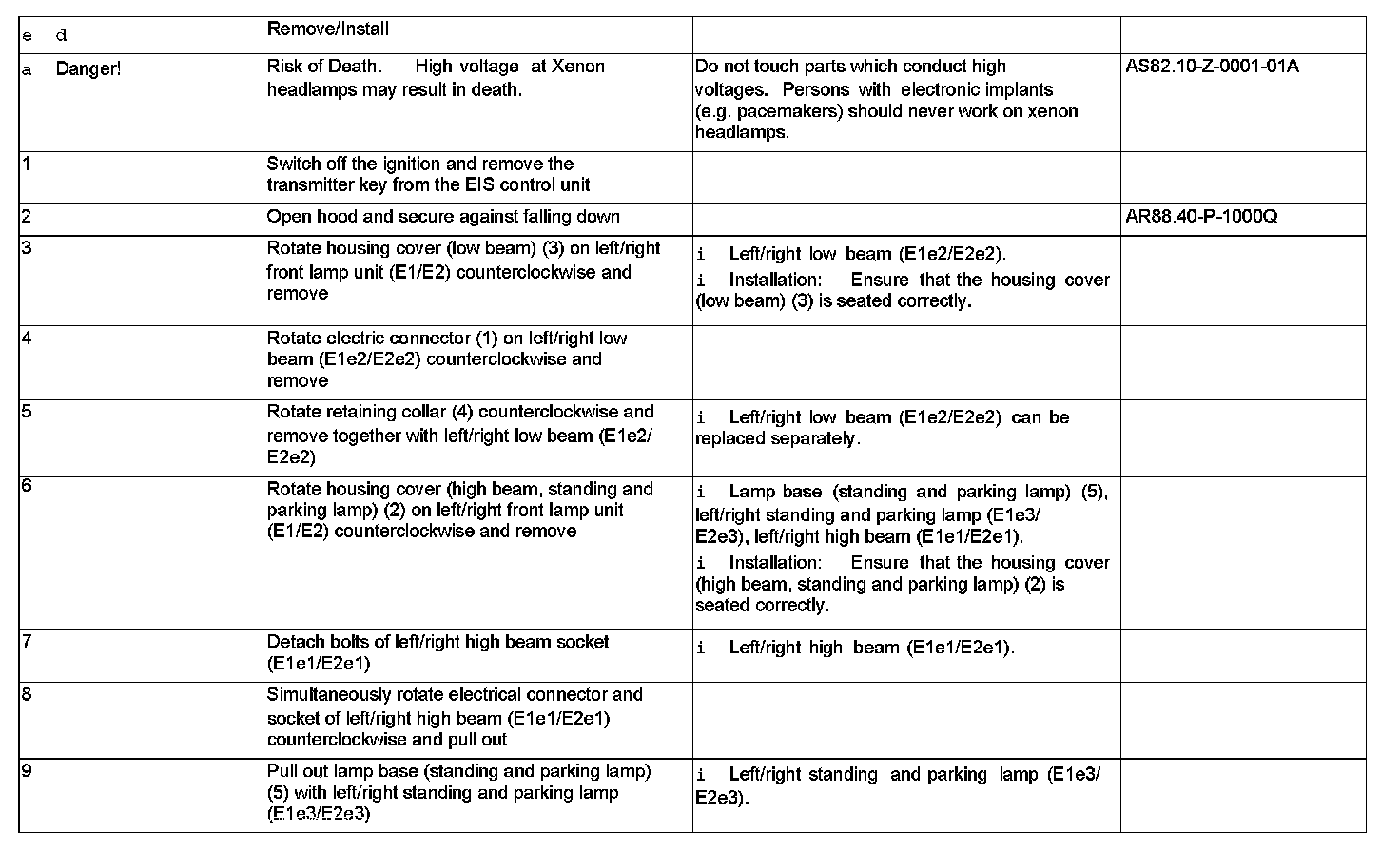

Steps 1 - 9:
Steps 10 - 13:
AR82.10-P-1201QA Remove/Install Bulbs of Headlamp Unit
- with CODE (614) Bi-xenon headlamp unit
