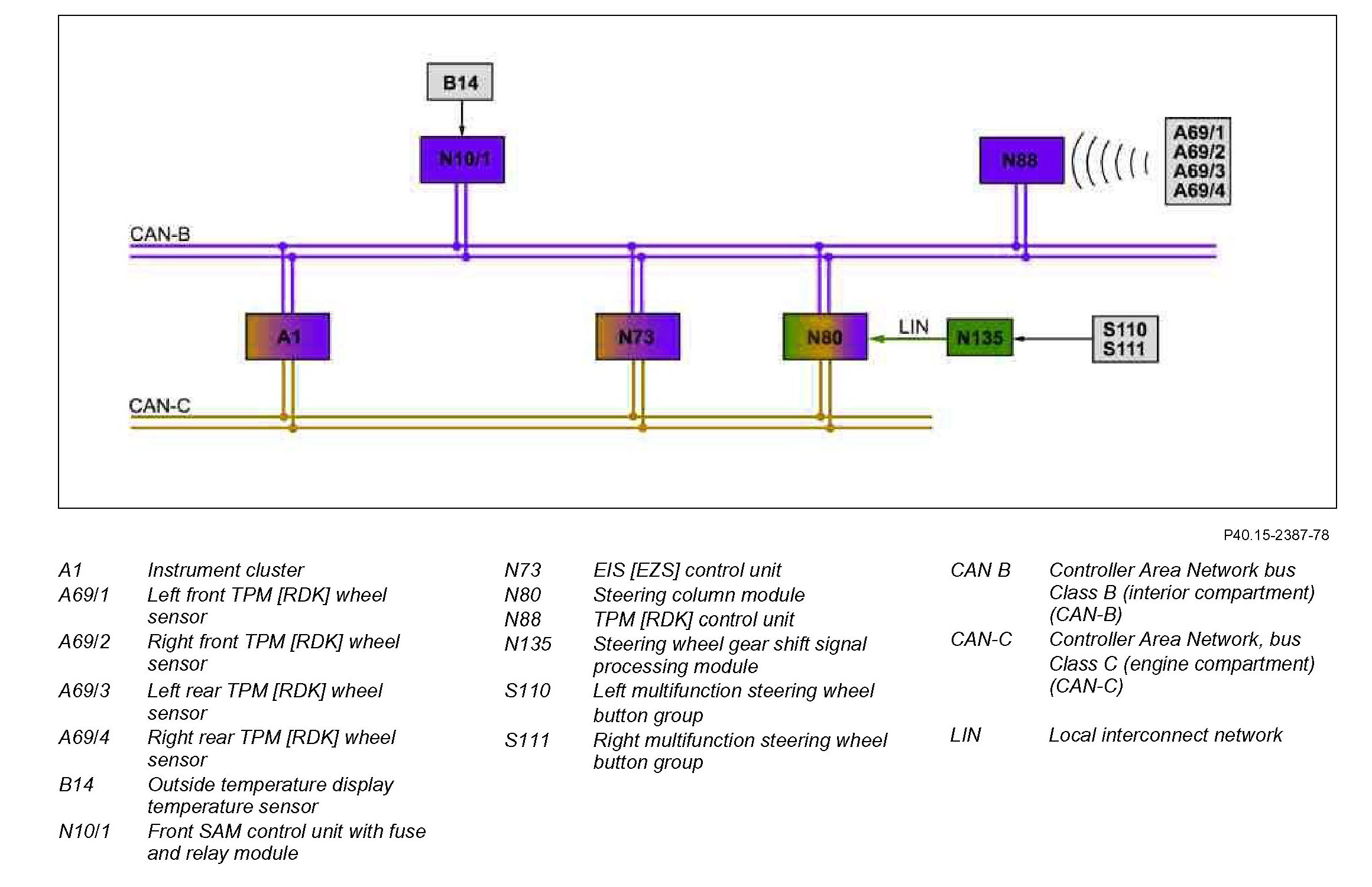

GF40.15-P-0001-07Q Tire Pressure Monitor (TPM (RDK)) Block Diagram
GF40.15-P-0001-07Q Tire pressure monitor (TPM [RDK]) block diagram
- with CODE (470) Tire pressure monitor (base)
GF40.15-P-0001-07Q Tire pressure monitor (TPM [RDK]) block diagram
- with CODE (470) Tire pressure monitor (base)
