Reset Oil Service (Illustrated)
Reset Oil Service Indicator (Illustrated)Preliminary Tasks:
- Close trunk lid or liftgate as well as engine hood and doors. A/C and accessories in OFF mode.

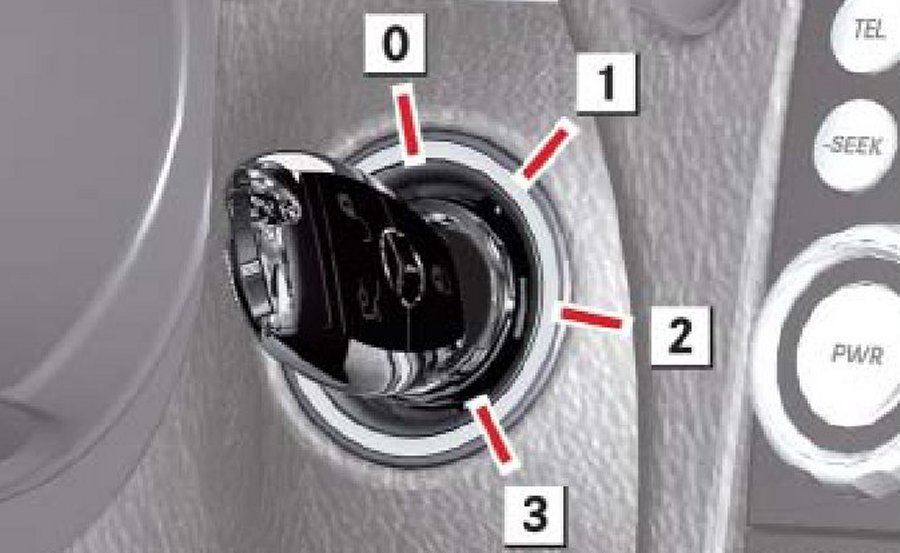

1. Turn key in ignition switch to position "1"

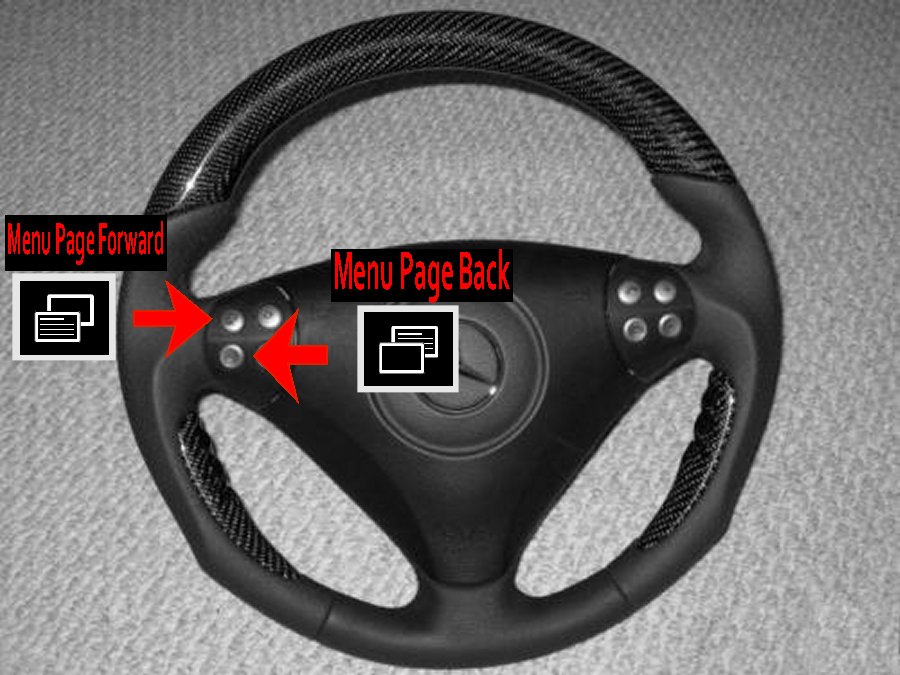

Steering Wheel - Version 1:

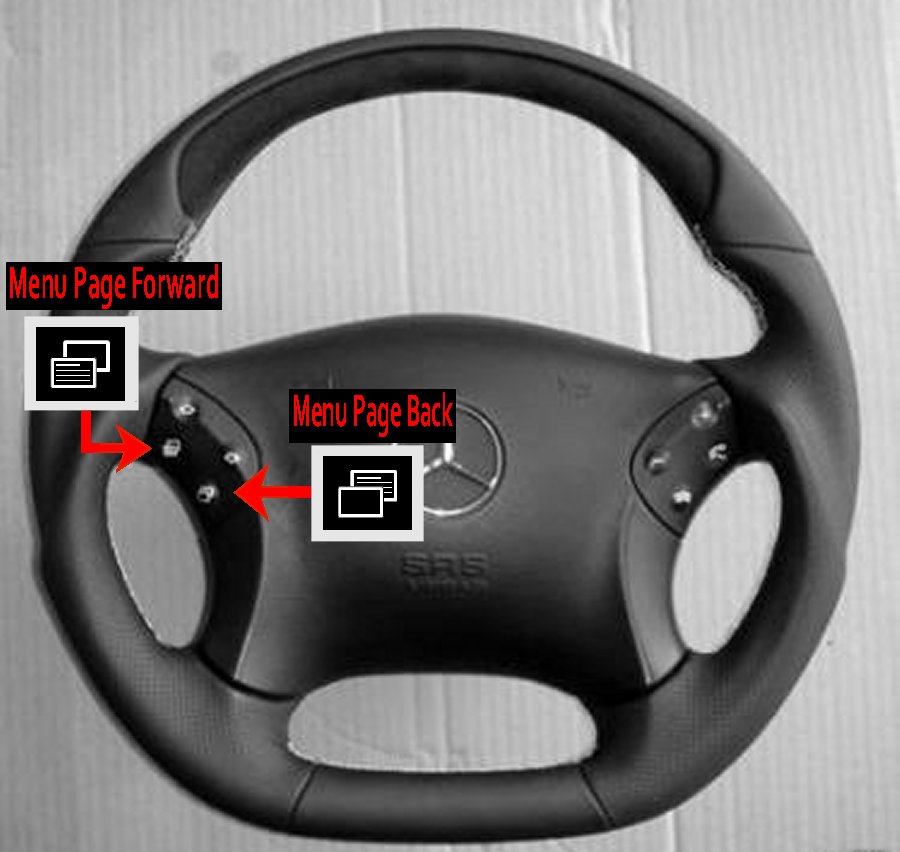

Steering Wheel - Version 2:

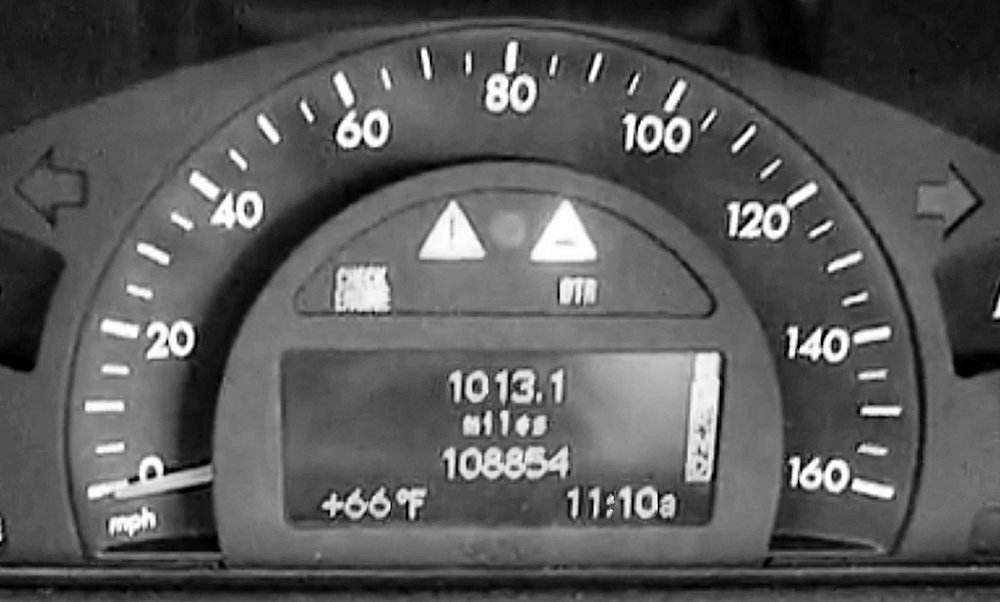

Early Model - Trip And Main Odometer Main-menus:
Late Model - Trip And Main Odometer Main-menus:
2. Press the Main Menu System selection buttons (-red arrows- located on the left-hand side of steering wheel) repeatedly to cycle through the various menus until the Trip Odometer/Main Odometer Menu, temperature, and time is displayed on the Multifunction Display.

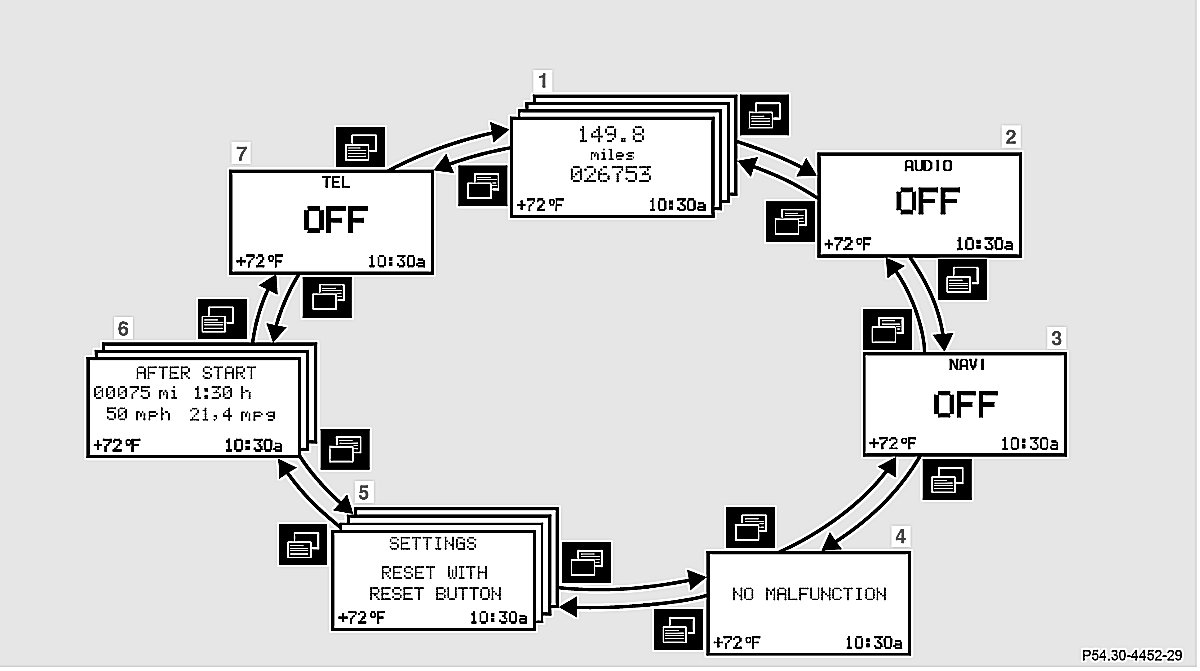

Multifunction Display - Main Menus:
1 - Trip odometer and main odometer menu
2 - Audio Systems menu
3 - Navigation system menu
4 - Malfunction message memory menu
5 - Individual settings menu
6 - Trip computer menu
7 - Telephone menu

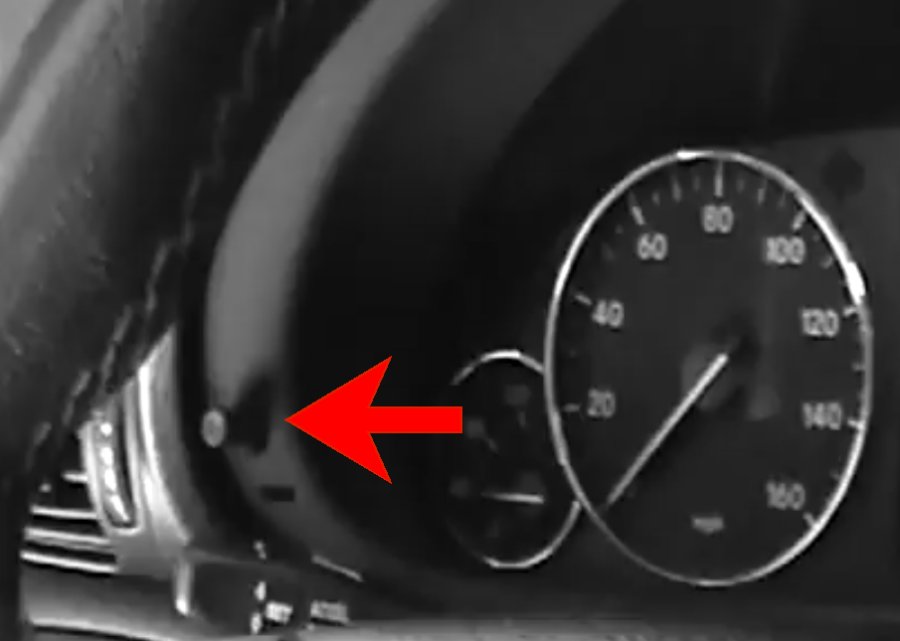

3. Quickly press and release the trip-odometer/instrument cluster illumination dimmer button (-red arrow- located on the lower left hand side of instrument cluster) three times. An acoustic beep signal will be heard and the vehicle voltage will display on the Multifunction dispaly.
4. Turn key in ignition lock to position "2".
Steering Wheel - Version 1:
Steering Wheel - Version 2:
Early Model - FSS (Flexible Service System) Sub-menu:
Late Model - FSS (Flexible Service Sub-menu:

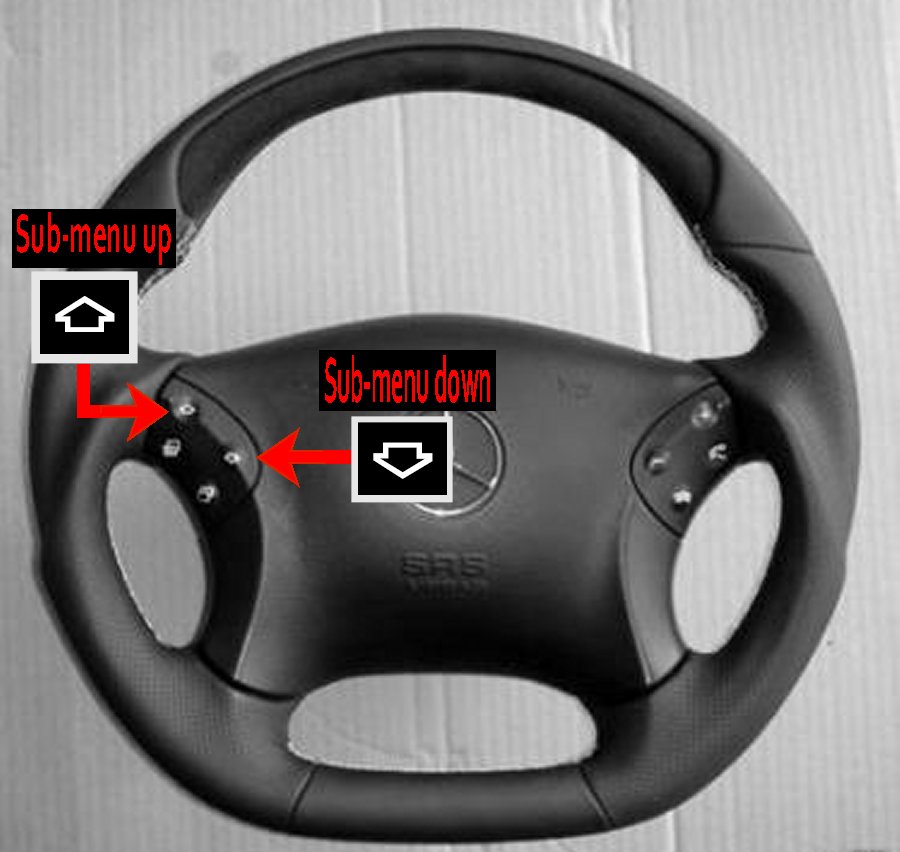

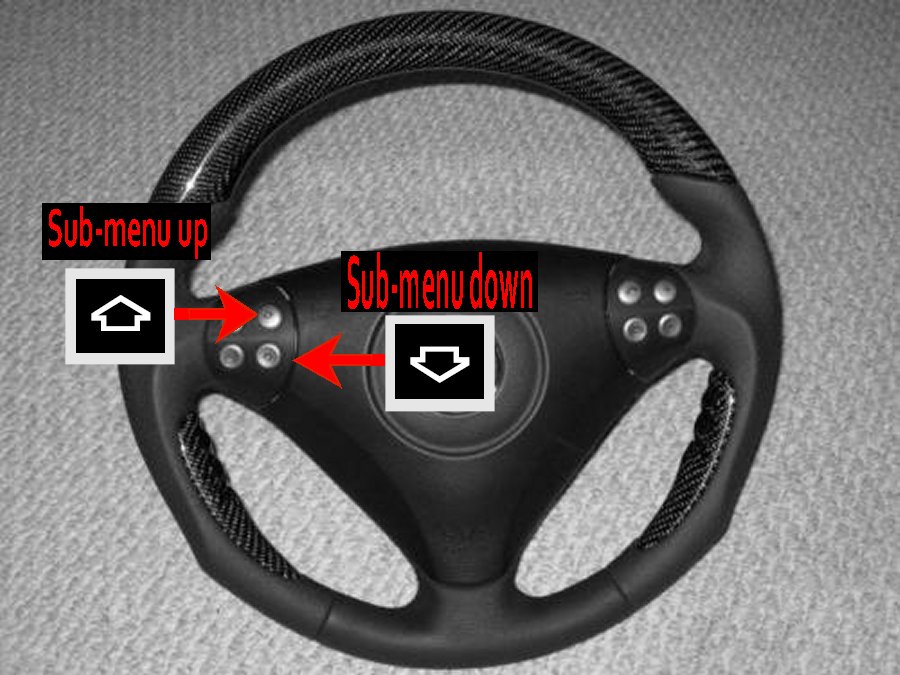

5. Press the Sub-menu System selection arrow buttons (-red arrow- located on the steering wheel) repeatedly to cycle through the various sub-menus until the FSS (Flexible Service System) sub-menu is displayed on the Multifunction Display.

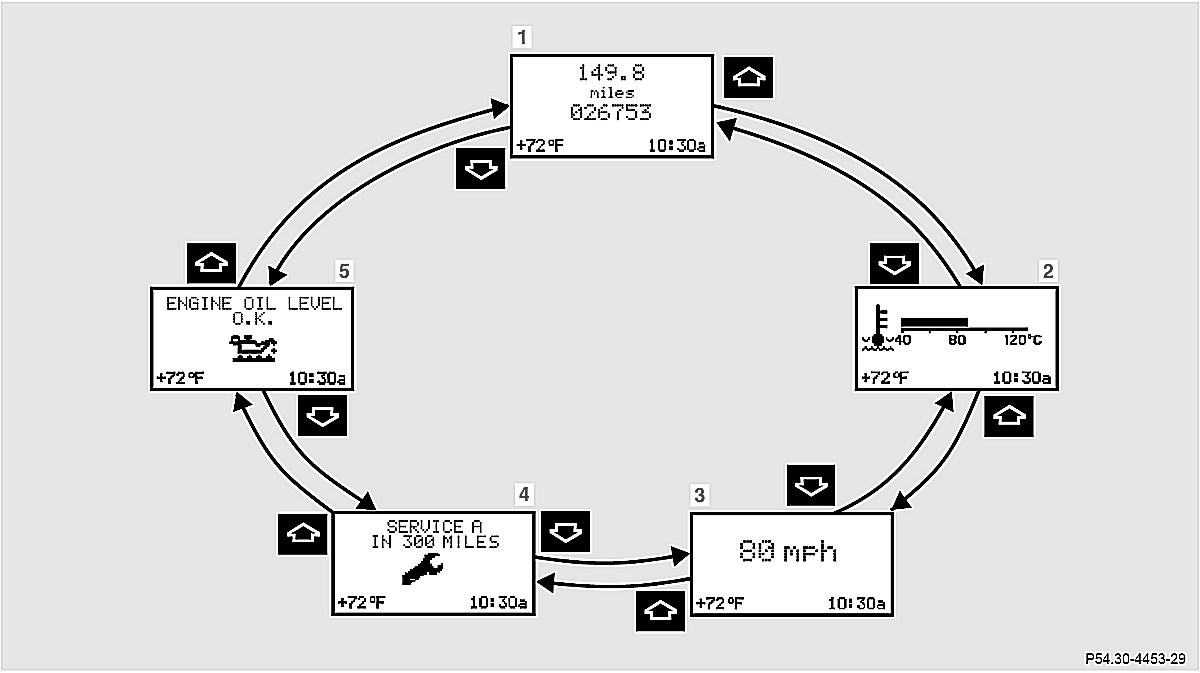

Trip And Main Odometer Sub-Menus:
1 - Trip odometer and main odometer sub-menu
2 - Coolant Temperature gauge sub-menu
3 - Vehicle speed sub-menu if "SPEED DISP" is selected in the individual settings menu
4 - FSS (Flexible Service System) sub-menu
5 - Engine oil level indicator sub-menu
6. Press and release the trip-odometer/instrument cluster illumination dimmer button (-red arrow- located on the lower left hand side of instrument cluster). The menu for "Oil Type" for selecting the specification of the engine oil used appears in the Multifunction Display.
Steering Wheel - Version 1:
Steering Wheel - Version 2:

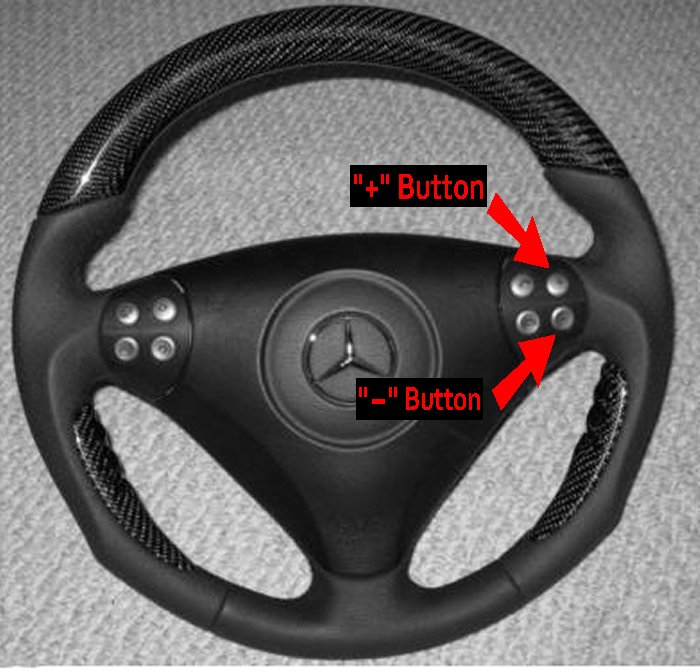

7. Select the engine oil grade type used by pressing and using the + and - buttons (-red arrow- located on the right-hand side of the steering wheel).
- Selections for oil grade type used:
- "Standard"
- Qual. 229.3
- Qual. 229.5
Steering Wheel - Version 1:
Steering Wheel - Version 2:

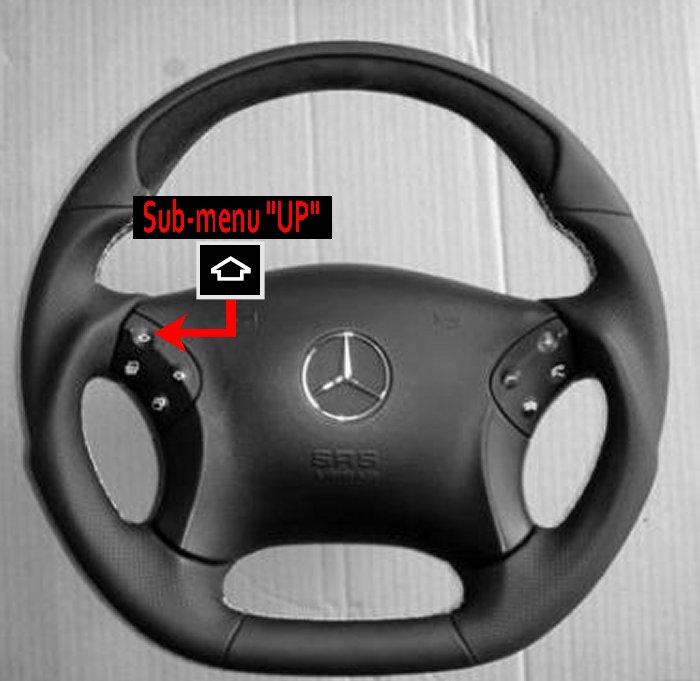

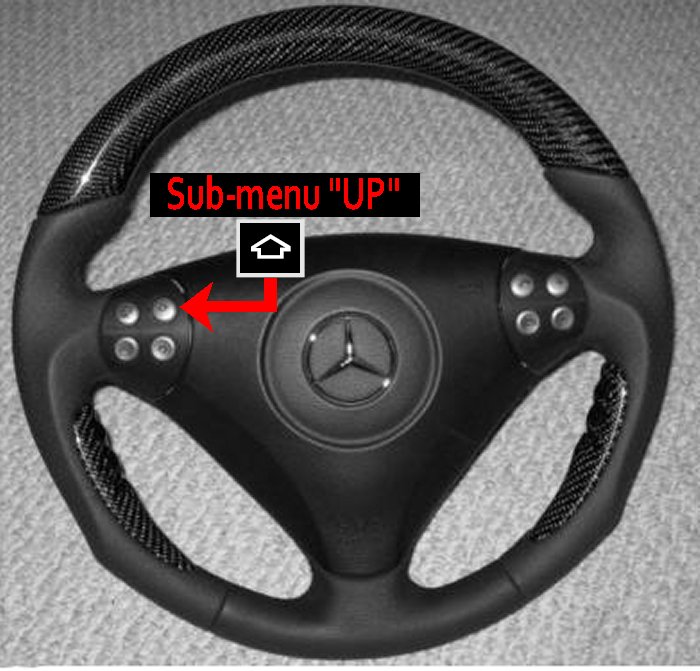

8. Press and hold the "UP" Sub-menu System selection button (-red arrow- located on the left-hand side of steering wheel) until the message "Confirm oil reset, press R button for 3 s" appears in the Multifunction Display.

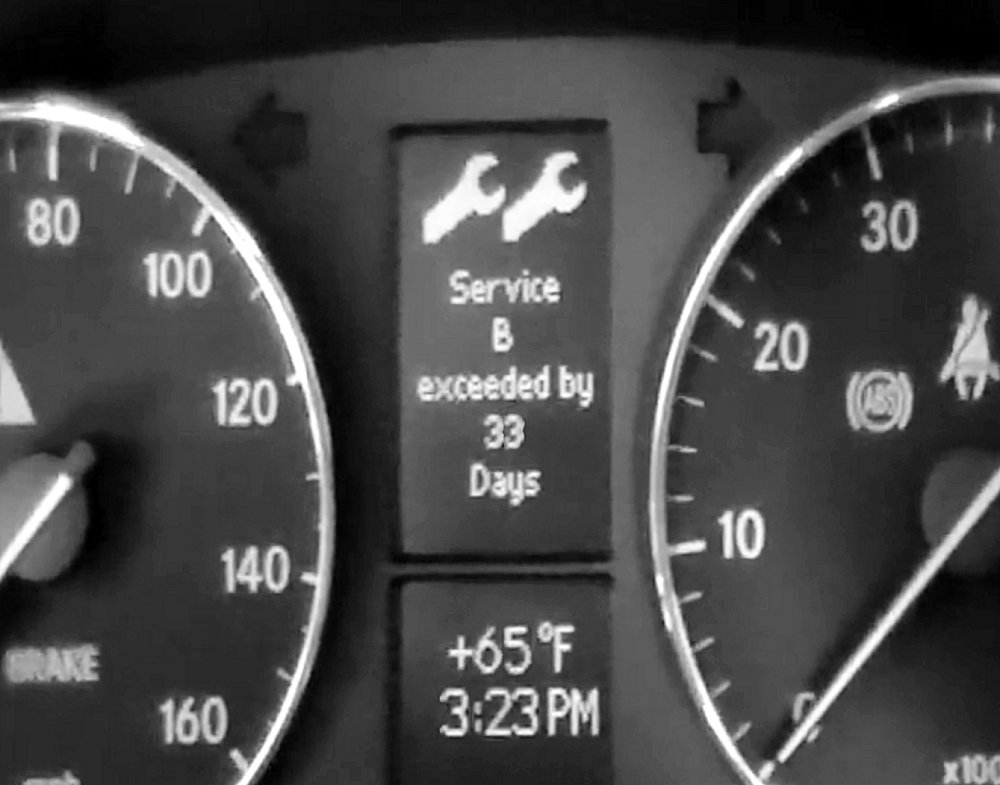

9. Press and hold the trip-odometer/instrument cluster illumination dimmer button (-red arrow- located on the lower left hand side of instrument cluster) until the message "Service Confirmed" appears in the Multifunction Display.
Steering Wheel - Version 1:
Steering Wheel - Version 2:
10. Press and release the "UP" Sub-menu System selection button (-red arrow- located on the left-hand side of steering wheel), the message "Service Indicator" appears in the Multifunction Display.
Steering Wheel - Version 1:
Steering Wheel - Version 2:

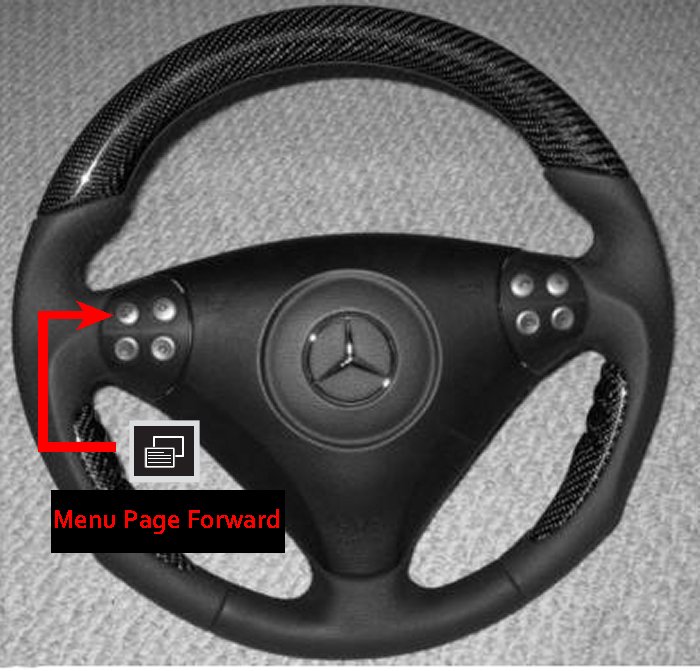

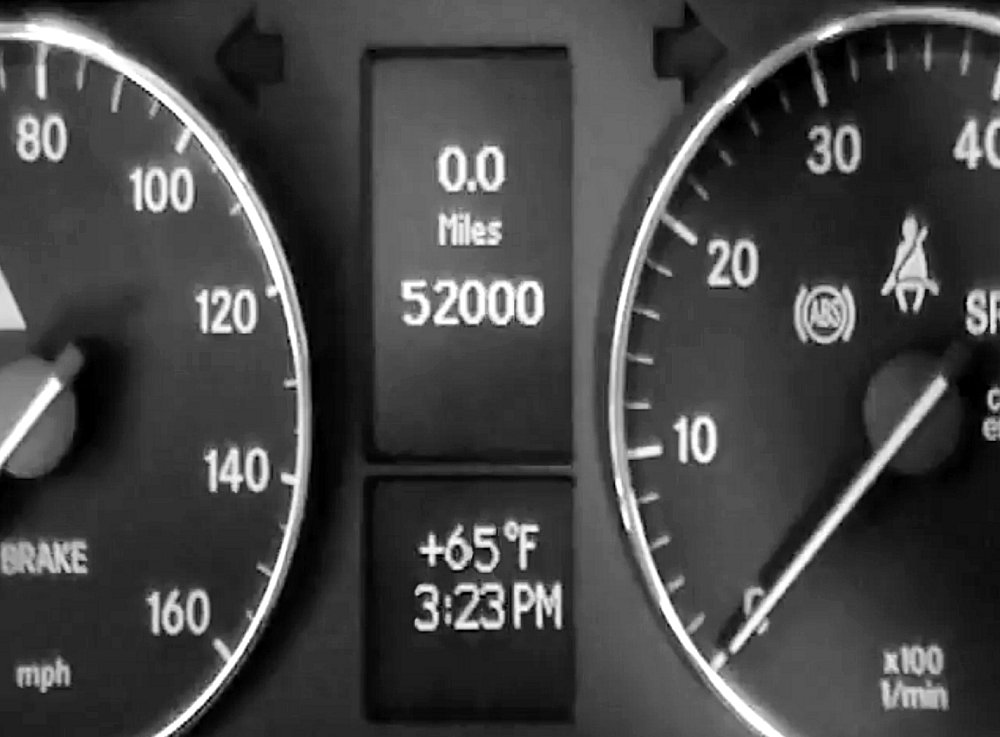

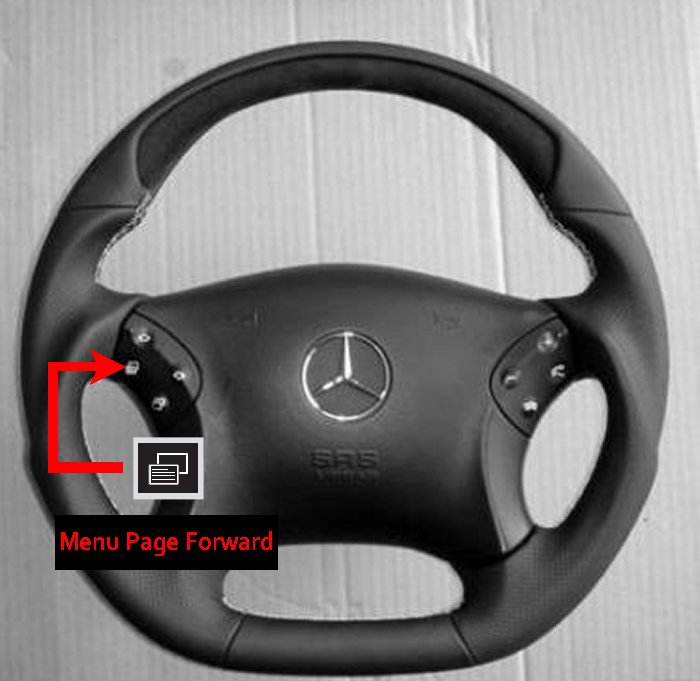

11. Press and release the Main Menu "Forward Menu" System selection buttons (-red arrows- located on the left-hand side of steering wheel), the basic display for "mileage reading or temperature display" or the "speed display" appears in the Multifunction Display.
12. Turn key in igntion lock to position "0".
