GF54.30-P-2011Q Function to Display Malfunction/Warning Indication Via Indication Lights

GF54.30-P-2011Q Function To Display Malfunction/warning Indication Via Indication Lights

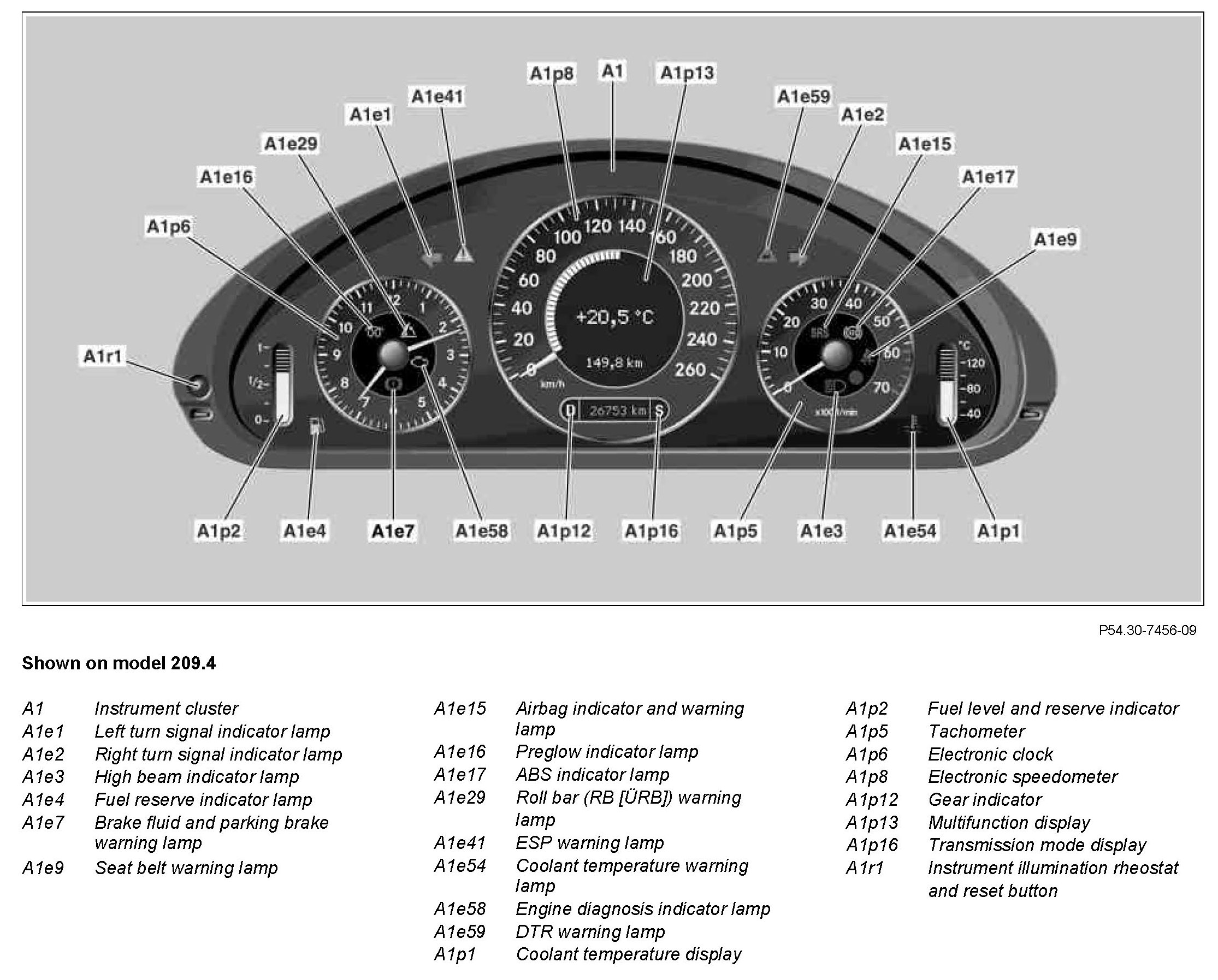

Component Identification:

Left turn signal indicator lamp (A1e1) and right turn signal indicator lamp (A1e2)
The following 2 lamps are integrated in the instrument cluster (A1) as an optical check:
^ left turn signal indicator lamp (A1e1)
^ Right turn signal indicator lamp (A1e2)

The left turn signal indicator lamp (A1e1) and right turn signal indicator lamp (A1e2) are actuated differently depending on the function.

Turn signals
With direction indicator flashing either the left turn signal indicator lamp (A1e1) or right turn signal indicator lamp (A1e2) are actuated. The signal for actuating the left turn signal indicator lamp (A1e1) or right turn signal indicator lamp (A1e2) comes via the controller Area Network bus Class B (interior) CAN-B from the steering column module (N80) to the rear SAM control unit with fuse and relay module (N10/2).

If one of the turn signal lamps fails, then the left turn signal indicator lamp (A1e1) or right turn signal indicator lamp (A1e2) is actuated at twice the frequency.

Hazard warning flashers
With hazard warning flashing the left turn signal indicator lamp (A1e1) and right turn signal indicator lamp (A1e2) are actuated. The signal for actuating with hazard warning flashing comes via CAN-B from the upper control panel control unit (N72/1).

Anti-theft alarm system (EDW) turn signal indicating
With hazard warning flashing the left turn signal indicator lamp (A1e1) and right turn signal indicator lamp (A1e2) are actuated. The signal for actuating with ATA alarm flashing comes from the rear SAM control unit with fuse and relay module (N10/2) via CAN-B.

While direction signaling is only possible when circuit 15 is switched ON, the other types of turn signal modes are also possible when circuit 15 is switched OFF. An acoustic signal accompanies the rhythmic flashing of the indicator lamp (A1h2).

When different demands for flasher operation are present, the system assigns hierarchical priorities in the following sequence:
^ Electronic alarm system flashers (highest priority)
^ Hazard warning flashers (2nd priority)
^ Turn indicators (3rd priority)

High beam indicator lamp (A1e3)
With "High beam ON" and "Headlamp flasher" the actuation of the high beam indicator lamp (A1e3) takes place by the front SAM control unit with fuse and relay module (N10/1) via CAN-B.

Fuel reserve warning lamp (A1e4)
The fuel reserve indicator lamp (A1e4) lights up when the fuel level sinks to the reserve level. Control of this lamp is linked to the fuel level and reserve gage (A1p2).

Brake fluid and parking brake warning lamp (A1e7)
If at the start of a journey the parking brake is not released or the minimal level of the brake fluid is dropped below, the brake fluid and parking brake warning lamp (A1e7) is actuated. The signal for actuating the brake fluid and parking brake warning lamp (A1e7) comes from the front SAM control unit with fuse and relay module (N10/1) via CAN-B.

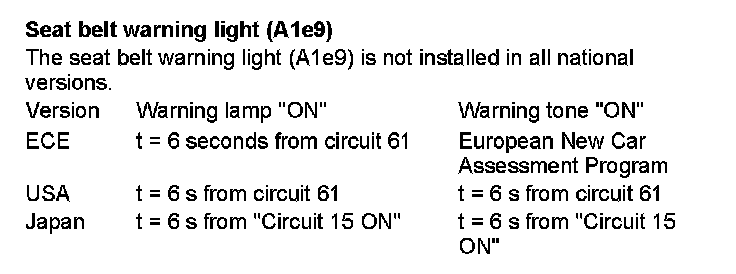

European New Car Assessment Program:
The warning tone frequency t = 6 seconds is switched off immediately when the driver and front passenger are belted up.
The timer control t = 93 seconds runs on in the background. If the driver and front passenger undo their seat belts within this time the warning tone frequency is output again.

This warning is output once for the journey, but CAN-Be reset active by:
^ Vehicle speed more than 5 km/h
^ Driver door opened

The signal for actuating the seat belt warning lamp (A1e9) comes from the driver front seat adjustment control unit with memory and easy entry (N32/1) via CAN-B.

Airbag indicator and warning lamp (A1e15)
The airbag indicator and warning lamp (A1e15) is triggered when there is a fault in the supplemental restraint system (SRS). It is triggered directly by the restraint systems control unit (N2/7).

ABS indicator lamp (A1e17)
The ABS indicator lamp (A1e17) is actuated if there is a fault in the antilock brake system (ABS). The signal for actuating the ABS indicator lamp (A1e17) comes from the ESP and BAS control unit (N47-5) via CAN-C.


Engine diagnosis indicator lamp (A1e58) or CHECK ENGINE indicator lamp (A1e26)
Depending on country variant, vehicles are equipped with either the engine diagnosis malfunction indicator lamp (A1e58) or the CHECK ENGINE malfunction indicator lamp (A1e26). The engine diagnosis indicator lamp (A1e58) or CHECK ENGINE indicator lamp (A1e26) is actuated if there is a fault in the injection system, in the ignition system or in the exhaust emission system. The signal for actuating the engine diagnosis indicator lamp (A1e58) or CHECK ENGINE indicator lamp (A1e26) comes from the CDI control unit (N3/9) or ME-SFI [ME] control unit (N3/10) via CAN-C.

DTR warning lamp (A1e59) with code (219) Distronic (DTR)
If the safe distance to the vehicle ahead is not maintained the DTR warning lamp (A1e59) lights up red, in addition an acoustic message sounds. The signal for actuating the DTR warning lamp (A1e59) comes from the DTR control unit (N63/1) via CAN-C.

On vehicles except code (219) Distronic (DTR) the DTR warning lamp (A1e59) lights up with status "Circuit 15R ON", the DTR warning lamp (A1e59) goes out with status "Circuit 61 ON" (engine running). It has no function.

Roll bar (RB [�RB]) warning lamp (A1e29) on model 209.4
If the roll bars (RB) have triggered, the roll bar (RB [�RB]) warning lamp (A1e29) is actuated directly by the power soft top control unit (N52) via CAN-B.

Light sources
The light sources employed for the indicator lamps are bulbs.

Apart from the actuations described above all the indicator lamps and warning lamps are also actuated on the lamp test with the exception of the following indicator lamps and warning lamps:
^ left turn signal indicator lamp (A1e1)
^ Right turn signal indicator lamp (A1e2)
^ High beam indicator lamp (A1e3)
^ Seat belt warning lamp (A1e9)
^ Preglow indicator lamp (A1e16)

Triggering and illumination of some indicator and warning lamps (such as the engine diagnosis indicator lamp A1e58) is accompanied by the appearance of a malfunction message in the right-side multifunction display (A1p13). While some categories of message CAN-Be acknowledged and canceled, the warning and indicator lamps remain on for as long as the problem remains present. Messages cannot be acknowledged.
