AR83.30-P-6521P Remove/Install Drier Cartridge



AR83.30-P-6521P Remove/Install Drier Cartridge

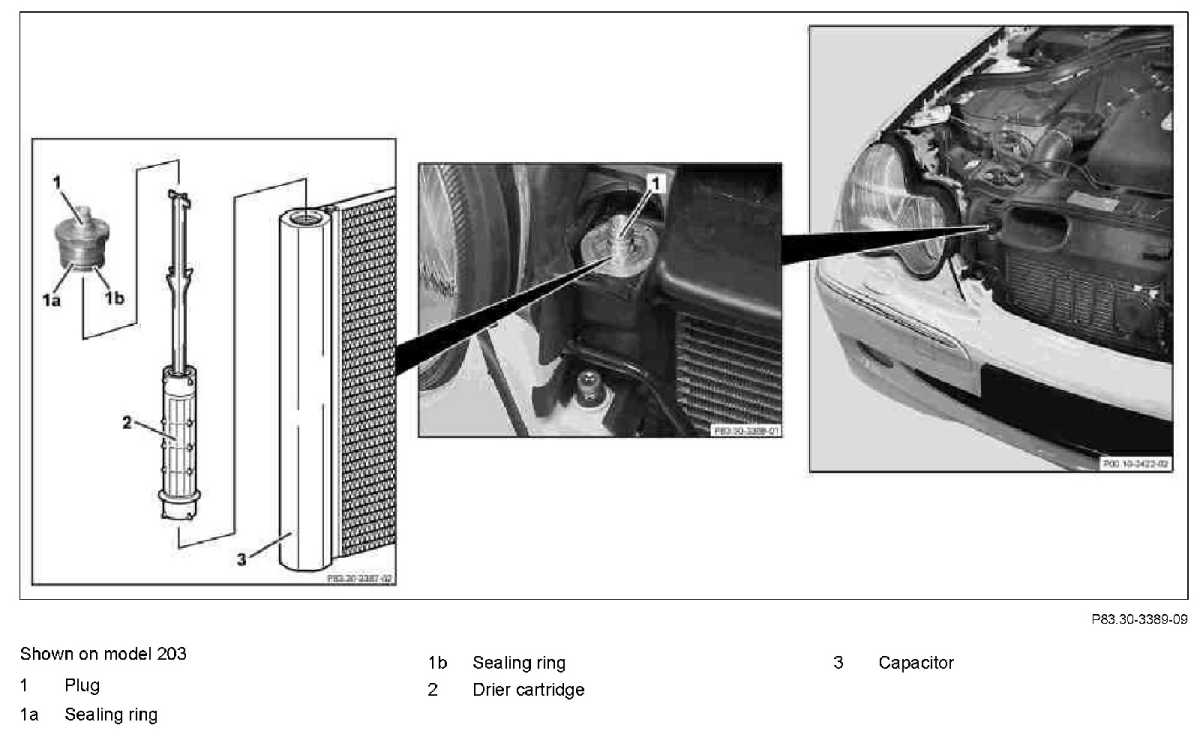

- Desiccant cartridge at side
- with CODE (580) Automatic air conditioning [model 203]
- with CODE (581) Comfort automatic air conditioning [model 203]

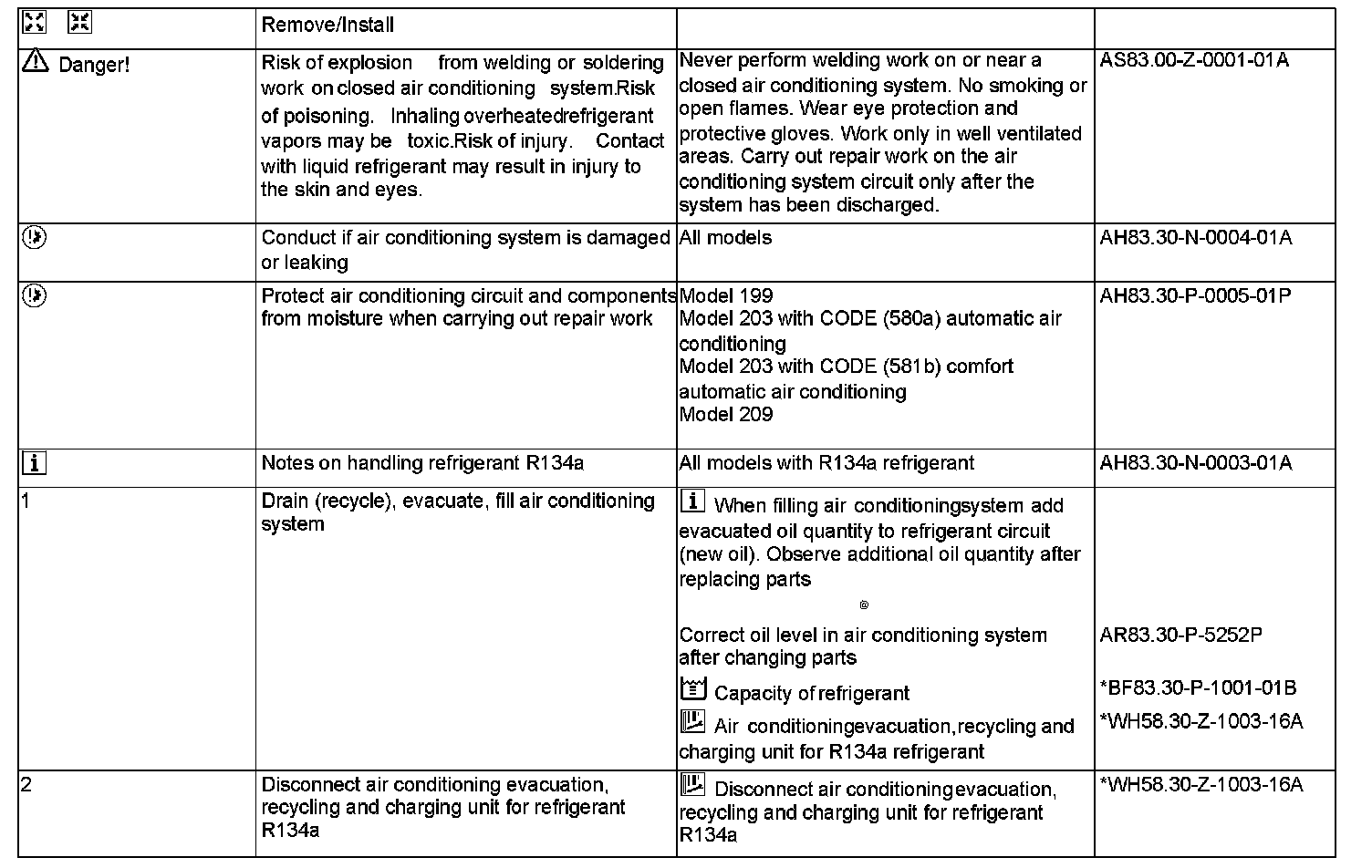

Part 1:

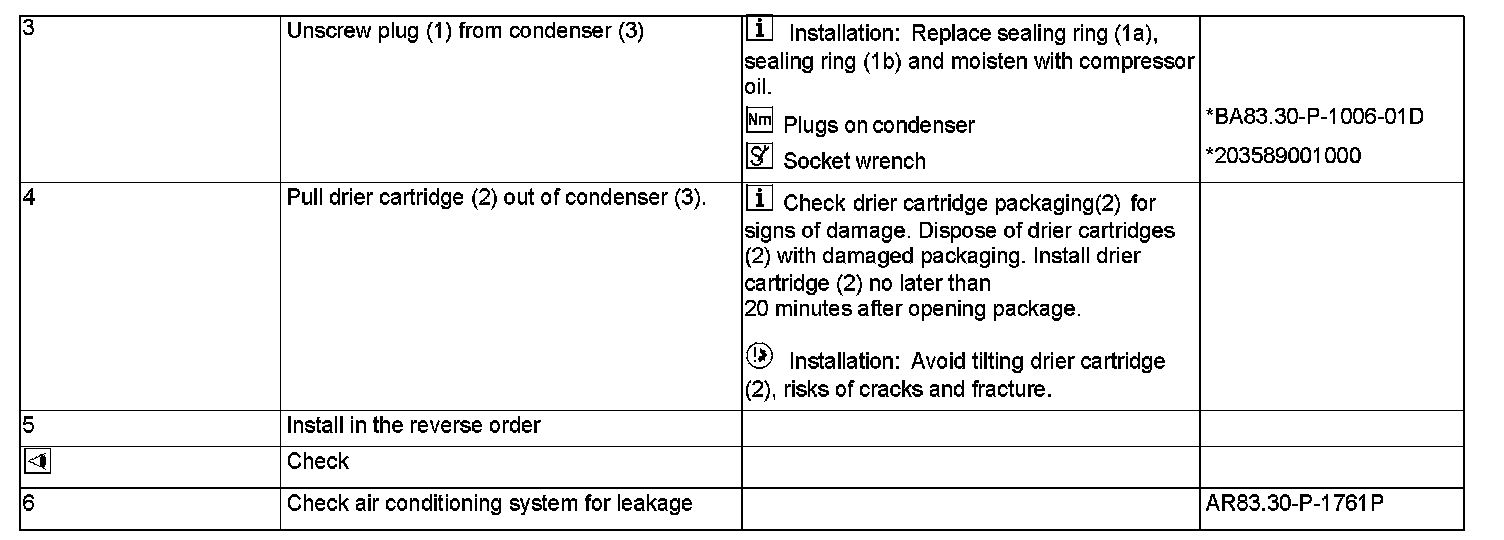

Part 2:

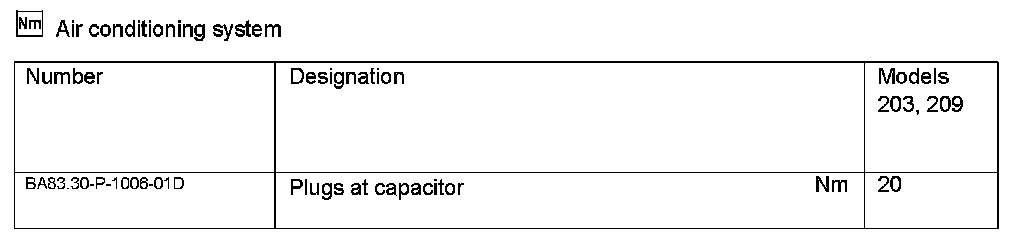

Air Conditioning System:

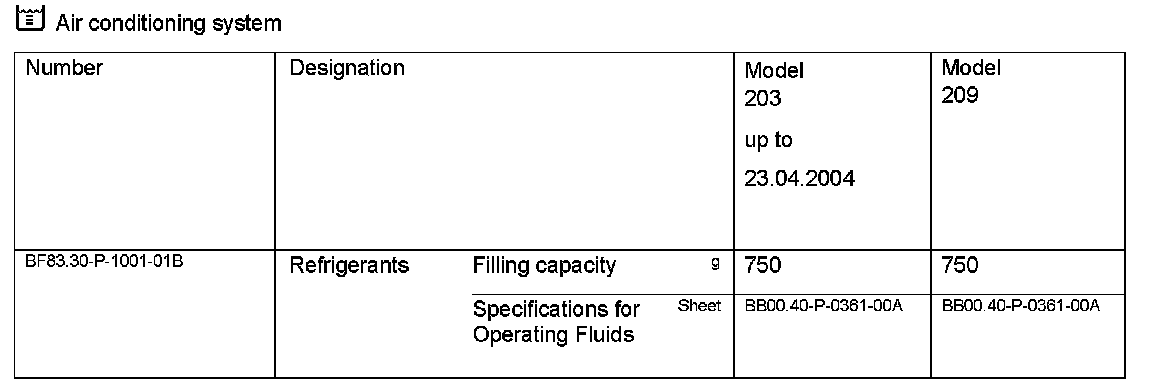

Air Conditioning System:
