AR83.40-P-6350QA Remove and Install Pushbutton Control Unit
AR83.40-P-6350QA Remove and Install Pushbutton Control Unit
AR83.40-P-6350QA Remove and Install Pushbutton Control Unit

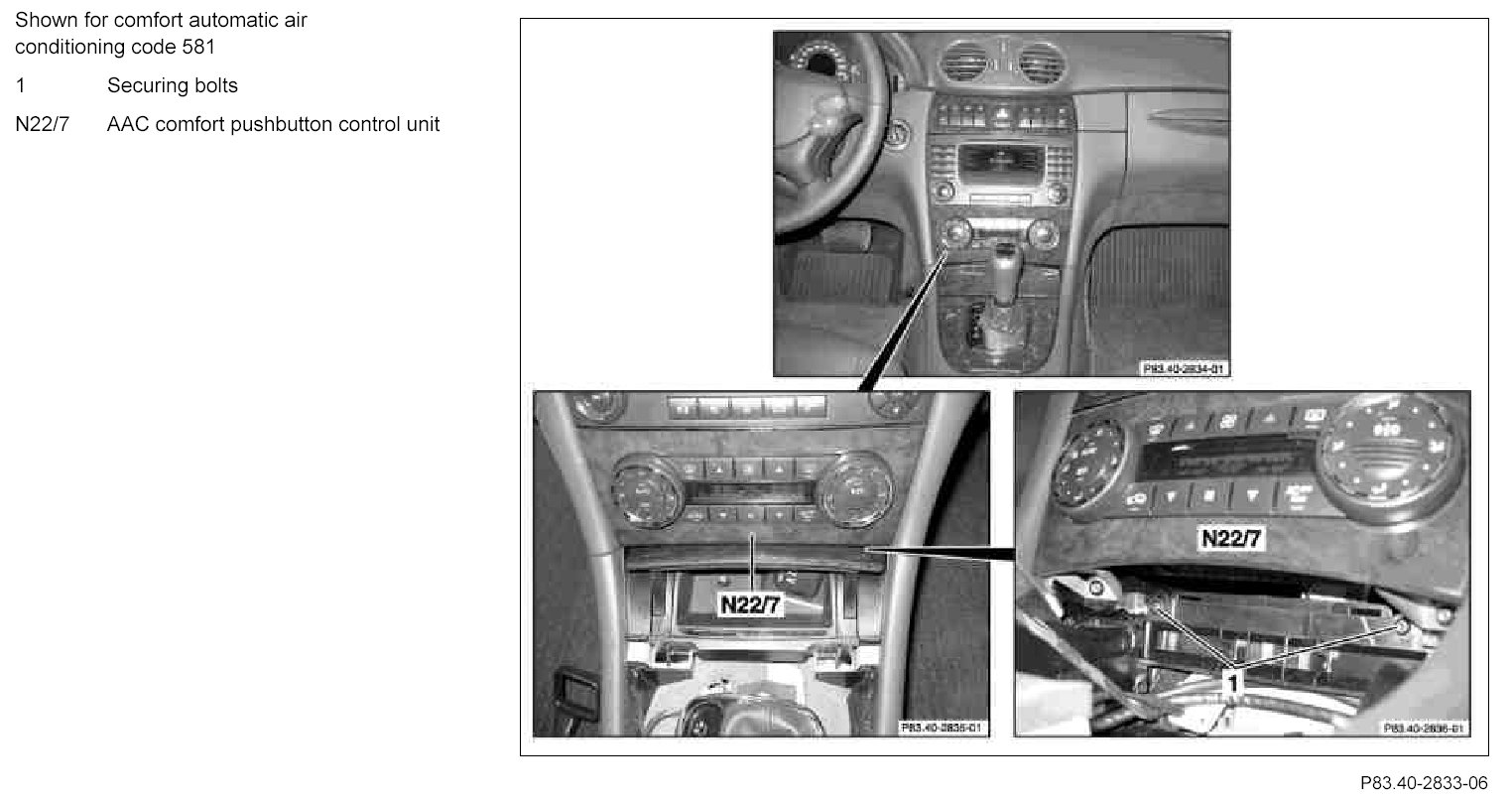

Component Identification:

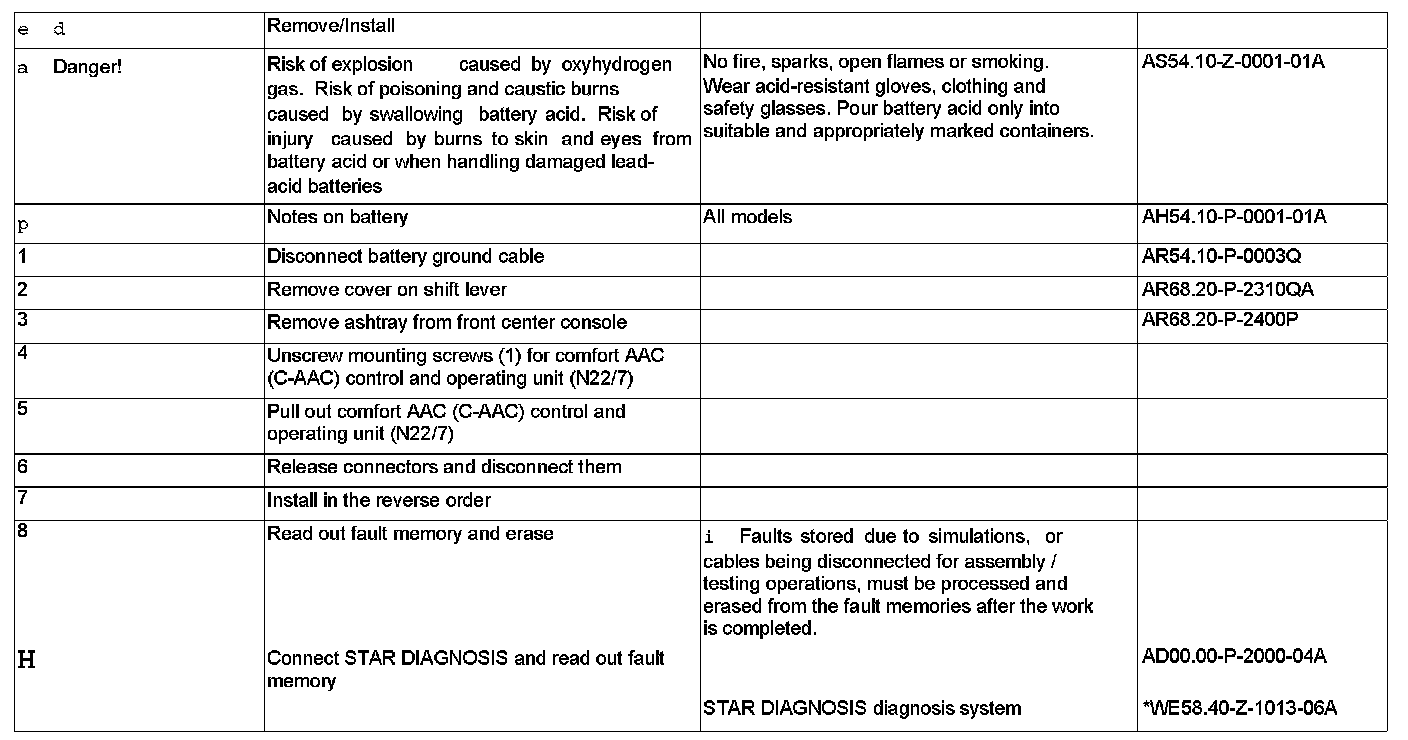

Steps 1 - 8:

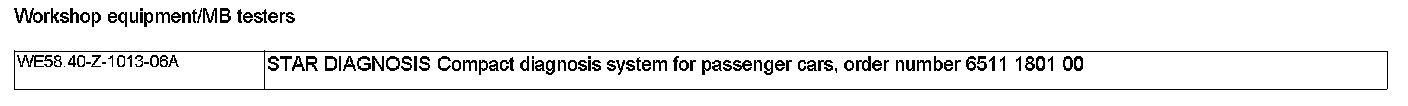

Workshop Equipment/MB Testers:
