AR83.55-P-7685B Remove/Install Refrigerant Compressor Belt Pulley



AR83.55-P-7685B Remove/install Refrigerant Compressor Belt Pulley

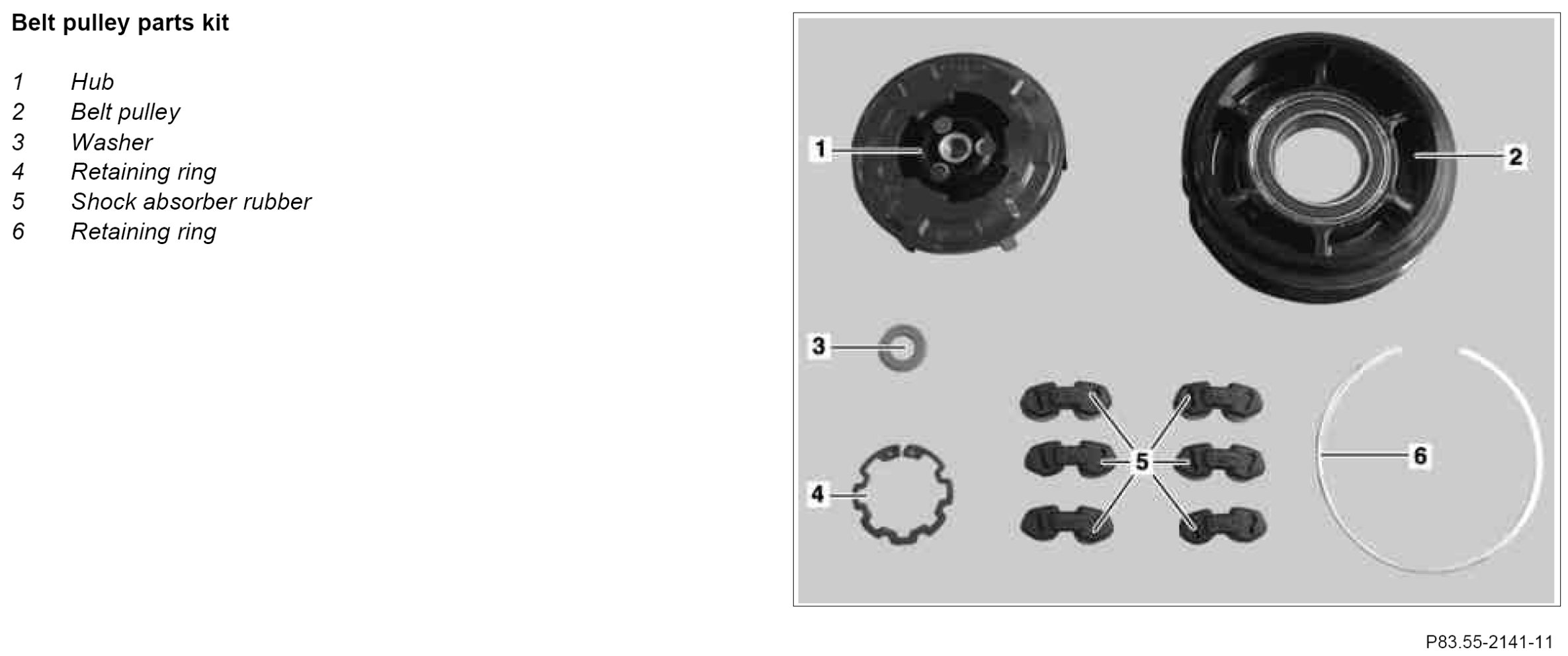

Belt pulley parts kit


Component Identification:

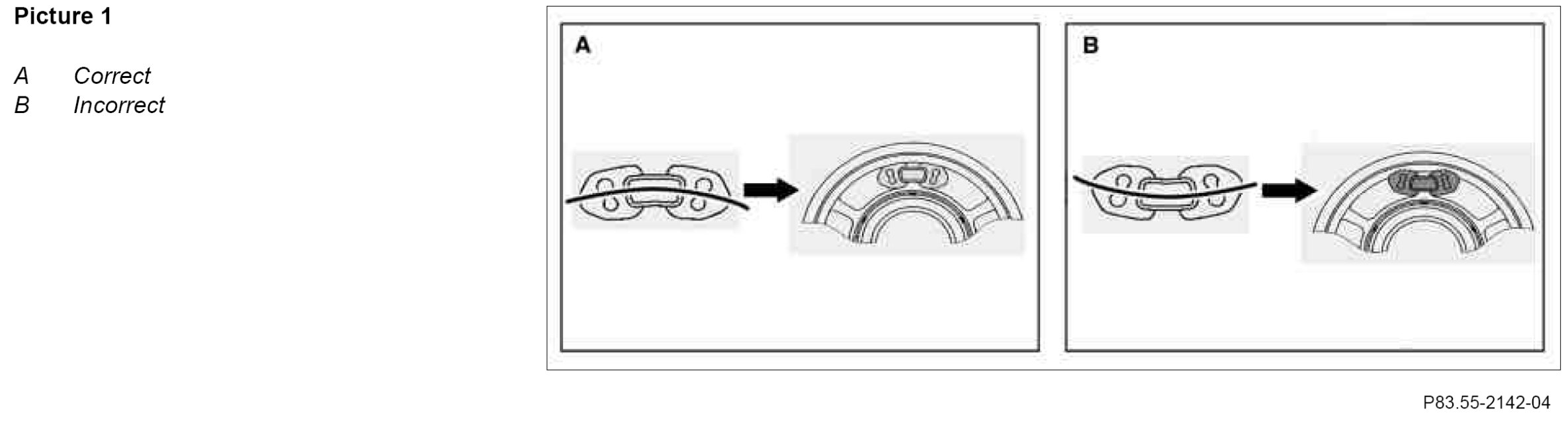

Picture 1


Component Identification:

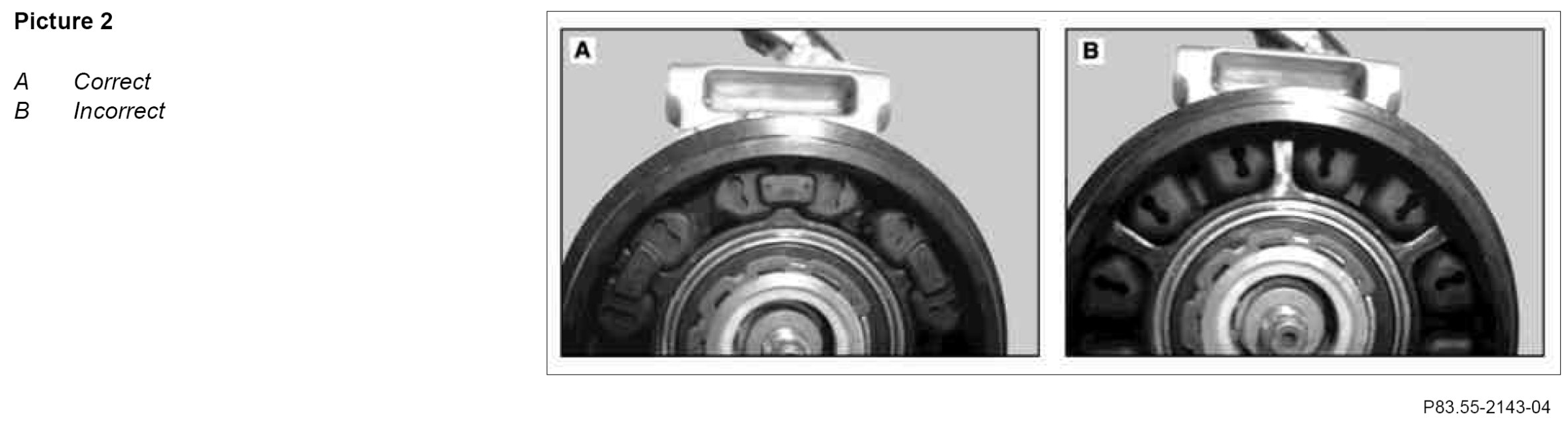

Picture 2


Component Identification:

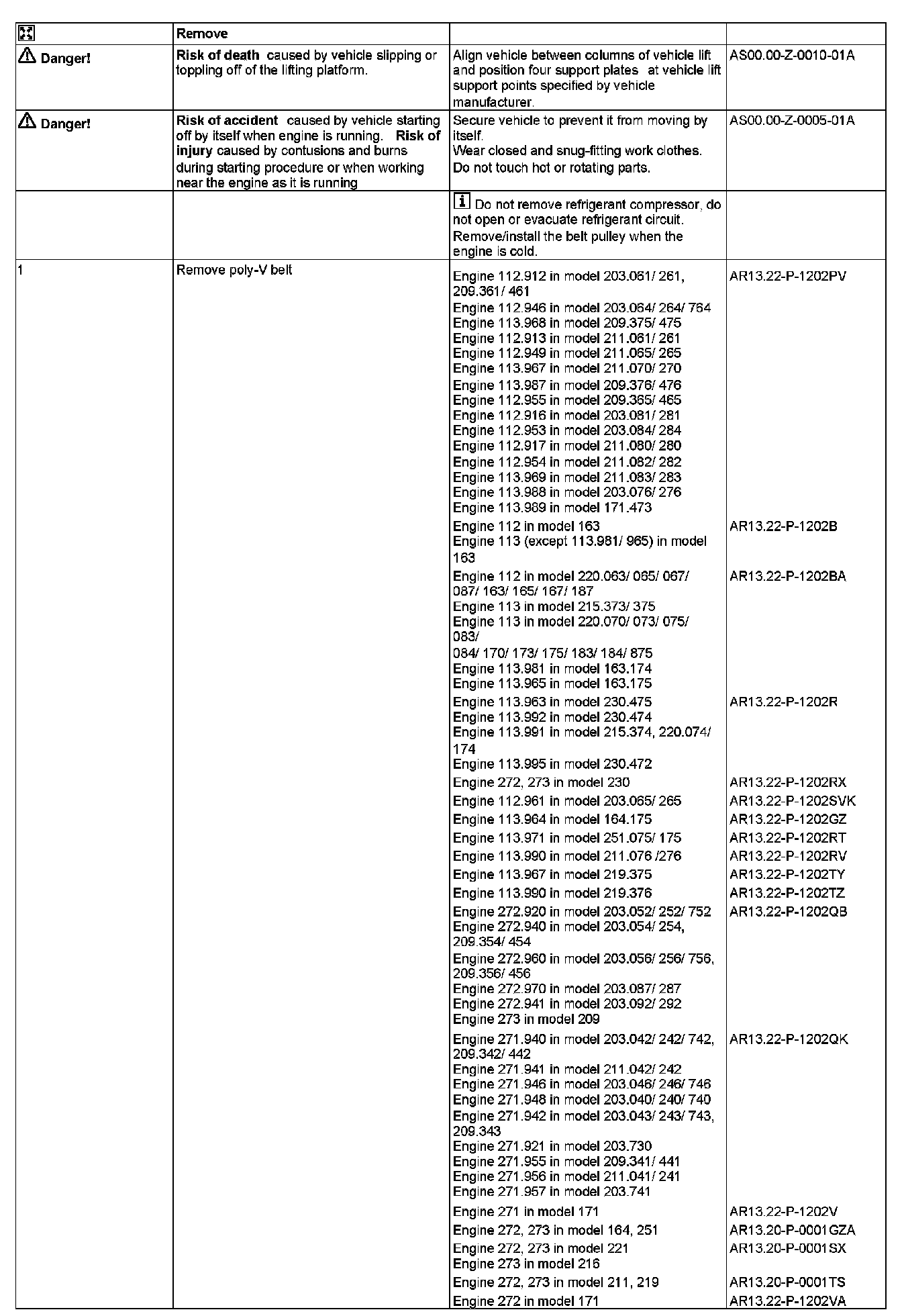

Step 1:

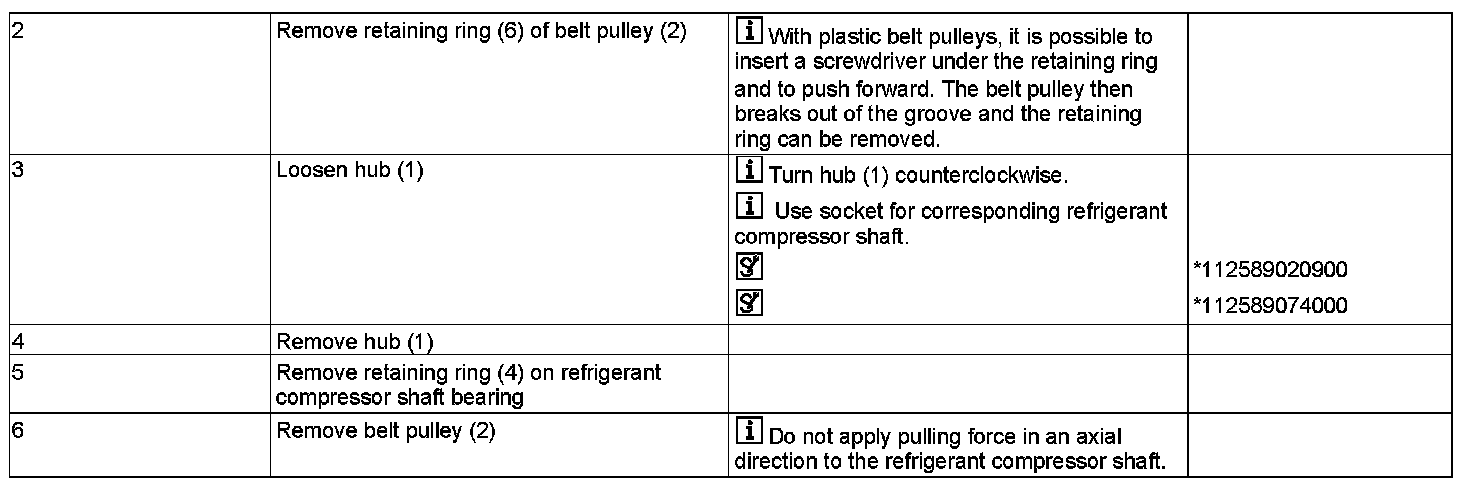

Steps 2-6:

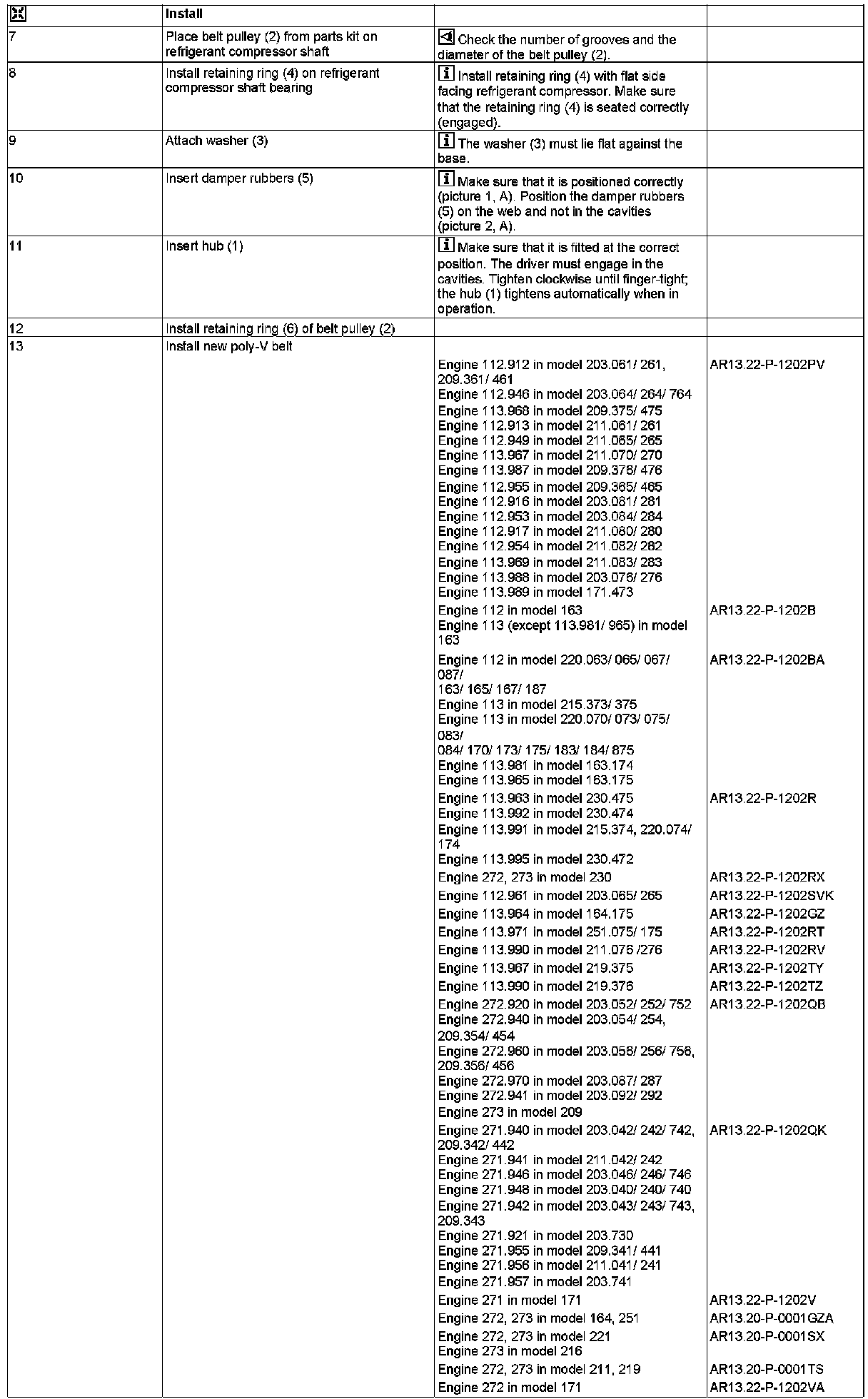

Steps 7-13:

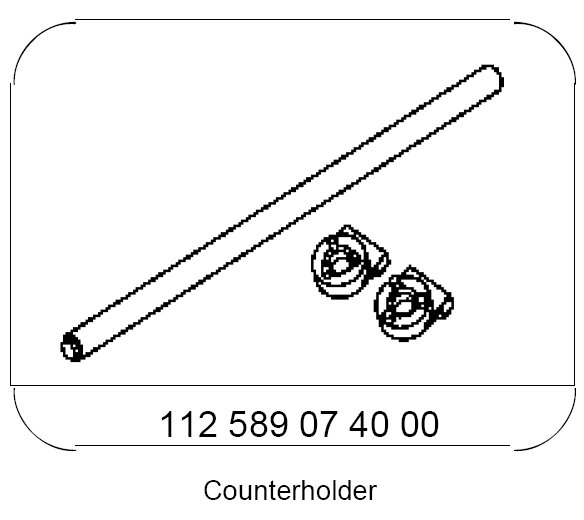

Special Tools:

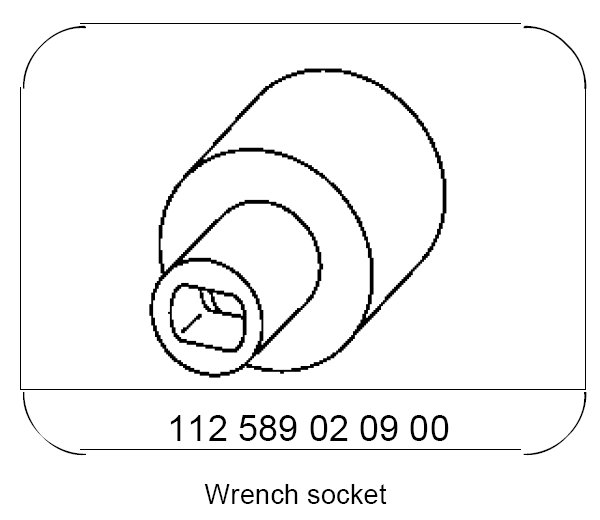

Special Tools:
