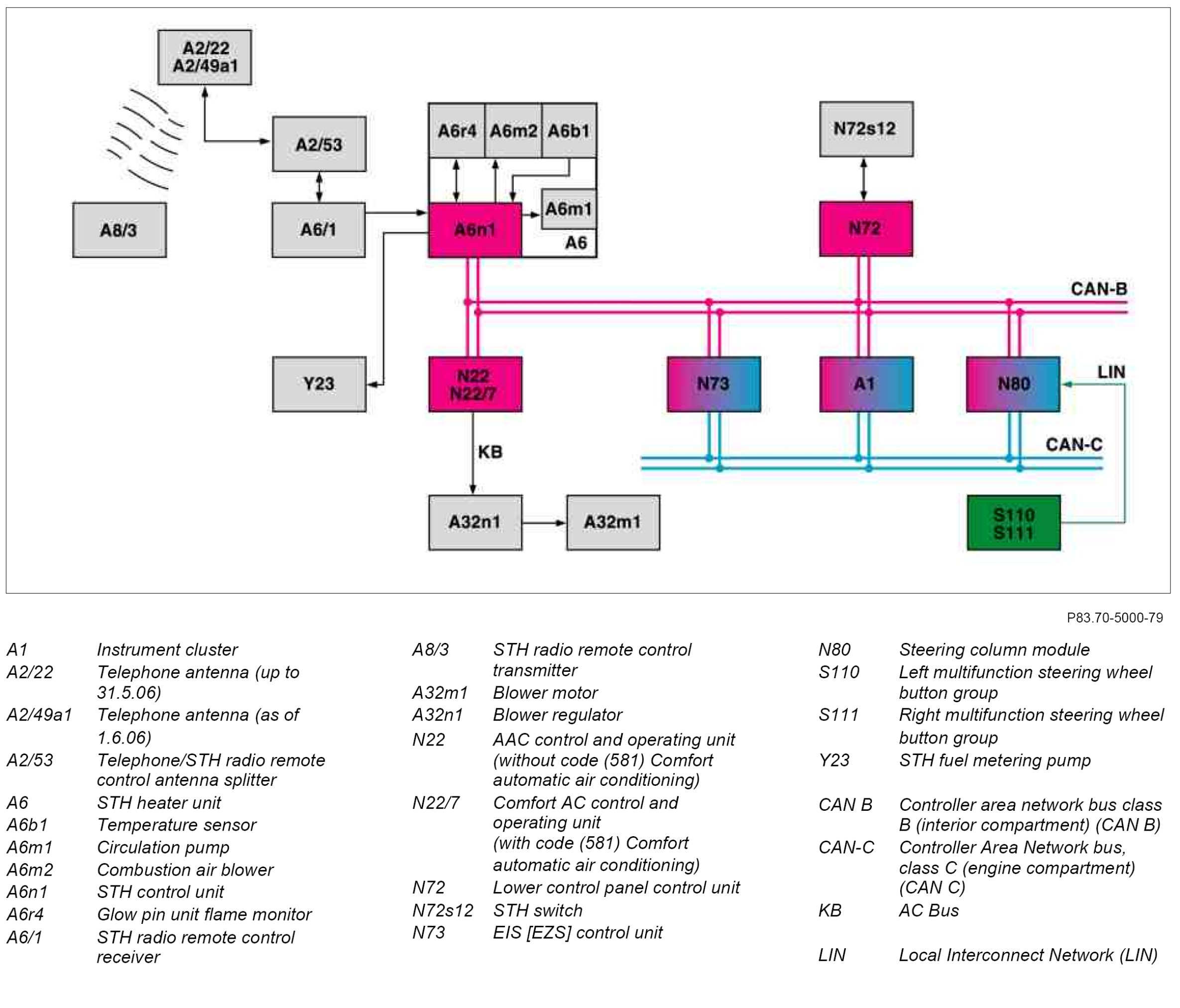

GF83.70-P-0006-02QA Stationary Heater (STH) Networking of Components



GF83.70-P-0006-02QA Stationary Heater (STH) Networking Of Components
- with CODE (228) Stationary heater


Component Identification:
