AZ49.10-P-0001Q Retrofit AMG Muffler System
AZ49.10-P-0001Q Retrofit AMG Muffler System
AZ49.10-P-0001Q Retrofit AMG
muffler
system

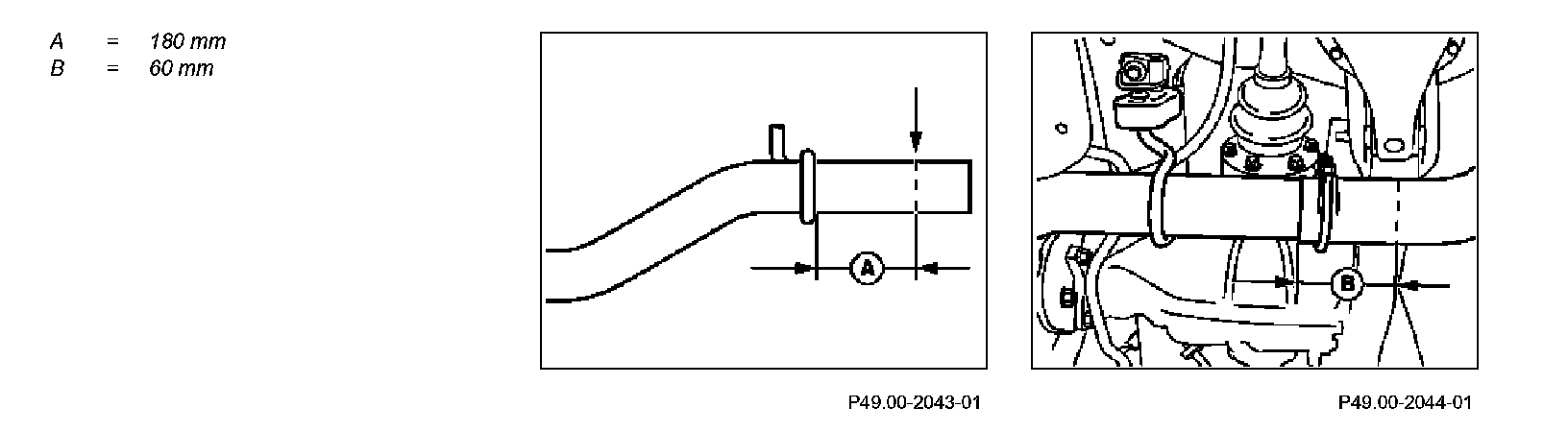

Component Identification:

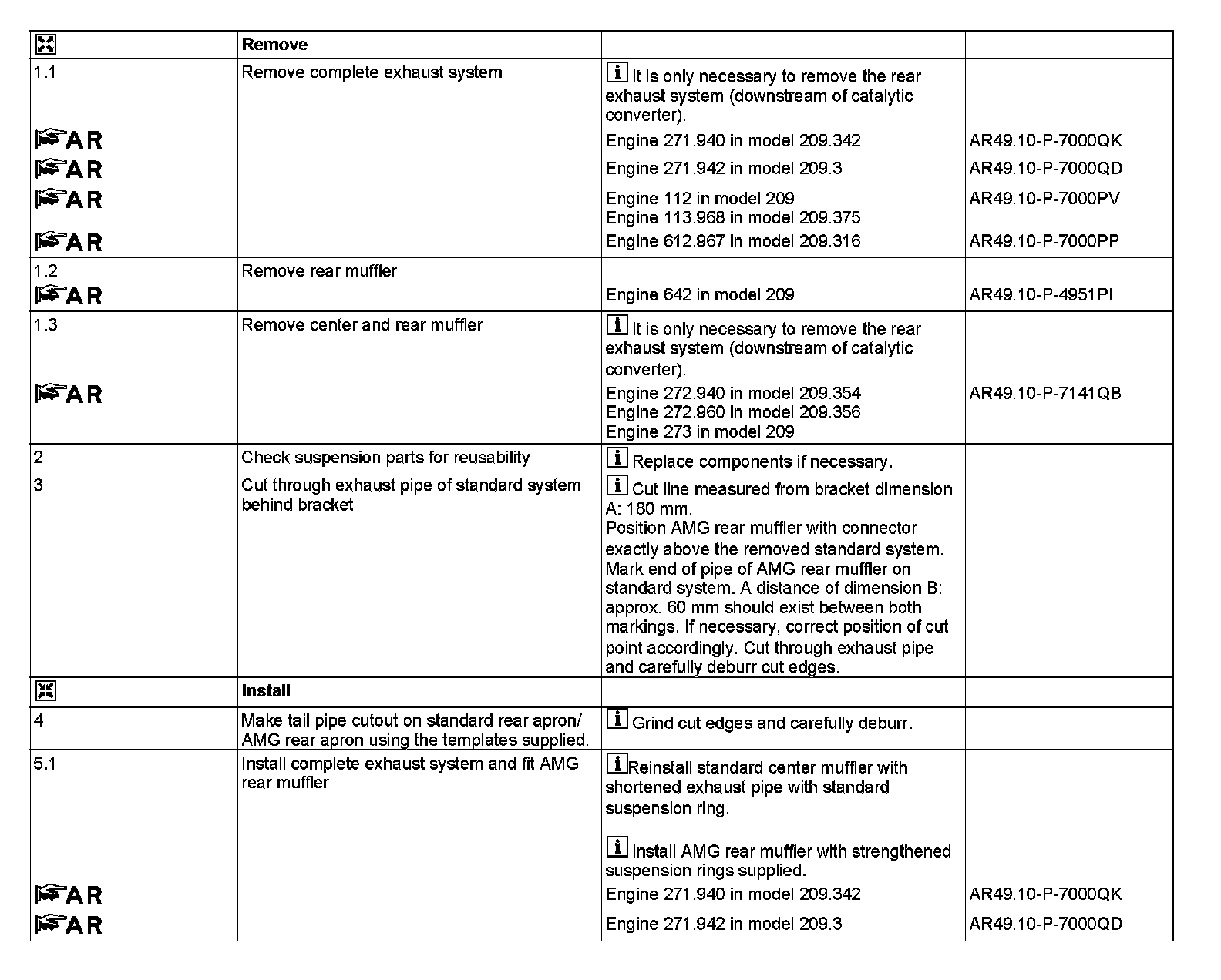

Steps 1.1-5.1:

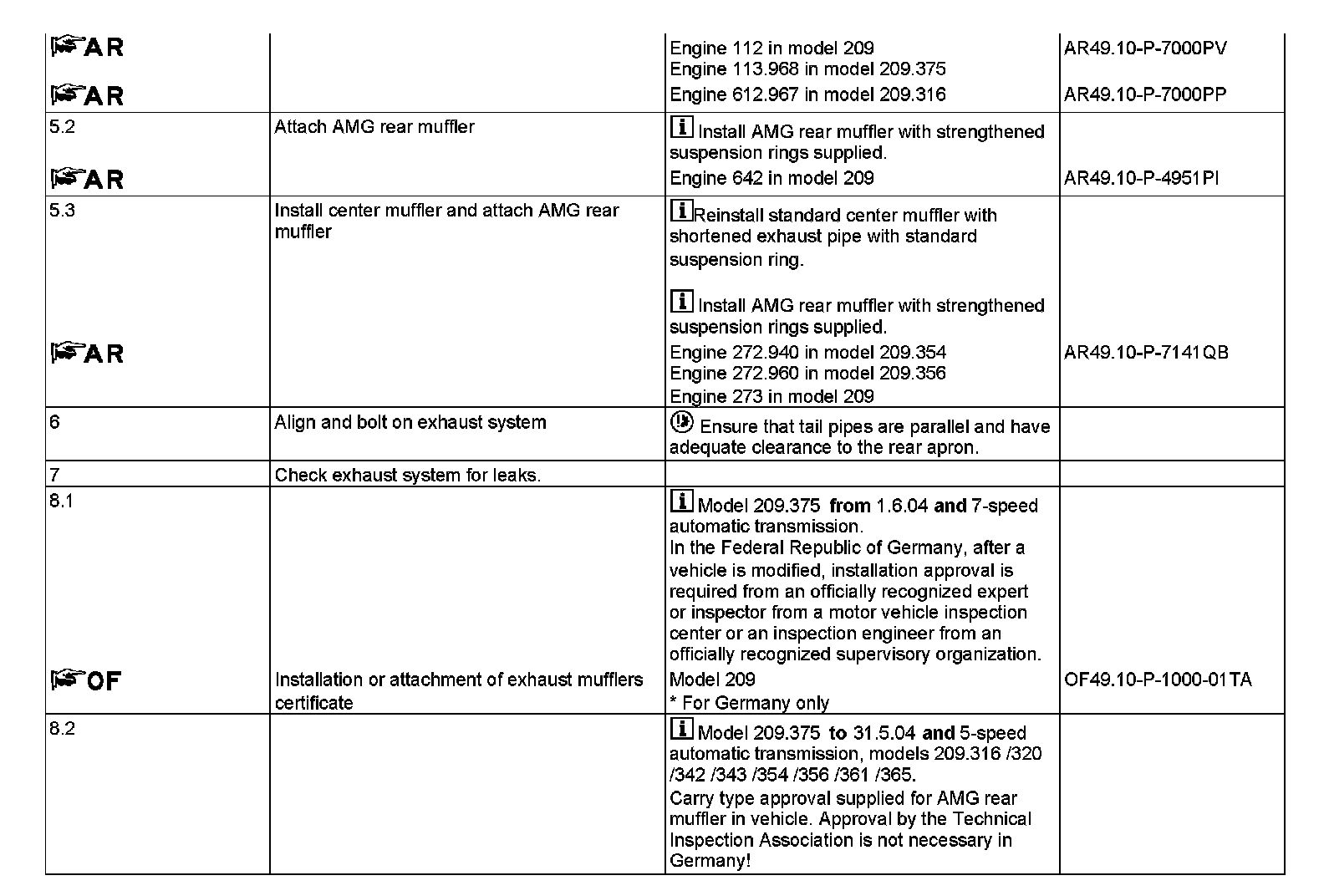

Steps 5.1 (Continued)-8.2:
Parts ordering notes:
