AZ49 10-P-0001Q Retrofit AMG Muffler System
AZ49 10-P-0001Q Retrofit AMG Muffler System
Retrofitting AMG
muffler
system

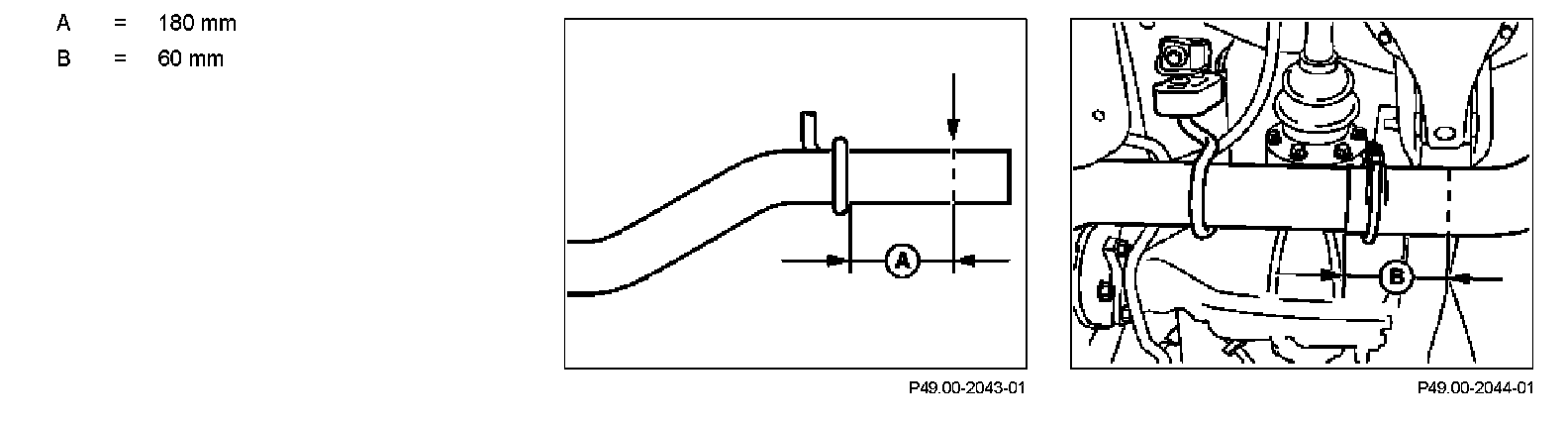

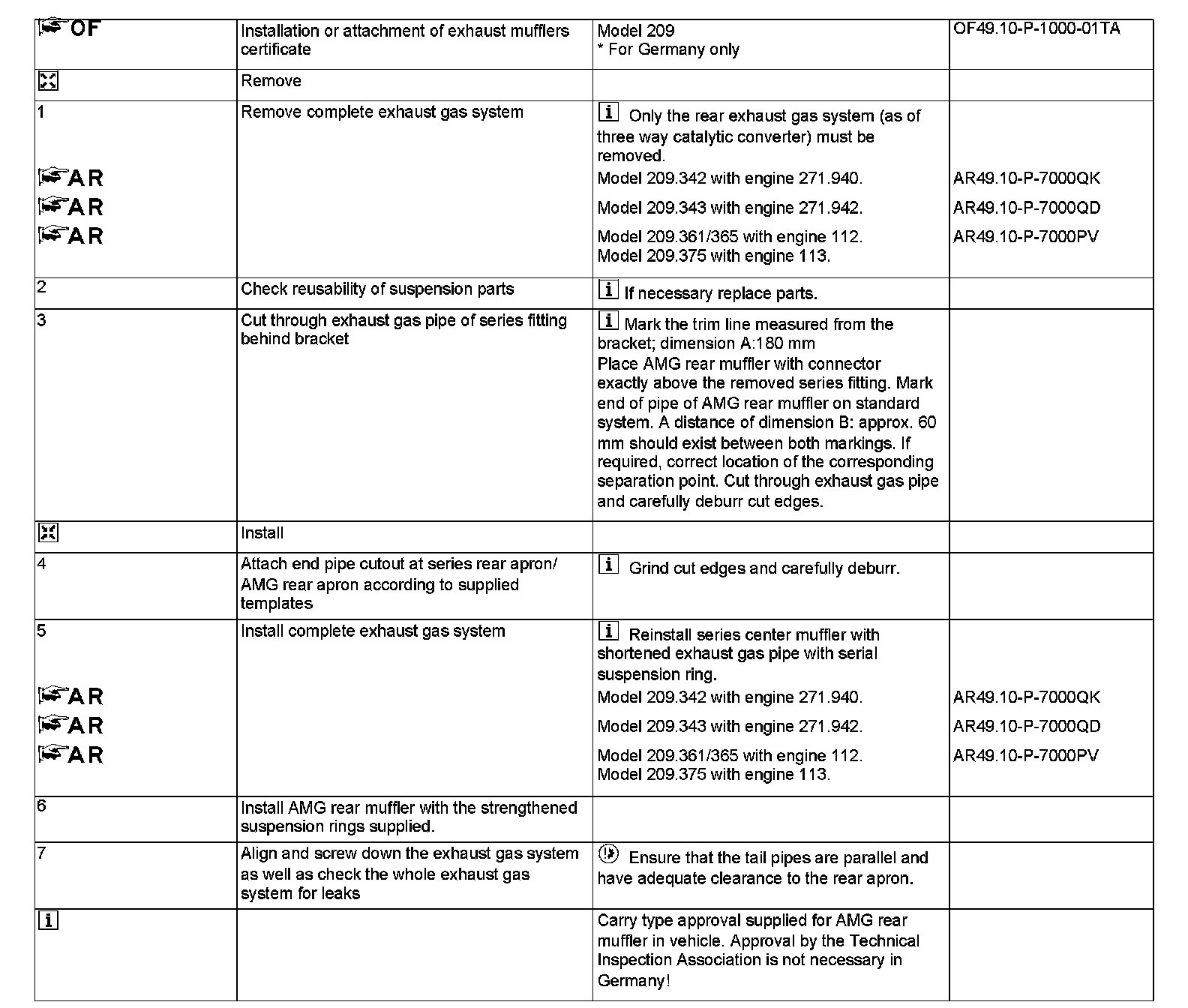

Steps 1-7:

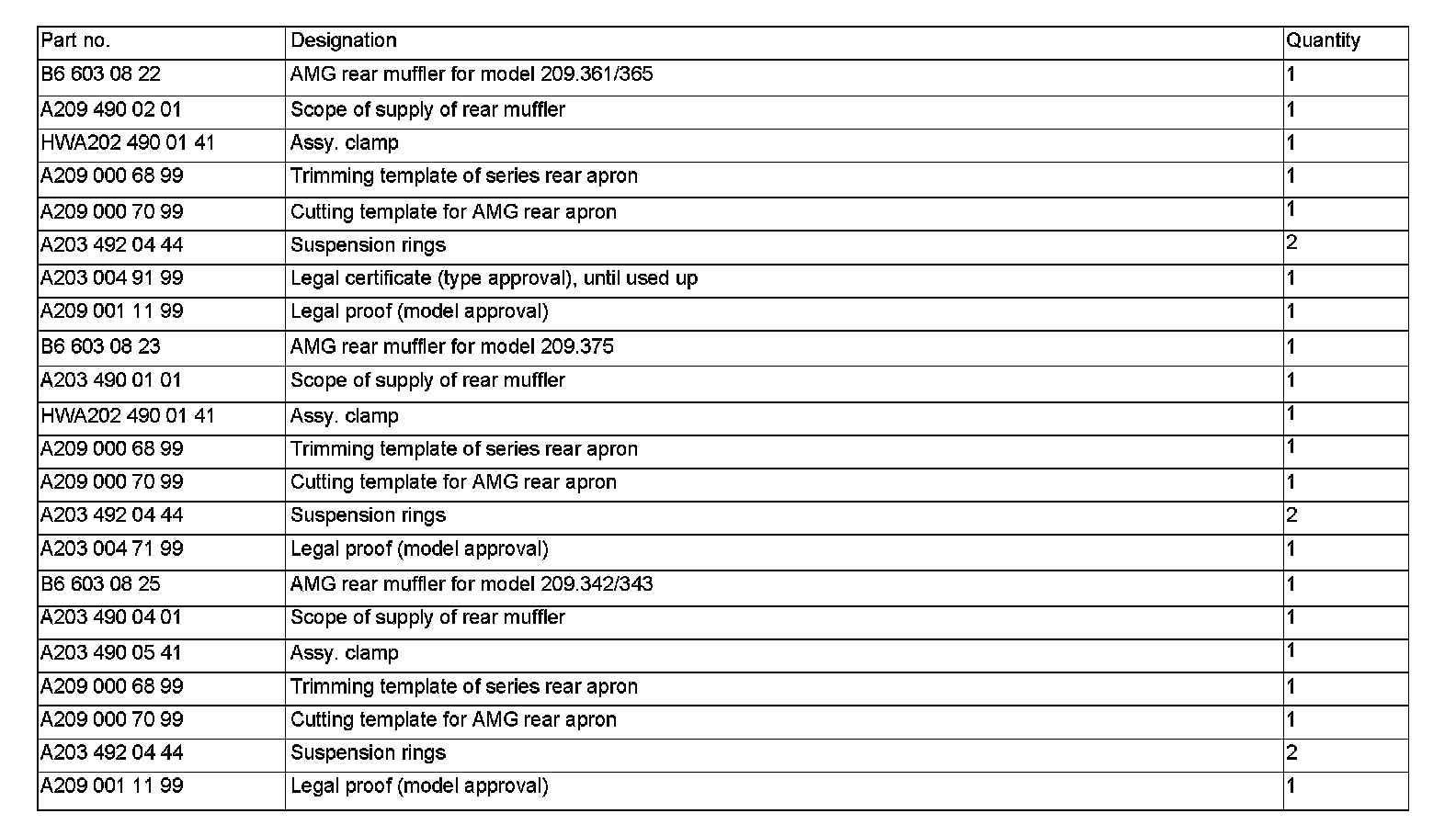

Parts Ordering Notes:
