Muffler: Service and Repair



AR49.10-P-4823QBS Remove/install rear muffler
- with CODE (P98) Black Series
- Rear muffler, left

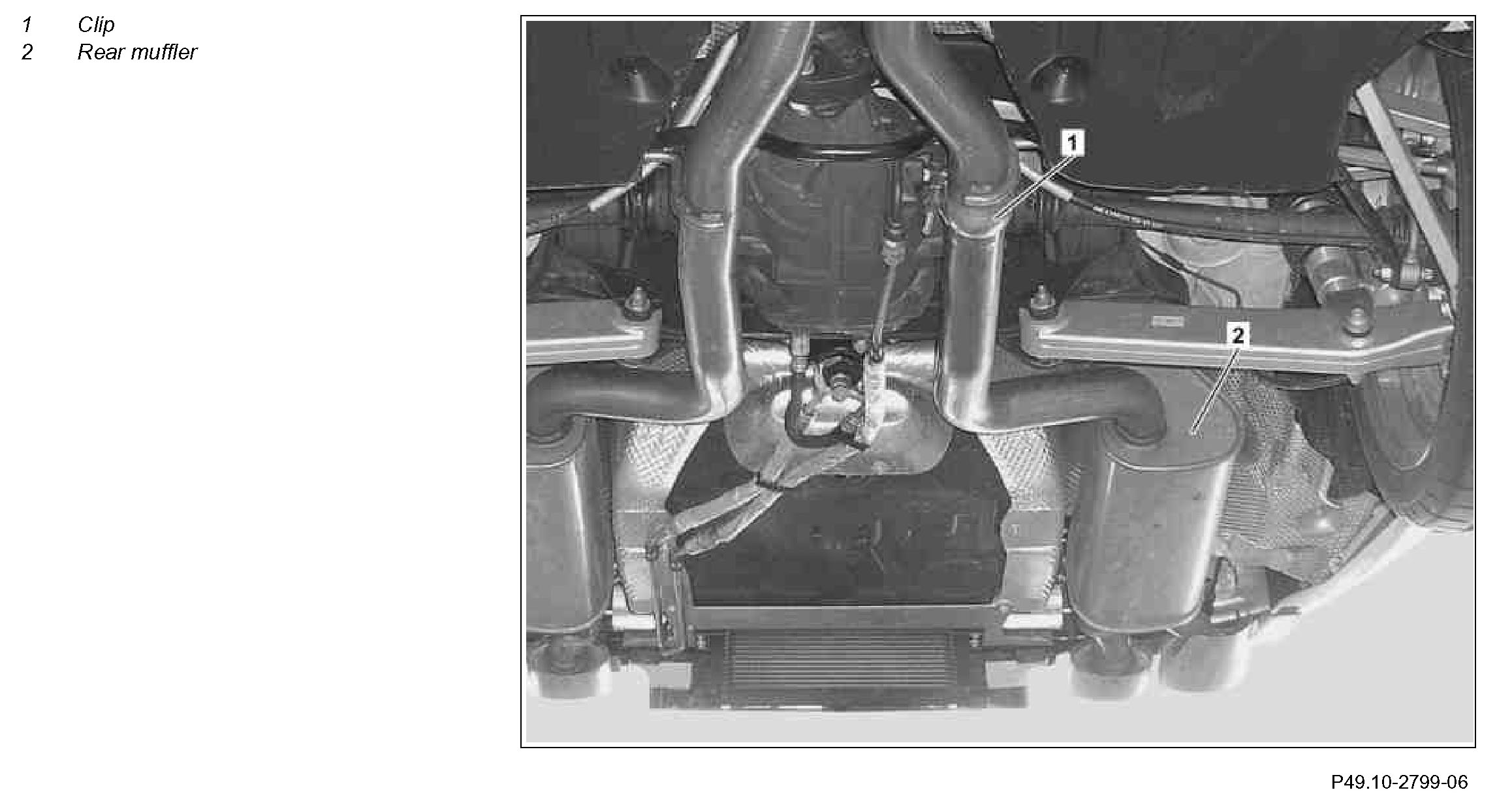

Component Identification:

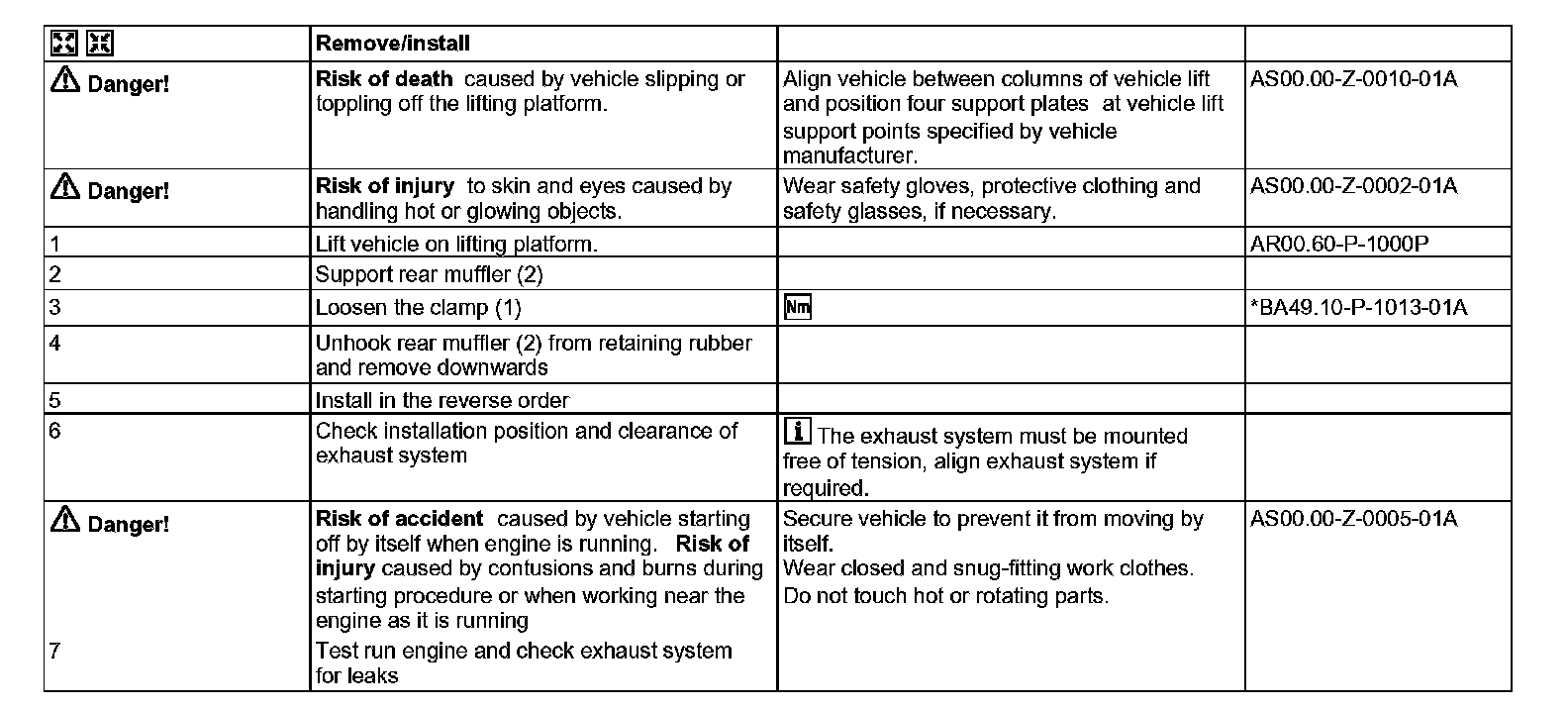

Steps 1-7:

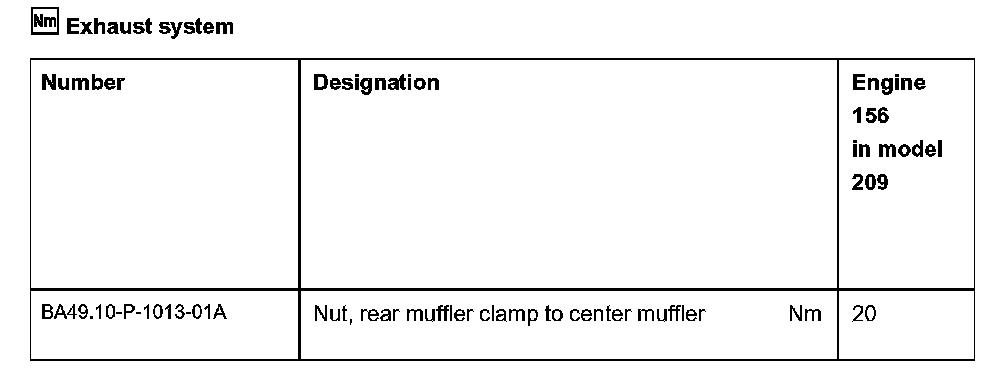

Exhaust system:
