Removal and Replacement
AR20.10-P-1271B Remove/install coolant pump
Component Identification:

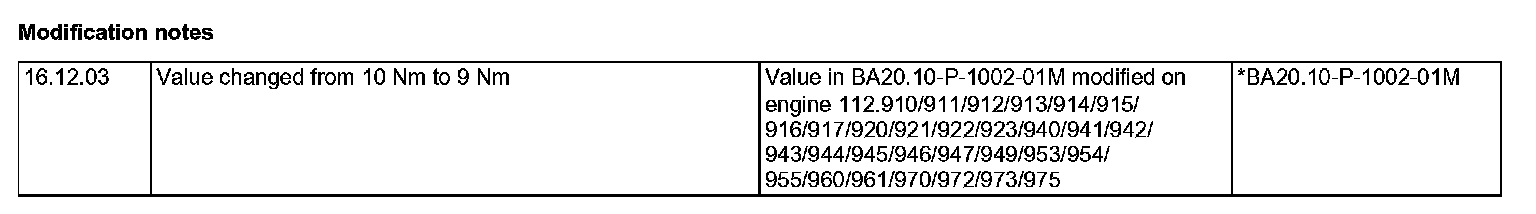

Modification notes:

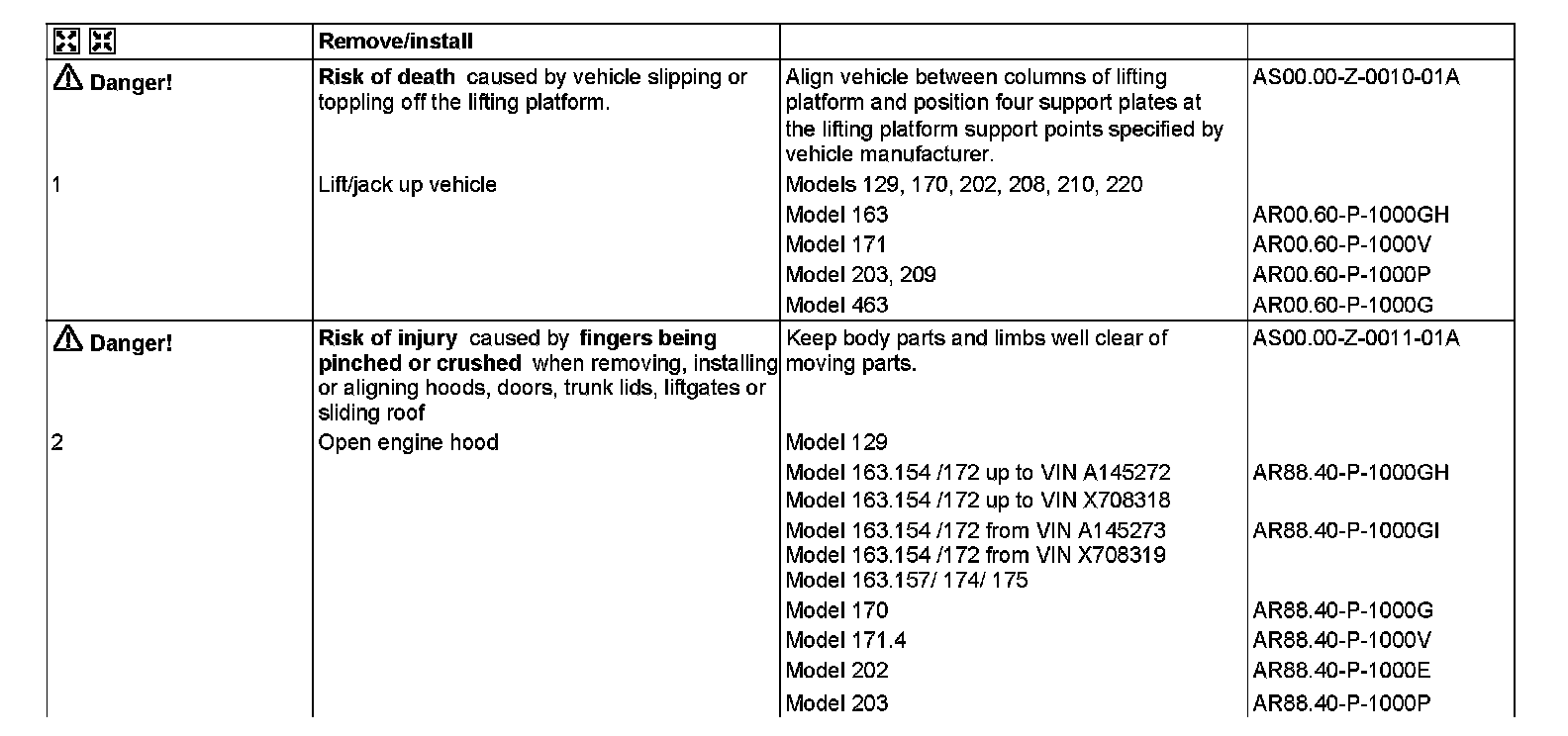

Steps 1-2:
Steps 2 (Continued)-9:

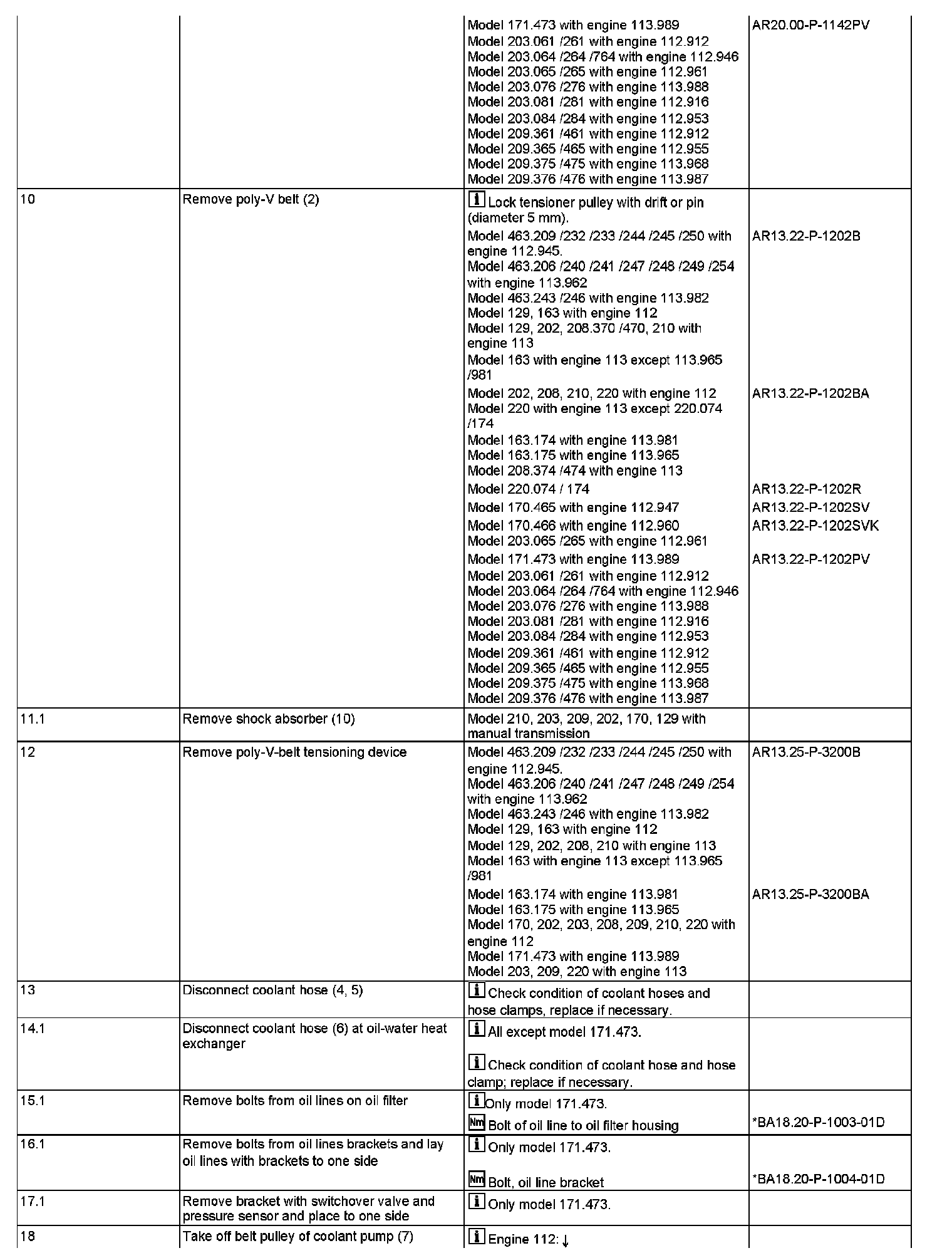

Steps 9 (Continued)-18:

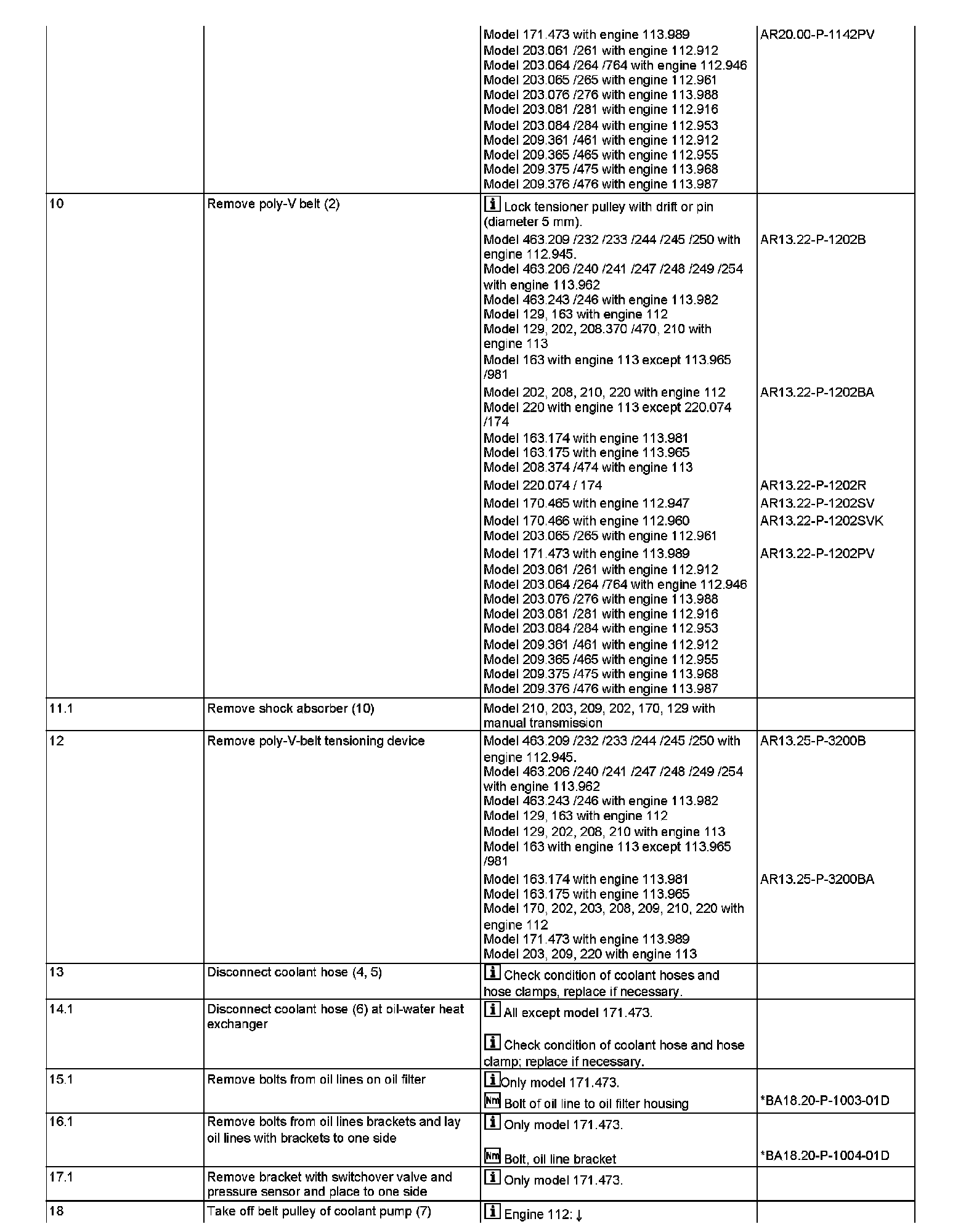

Steps 9 (Continued)-18:

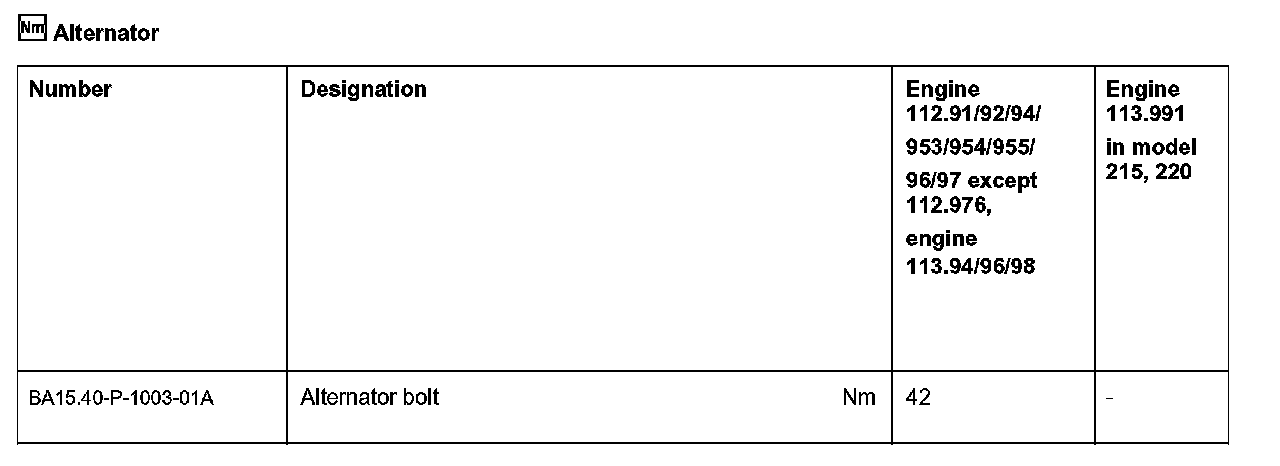

Alternator:

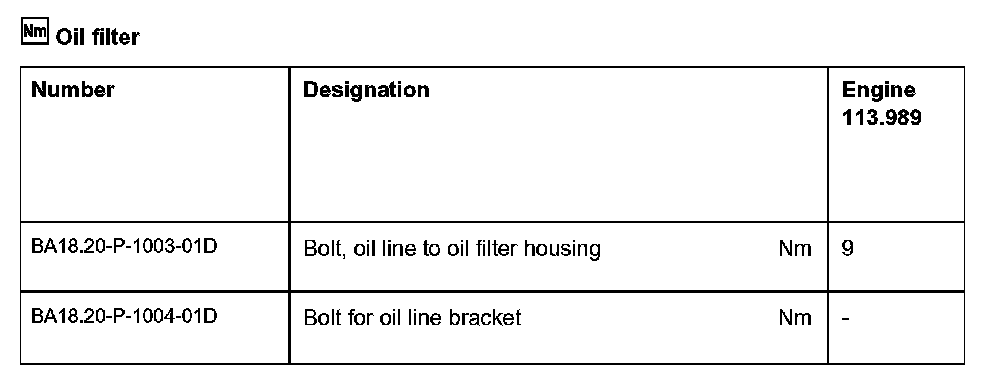

Oil filter:

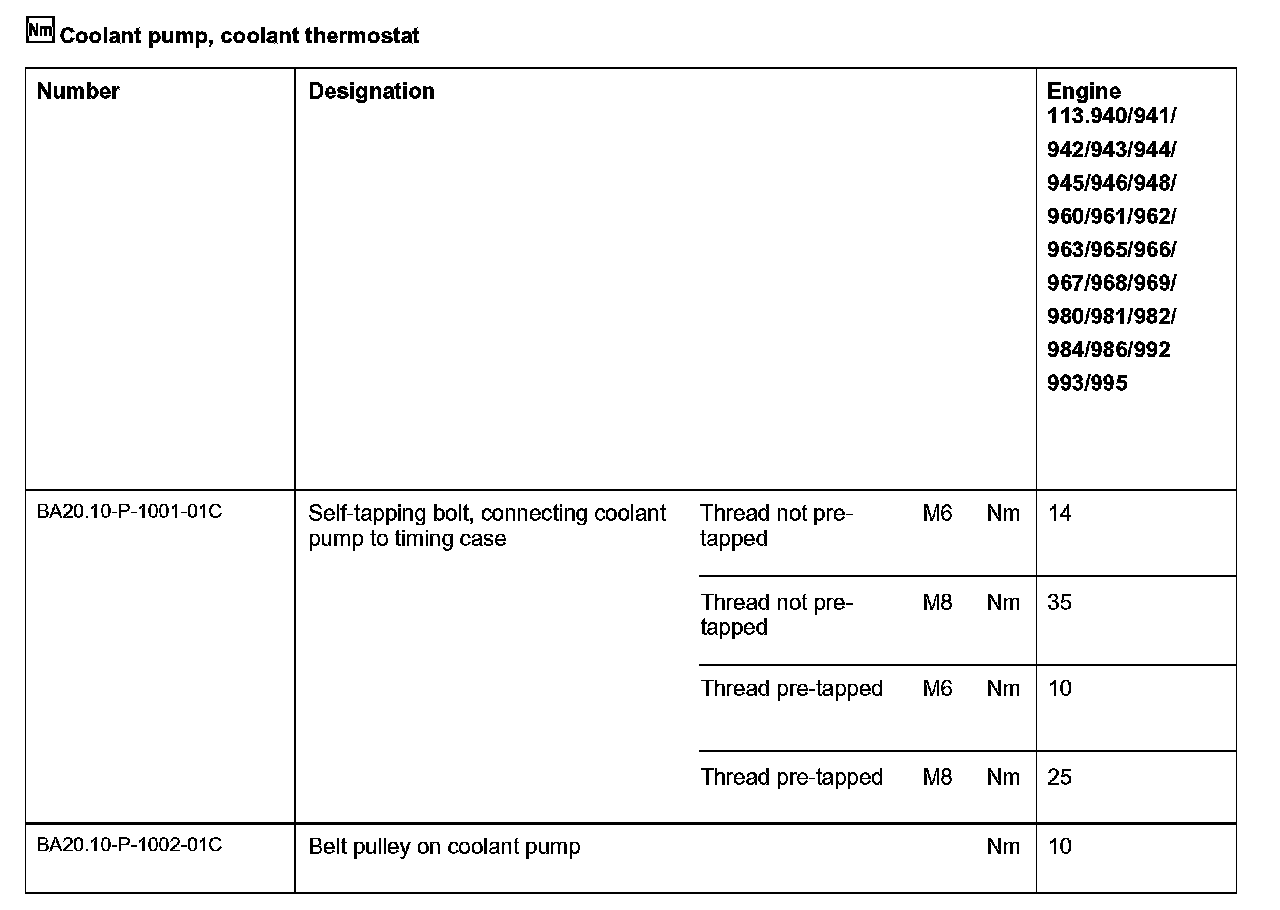

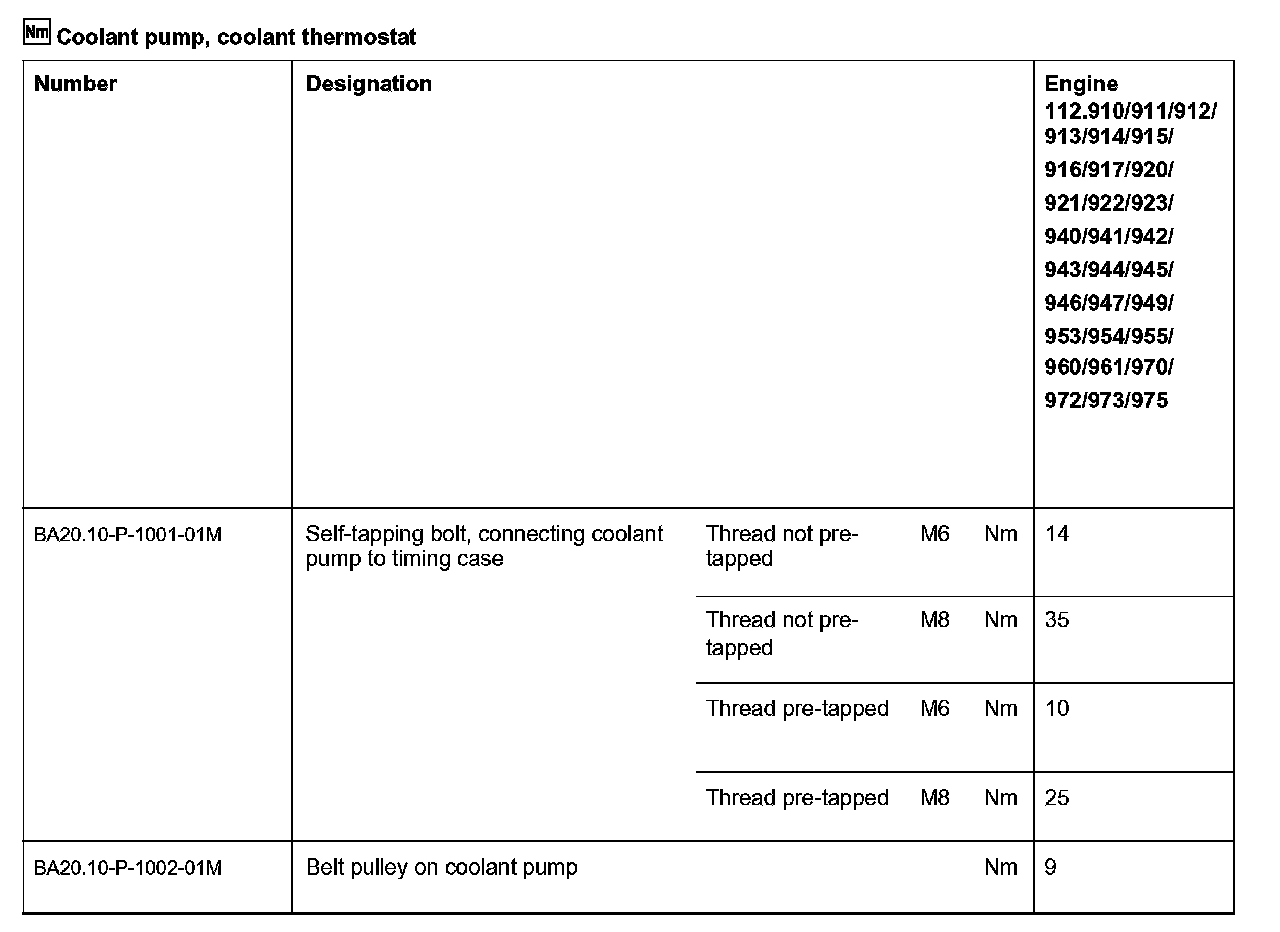

Coolant pump, coolant thermostat:
Coolant pump, coolant thermostat:
Coolant pump, coolant thermostat:

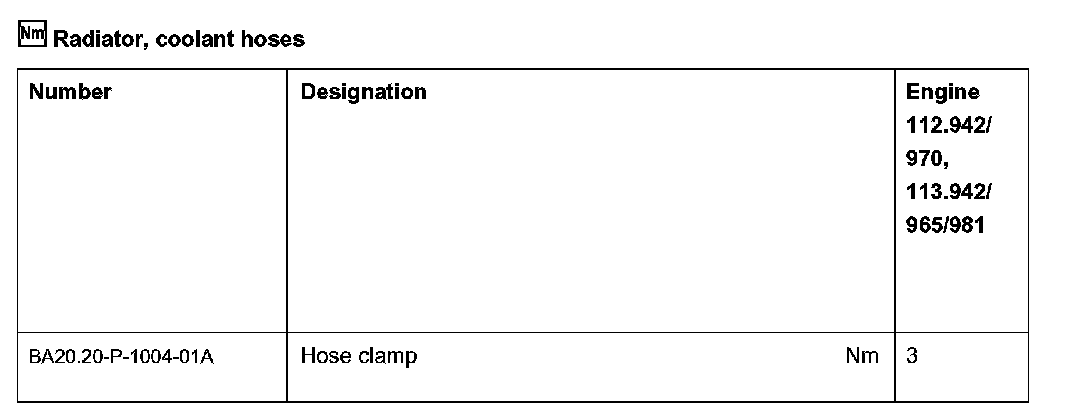

Radiator, coolant hoses:

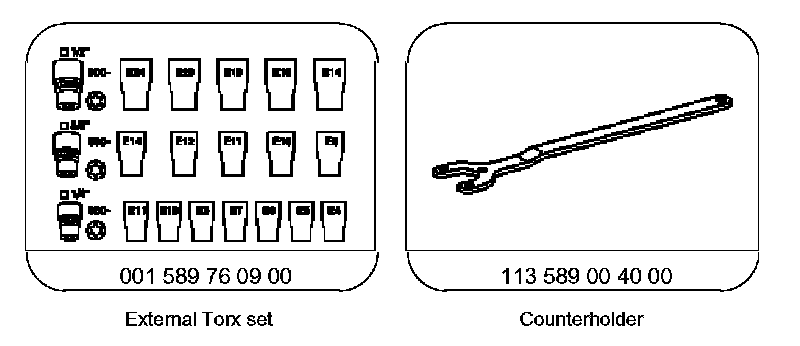

Special Tools:
