AR01.00-P-1300-03HA Firing Order



AR01.00-P-1300-03HA Firing order

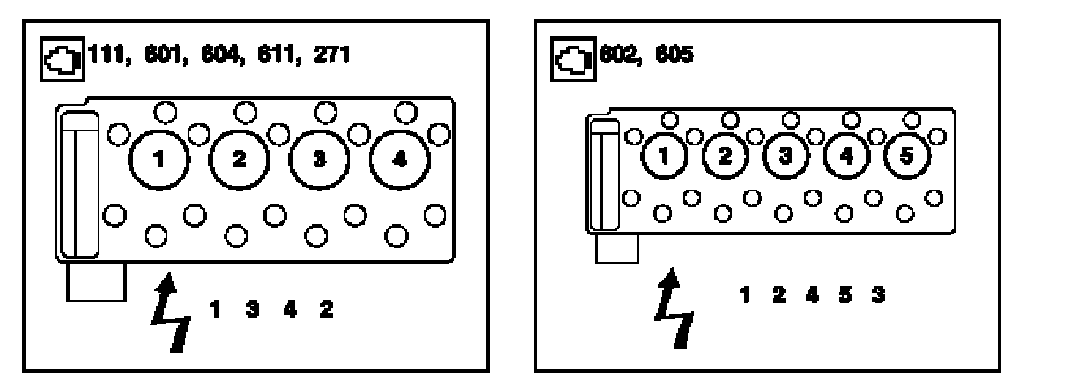

Firing order:

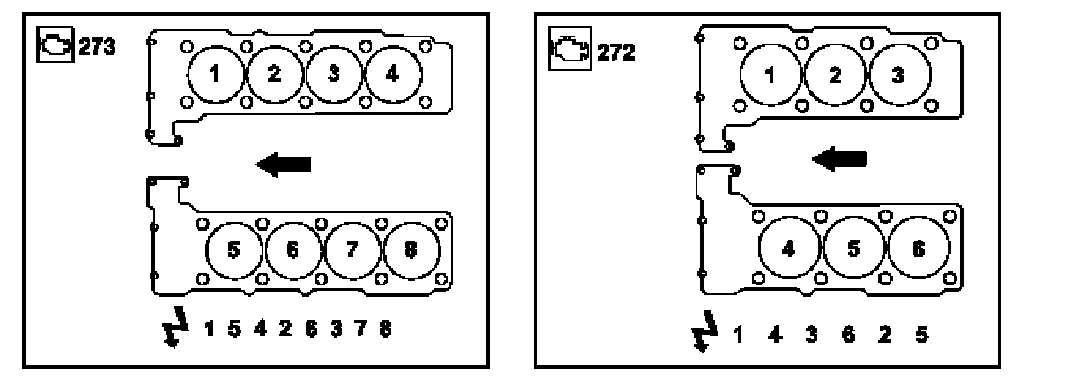

Firing order:

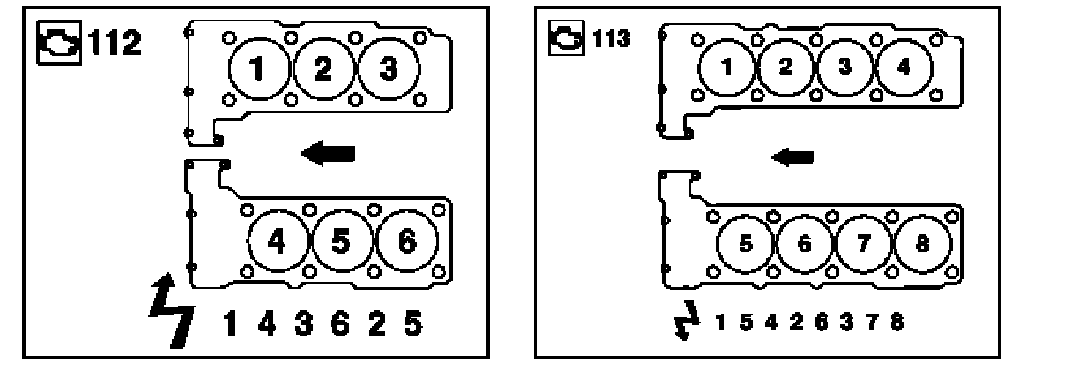

Firing order:




Firing order:

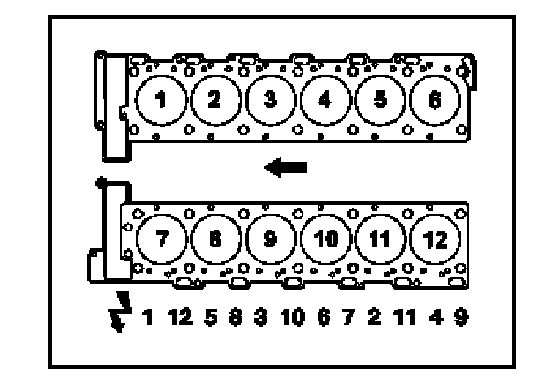

Firing order - Engine 137, 275, 285:
