Mechanical Diagrams



AR01.45-P-7500-06F Oil pan bolt diagram

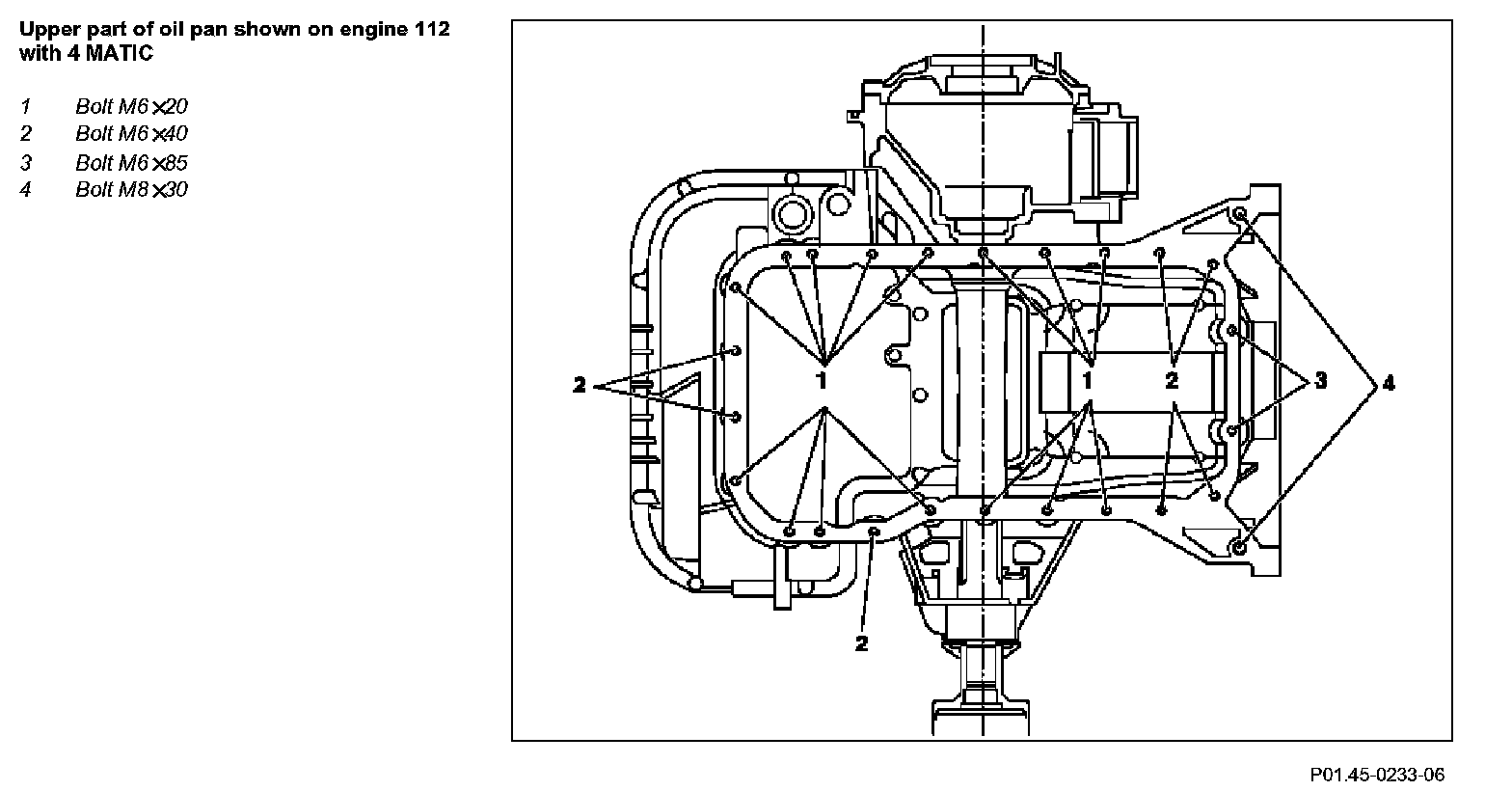

Component Identification:

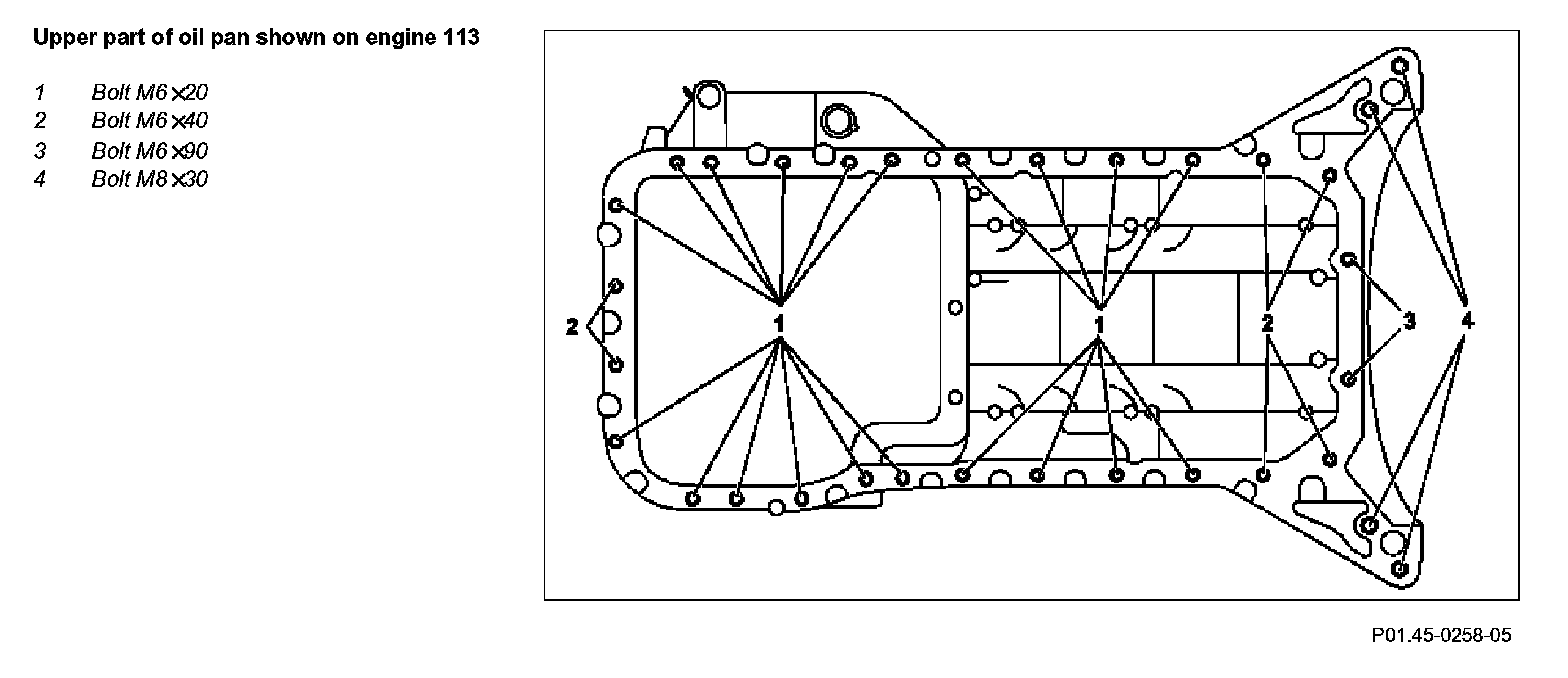

Component Identification:

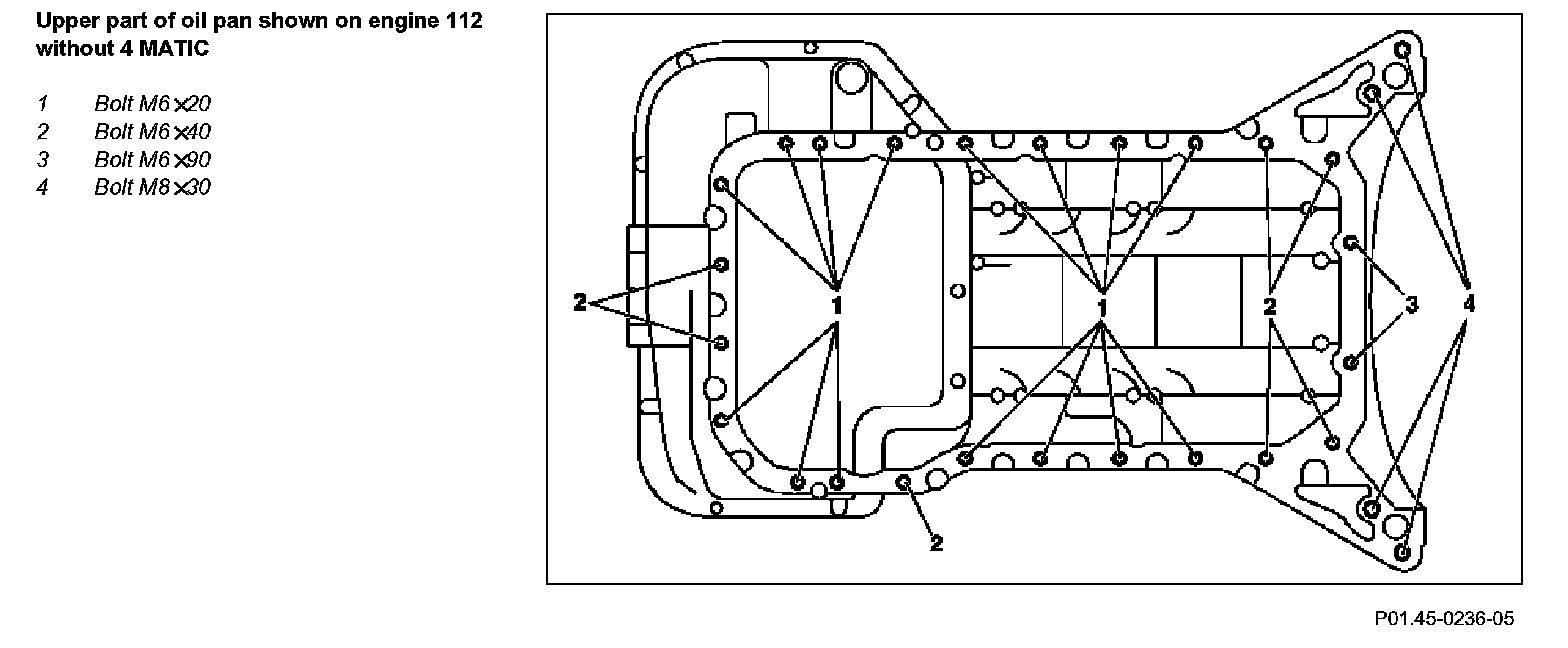

Component Identification:
