AR05.30-P-4201-01AV Check Valves



AR05.30-P-4201-01AV Check valves

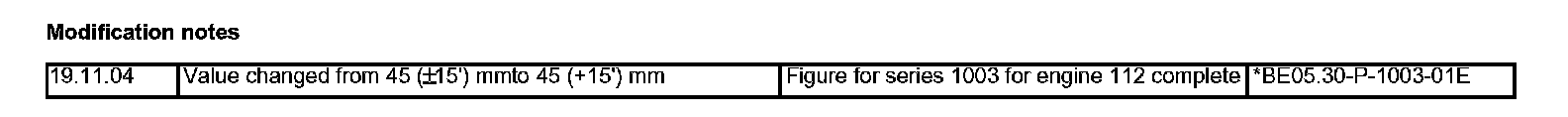

Modification Notes

Modification notes:

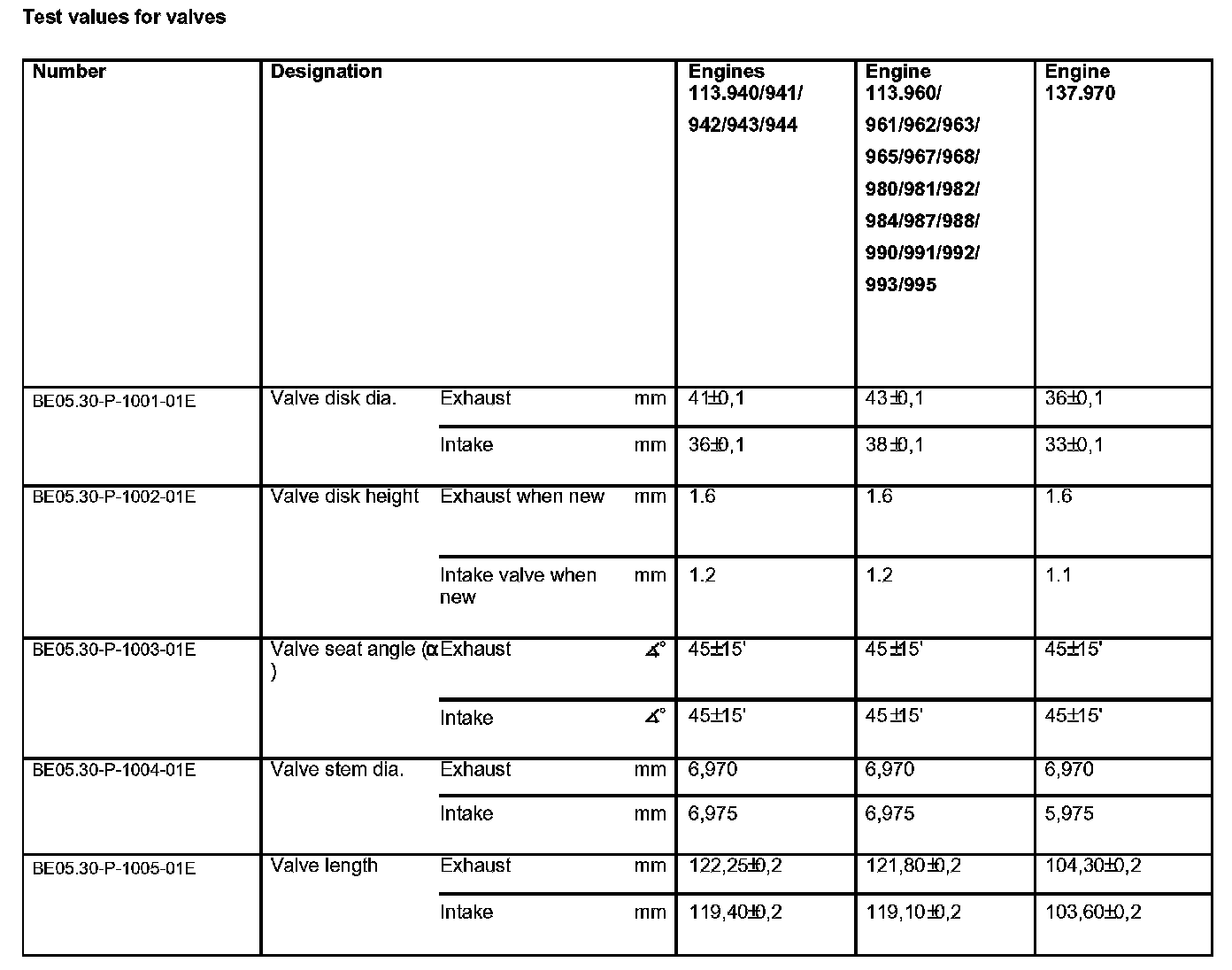

Test values for valves

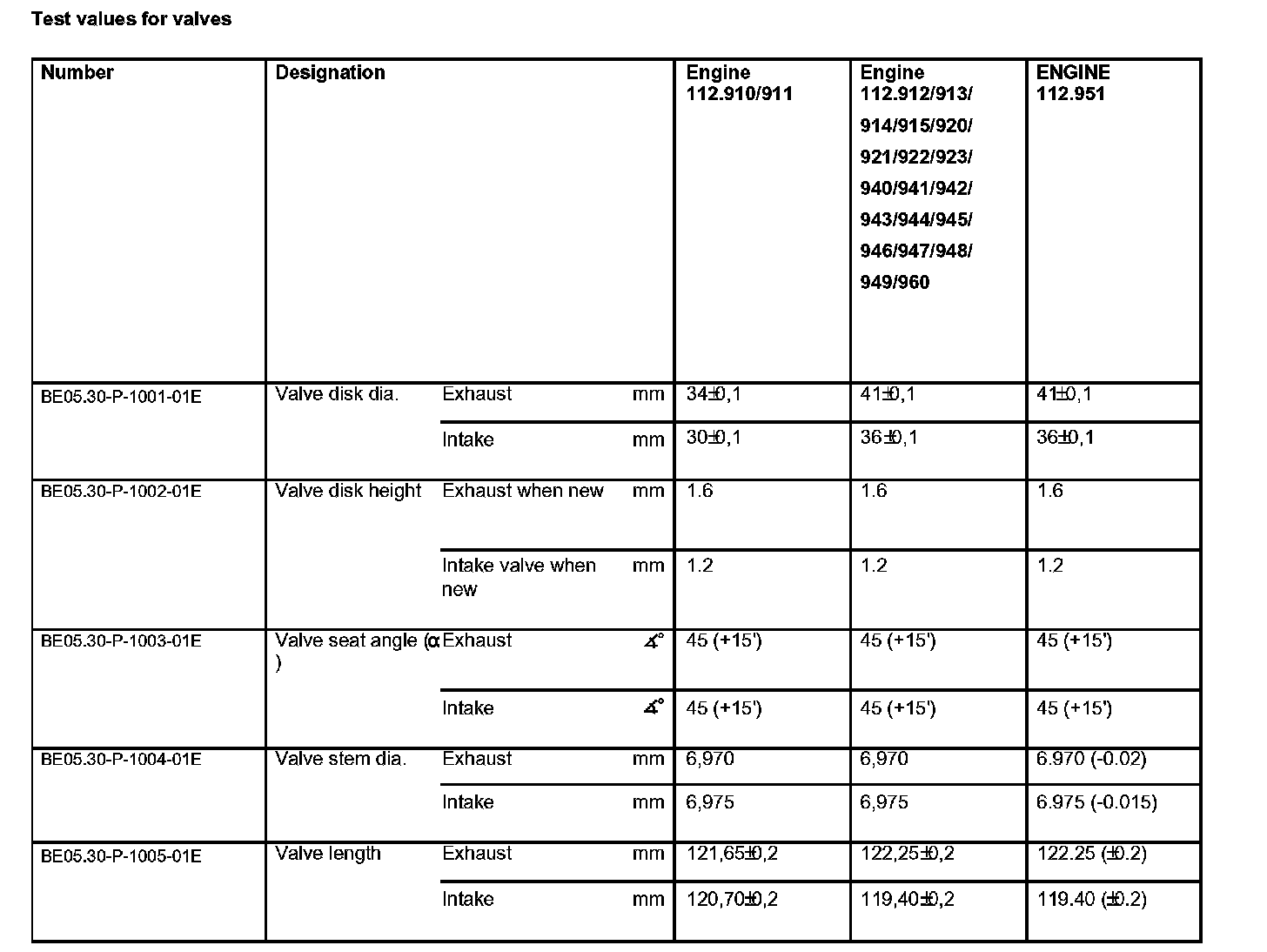

Test values for valves:




Test values for valves:

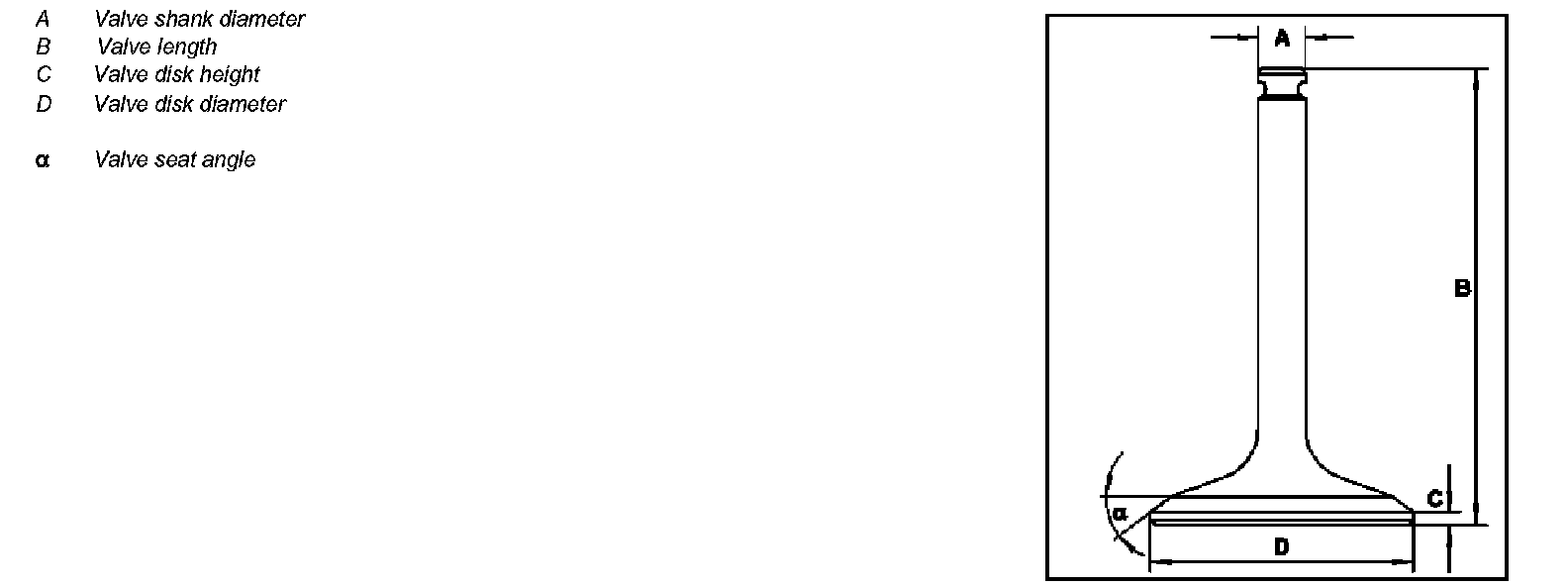

Component Identification:
