Home >> Mercedes Benz >> 2004 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Head Assembly >> Valve Cover >> Service and Repair >> Procedures >> AR01.20-P-5014BV Remove/Install Cylinder Head Cover

AR01.20-P-5014BV Remove/Install Cylinder Head Cover

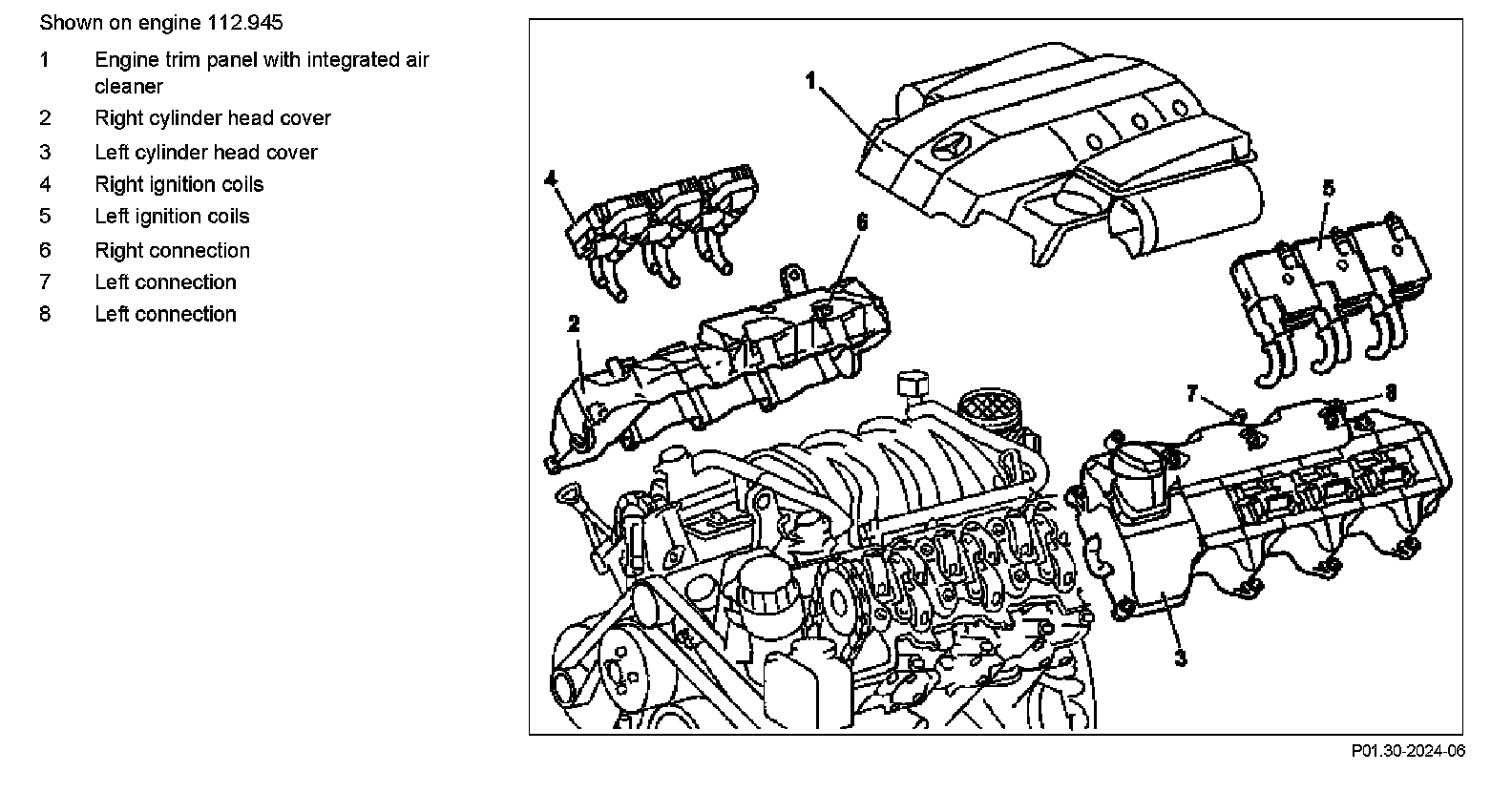

Removing/Installing Cylinder Head Cover
- With Air Cleaner on engine side

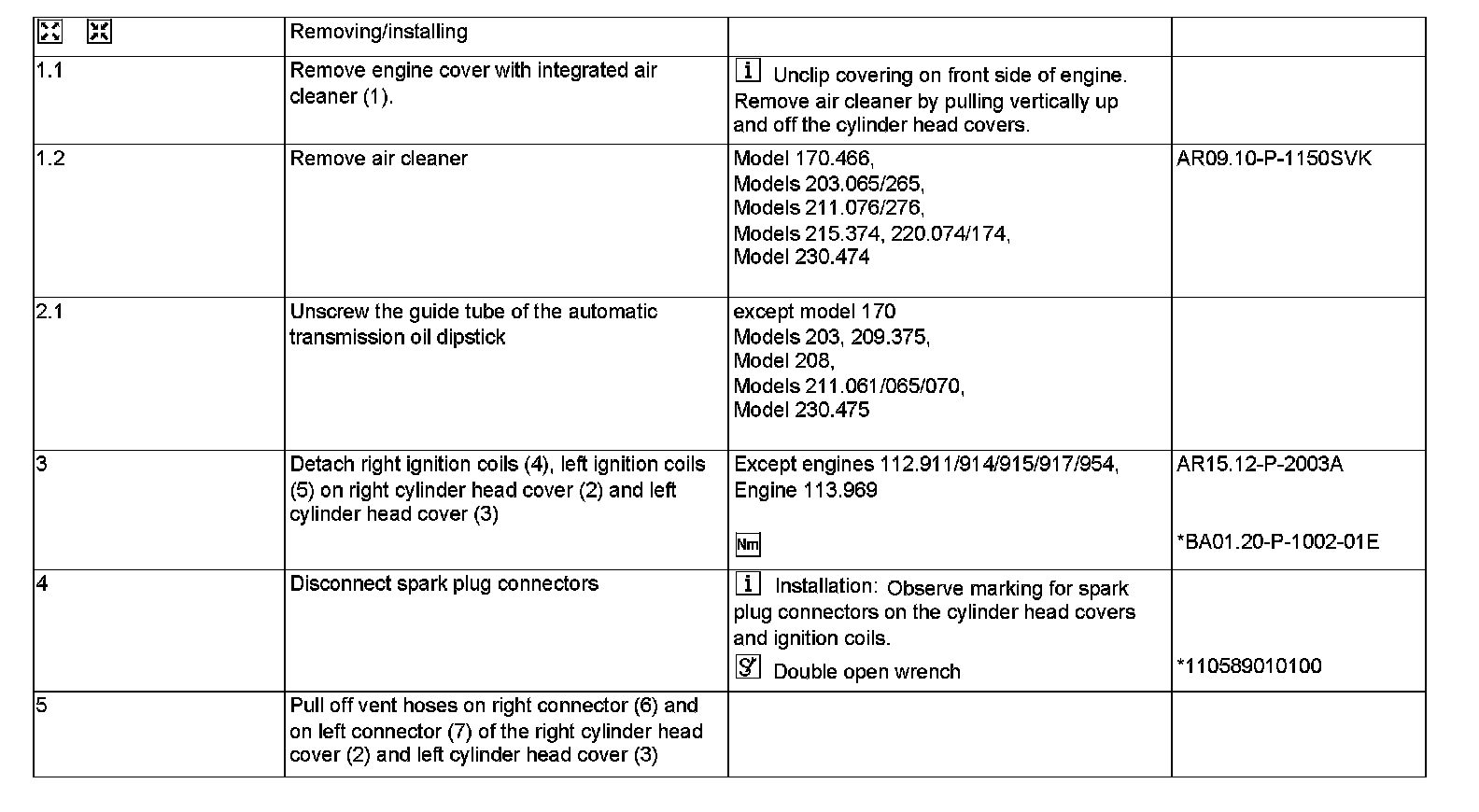

Steps 1-5:

Steps 1-5:

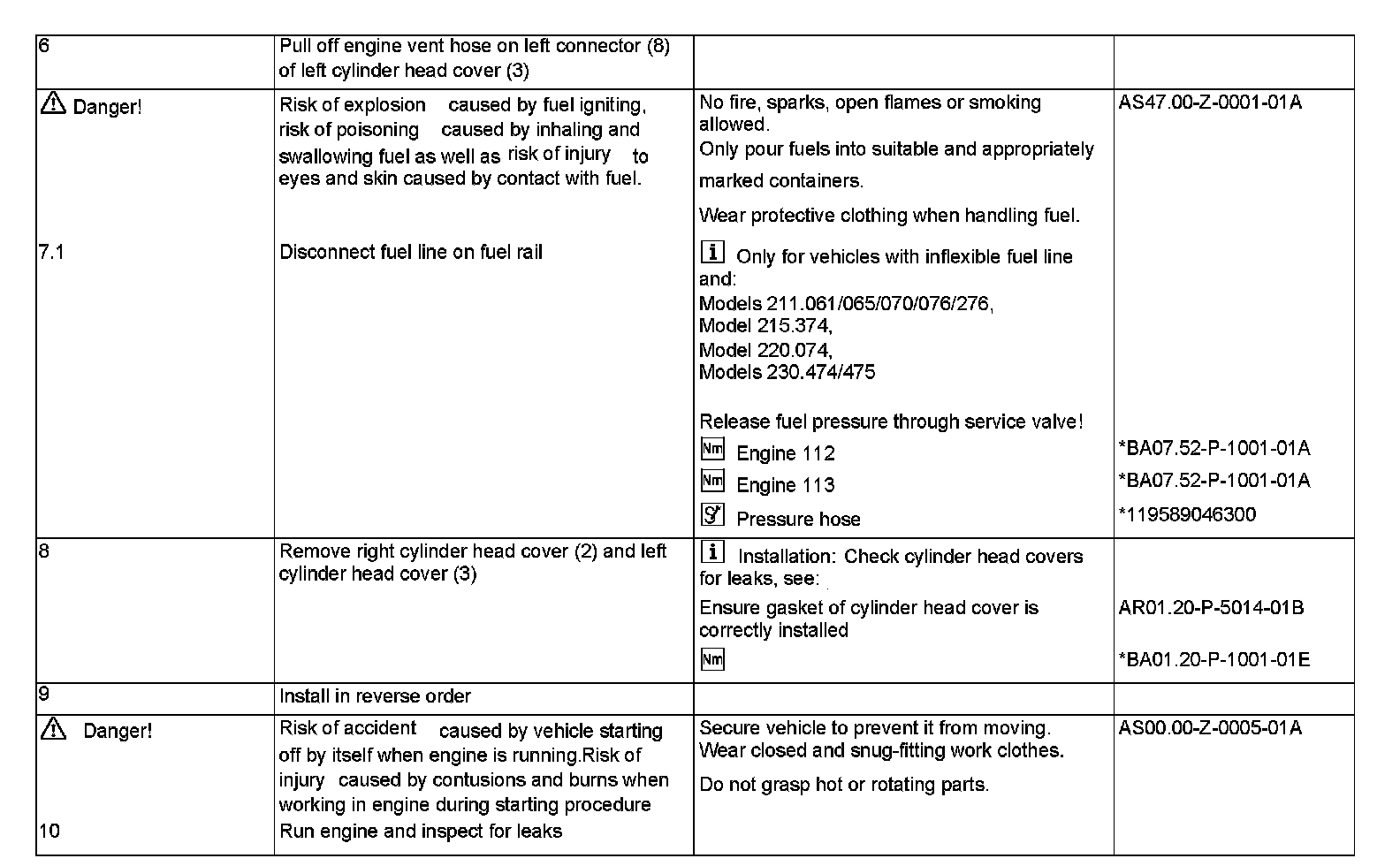

Steps 6-10:
