AR01.40-P-8913B Remove/Install End Cover

AR01.40-P-8913B Remove/Install End Cover
ENGINES 112.945 in MODEL 463.209 /232 /233 /244 /245 /250
ENGINES 112 in MODEL 129, 163, 170, 202, 203, 208, 209, 210, 220
ENGINES 113.962 in MODEL 463.206 /240 /241 /247 /248 /249 /254
ENGINES 113 in MODEL 129, 163, 202, 208, 209, 210, 220, 230.474 /475
ENGINES 112.913 in MODEL 211.061 /261
ENGINES 112.949 in MODEL 211.065 /265
ENGINES 113.967 in MODEL 211.070 /270
ENGINES 113.982 in MODEL 463.243 /246
ENGINES 112.917 in MODELS 211.080 /280
ENGINES 112.954 in MODEL 211.082 /282
ENGINES 113.969 in MODEL 211.083 /283

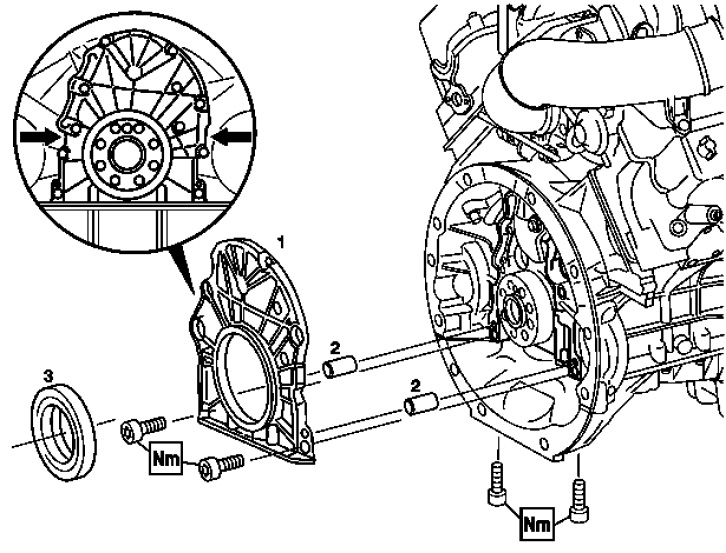

Shown on engine 112

1 End cover
2 Fitting sleeves
3 Crankshaft radial sealing ringing ring














111 589 08 43 00
Installation tool
