AR01.40-P-8913B Remove/Install End Cover

Operation Illustration:

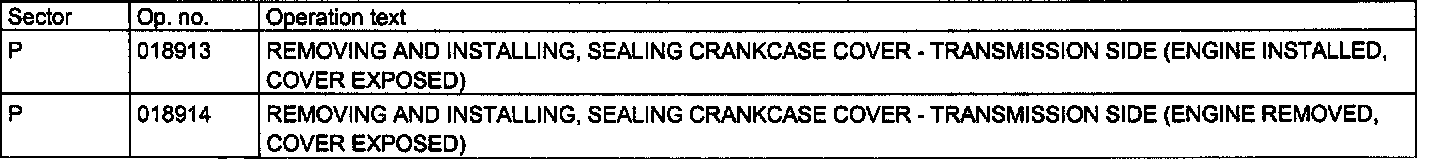

Operation No. Of Operation Texts Or Standard Texts And Flat Rates:

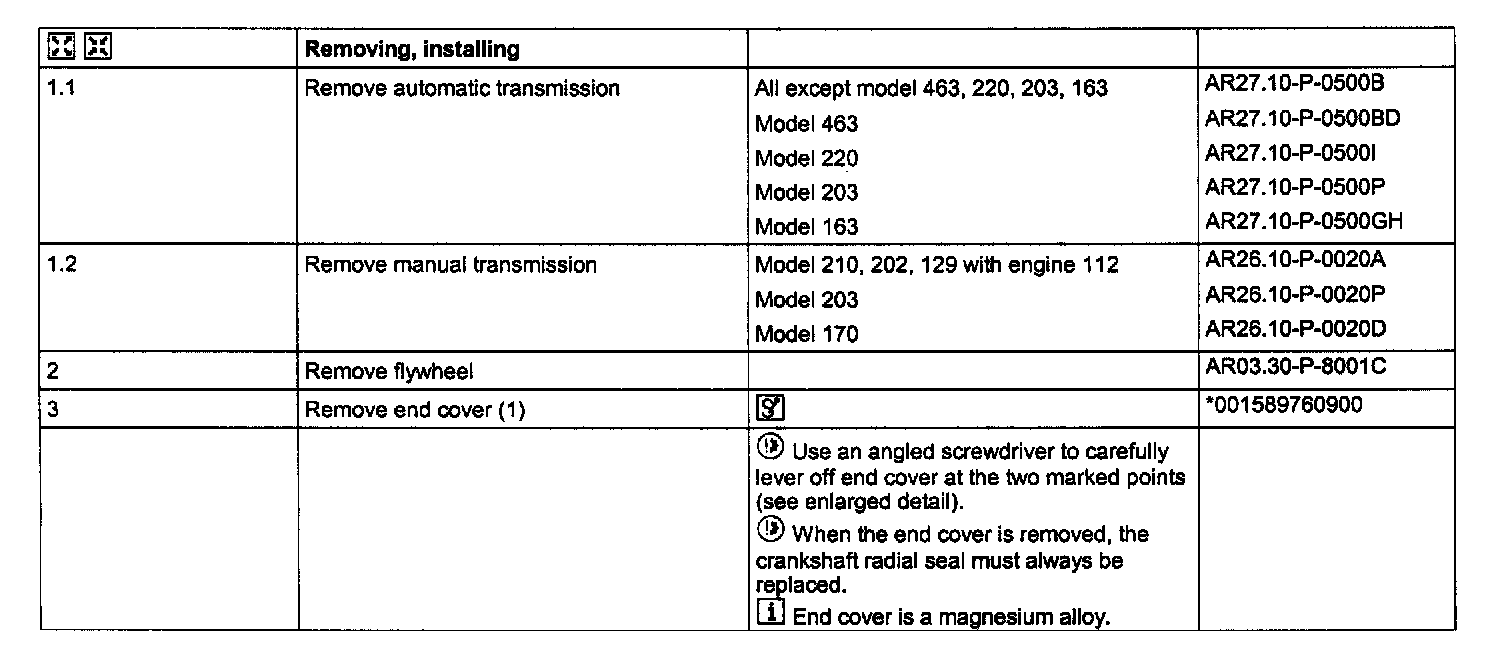

Service Procedure (Steps 1 - 3):

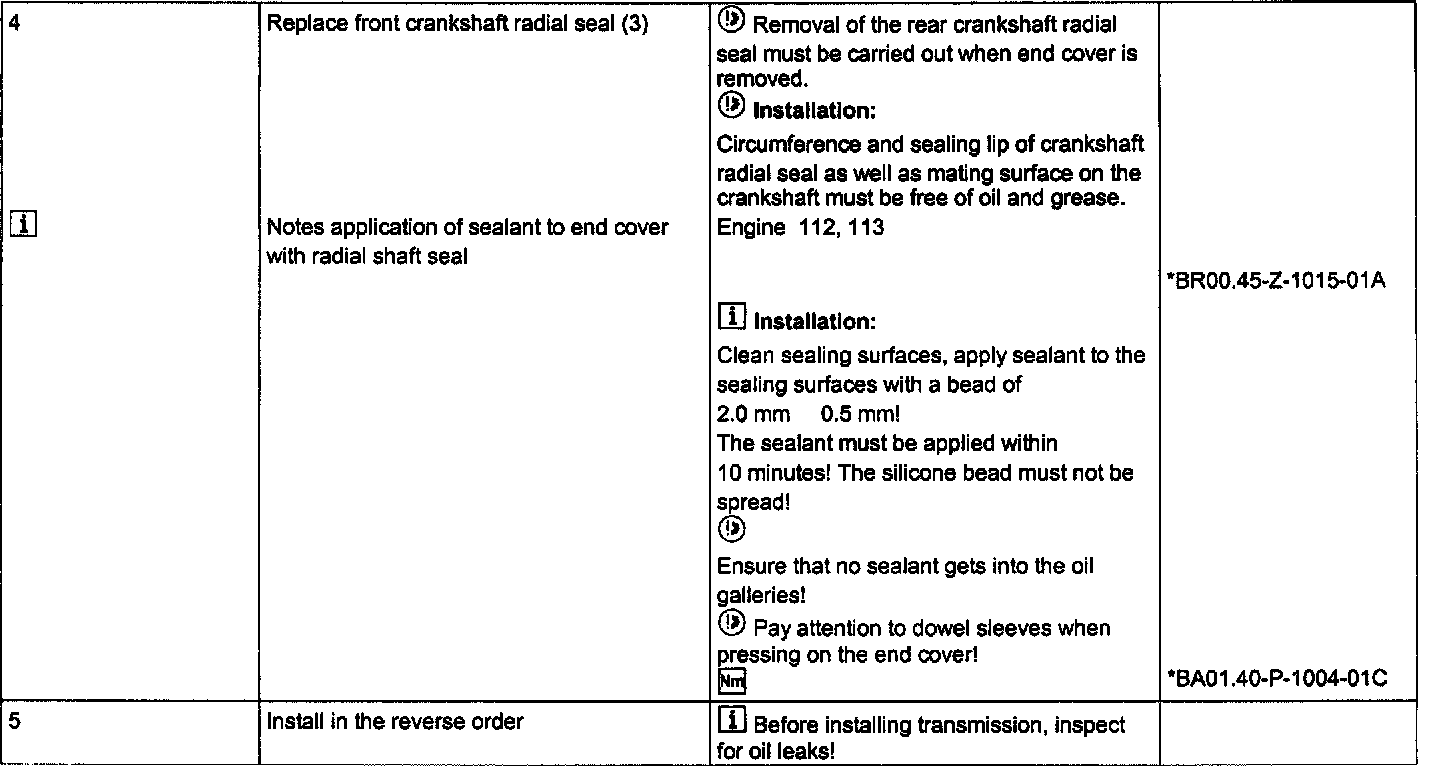

Service Procedure (Steps 4 And 5):

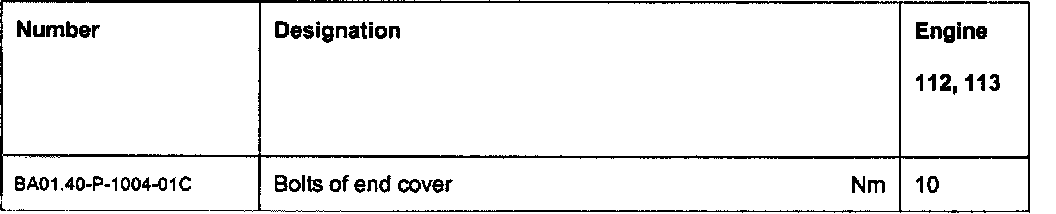

Crankcase, Timing Case Cover, End Cover Tightening Specifications:

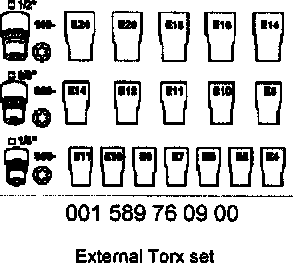

Special Tools:

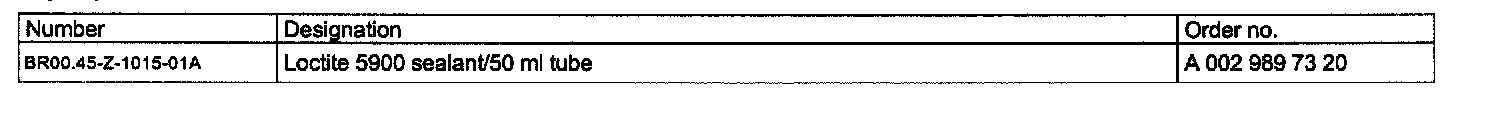

Repair Products:
