Camshaft Bearing: Service Precautions

Notes on Installing Camshaft Bearing Bridge

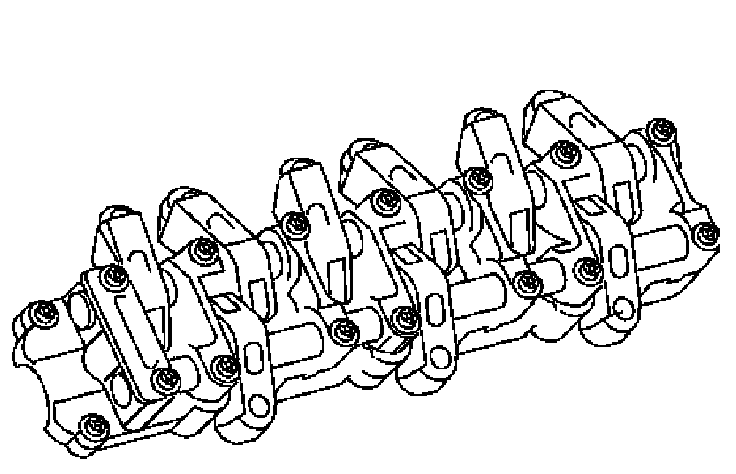

Shown on engine 112
Pay attention to the following notes before installing the camshaft bearing bridges:
^ Lubricate the camshaft bearings.
^ Camshafts must not be replaced individually for tolerance reasons.
^ If the camshaft bearing bridge is damaged, replace the cylinder head complete with the camshaft bearing bridge.
^ The M M7x84 bolts must always be replaced.
^ It is not permitted to re-use the M7x84 bolts.

M7 Pay attention to tightening torque, slackening diagram and tightening diagram of the bolts.
