Radiator Cap: Testing and Inspection

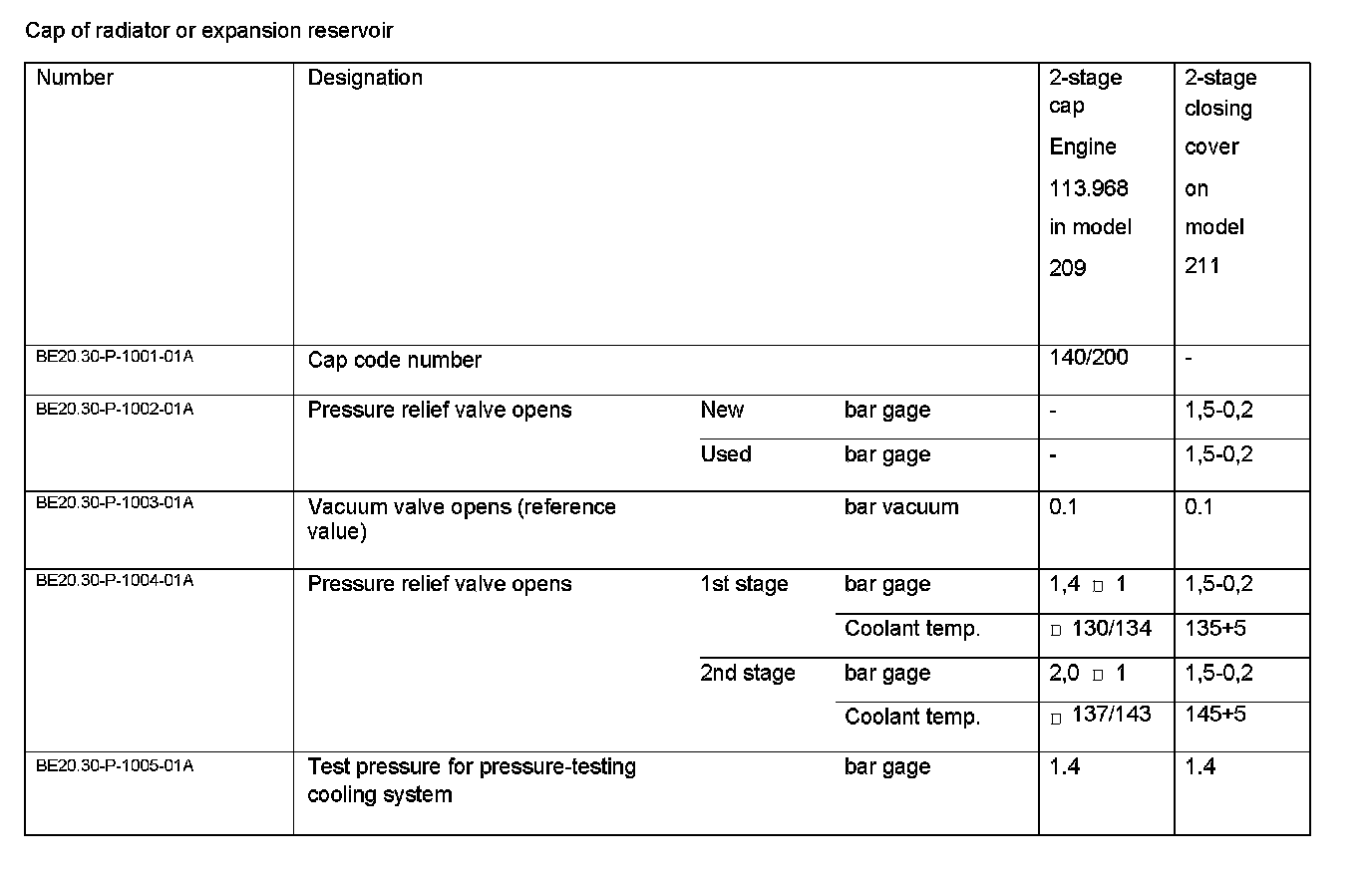

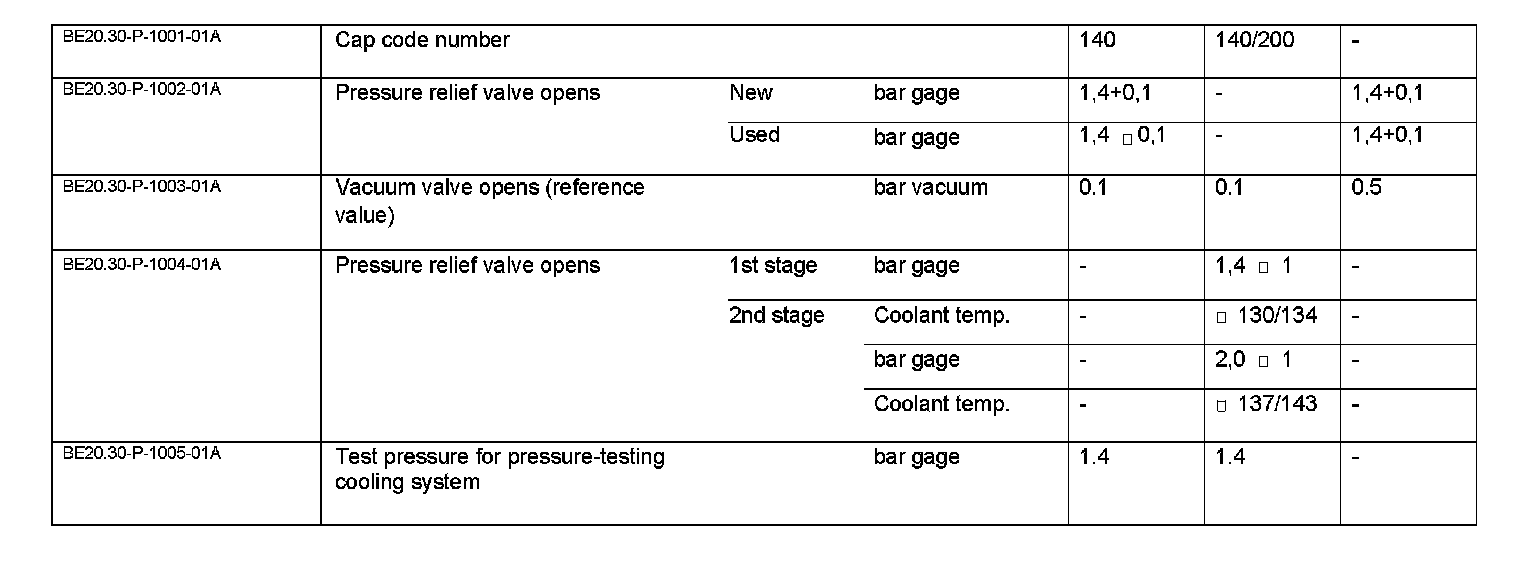

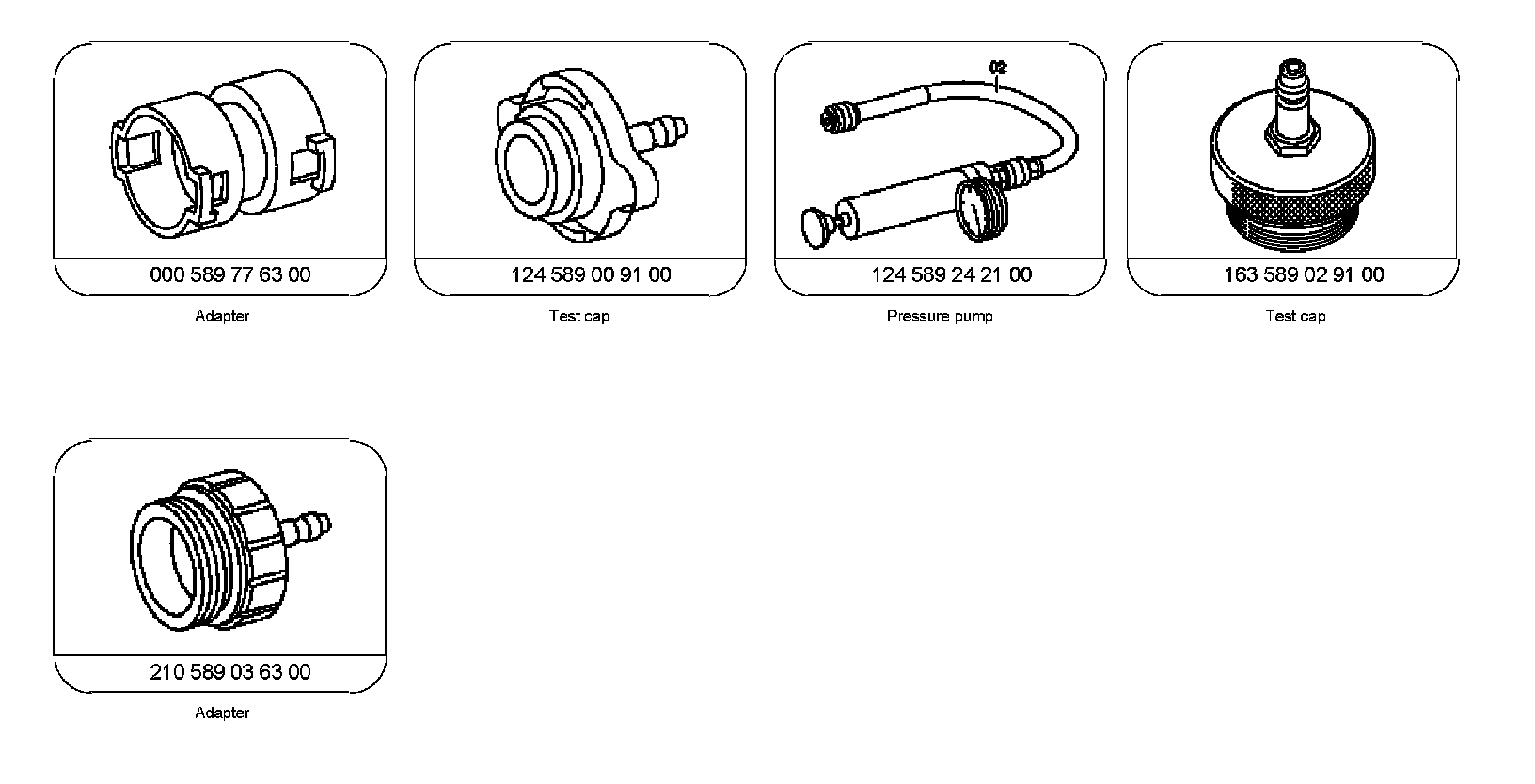

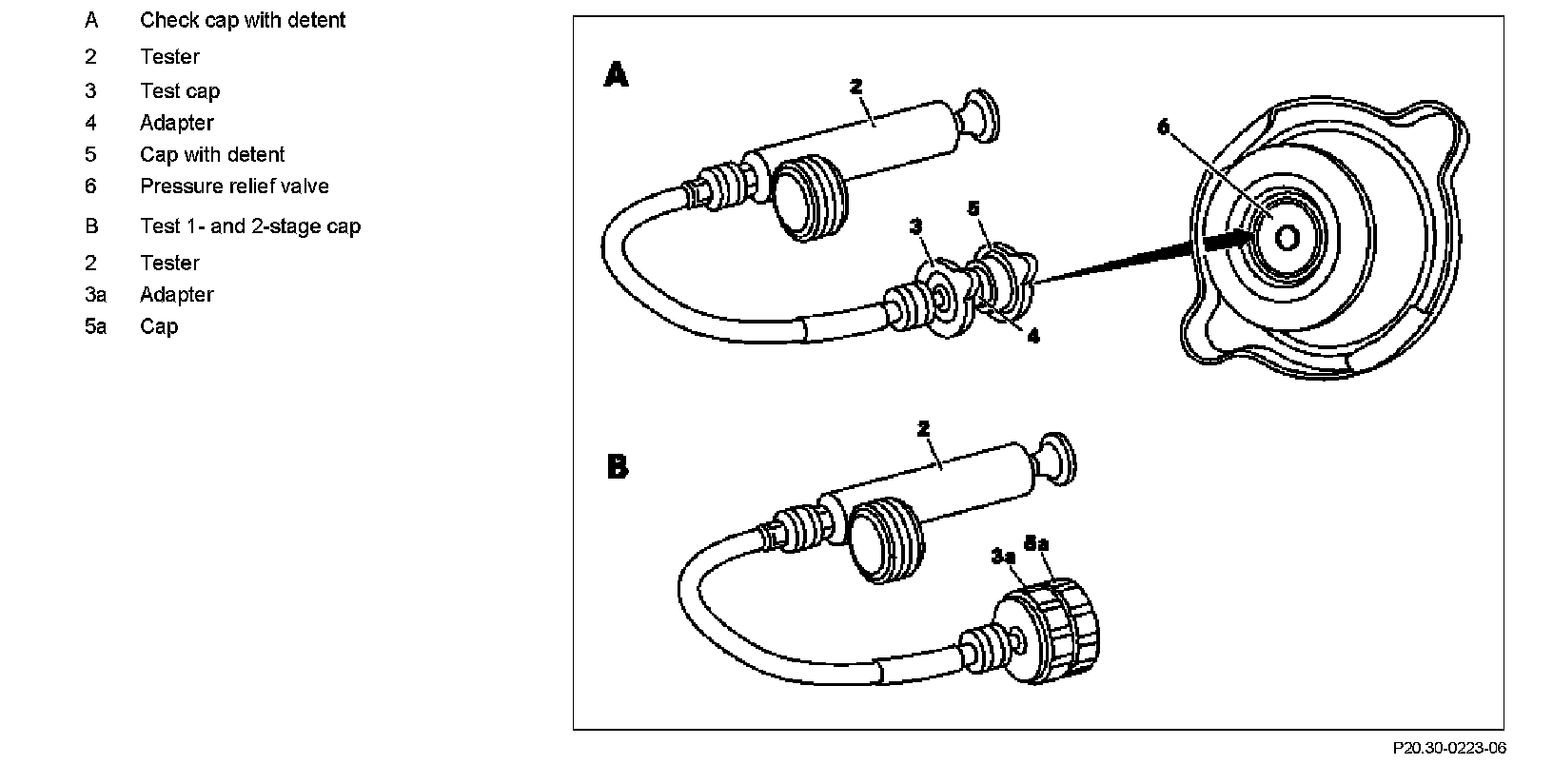

Test Cooling System Cap

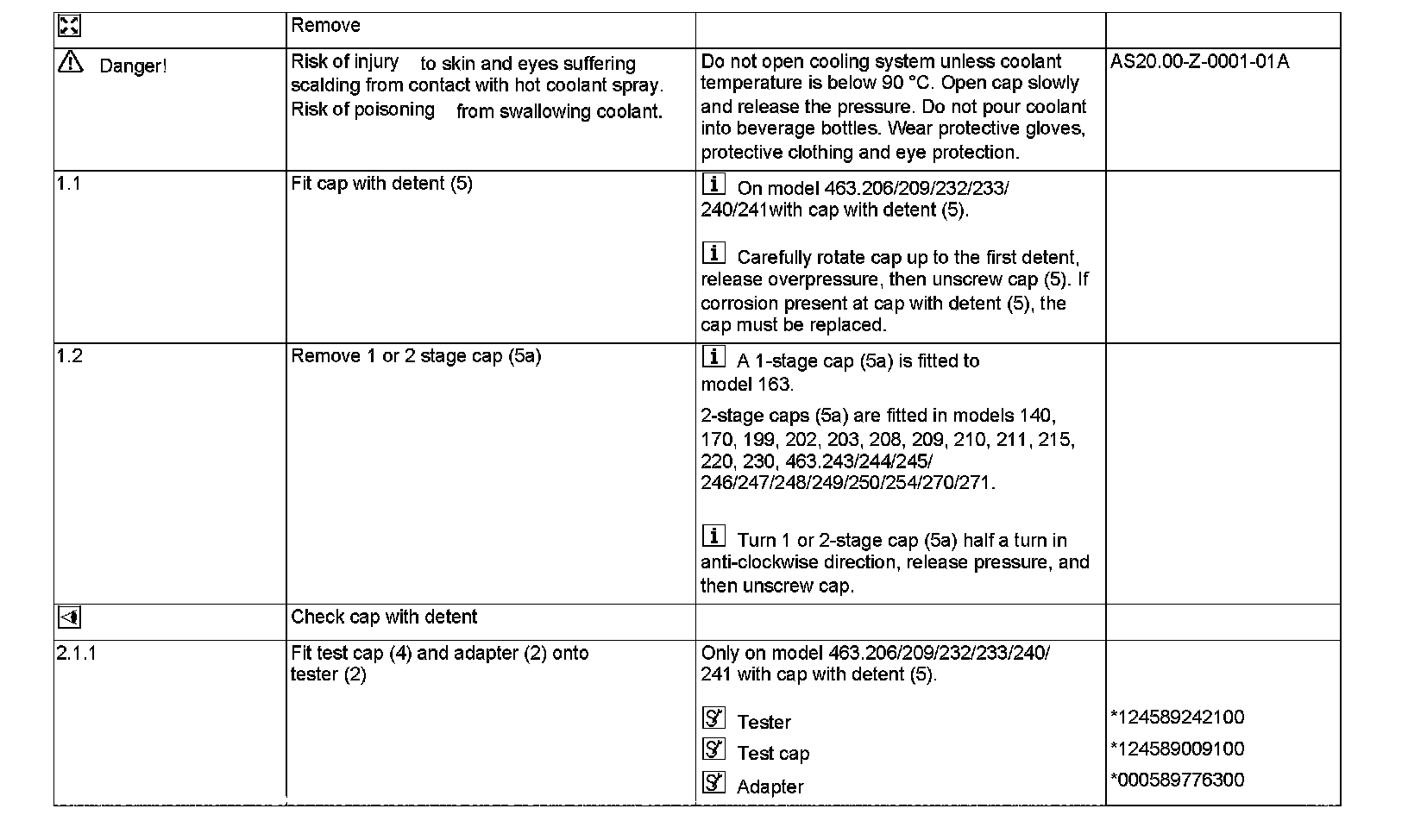

Steps 1-2:

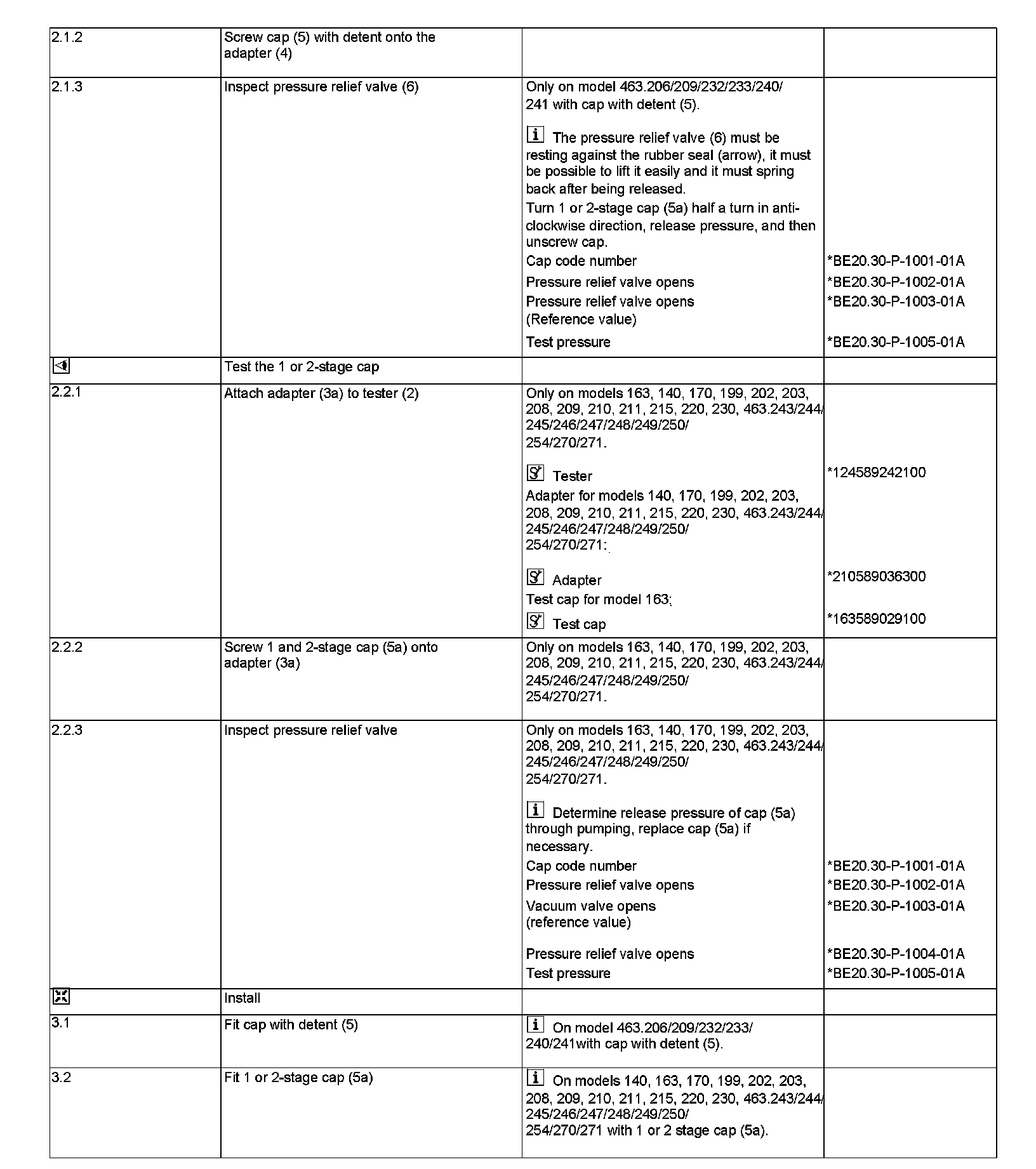

Steps 2-3:





Part 1 Of 2:





Part 2 Of 2:
