CLK 320 (209.365) V6-3.2L (112.955)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Cooling System
>>
Diagrams
Cooling System: Diagrams
Coolant Circuit As-Built Configuration

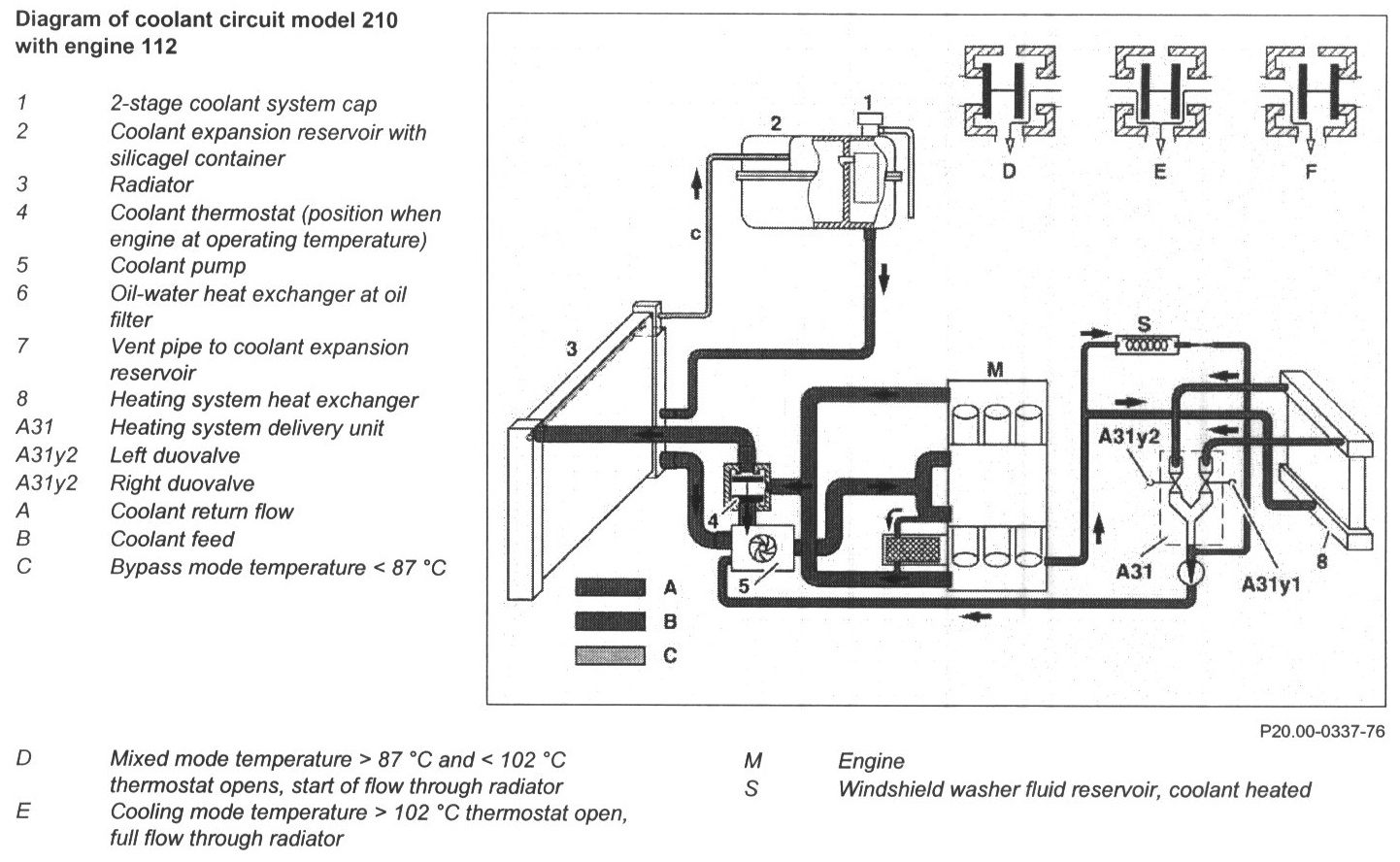

Diagram of coolant circuit model 210 with engine 112:
