Satellite Digital Audio Radio (SDAR) System Control Unit PE82.60-U-2301BA



Satellite Digital Audio Radio (SDAR) System Control Unit PE82.60-U-2301BA
- control module N87/5 with D2-bus

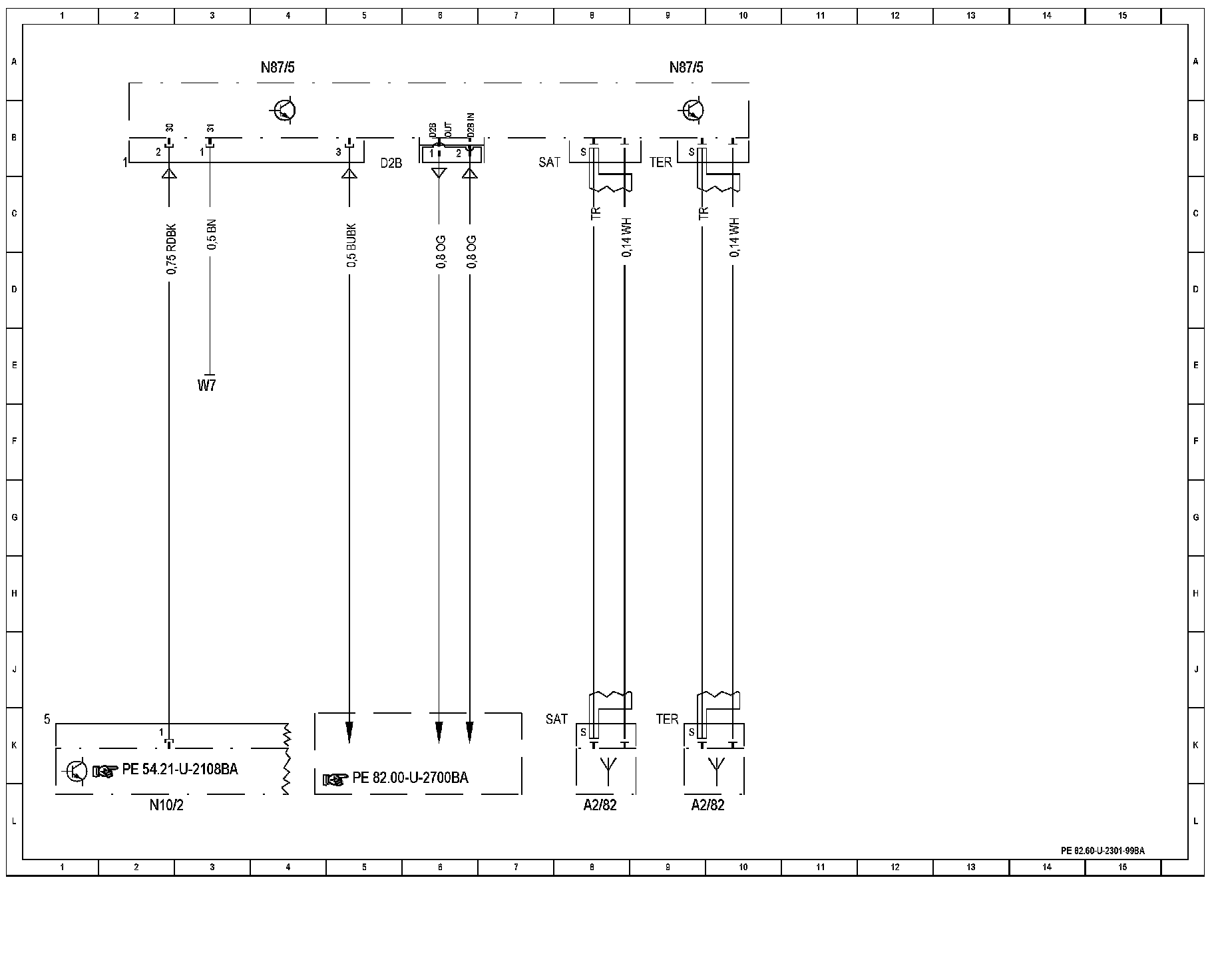

Wiring Diagram:

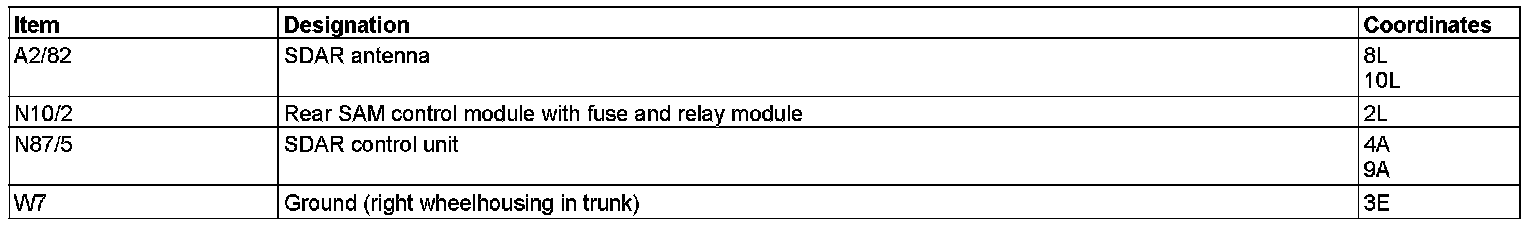

Component Description/Coordinates, A2/82 To W7:
