Cockpit Management (COMAND) PE82.85-U-2101BA

Cockpit Management And Data System (COMAND) Control Module PE82.85-U-2101BA
- with CODE (352a) COMAND operating and display system
- control module A40/3 with D2-bus

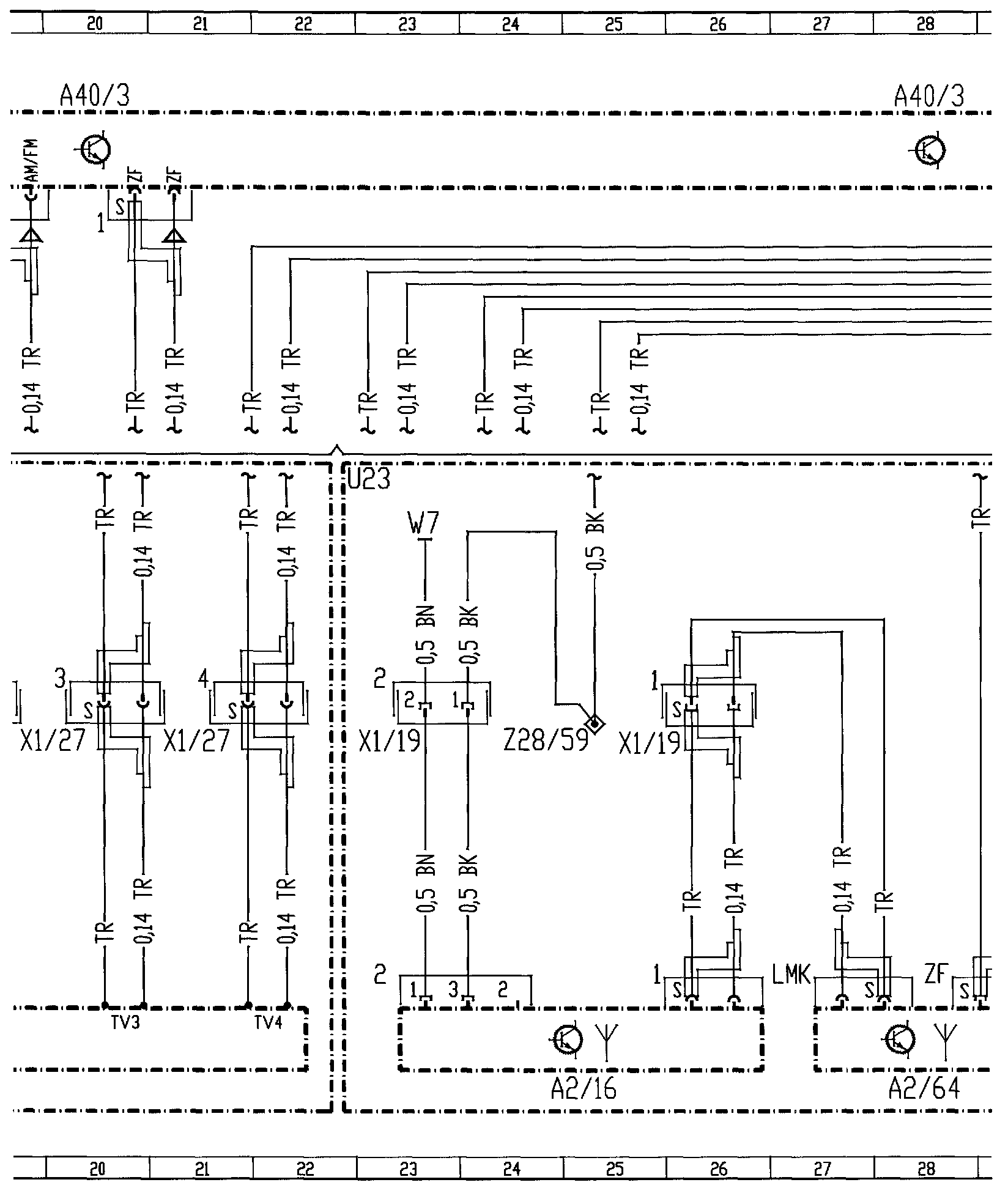

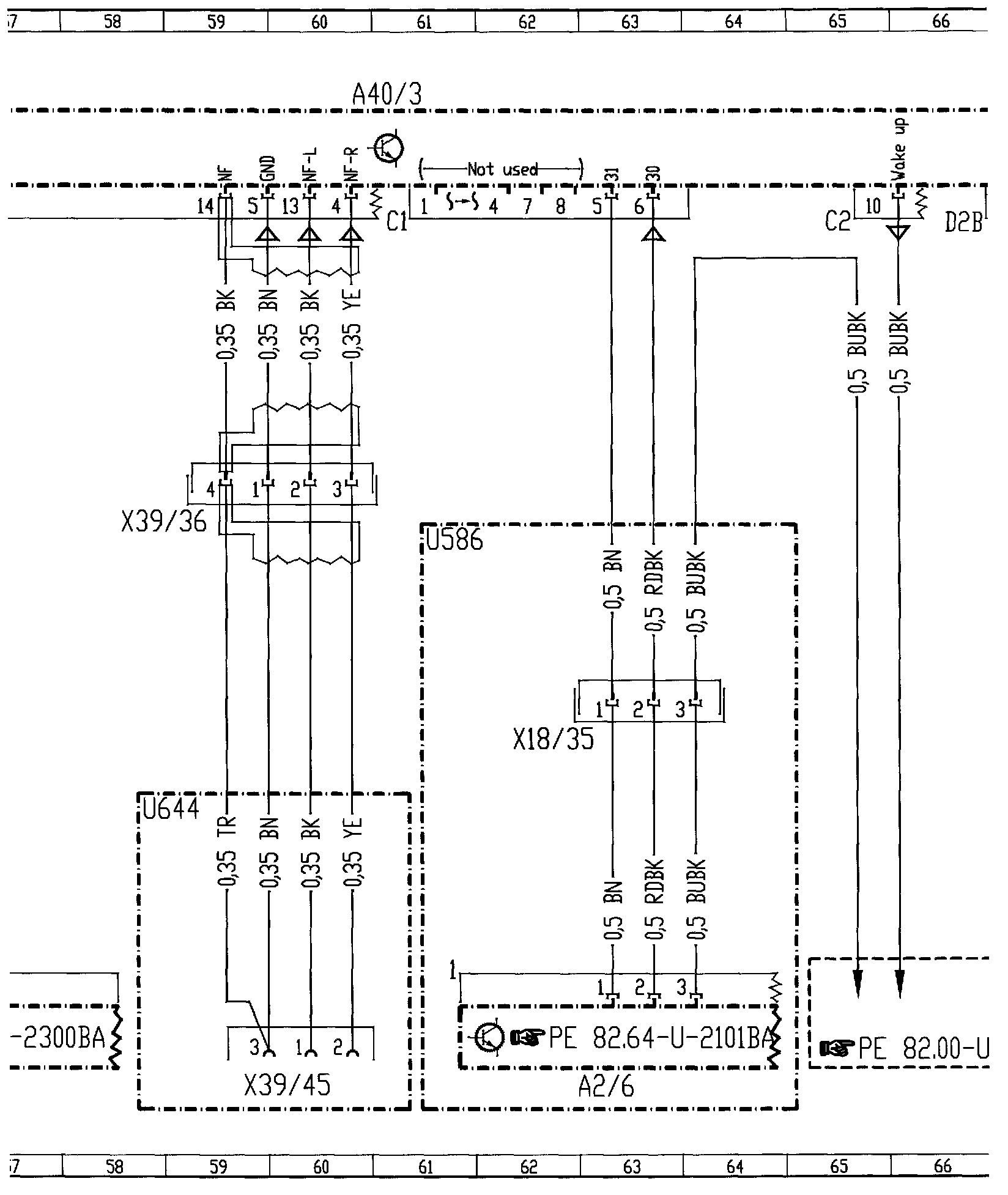

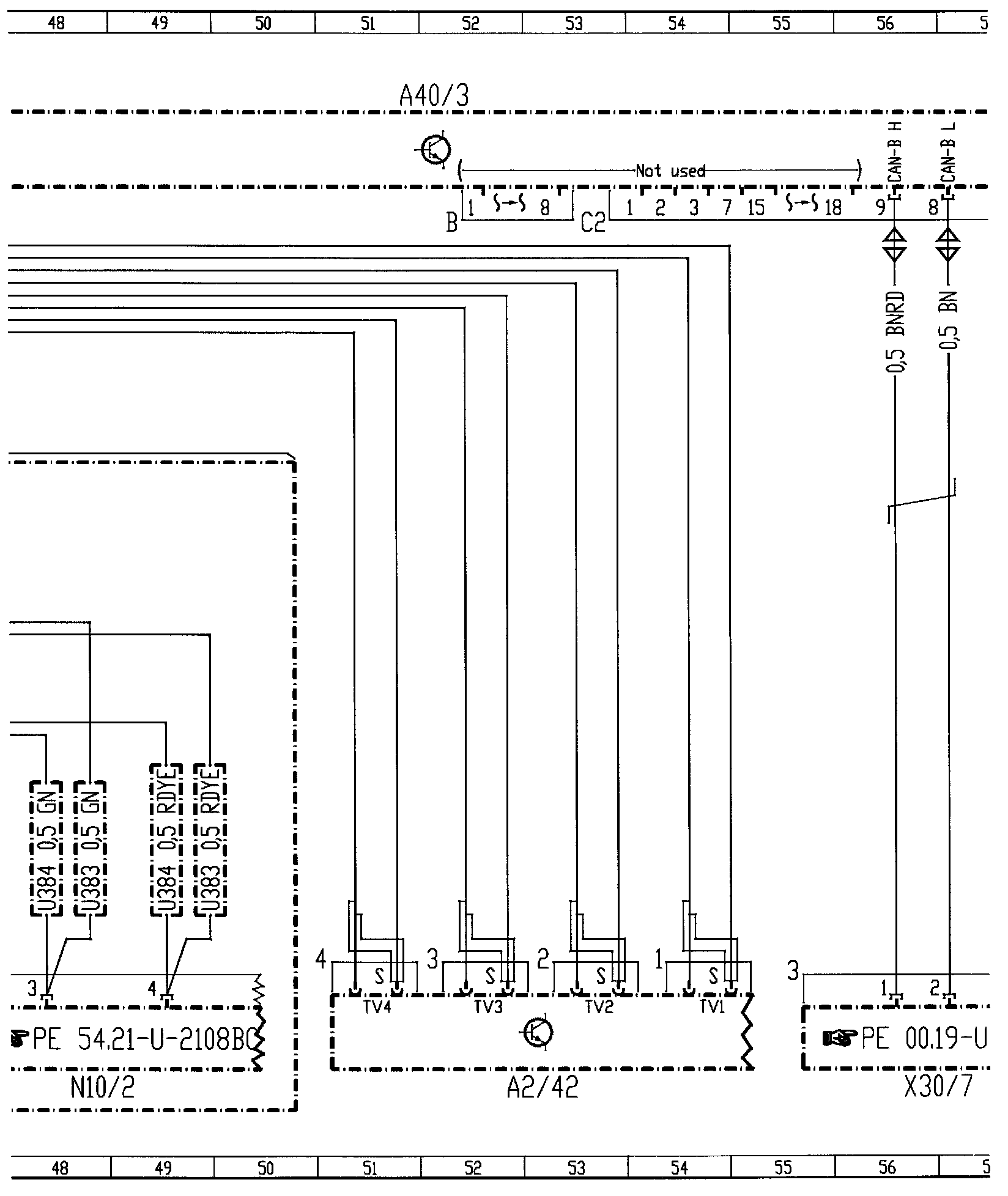

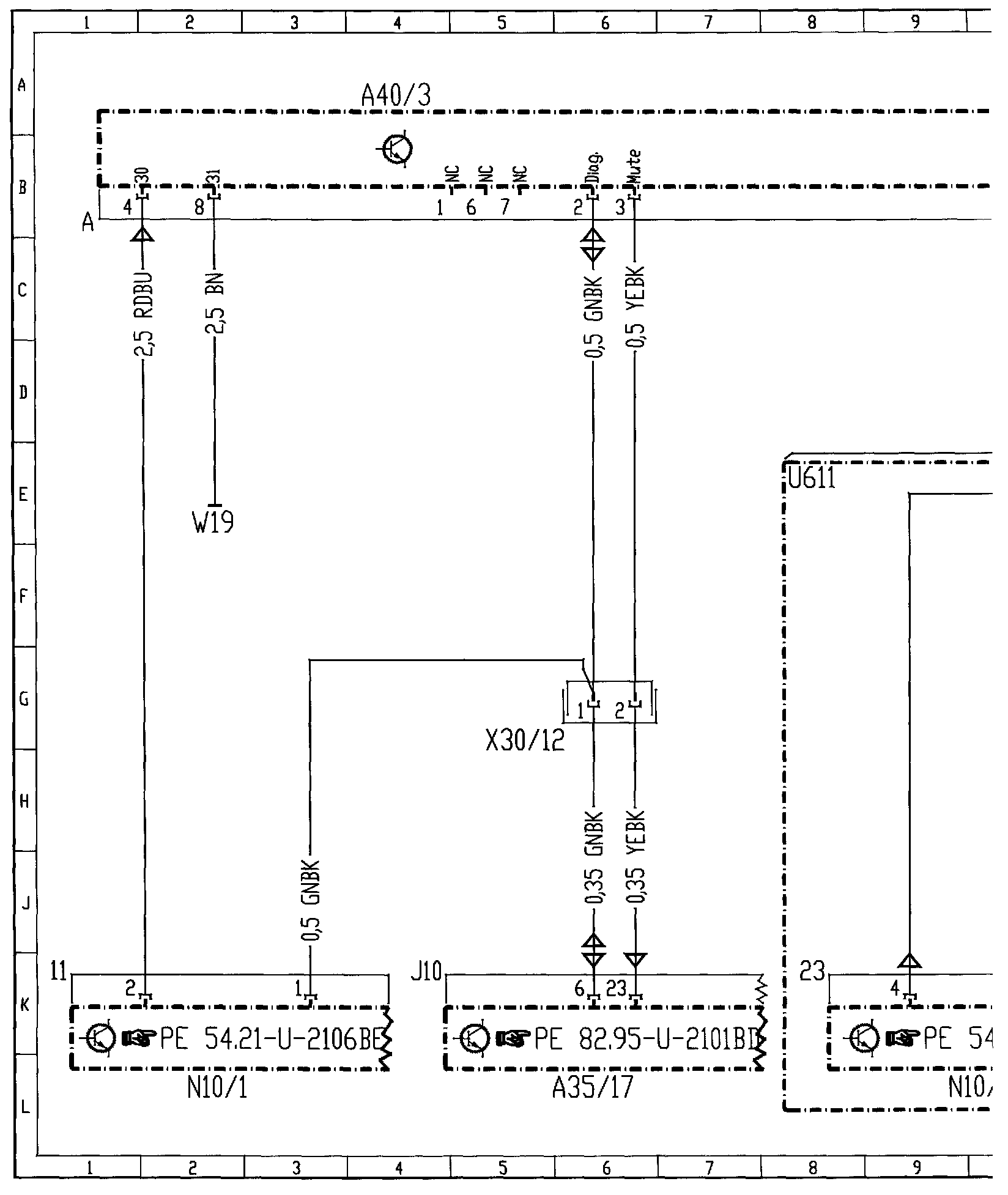

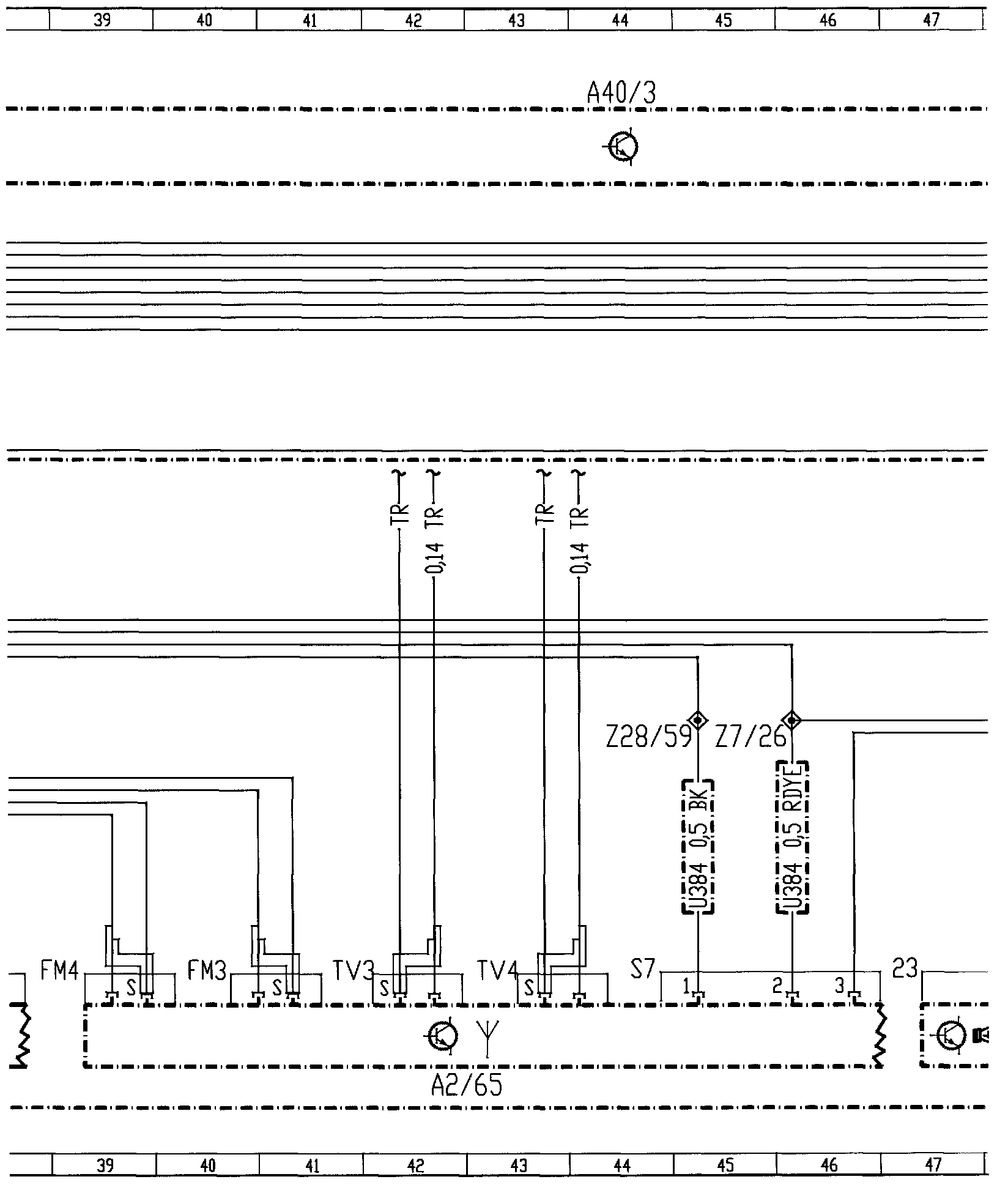

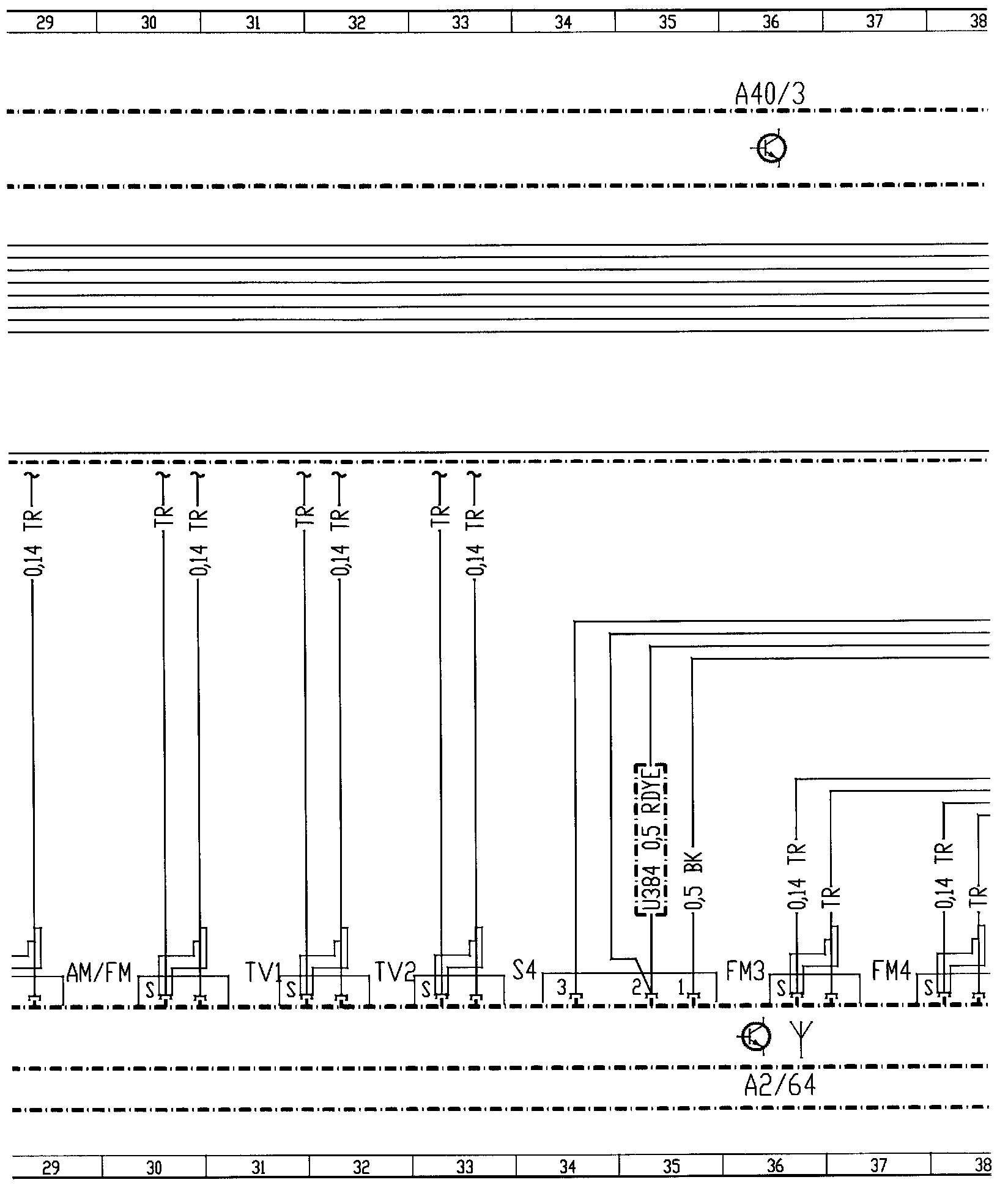

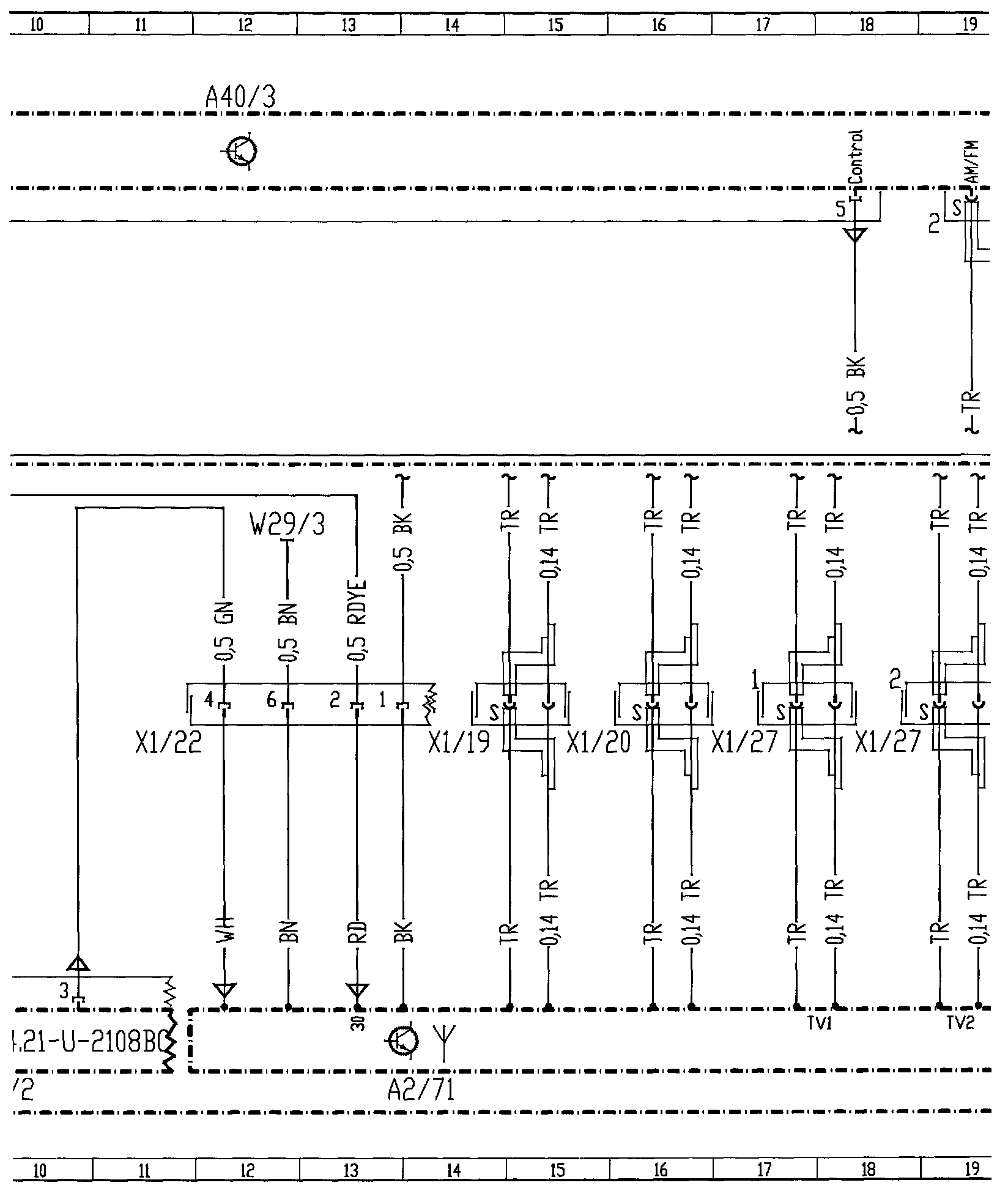

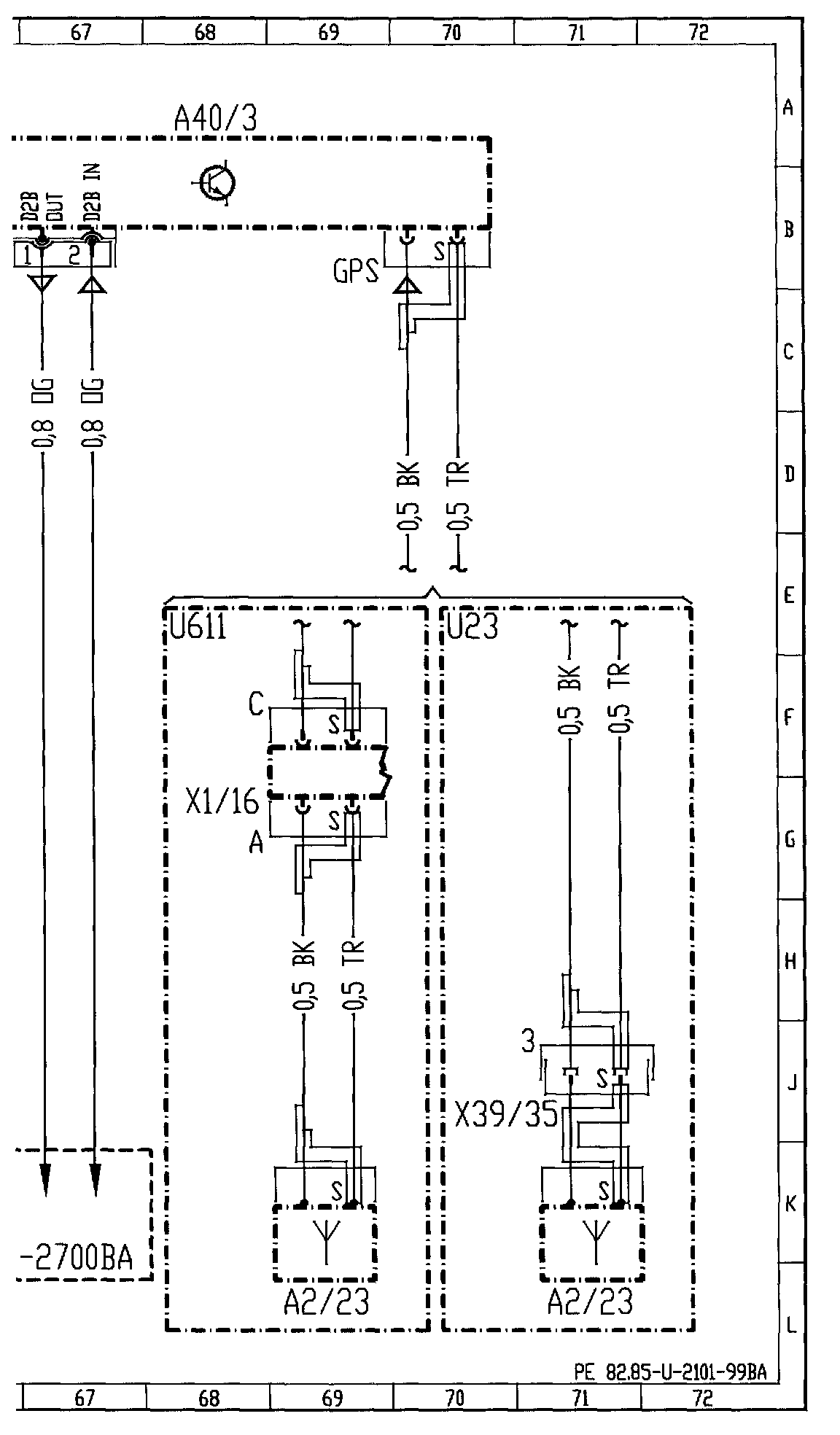

Diagram, Part 1:

Diagram, Part 2:

Diagram, Part 3:

Diagram, Part 4:

Diagram, Part 6:

Diagram, Part 5:

Diagram, Part 7:

Diagram, Part 8:

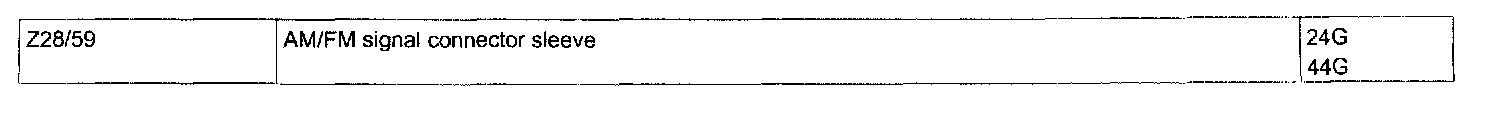

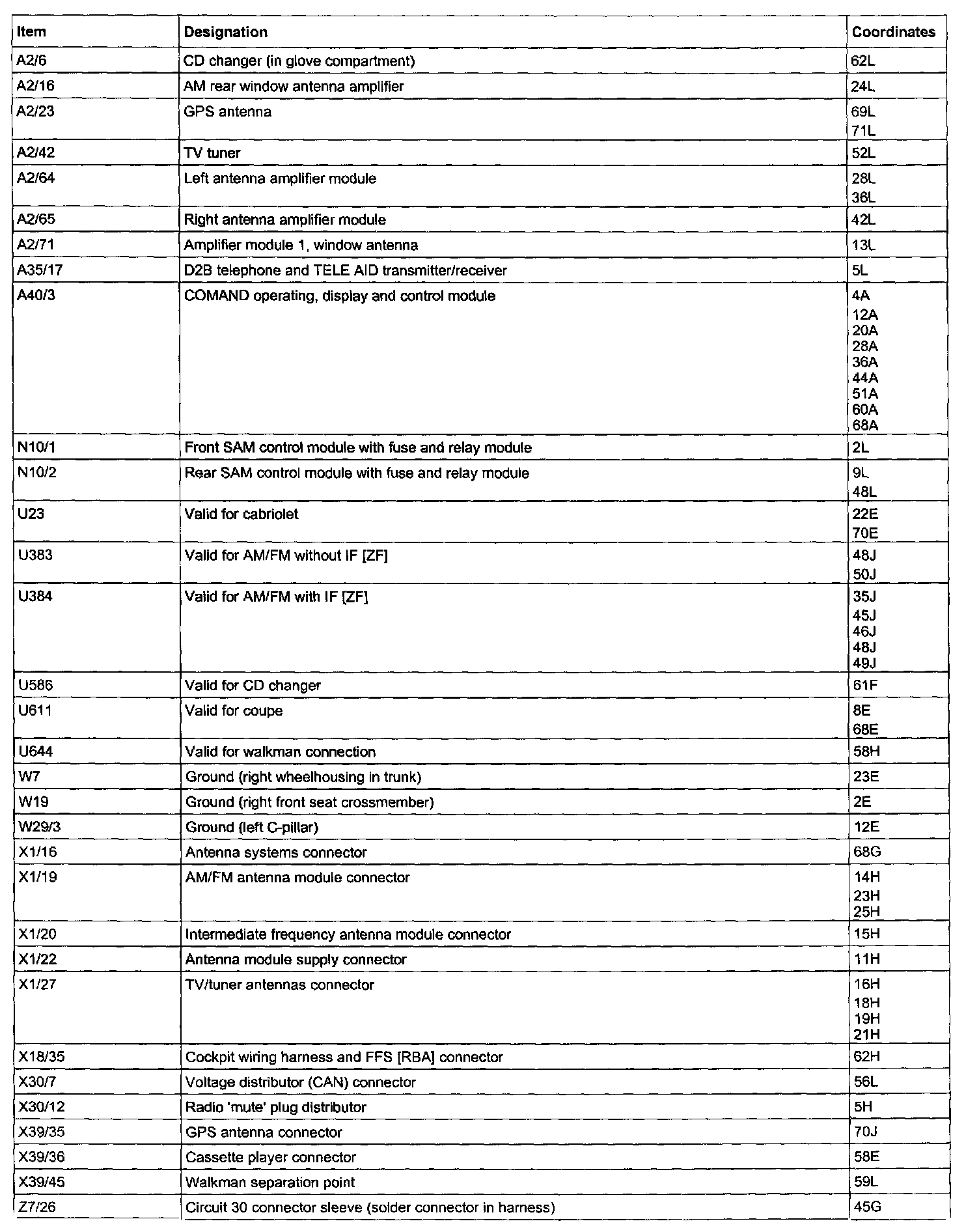

Component Description/Coordinates, A2/6 - Z7/26:

Component Description/Coordinates, Z28/59:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
