AR42.40-P-0820QBS Remove/Install Left or Right Rear Axle Speed Sensor



AR42.40-P-0820QBS Remove/install left or right rear axle speed sensor
- with CODE (P98) Black Series

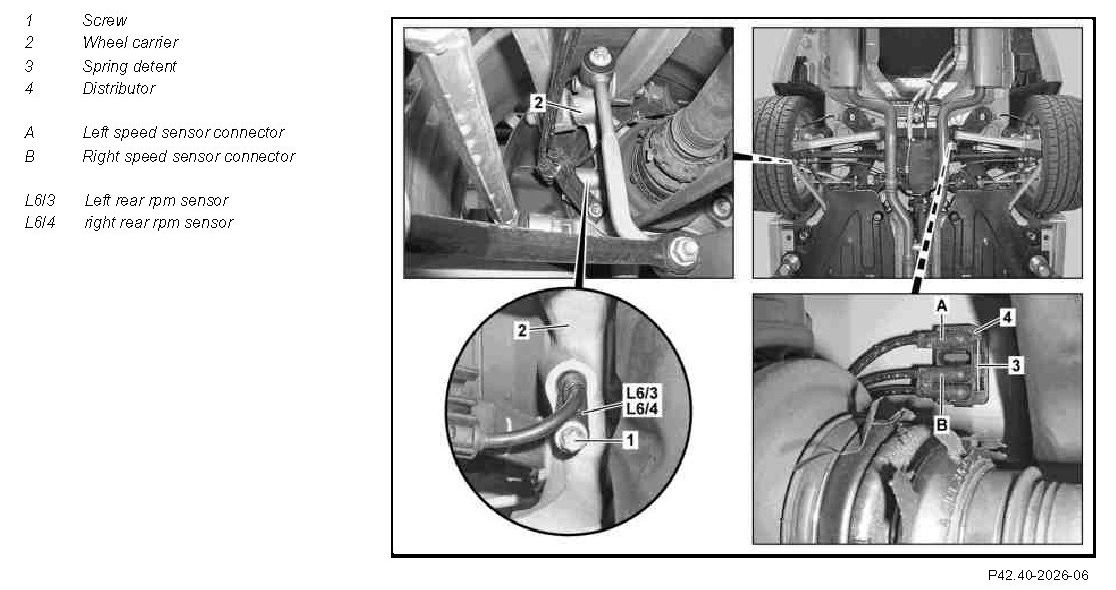

Component Identification:

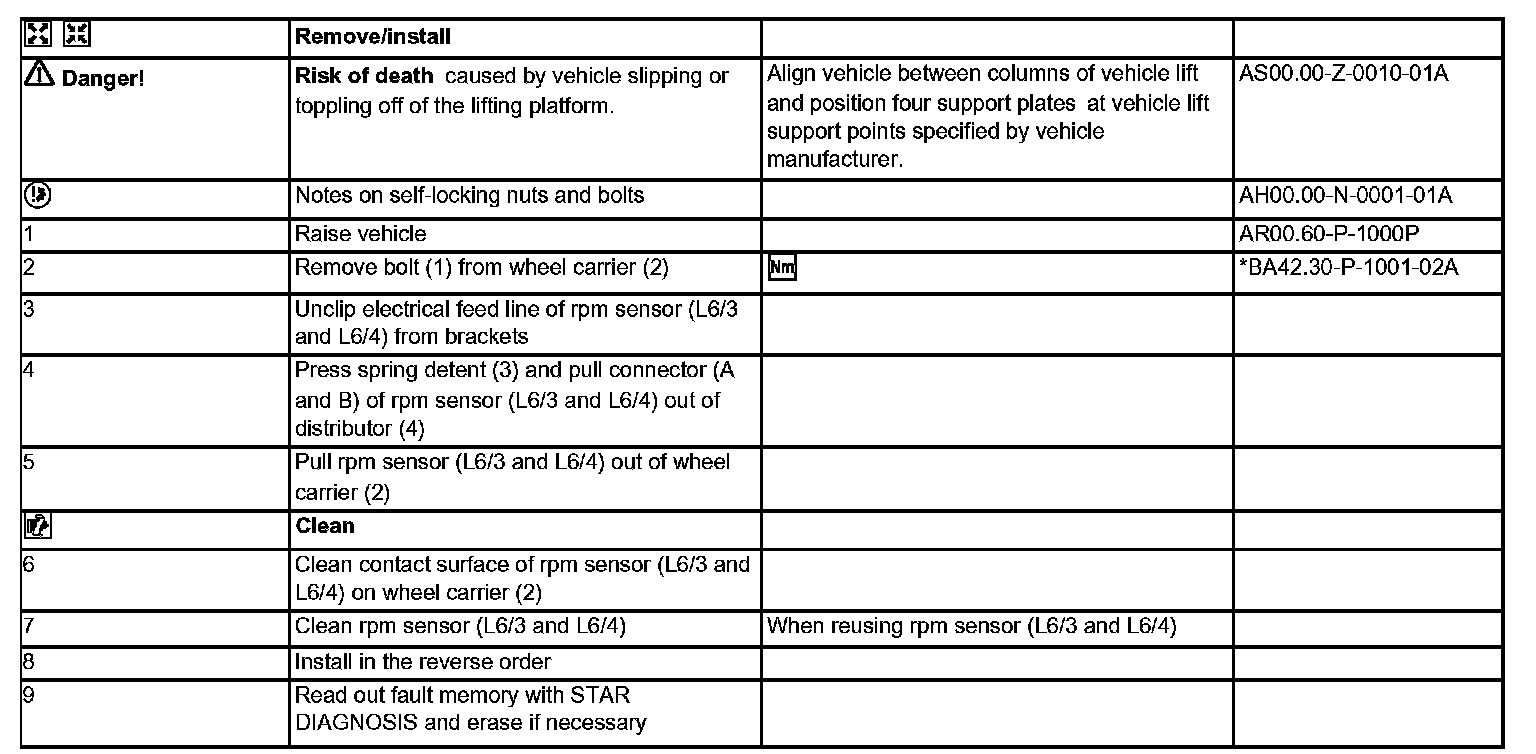

Remove/install Steps 1-9:

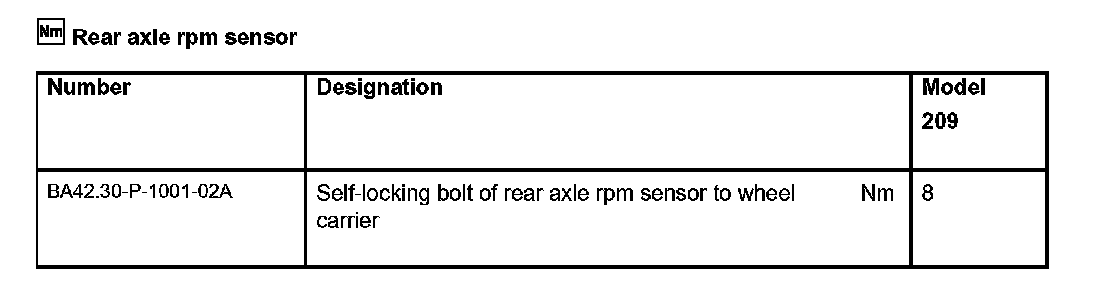

Rear axle rpm sensor:
