Home >> Mercedes Benz >> 2004 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Brakes and Traction Control >> Disc Brake System >> Brake Rotor/Disc >> Service and Repair >> Procedures >> AR42.10-P-0220P Remove/Install Brake Disk

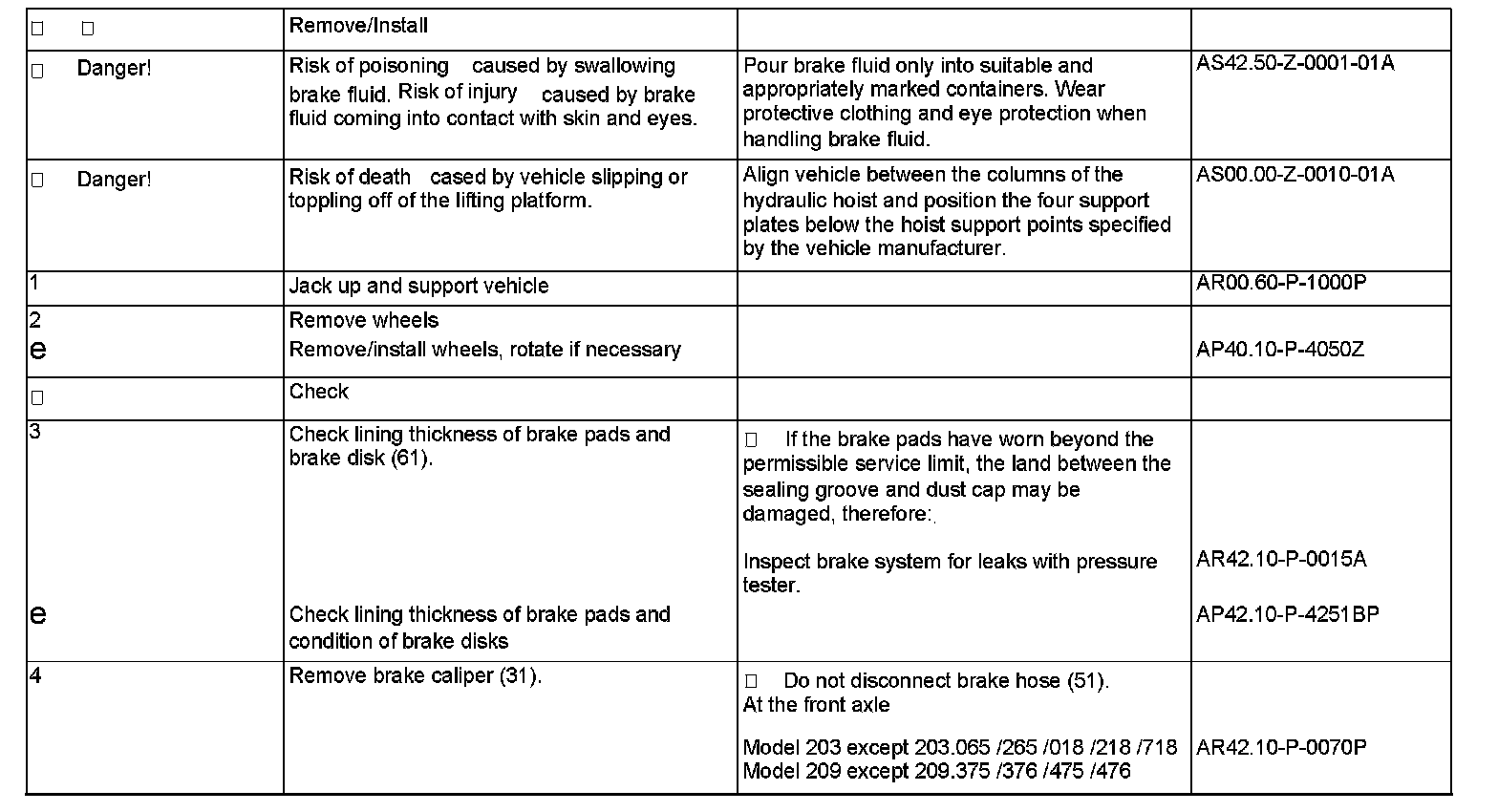

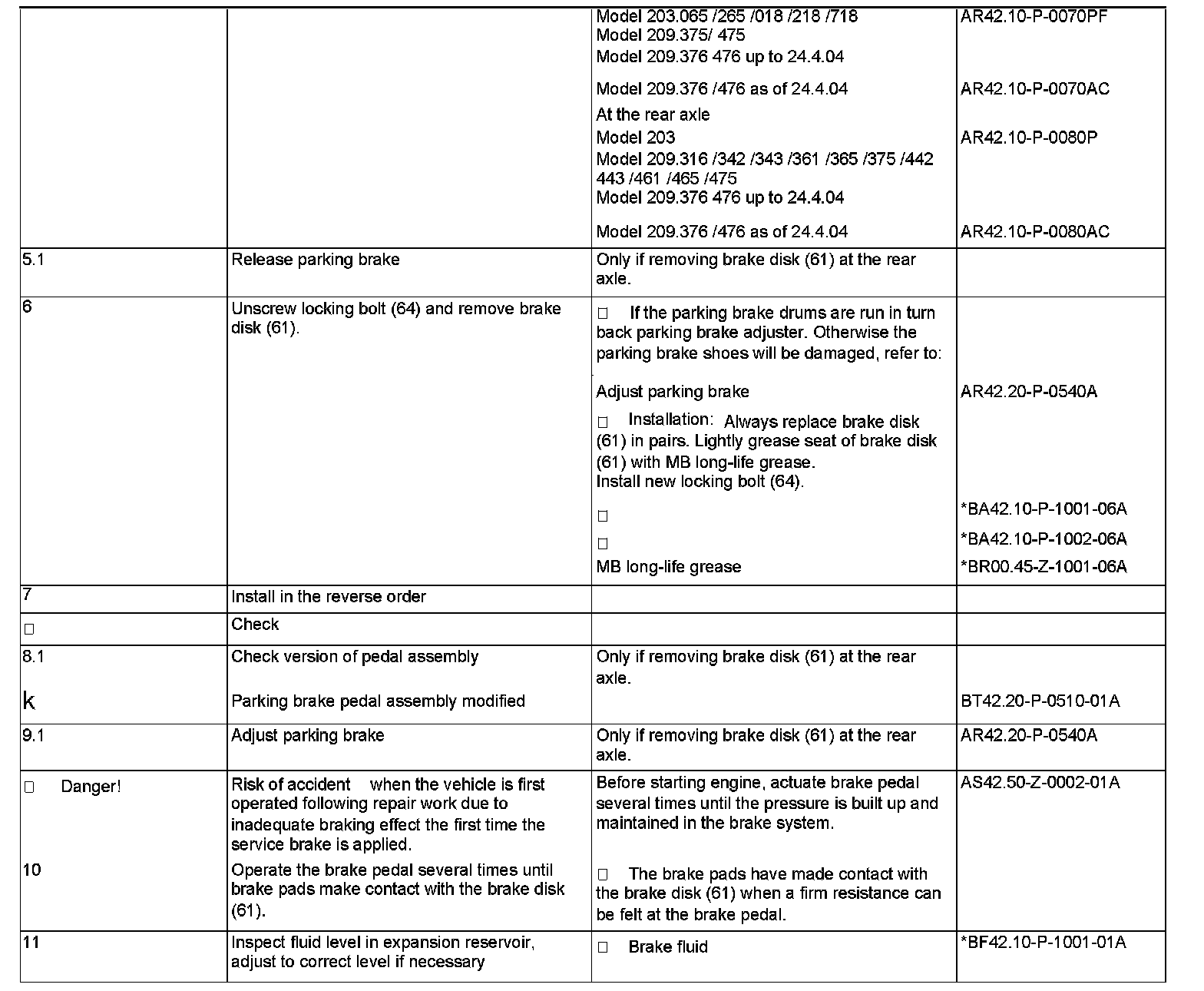

AR42.10-P-0220P Remove/Install Brake Disk




Remove/install brake disk
