AR72.10-P-2120Q Remove/Install Door Sealing Frame
AR72.10-P-2120Q Remove/Install Door Sealing Frame
AR72.10-P-2120Q Remove/Install Door Sealing
Frame

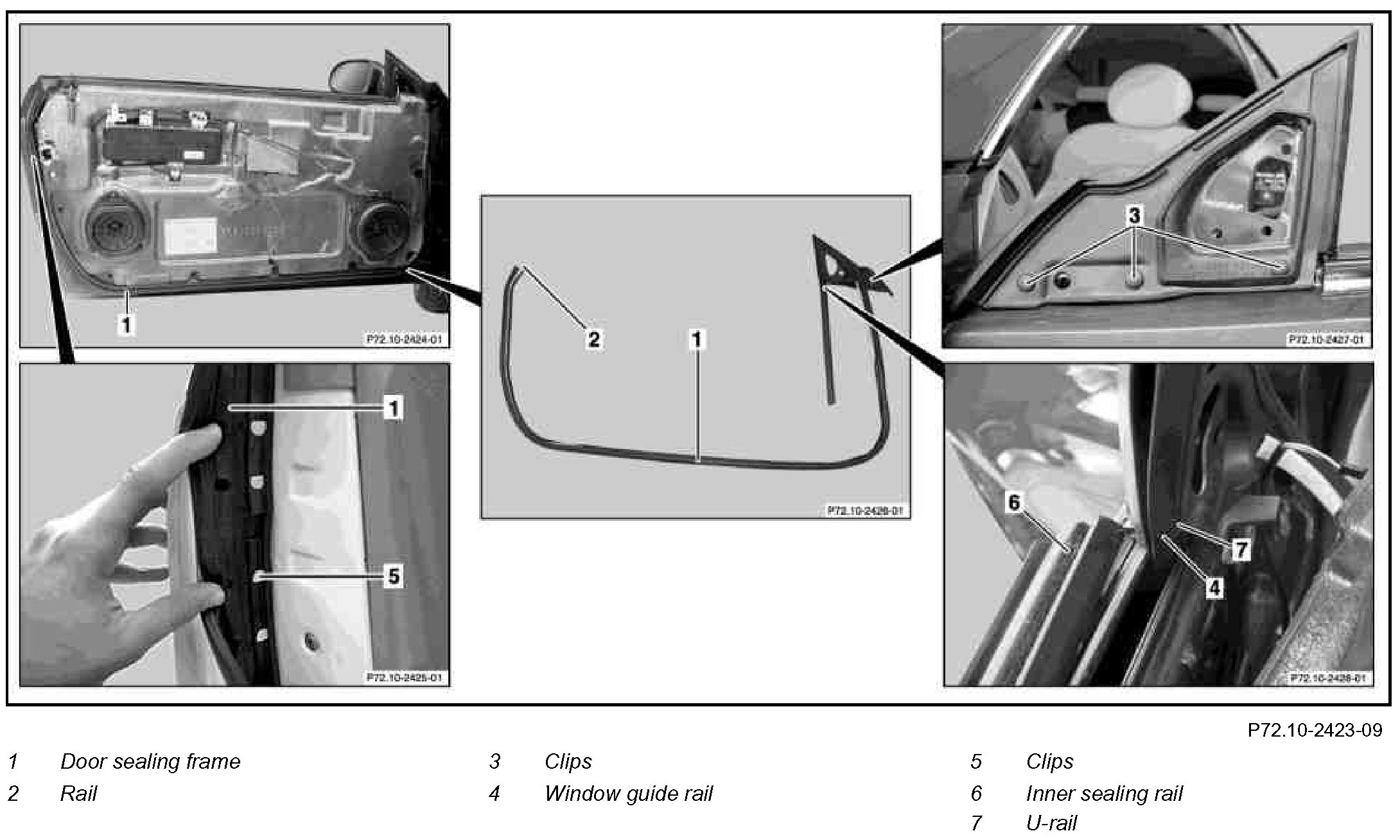

Component Identification:

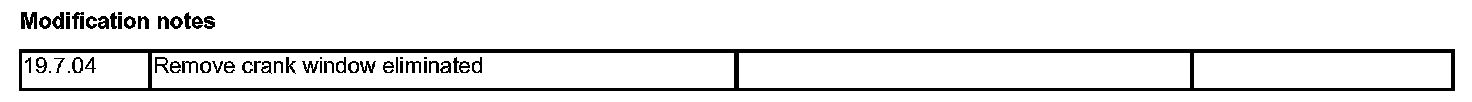

Modification Notes:

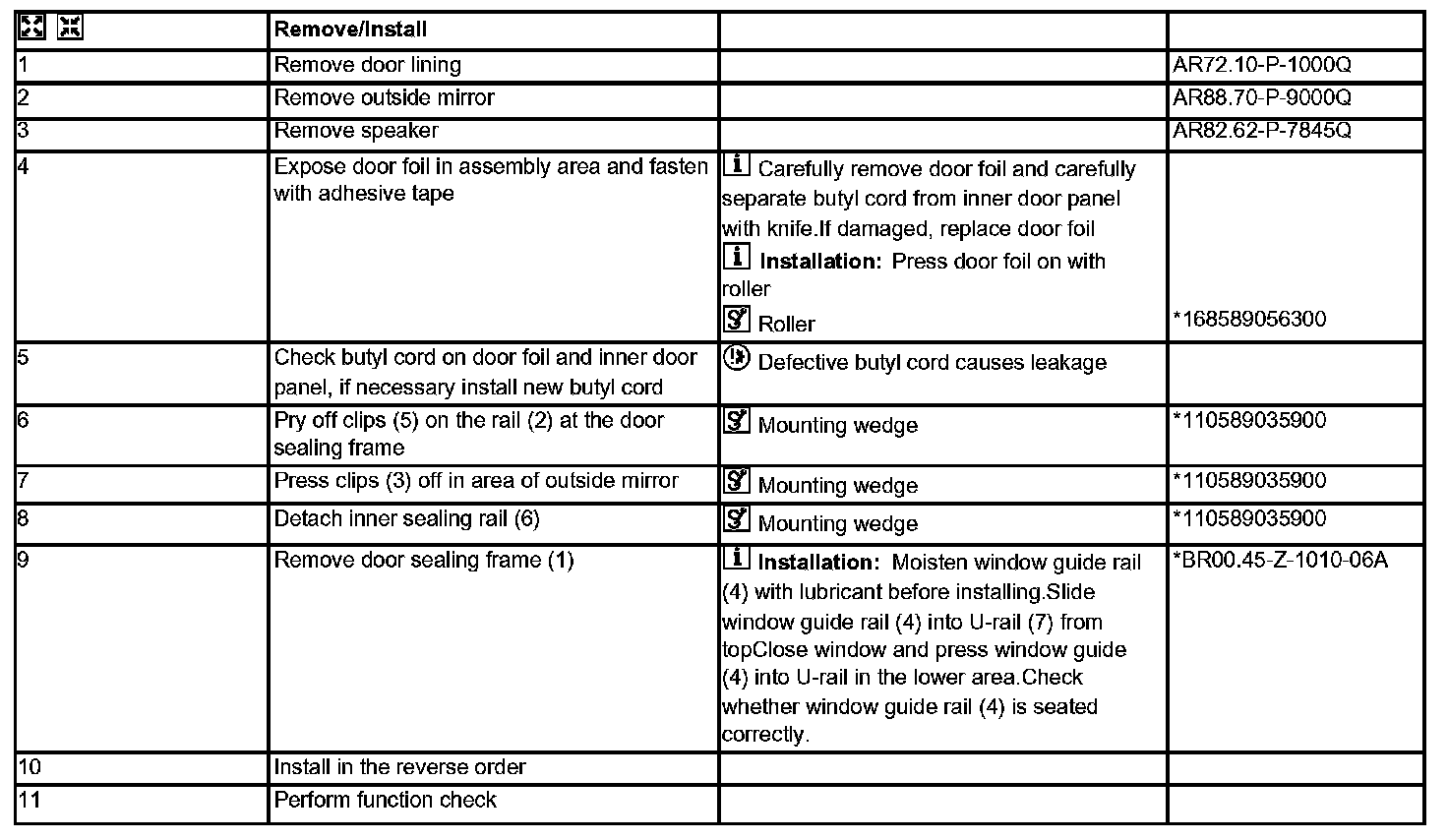

Steps 1 - 11:

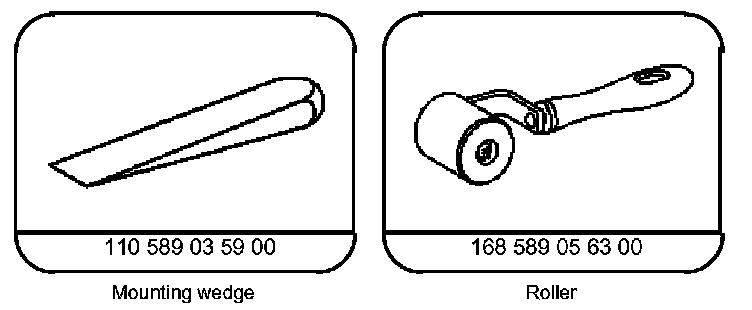

Special Tools:

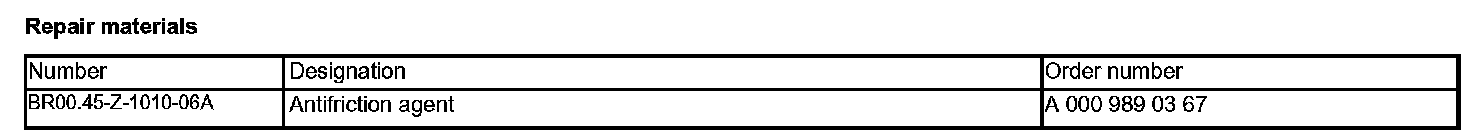

Repair Materials:
