AR72.10-P-1620PA Remove, Install Sealing Strip on Door Bottom Edge of Front Door



AR72.10-P-1620PA Remove, Install Sealing Strip On Door Bottom Edge Of Front Door

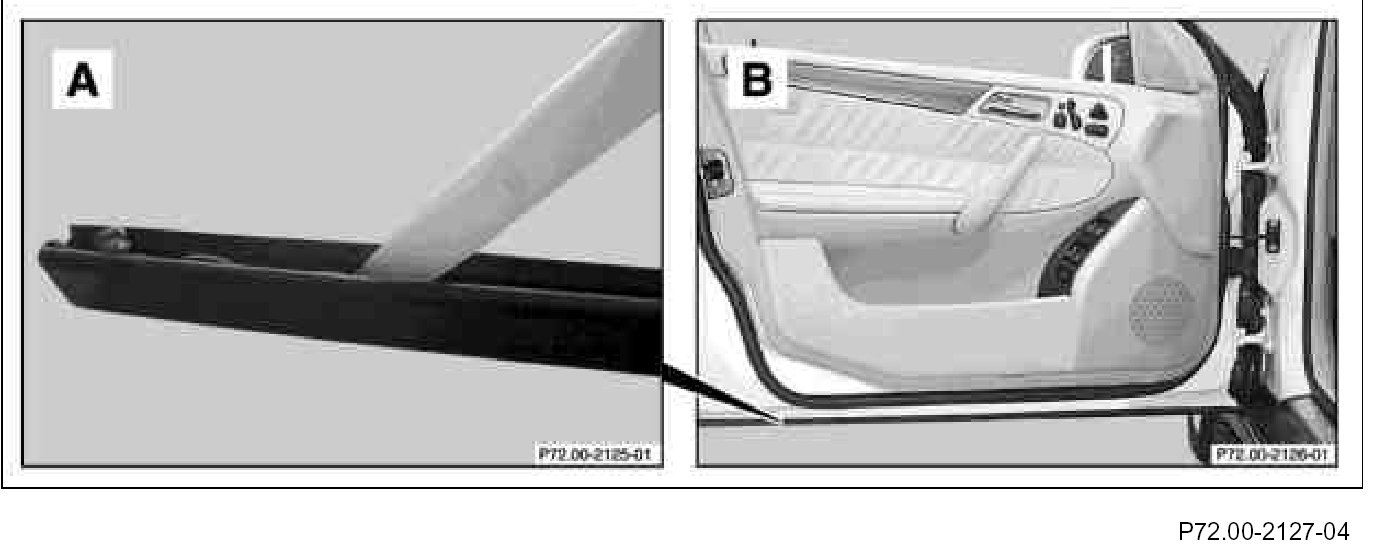

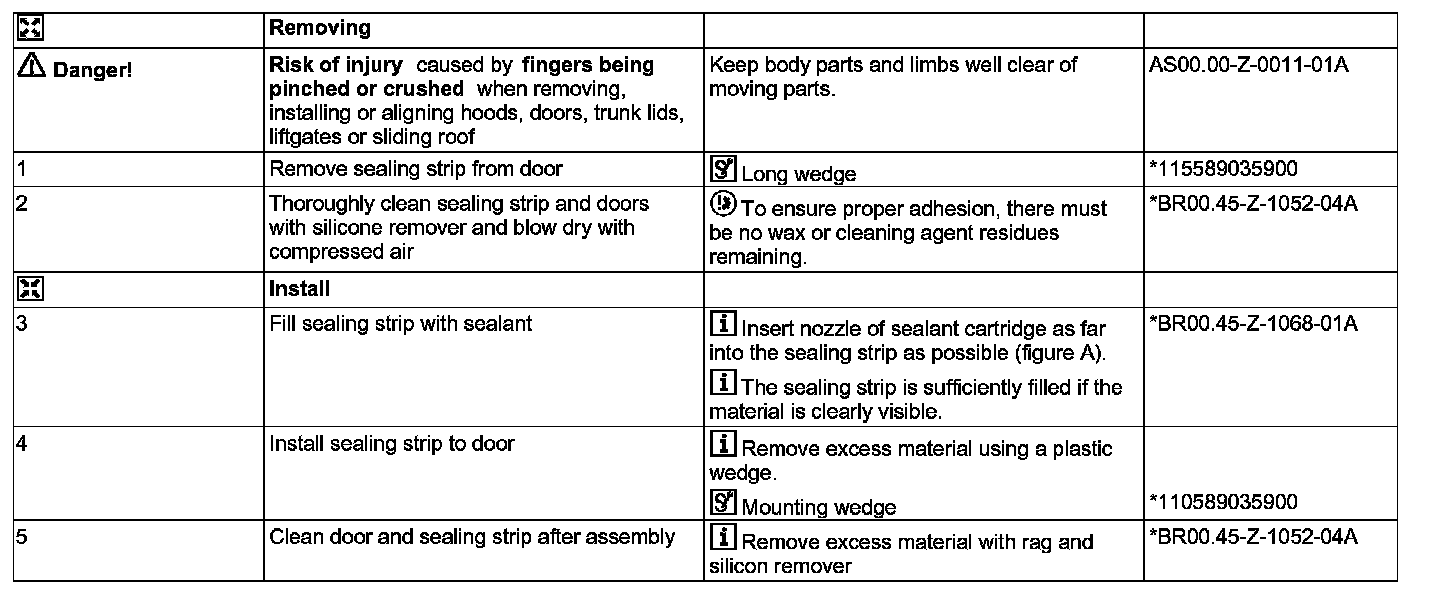

Steps 1 - 5:

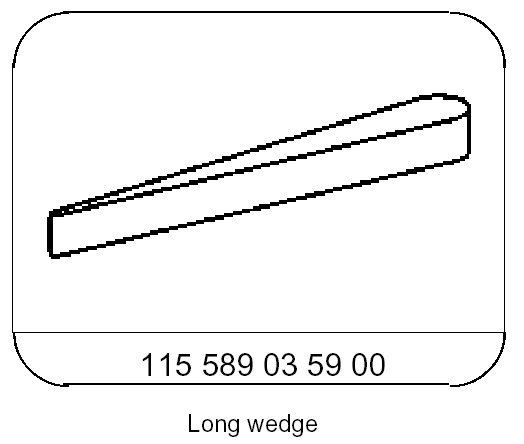

Special Tool:

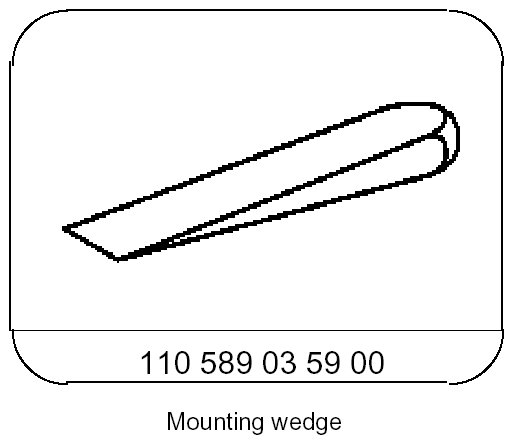

Special Tool:

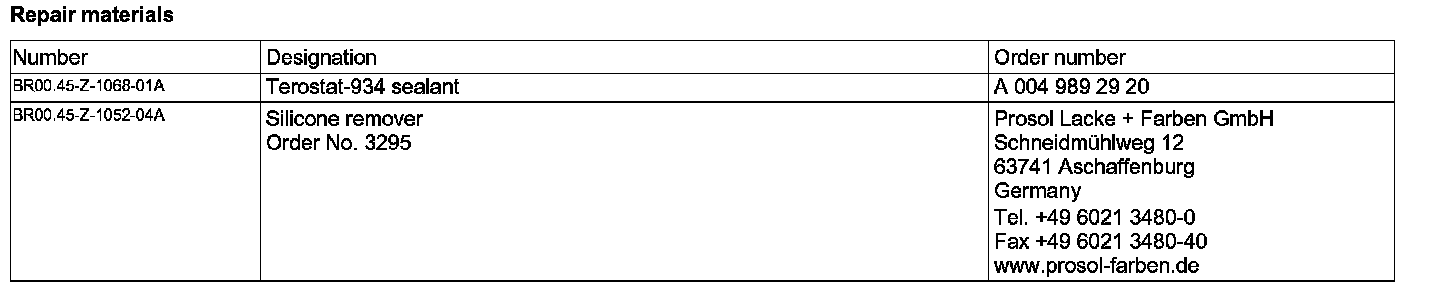

Repair Materials:
