AR88.30-P-1000-04Q Glue In Spare Tire Well

AR88.30-P-1000-04Q Glue In Spare Tire Well

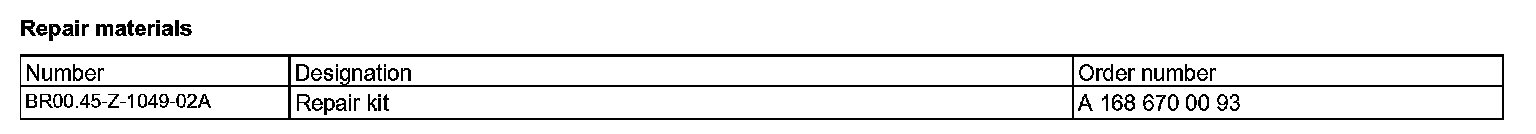

Repair Materials:

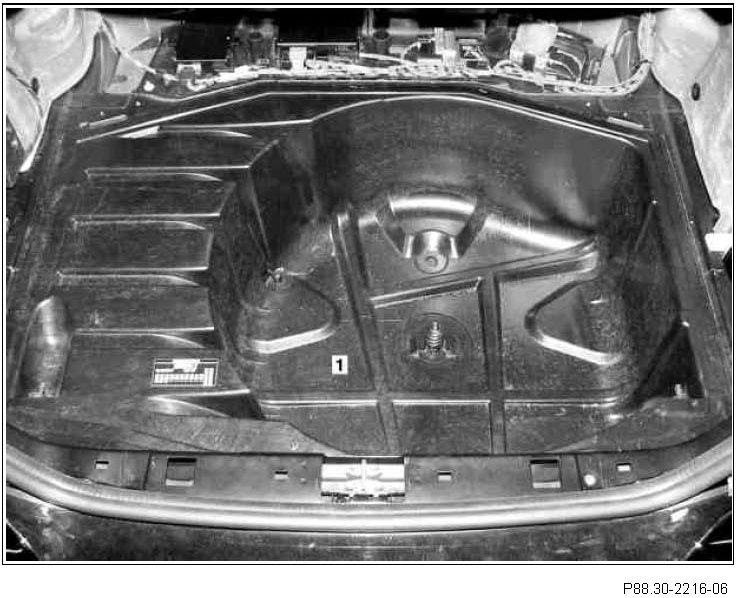

1. Clean adhesive flange on spare tire well (1) with cleaning cloth from cleaning set

Dry with drying cloth.

2. Apply plastic primer to adhesive flange of spare tire well (1).

Allow primer to air-dry for a minimum of 10 minutes.

3. Apply adhesive material.

The height of adhesive bead is approx. 13 cm and is applied to the adhesive flange on the spare tire well (1).

4. Insert spare tire well (1) into body opening and center.
5. Press spare tire well (1) all-round by tapping lightly with plastic mallet.

Curing time is approx. 1 hour, measured from the time the spare tire well is inserted.
