AR91.10-P-0050QBS Remove/Install Pneumatic Unit
AR91.10-P-0050QBS Remove/Install Pneumatic Unit
AR91.10-P-0050QBS Remove/Install Pneumatic Unit
- with CODE (P98) Black Series

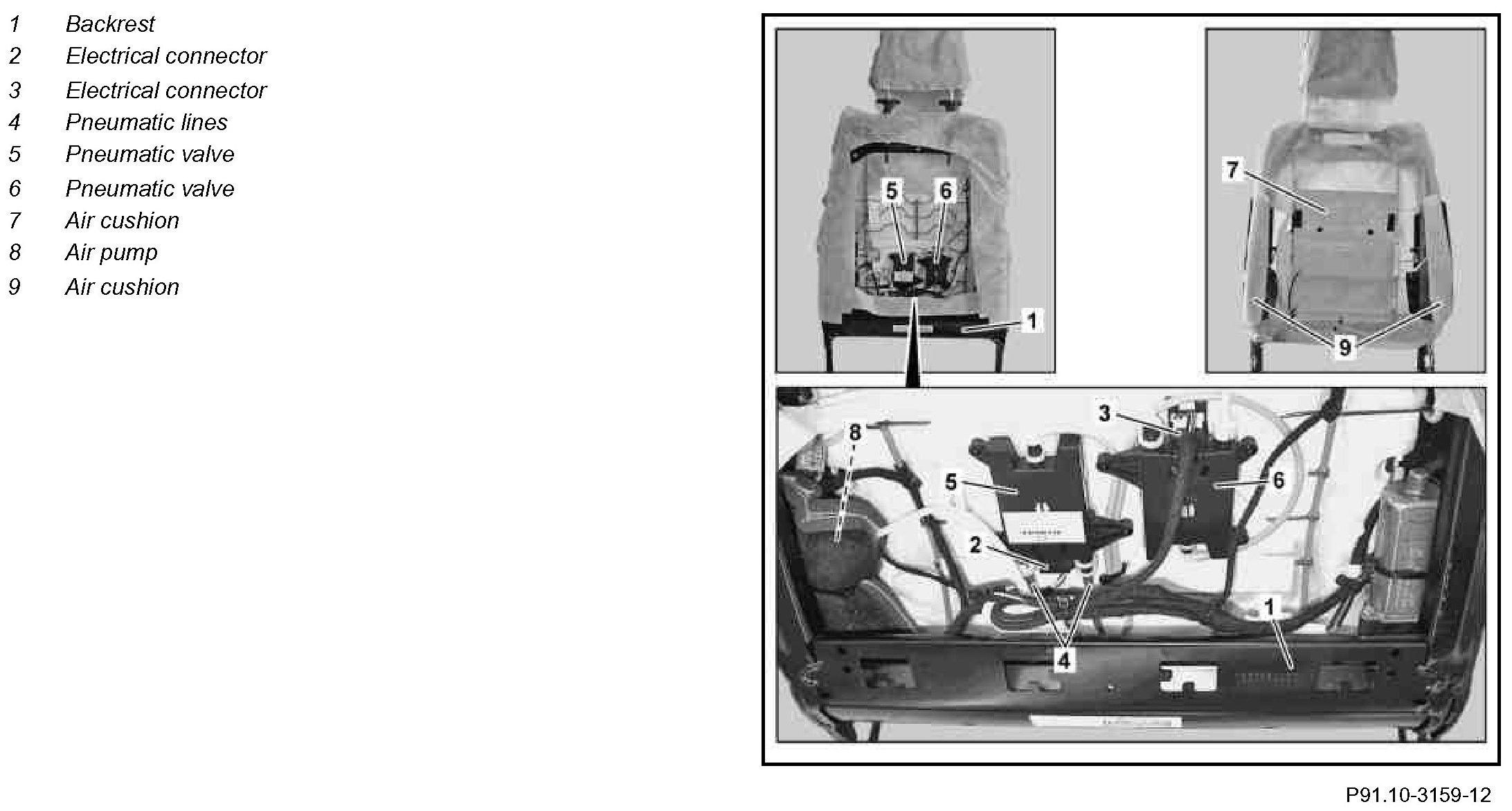

Component Identification:

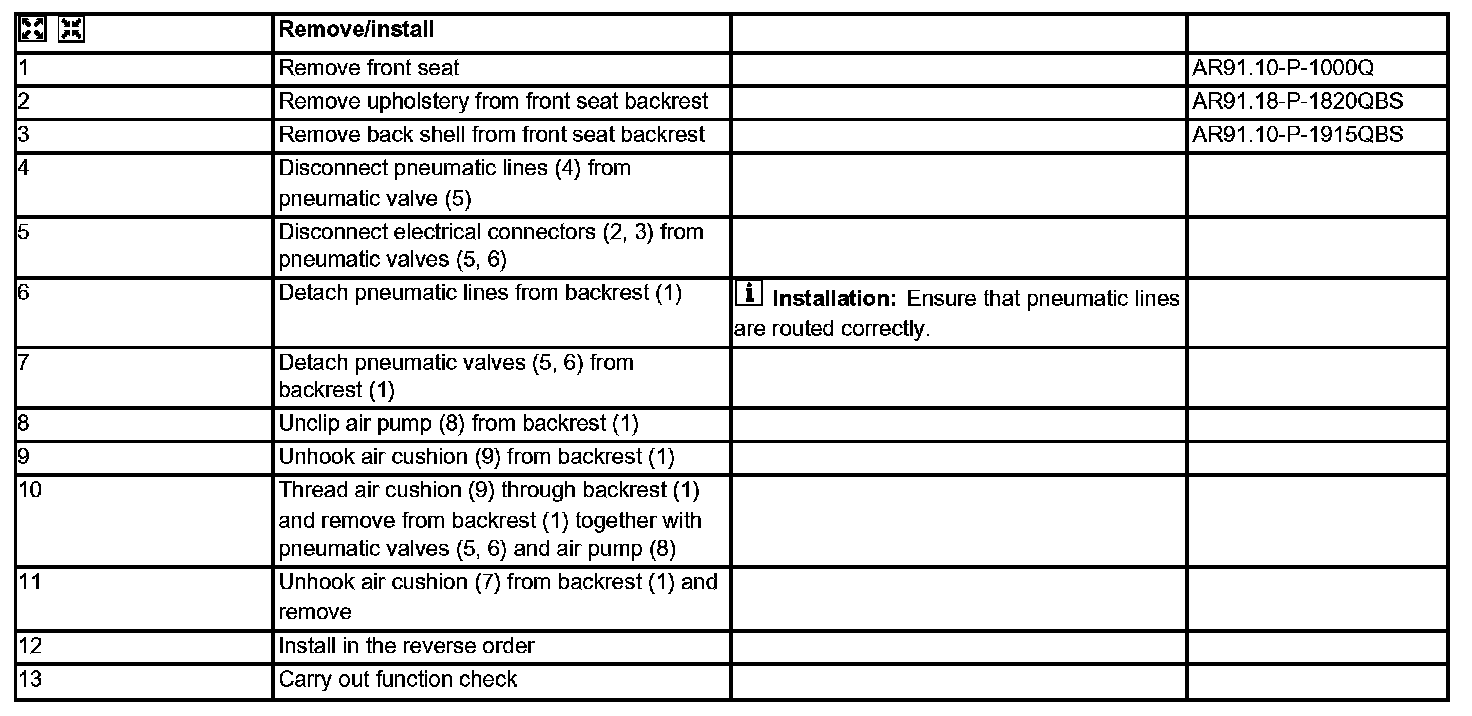

Steps 1 - 13:
