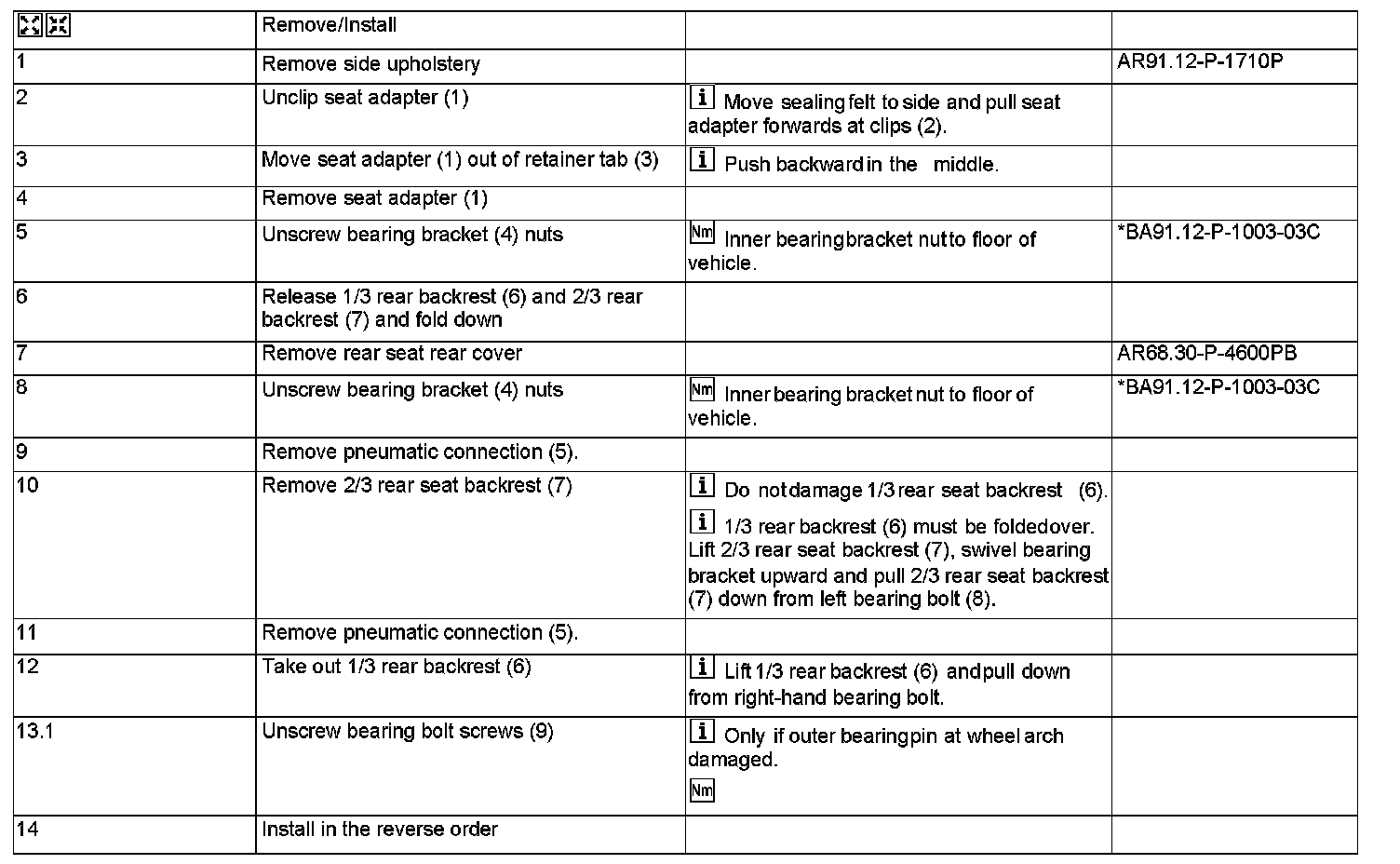

AR91.12-P-1720Q Remove/Install Tilting Rear Seat
AR91.12-P-1720Q Remove/Install Tilting Rear Seat
AR91.12-P-1720Q Remove/Install Tilting Rear Seat
- except CODE (P98) Black Series

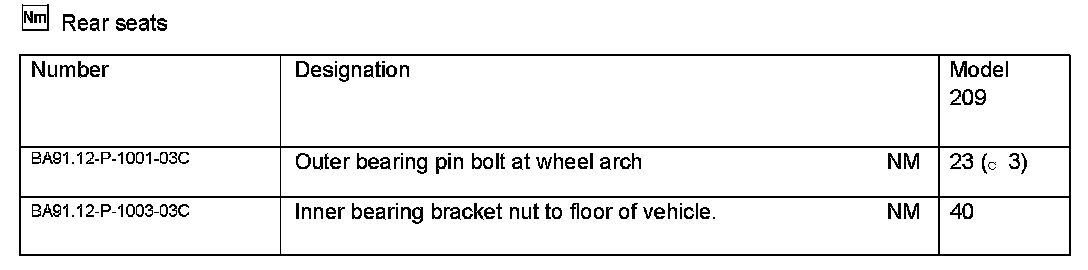

Rear Seats:
