Home >> Mercedes Benz >> 2004 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Latch Cable >> Service and Repair >> AR91.10-P-1470Q Remove/Install Bowden Cables For Front Seat Backrest Release

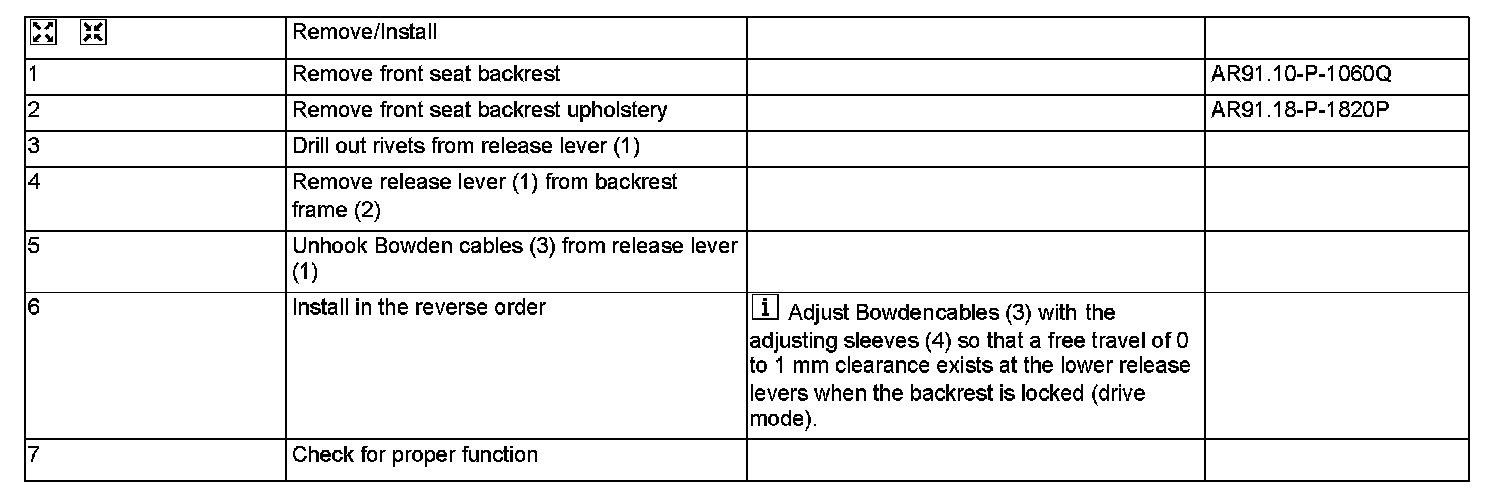

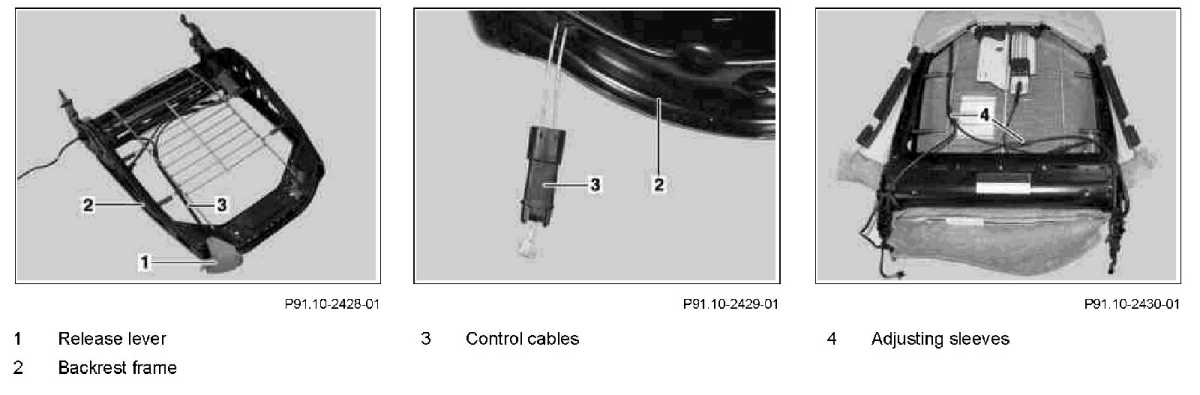

AR91.10-P-1470Q Remove/Install Bowden Cables For Front Seat Backrest Release



AR91.10-P-1470Q Remove/Install Bowden Cables For Front Seat Backrest Release
- except CODE (P98) Black Series
