Home >> Mercedes Benz >> 2004 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Cushion >> Service and Repair >> AR91.12-P-1710P Remove/Install Rear Seat Backrest Side Padding

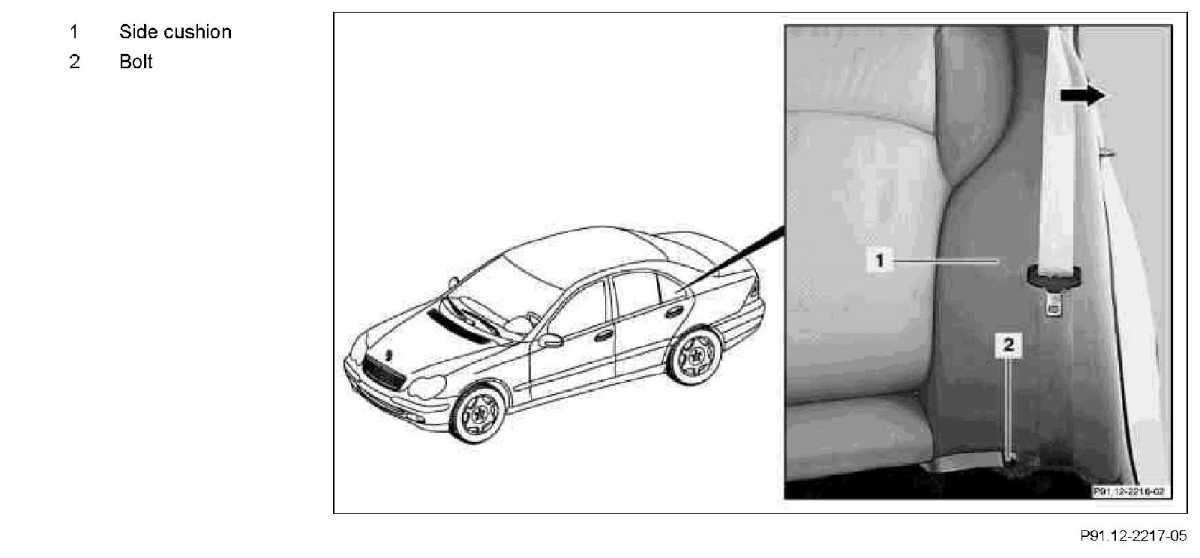

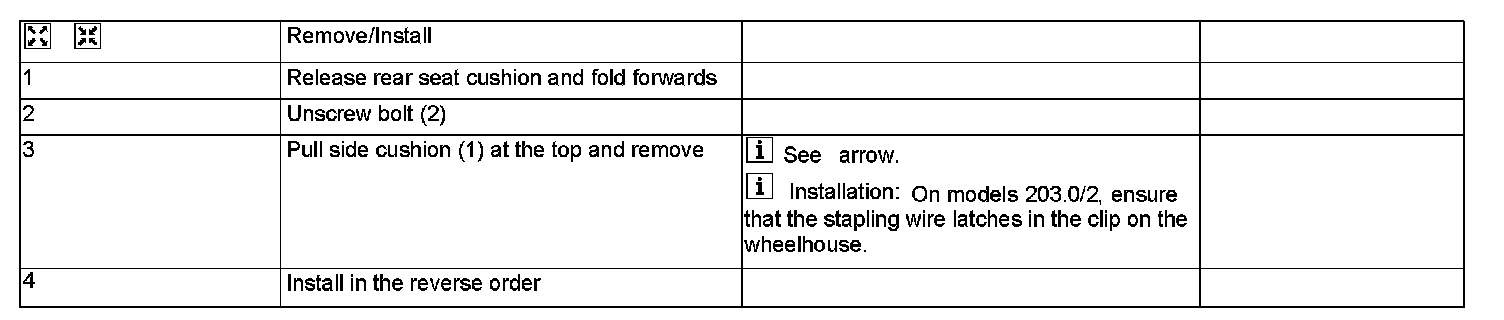

AR91.12-P-1710P Remove/Install Rear Seat Backrest Side Padding



AR91.12-P-1710P Remove/Install Rear Seat Backrest Side Padding
- with CODE (287) Through-loading feature [model 203.0]
- without CODE (P98) Black Series [model 209.3]
