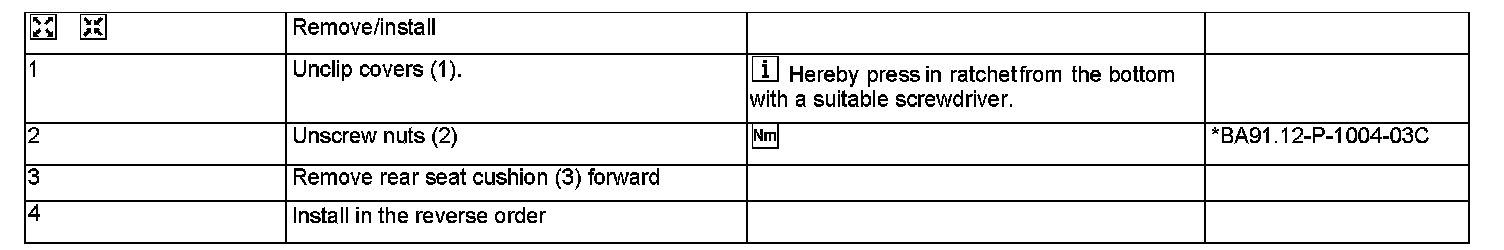

AR91.12-P-1020QA Remove/Install Rear Seat Cushion



AR91.12-P-1020QA Remove/Install Rear Seat Cushion
- except CODE (P98) Black Series
- except CODE (287) Through-loading feature

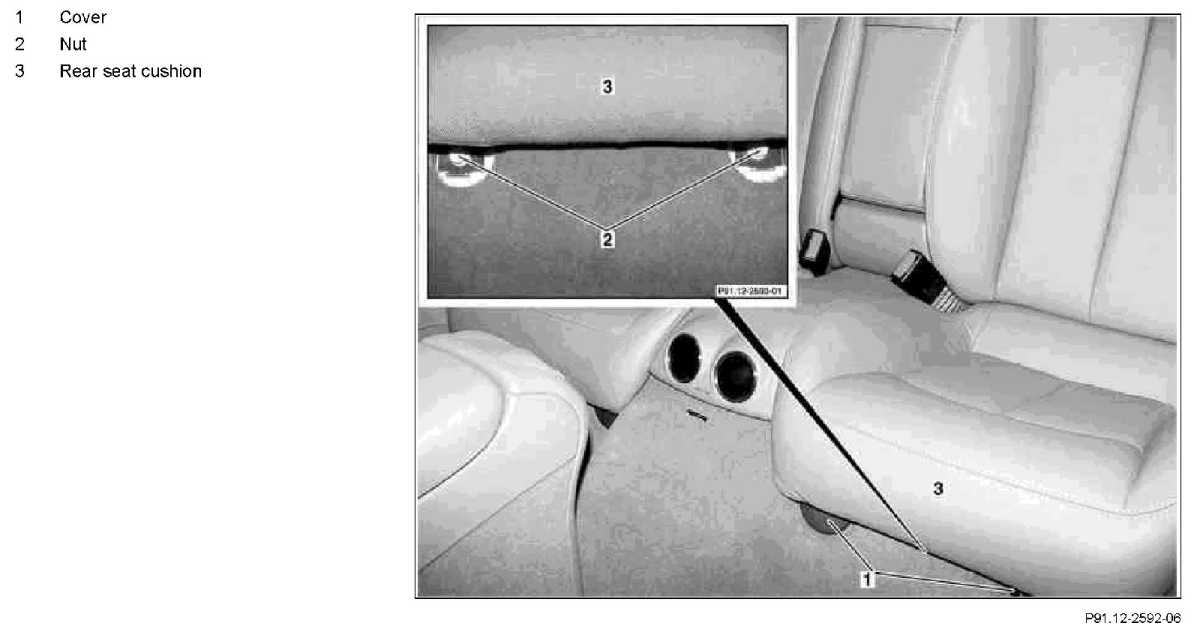

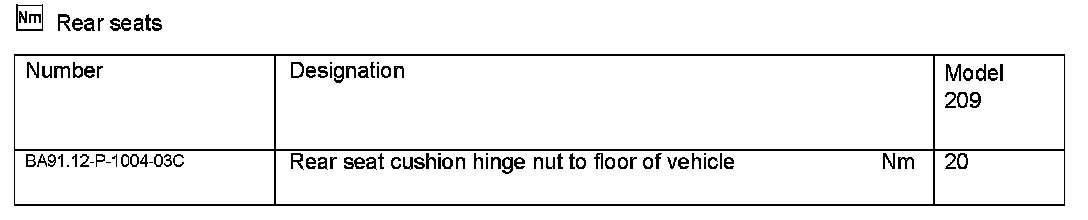

Rear Seats:
