Home >> Mercedes Benz >> 2004 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Cushion >> Service and Repair >> AR91.10-P-1070P Remove/Install Driver's Seat Cushion

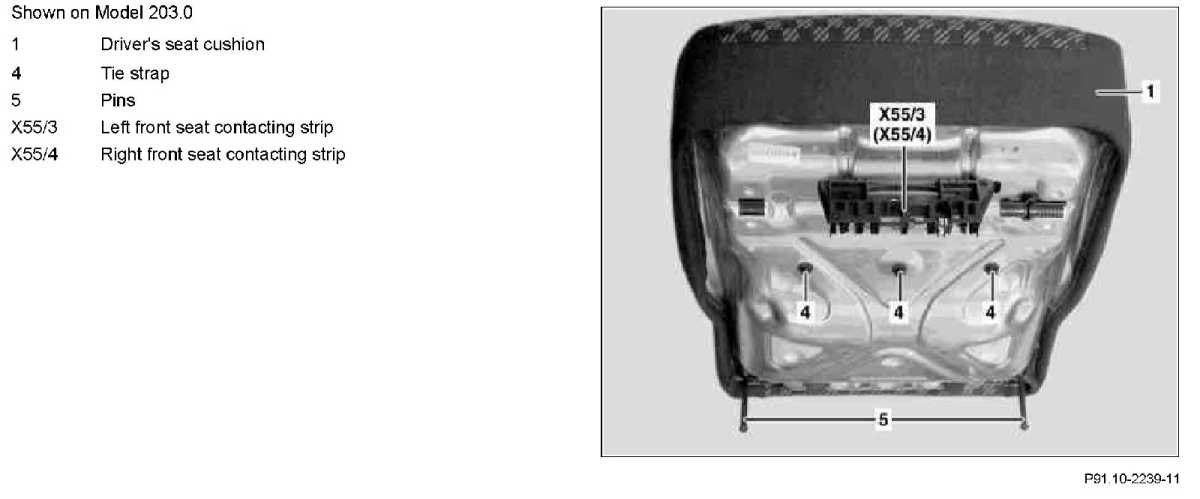

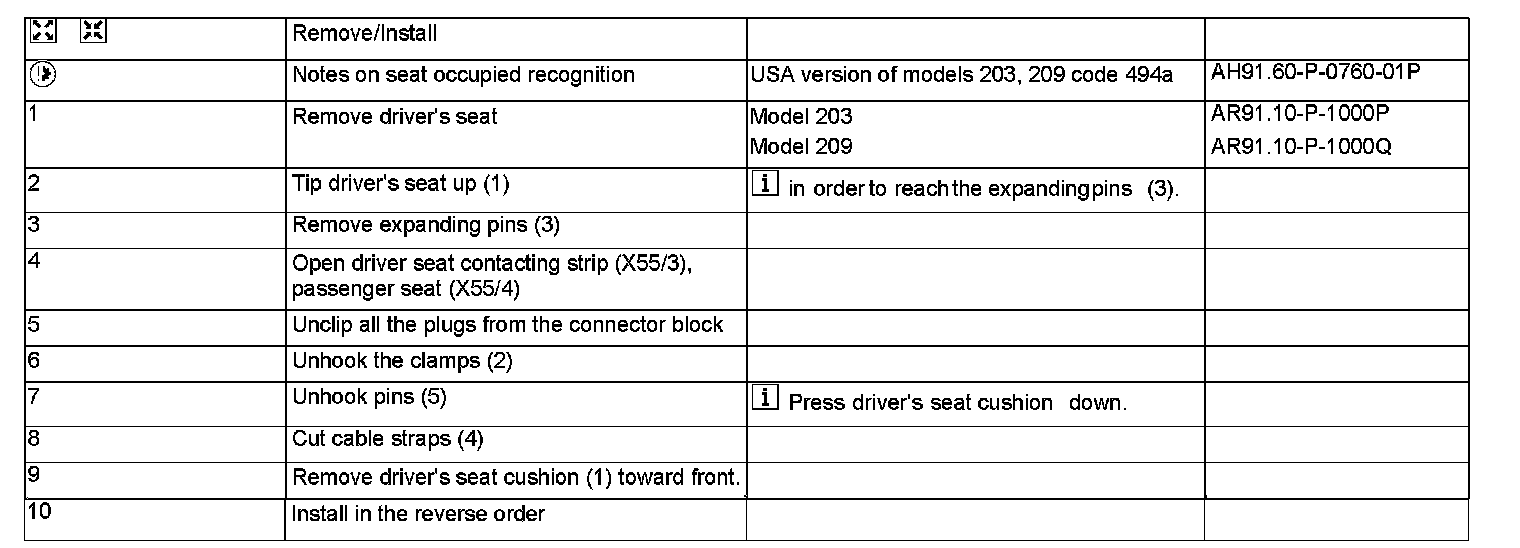

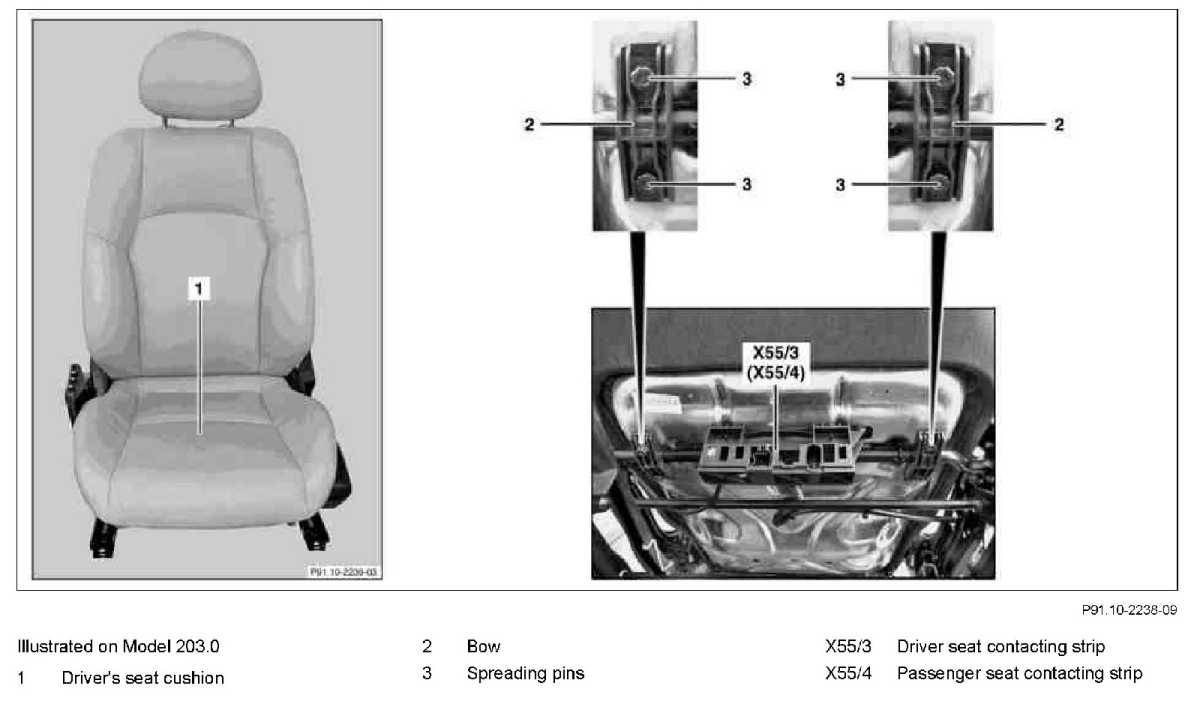

AR91.10-P-1070P Remove/Install Driver's Seat Cushion



AR91.10-P-1070P Remove/Install Driver's Seat Cushion
- except CODE (P98) Black Series [models 209]
