Home >> Mercedes Benz >> 2004 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Motor >> Service and Repair >> AR91.29-P-1430P Remove/Install Front Seat (Seat Backrest) Adjusting Motors

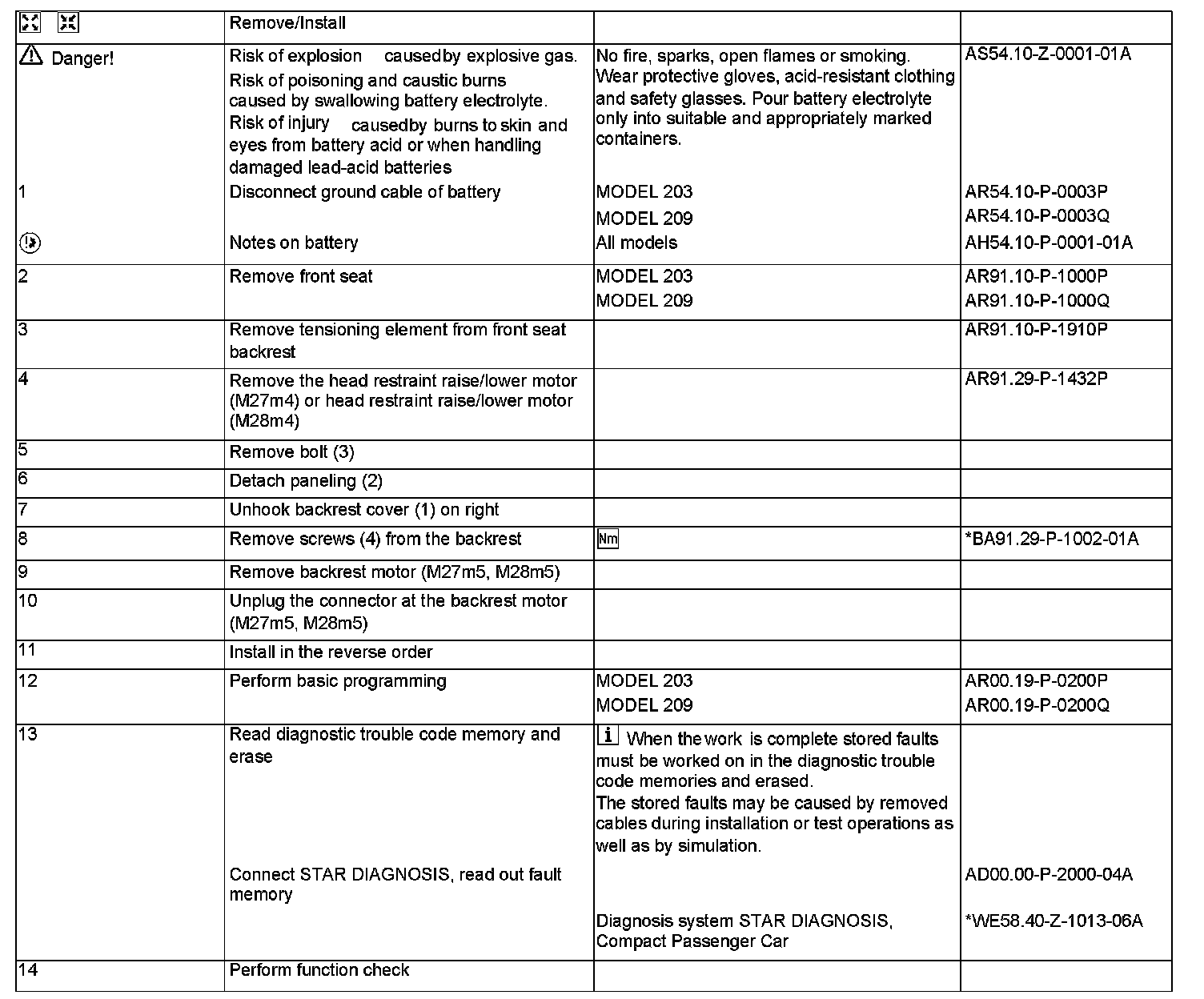

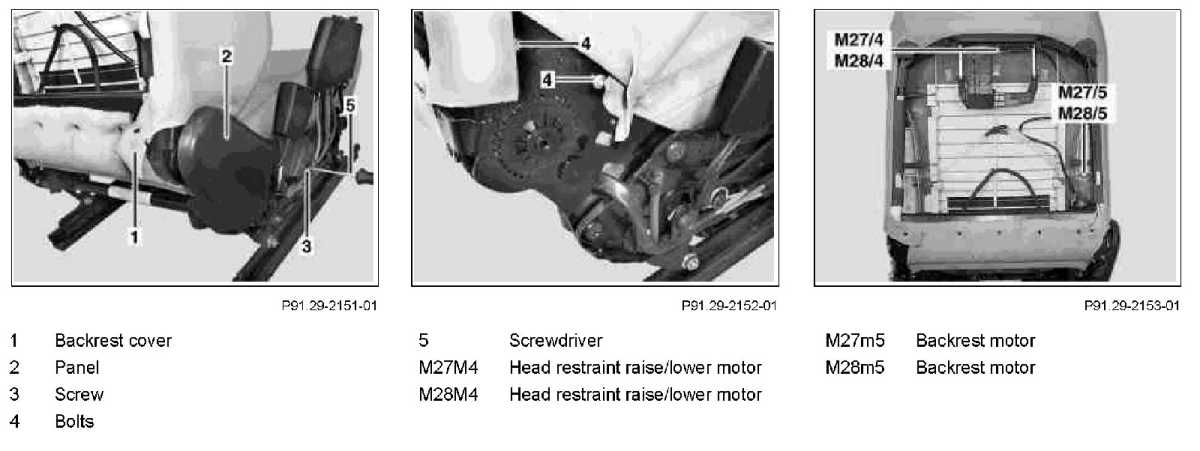

AR91.29-P-1430P Remove/Install Front Seat (Seat Backrest) Adjusting Motors



AR91.29-P-1430P Remove/Install Front Seat (Seat Backrest) Adjusting Motors
- except CODE (P98) Black Series [models 209]

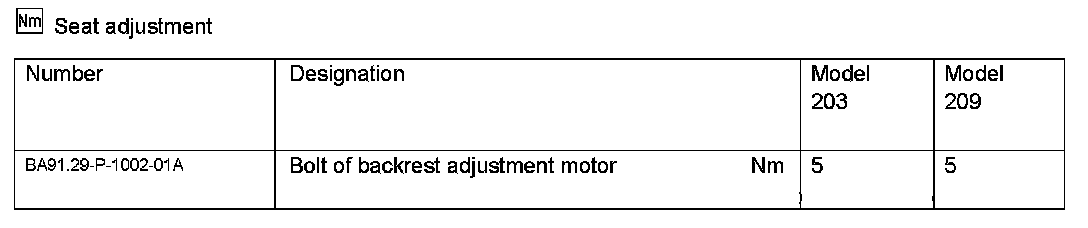

Seat Adjustment:
