GF91.30-P-3105Q Seat Ventilation Motors of Front Seats, Location/Task

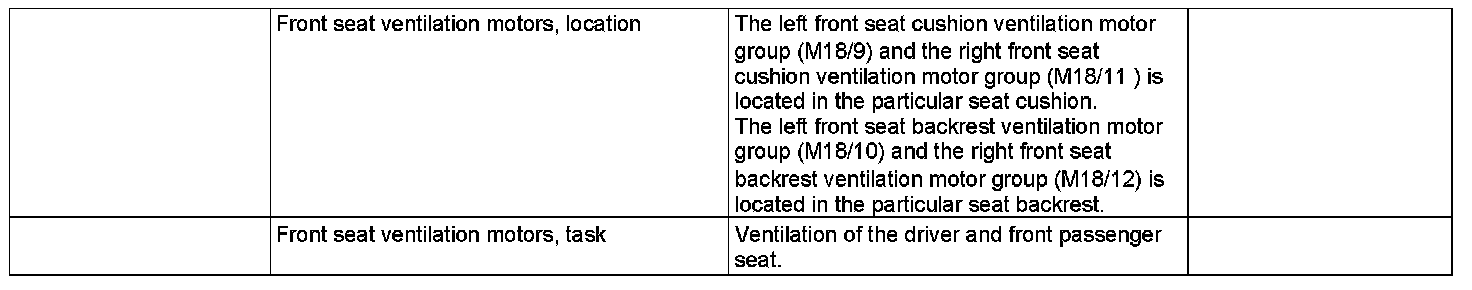

GF91.30-P-3105Q Seat Ventilation Motors Of Front Seats, Location/Task
- with CODE (401a) Front luxury seat, including heated seat and seat ventilation
- as of 2.6.03

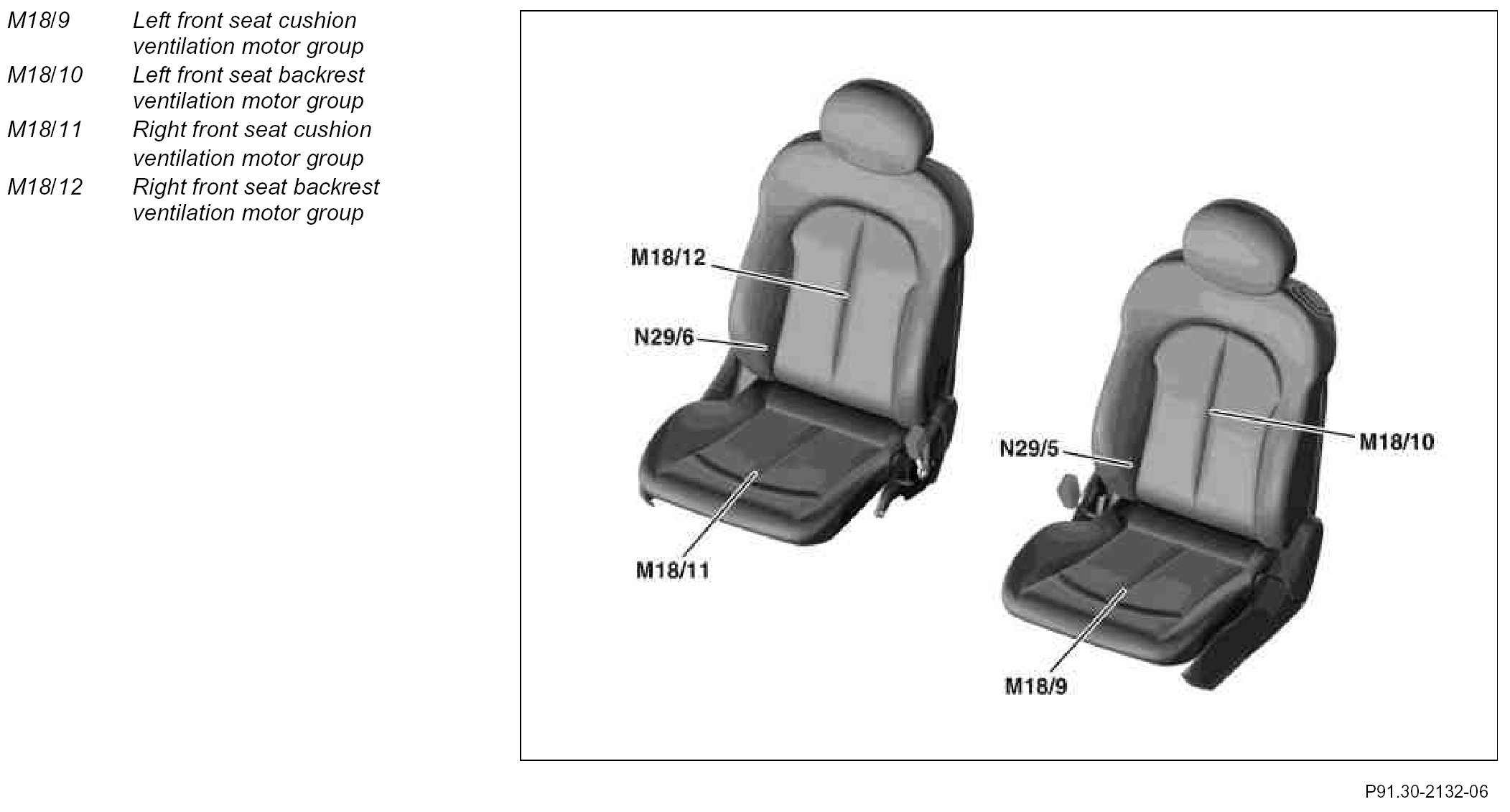

Component Identification:
