Sunroof / Moonroof Windguard: Service and Repair

AR77.20-P-2500Q Remove/Install Wind Deflector
- with CODE (414a) Electric glass sliding/pop-up roof

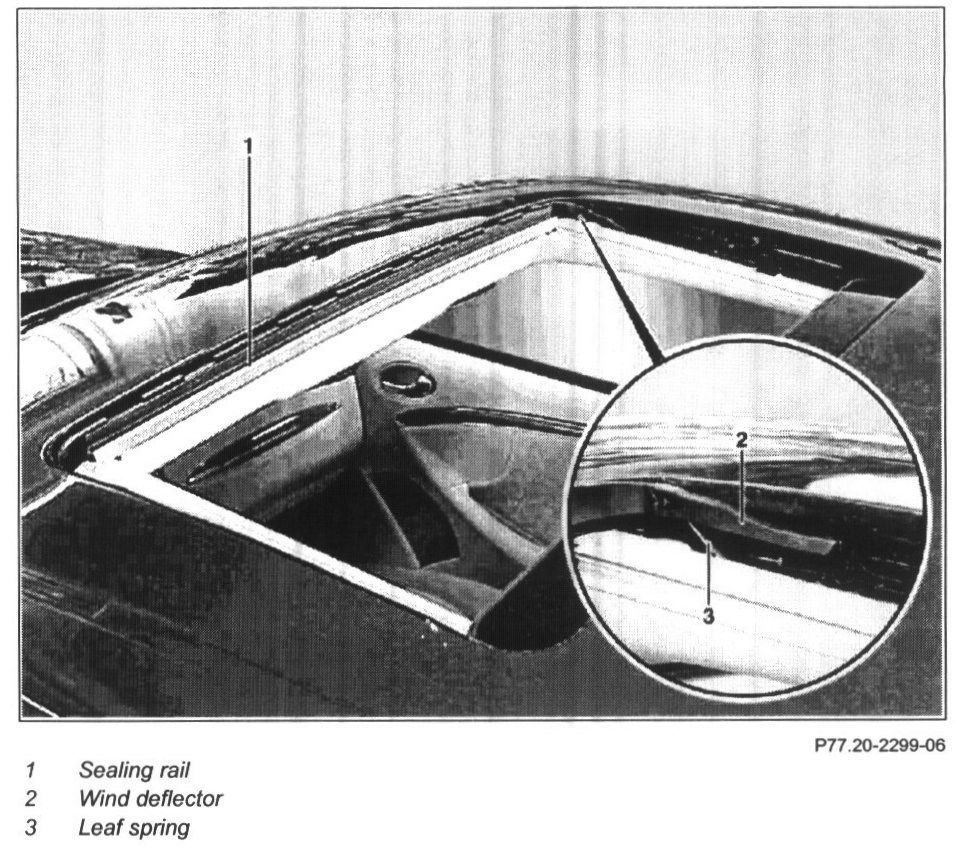

1 Open sliding/pop-up roof
2 Detach sealing rail (1) toward top
3 Press wind deflector (2) toward bottom
4 Unlock side wind deflector (2)

NOTE:
Installation: Check leaf spring (3) for correct seating.

5 Remove wind deflector (2)
6 Install in the reverse order
