Sunroof / Moonroof Frame: Service and Repair

AR77.20-P-3000Q Remove/Install Sliding/Pop-Up Roof Frame
- with CODE (414a) Electric glass sliding/pop-up roof







1 Remove sliding/pop-up roof cover
2 Remove paneling from sliding/pop-up roof
3 Remove headliner

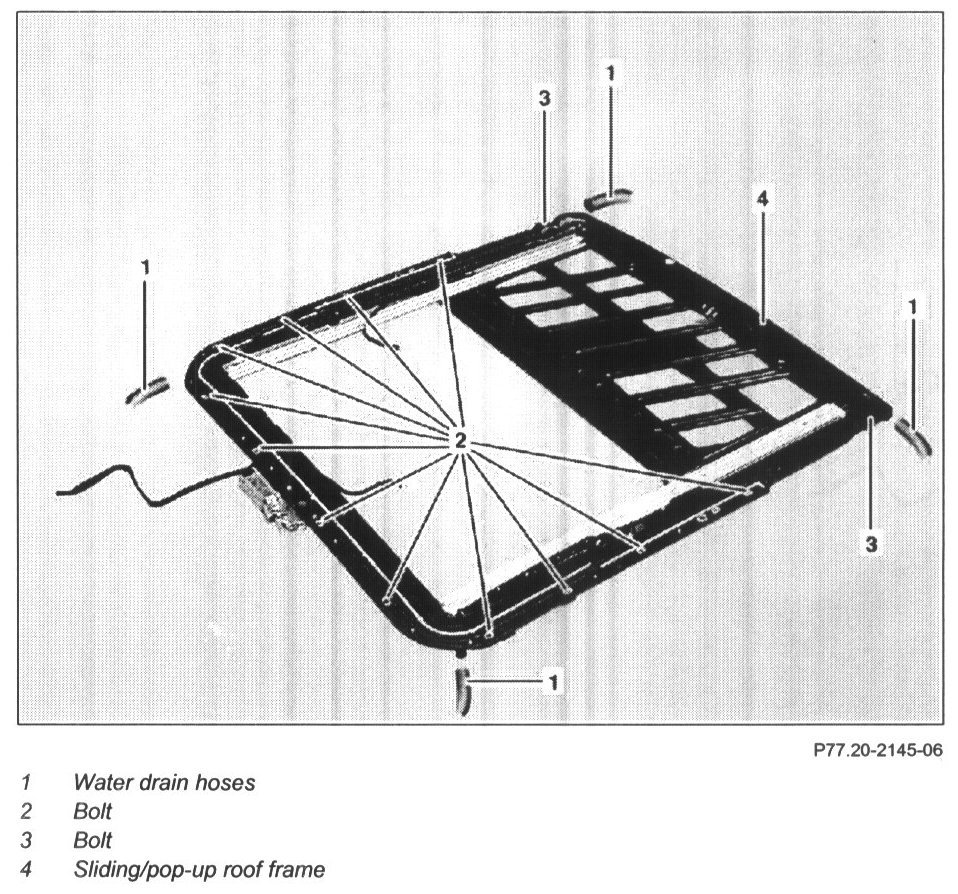

4 Remove water drain hoses (1)

CAUTION!
Use lubricant Risk of damage!

5 Unscrew screws (2 and 3)
6 Take out sliding/pop-up roof frame (4) on side

NOTE: Take out using helper.

7 Install in the reverse order
