Sunroof / Moonroof Drain: Service and Repair

AR77.20-P-1999Q Remove/Install Water Drain Trough on Sliding/Pop-Up Roof
- with CODE (414a) Electric glass sliding/pop-up roof







1 Remove sliding/pop-up roof cover
2 Close sliding/pop-up roof

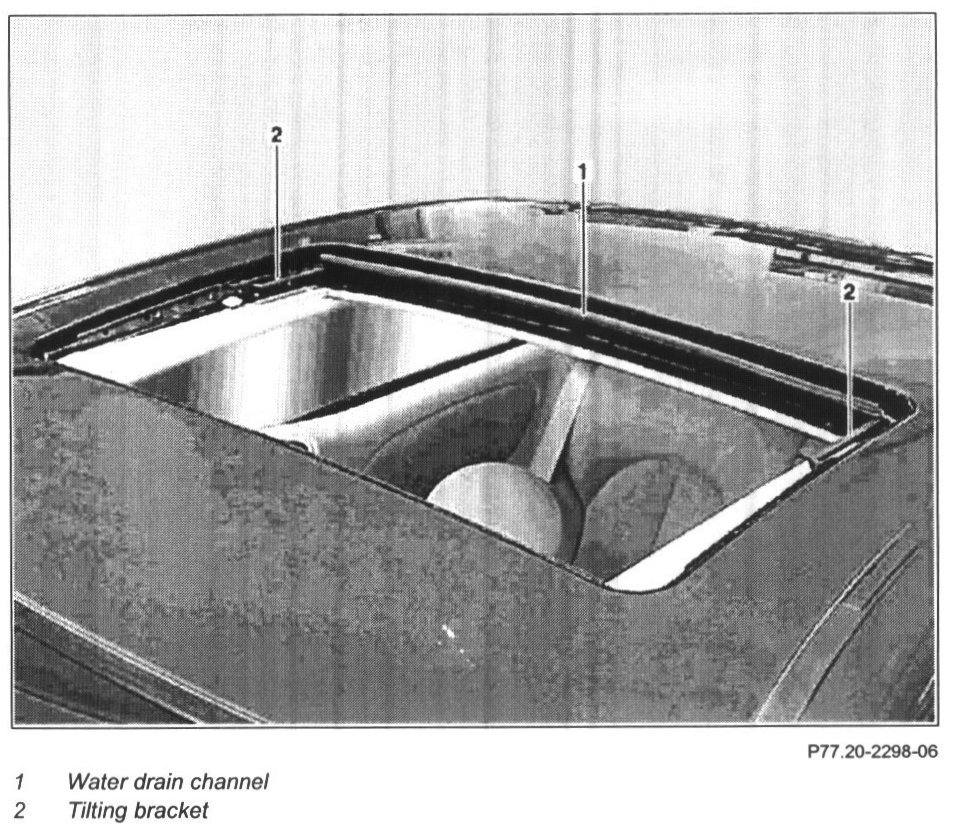

3 Unhook water drain trough (1) from tilting bracket (2)

NOTE: Driver and passenger side.

4 Take out water drain trough (1)
5 Install in the reverse order
