GF88.79-P-3004Q Store Outside Mirror Park Position, Function

GF88.79-P-3004Q Store Outside Mirror Park Position, Function
- with CODE (275c) Electrically adjustable driver seat, steering column and outside mirrors with memory
- with CODE (242b) Electrically adjustable front passenger seat with memory
- up to 31.5.04

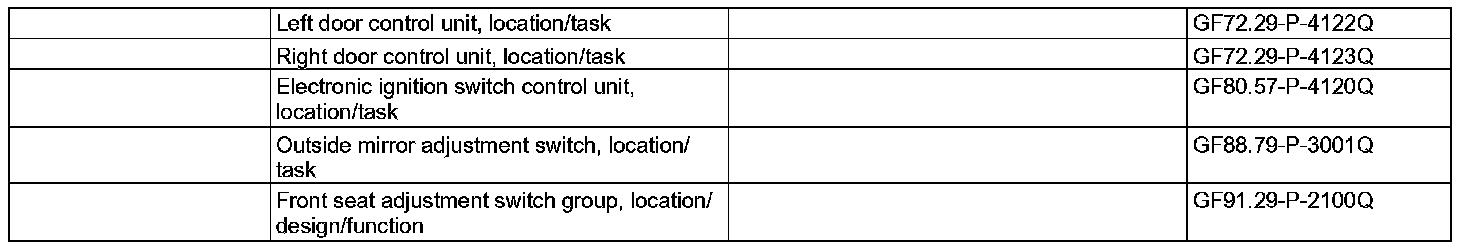

Component Identification:

Function requirements
^ Circuit 15R On or circuit 15 ON
^ No overvoltage or undervoltage
^ Vehicle speed = 0 km/h

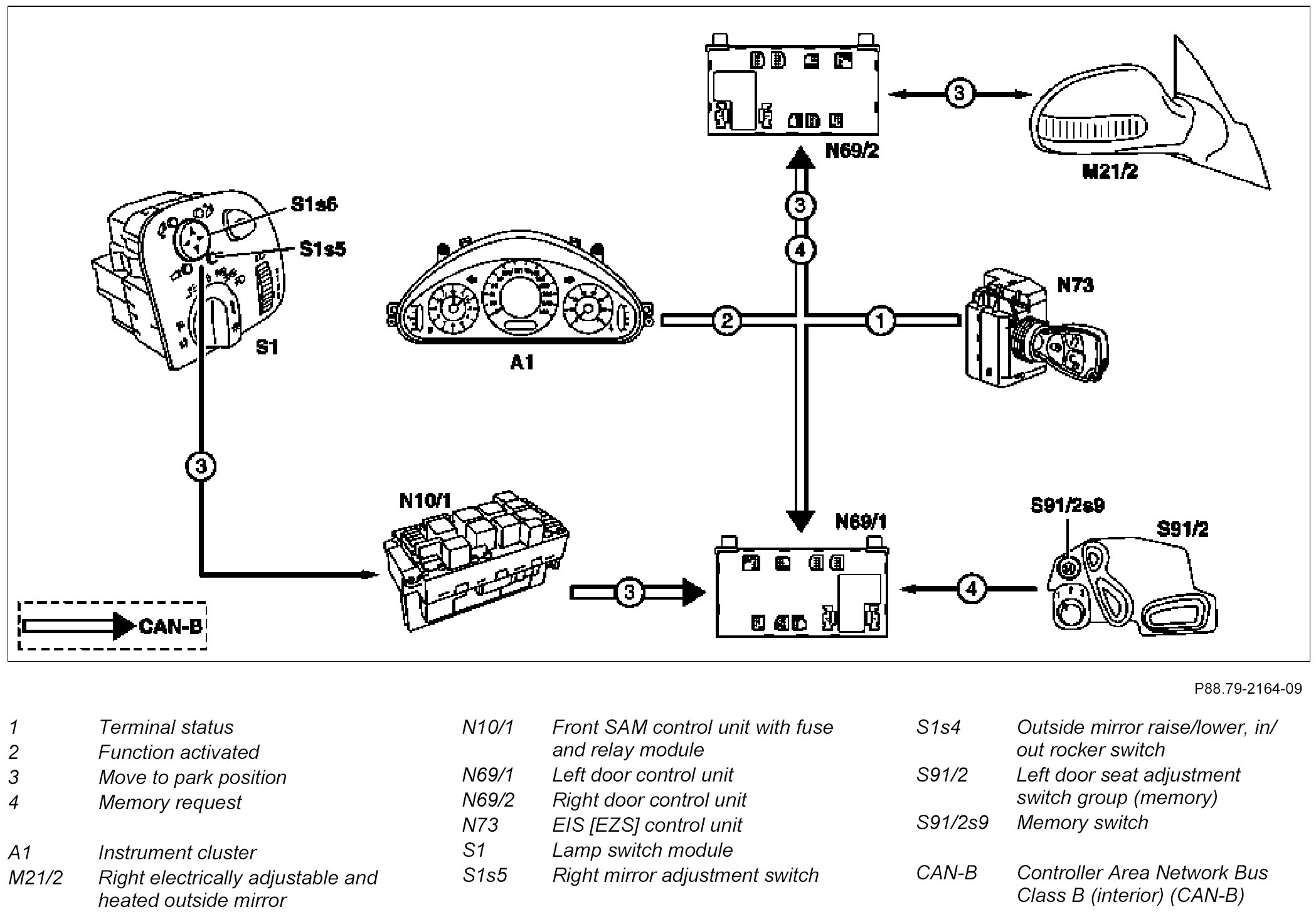

Function
First adjust the desired park position of the right electrically adjustable and heated outside mirror (M21/2) manually via the outside mirror raise/lower, in/out rocker switch (S1s6) on the exterior light switch (S1). The park position is stored by the left door seat adjustment switch group (memory) (S91/2)

After pressing the memory switch (S91/2s9) for longer than 100 ms and then actuating the outside mirror raise/lower, in/out rocker switch (S1s6) within 3s, the momentary outside mirror position is stored as the parking position.
The data is stored in the right door control module (N69/2) and assigned to one of the current memory block numbers.

The park position data is stored only when a valid key number is present.
