Home >> Mercedes Benz >> 2004 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Rear Shelf >> Service and Repair >> AR68.30-P-4580Q Remove/Install/Disassemble Rear Shelf

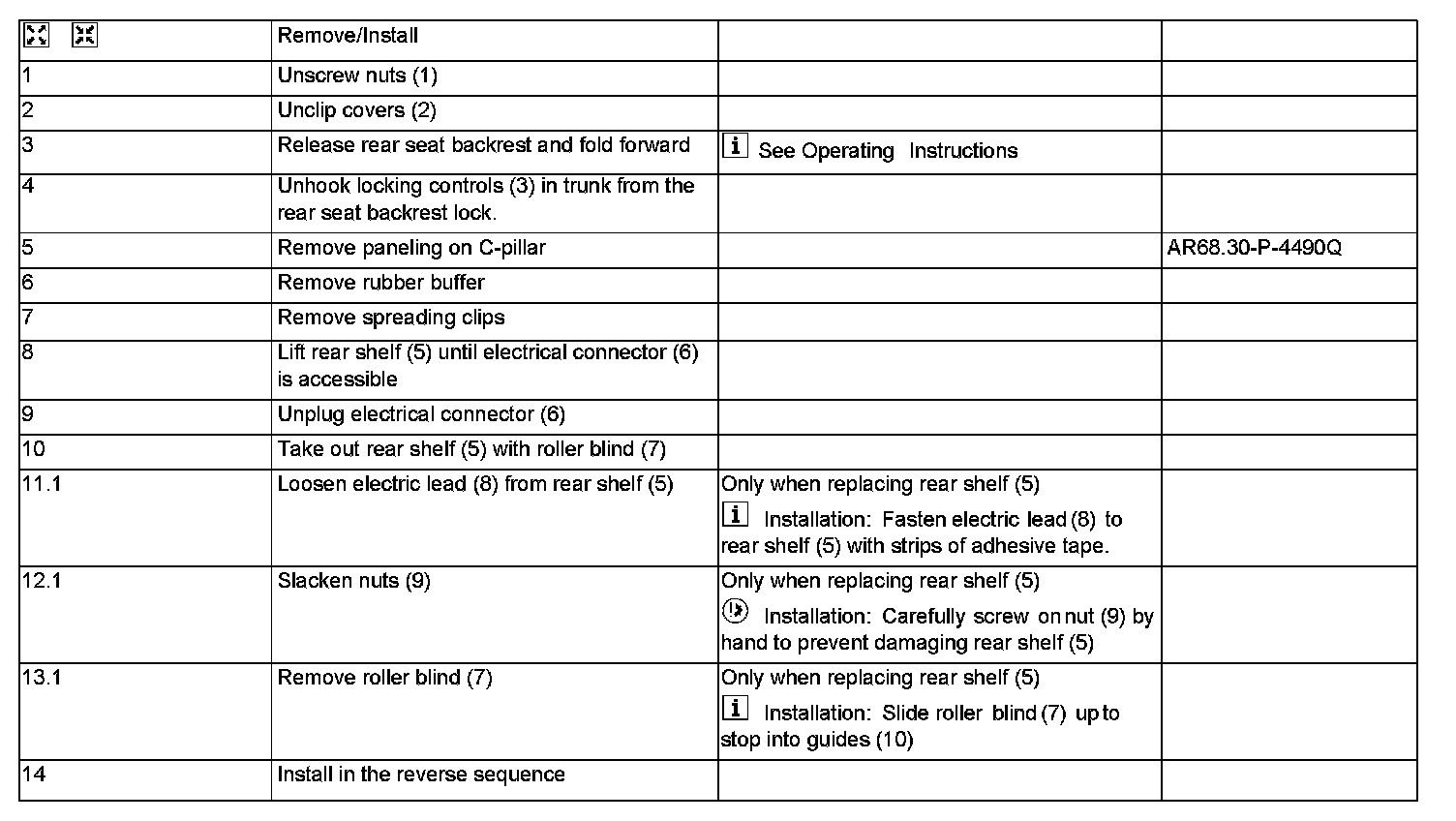

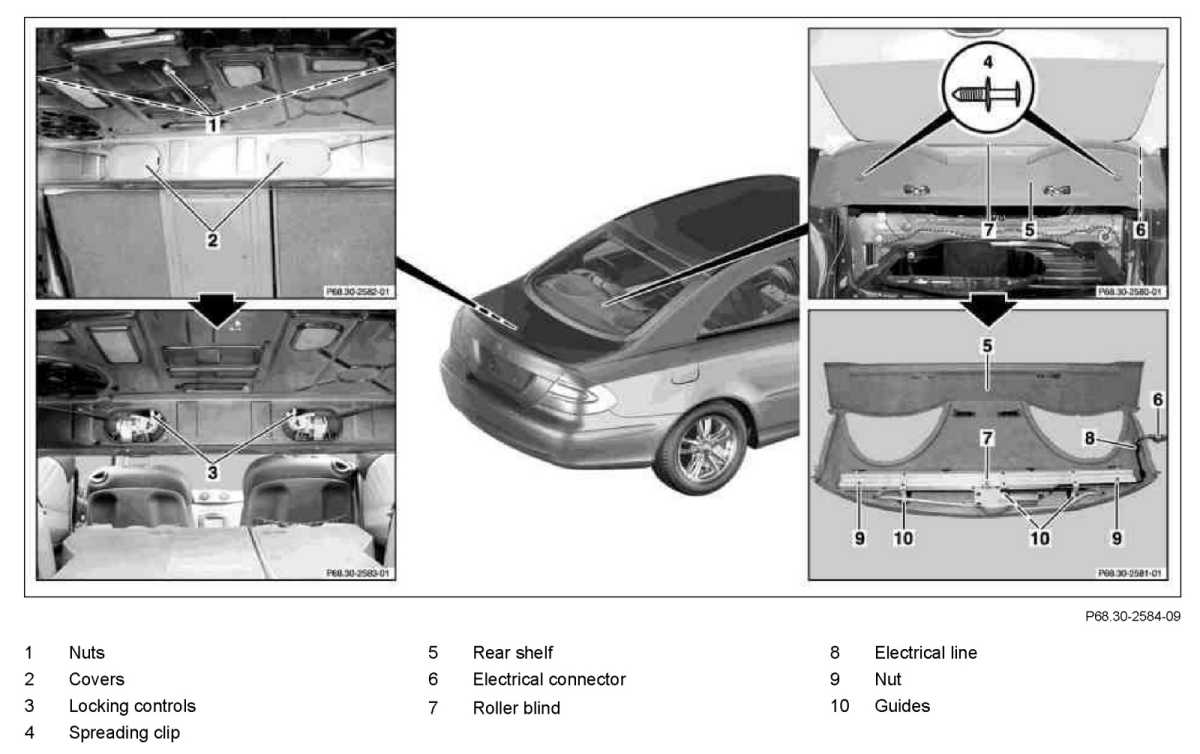

AR68.30-P-4580Q Remove/Install/Disassemble Rear Shelf



AR68.30-P-4580Q Remove/Install/Disassemble Rear Shelf
- with CODE (540a) Electric roller blind for rear windows

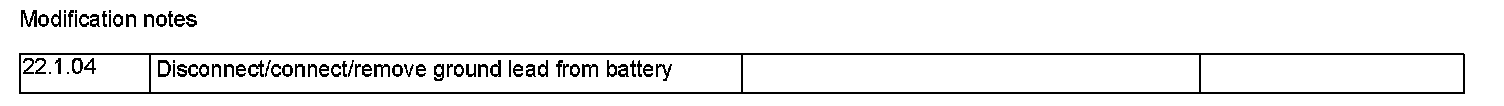

Modification Notes


Modification Notes:
