Home >> Mercedes Benz >> 2004 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Rear Shelf >> Service and Repair >> AR68.30-P-4580P Remove/Install and Disassemble Parcel Shelf

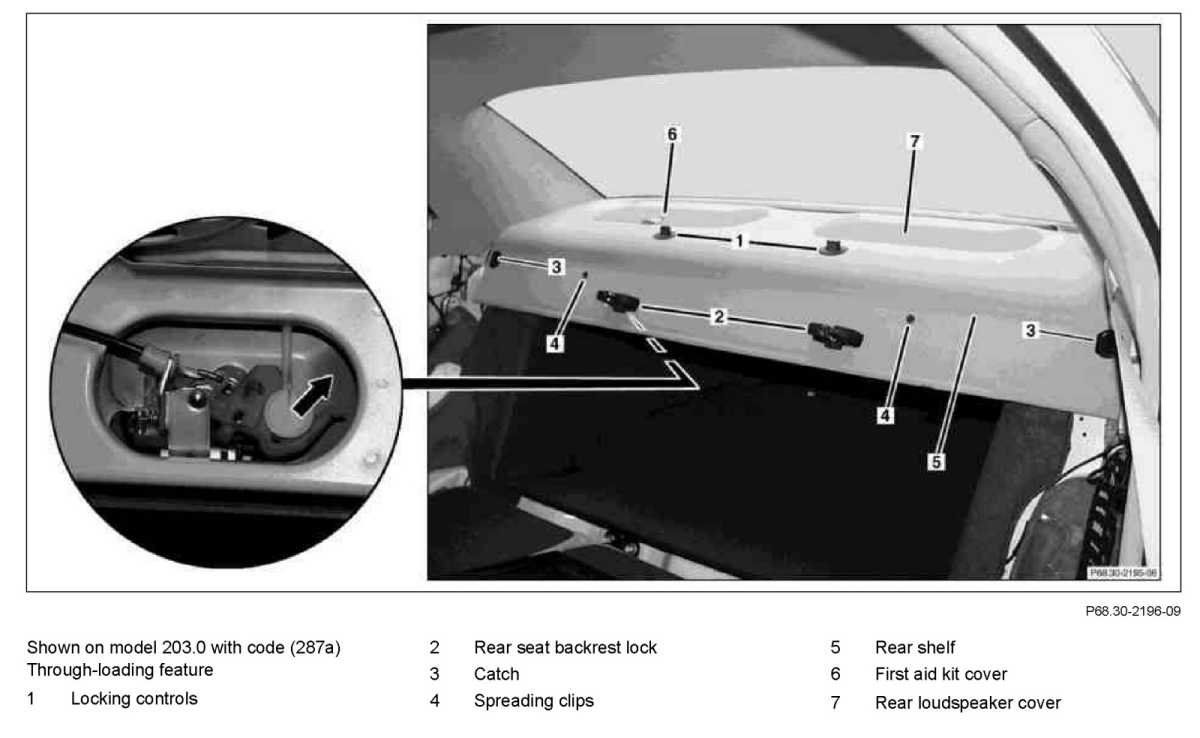

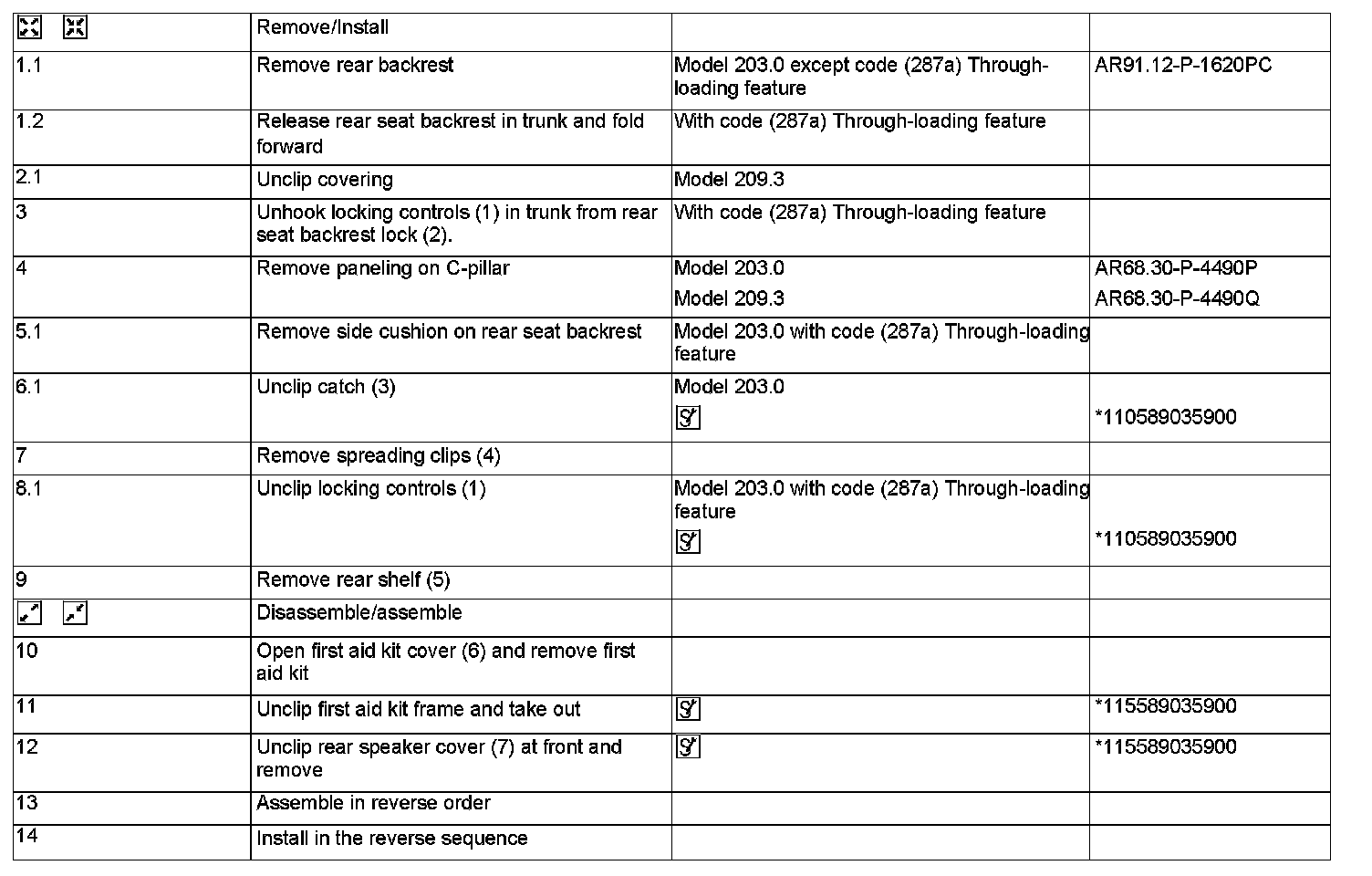

AR68.30-P-4580P Remove/Install and Disassemble Parcel Shelf



AR68.30-P-4580P Remove/Install and Disassemble Parcel Shelf
- except CODE (540a) Electric sun shade for rear window
