AR68.30-P-4305Q Prepare Headliner For Installation
AR68.30-P-4305Q Prepare Headliner For Installation
AR68.30-P-4305Q Prepare
Headliner
For Installation

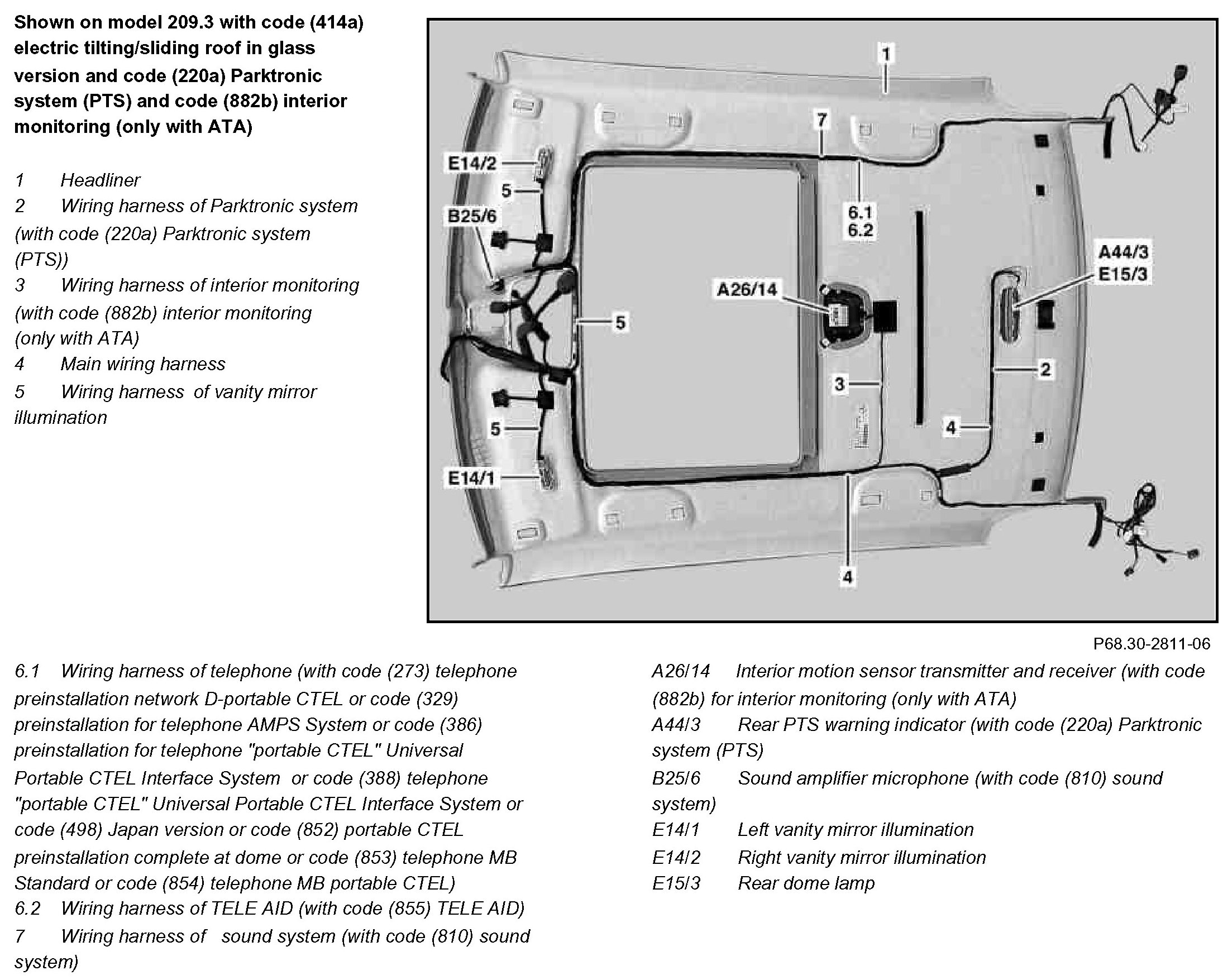

Component Identification:

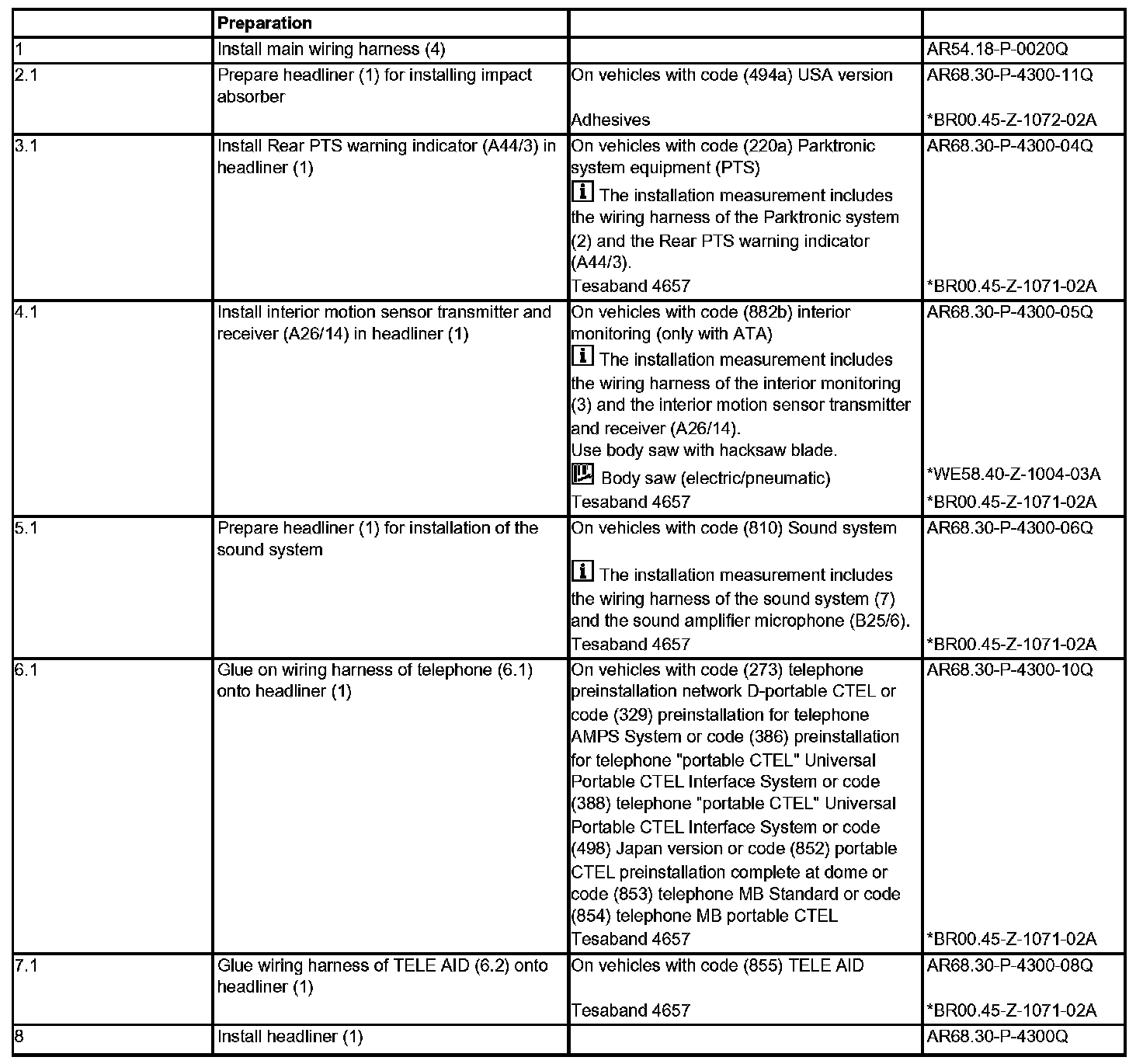

Steps 1 - 8:

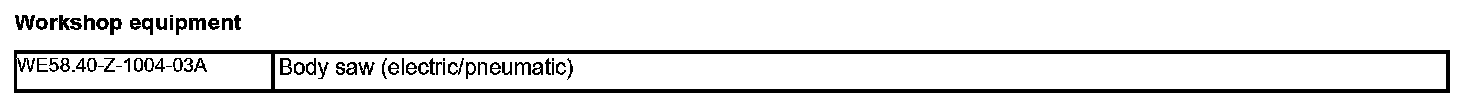

Workshop Equipment:

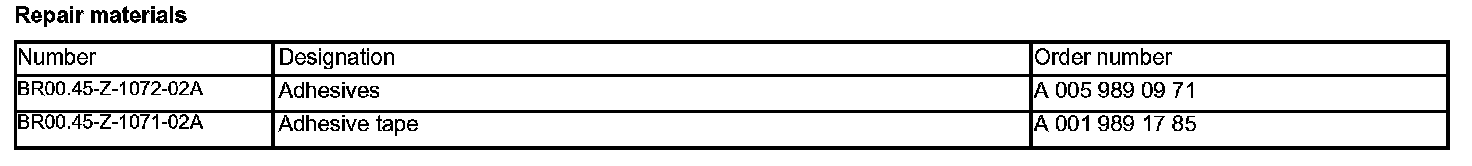

Repair Materials:
