AR68.20-P-2070P Remove/Install Front Floor Covering (Right)

AR68.20-P-2070P Remove/Install Front Floor Covering (Right)

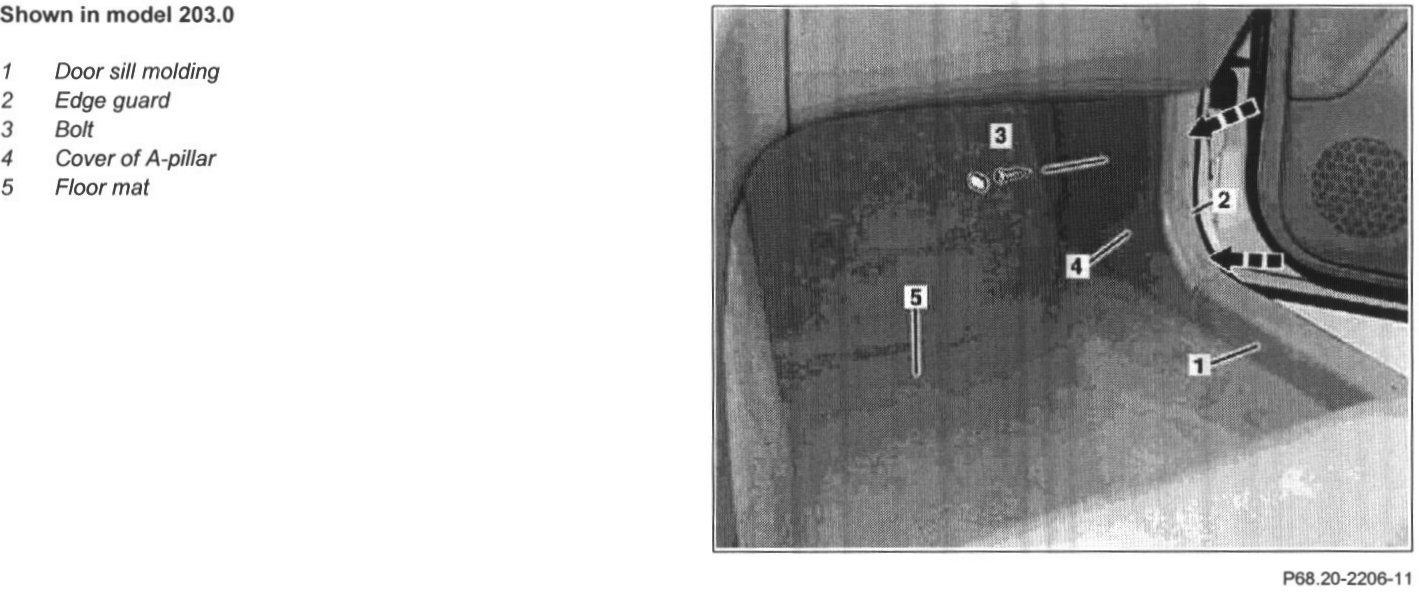

Shown In Model 203.0:

1 Move right front seat toward rear
2 Unclip door sill molding (1), remove
3 Remove edge guard (2) in area of A-pillar cover (4)
4 Unclip cap from A-pillar cover (4)
5 Unscrew bolt (3)
6 Unclip cap from A-pillar cover (4), remove
7 Lift floor covering (5) at rear, remove

NOTE: Installation: Insert floor covering in area of center console.

8 Install in the reverse order
