FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2004
>>
CLK 320 (209.365) V6-3.2L (112.955)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Frame
>>
Trailer Hitch
>>
Specifications
Trailer Hitch: Specifications
BA31.11-P-1000-01C Trailer Coupling Mechanism

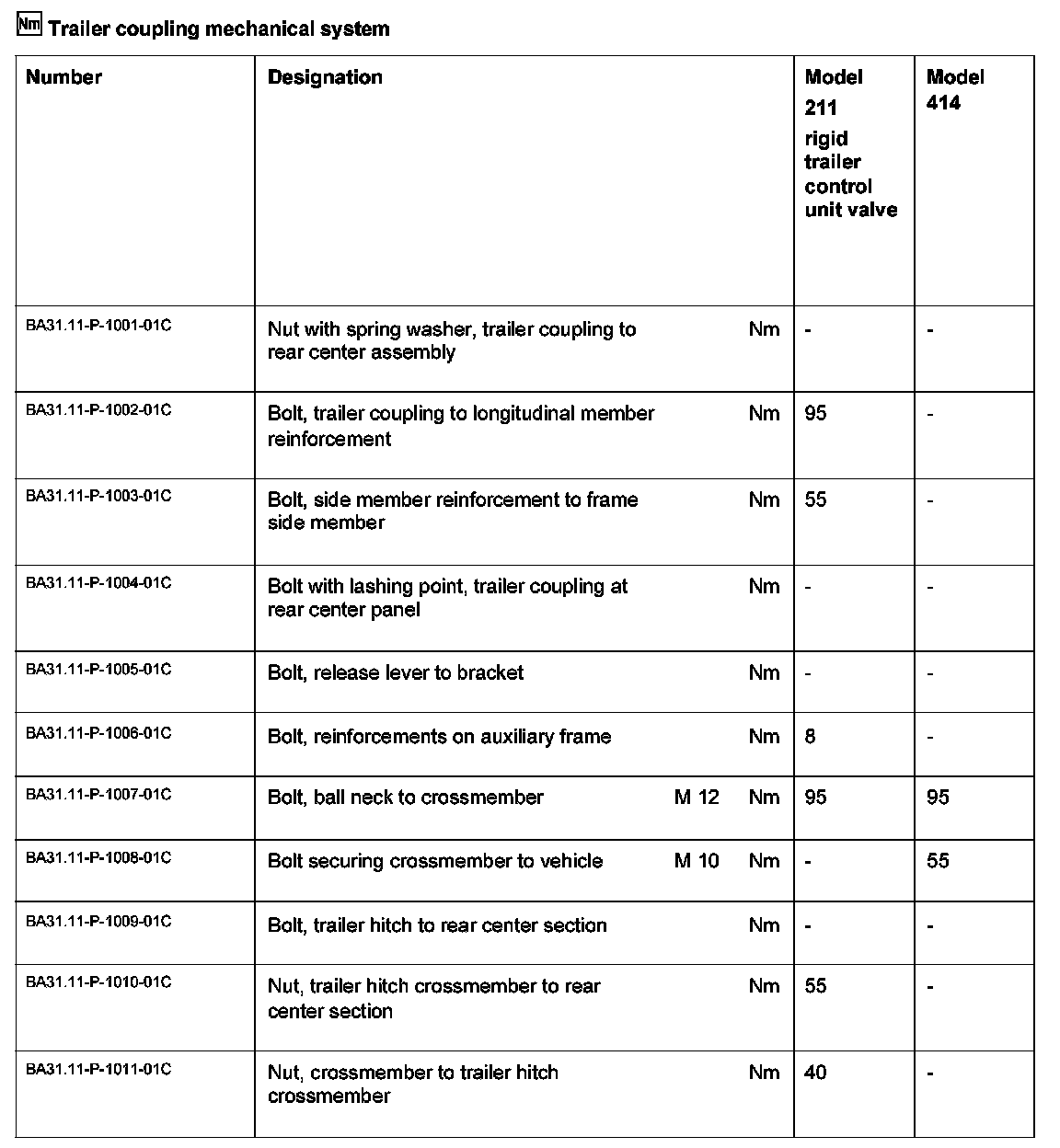

Trailer Coupling Mechanical System:

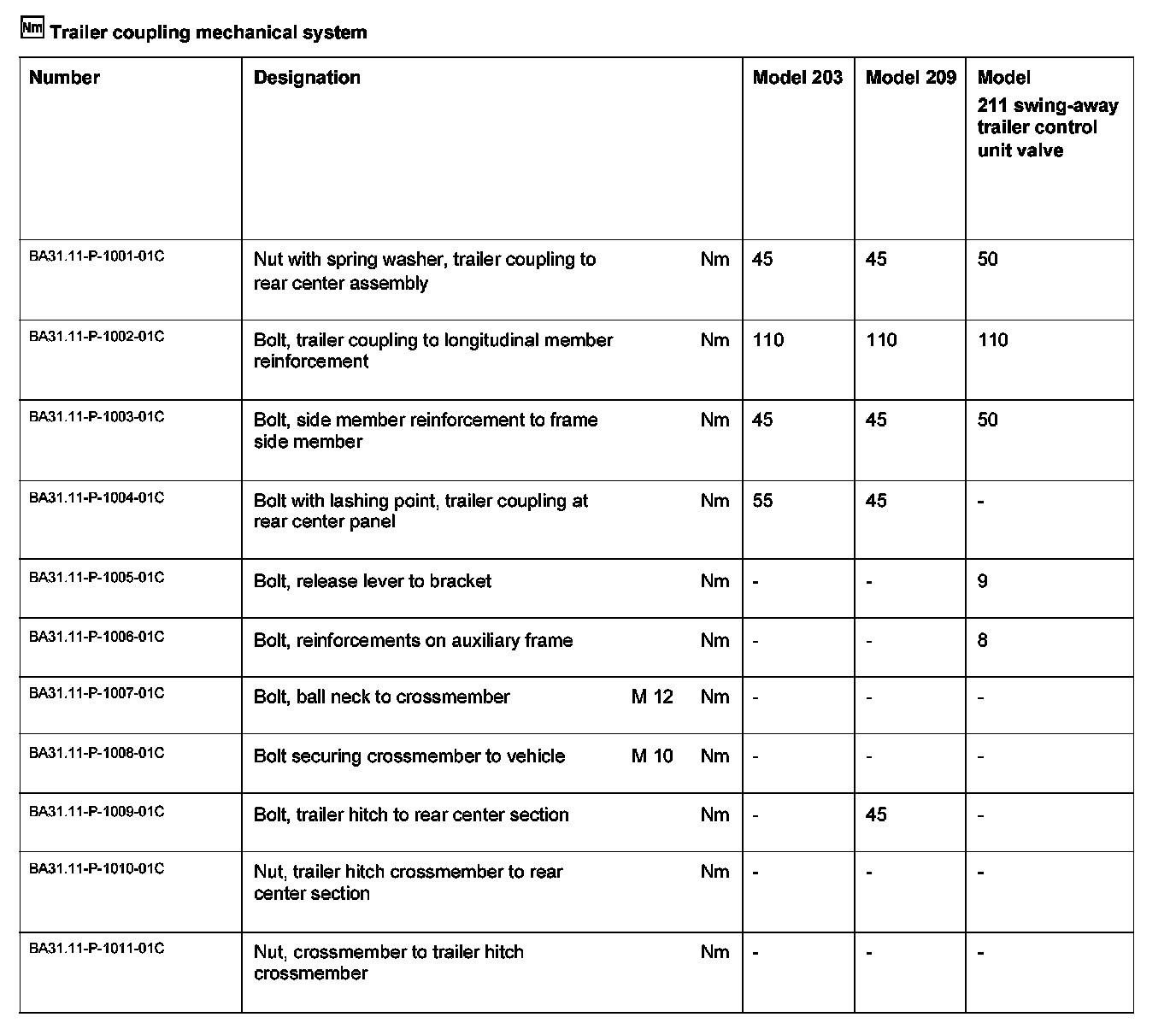

Trailer Coupling Mechanical System:
