AR31.30-P-0007Q Remove/Install Trailer Hitch Crossmember



AR31.30-P-0007Q Remove/Install Trailer Hitch Crossmember
- trailer hicth with detachable ball neck
- with CODE (550) Trailer hitch
- except CODE (772) AMG styling package

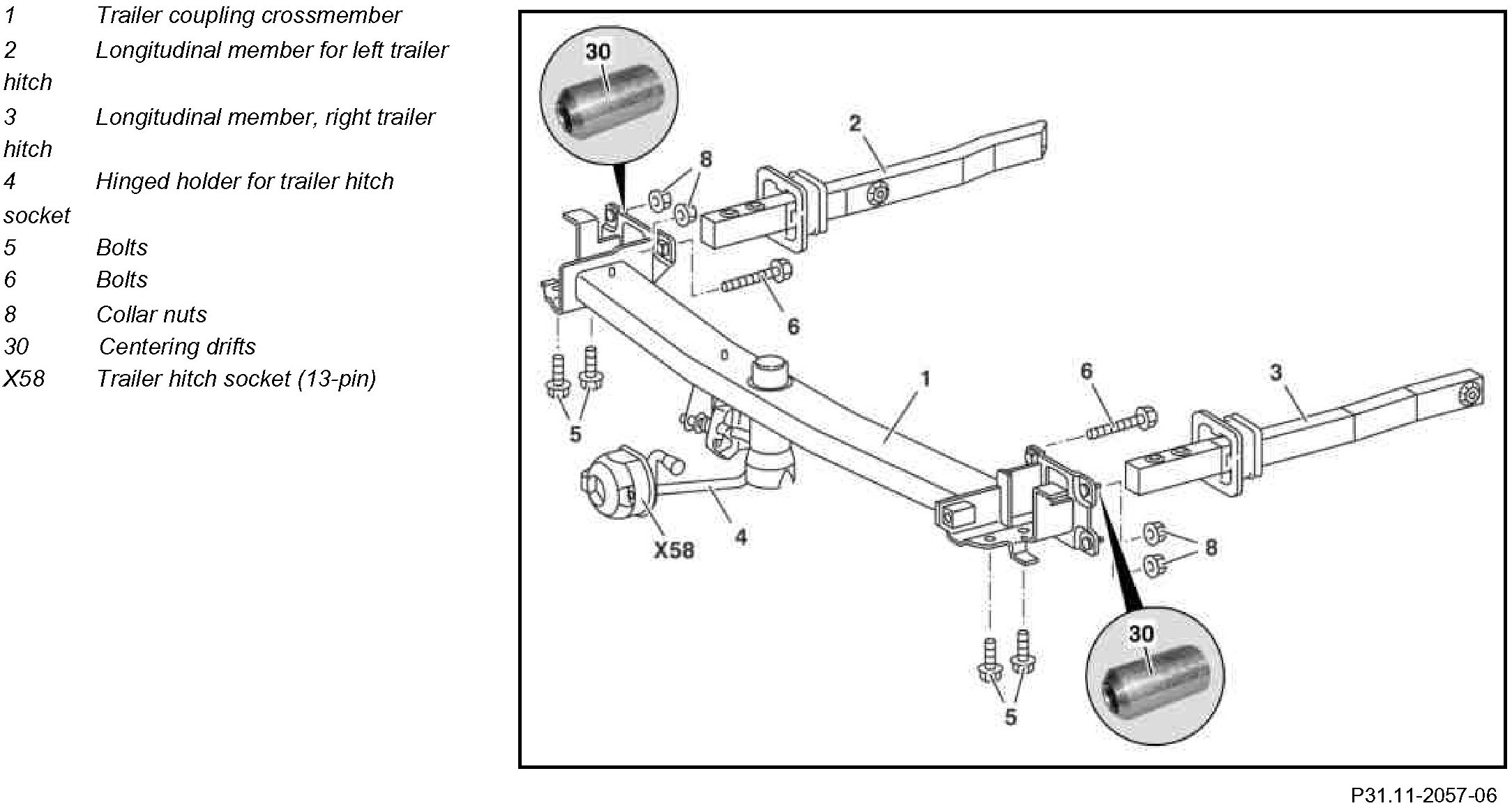

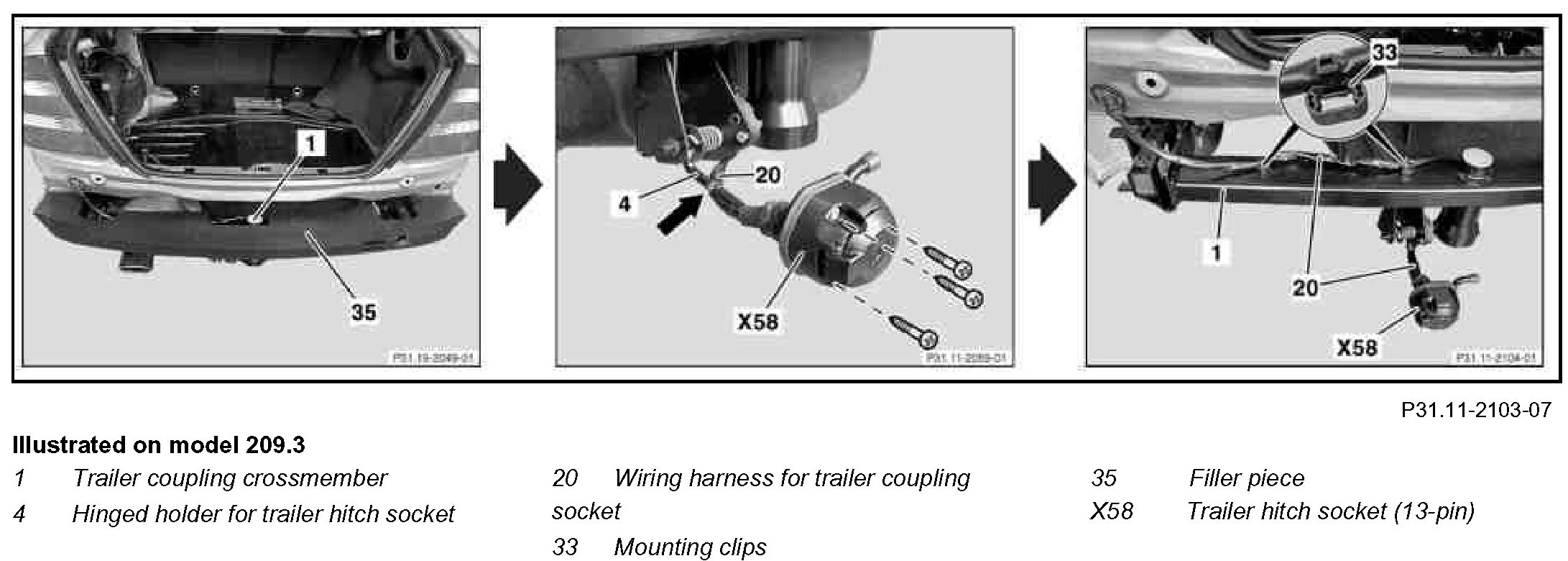

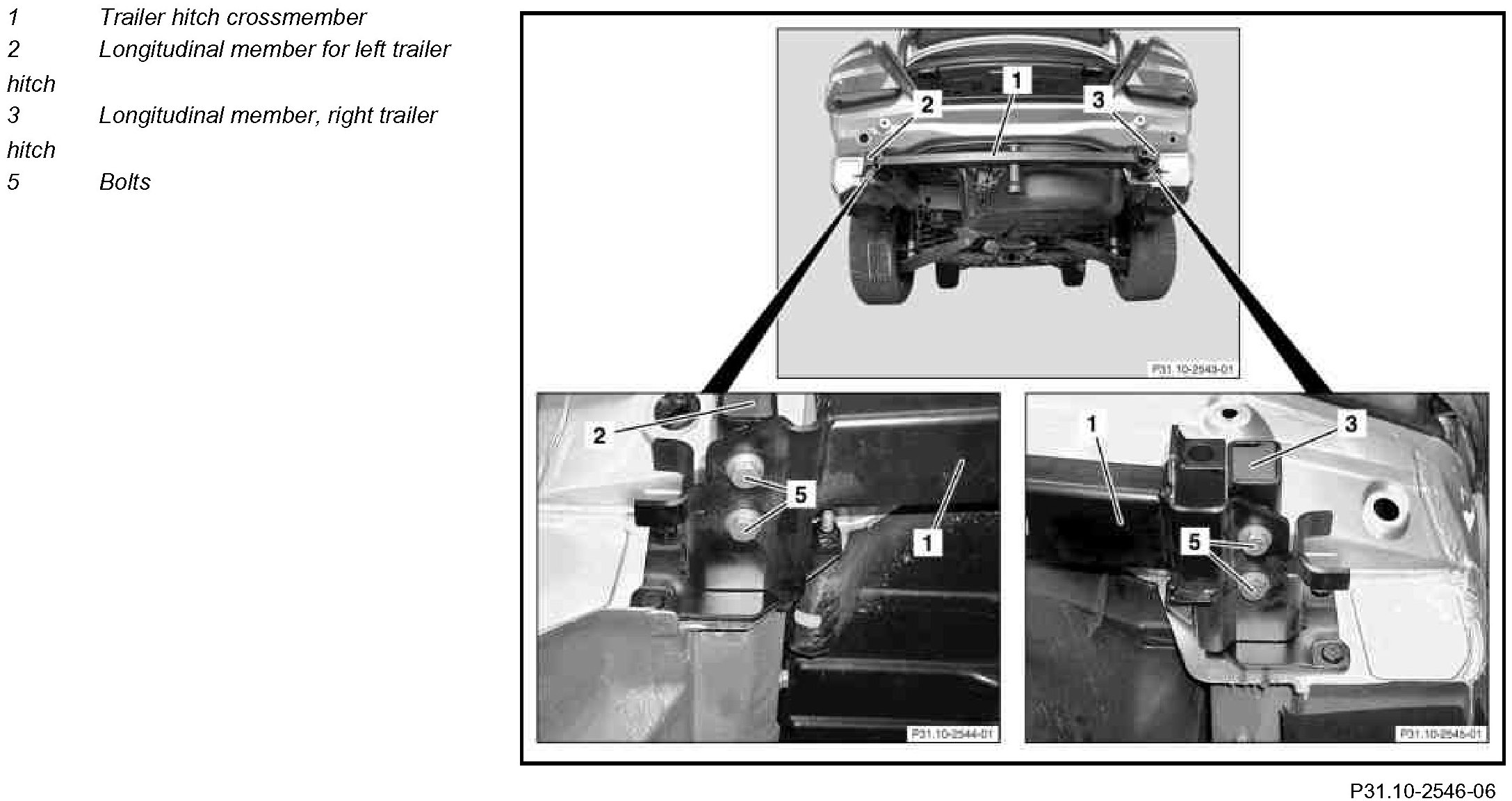

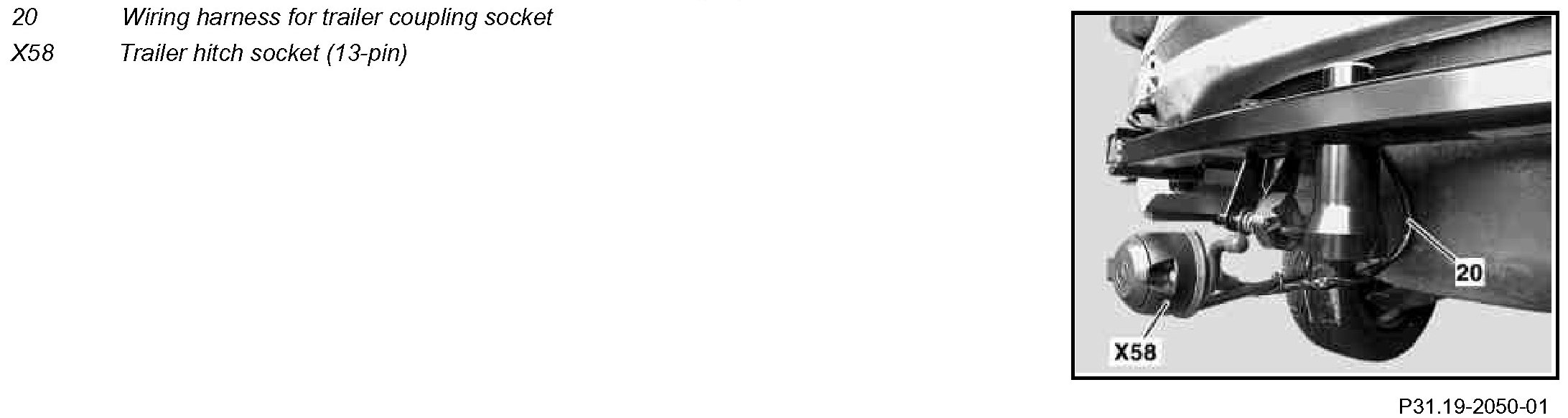

Component Identification:




Component Identification:




Component Identification:




Component Identification:




Component Identification:




Modification Notes:

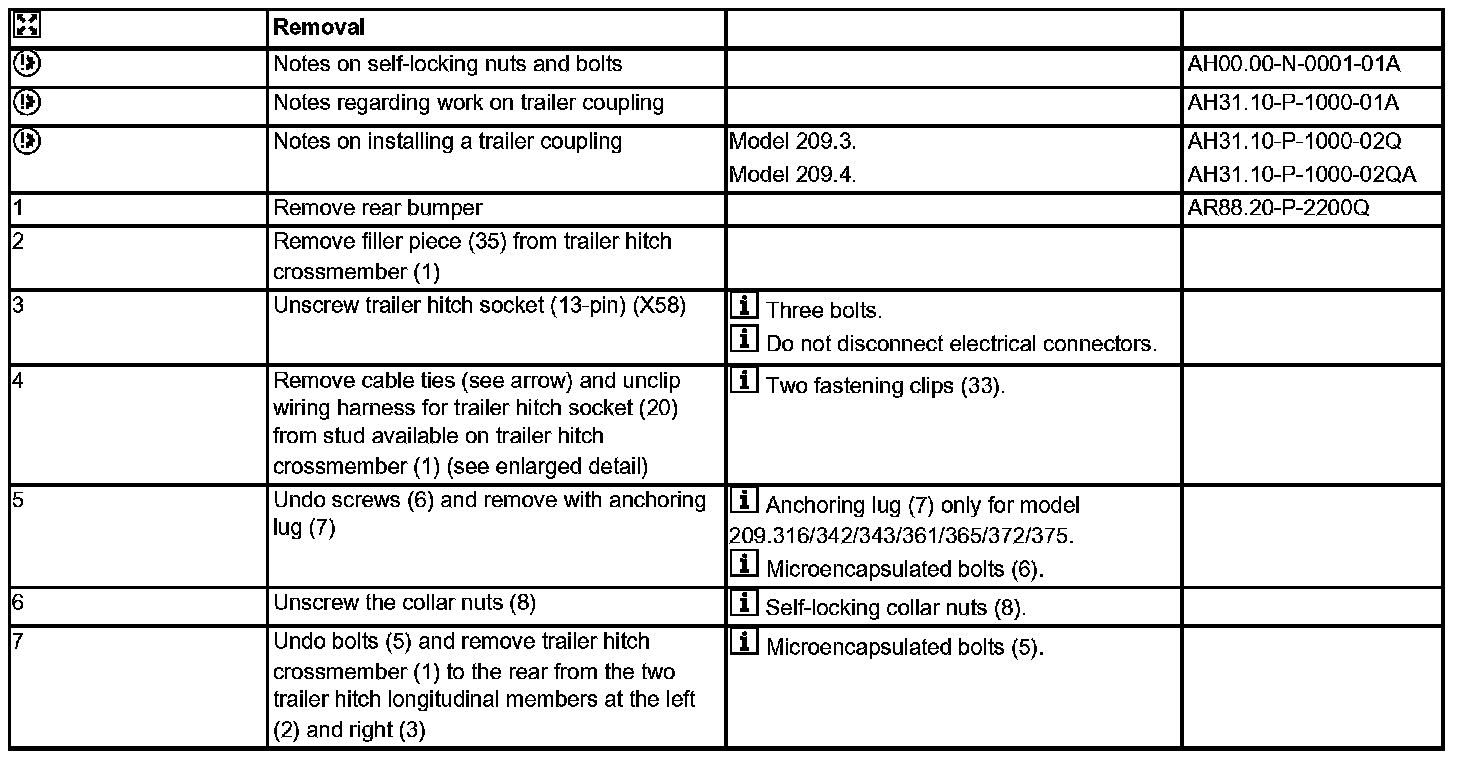

Steps 1 - 7:

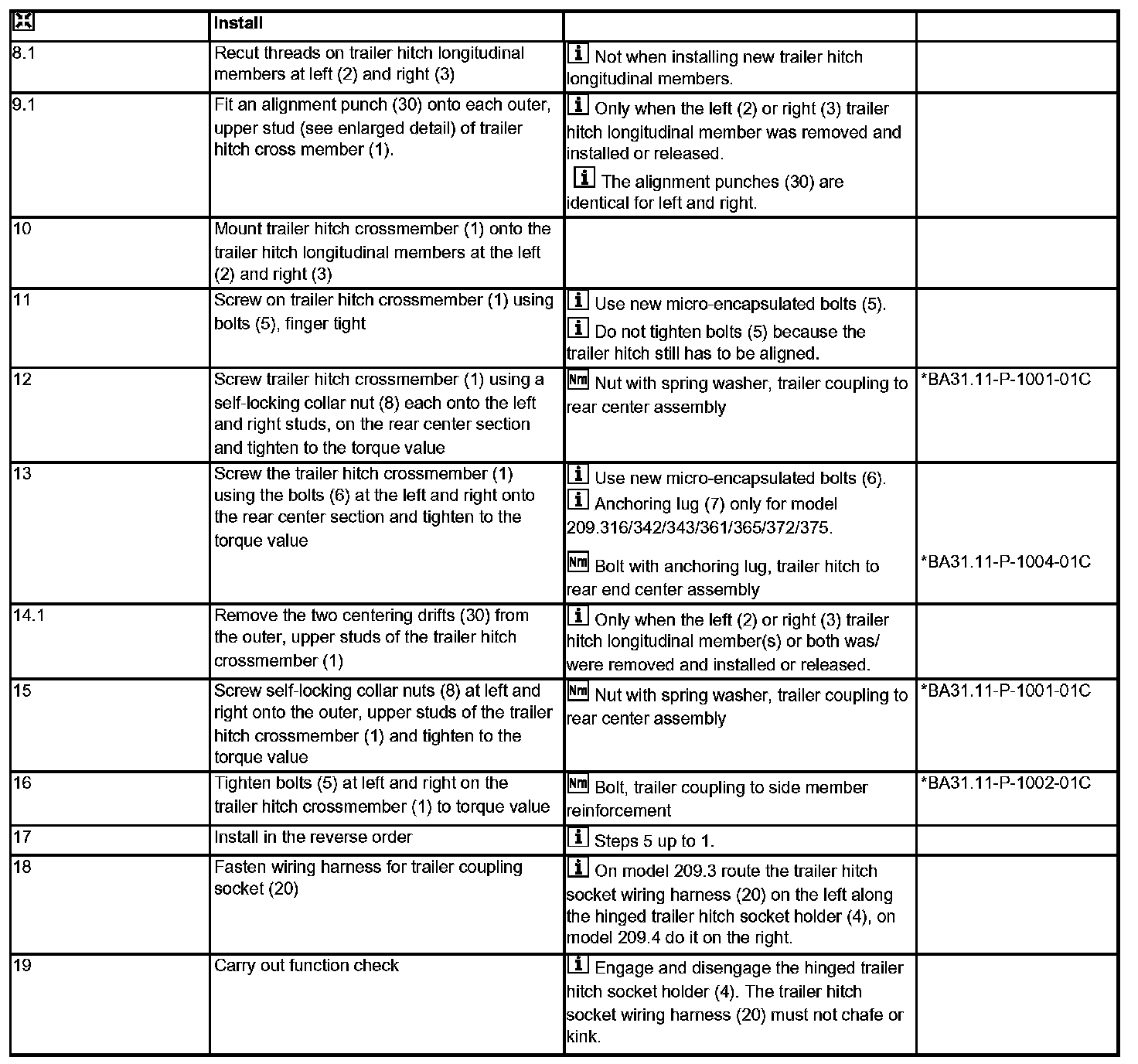

Steps 8.1 - 19:

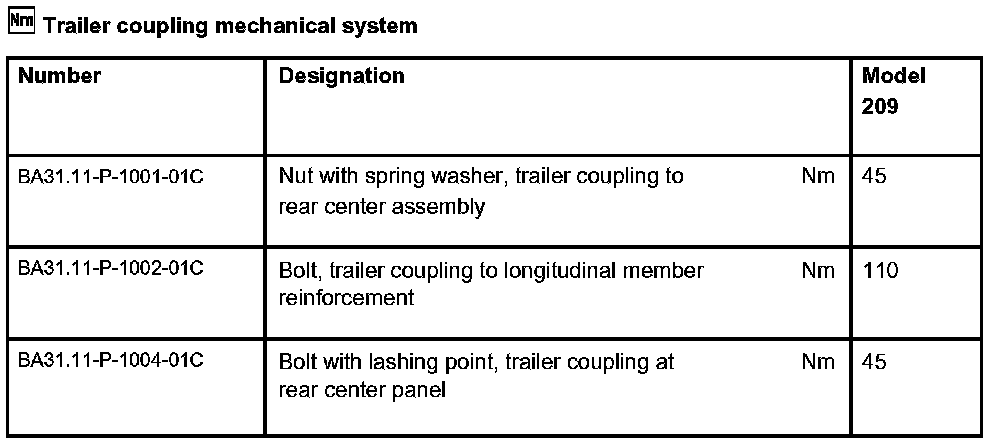

Trailer Coupling Mechanical System:
