AR31.30-P-0006Q Remove/Install Right Trailer Hitch Longitudinal Member



AR31.30-P-0006Q Remove/Install Right Trailer Hitch Longitudinal Member
- trailer hicth with detachable ball neck
- with CODE (550) Trailer hitch
- except CODE (772) AMG styling package

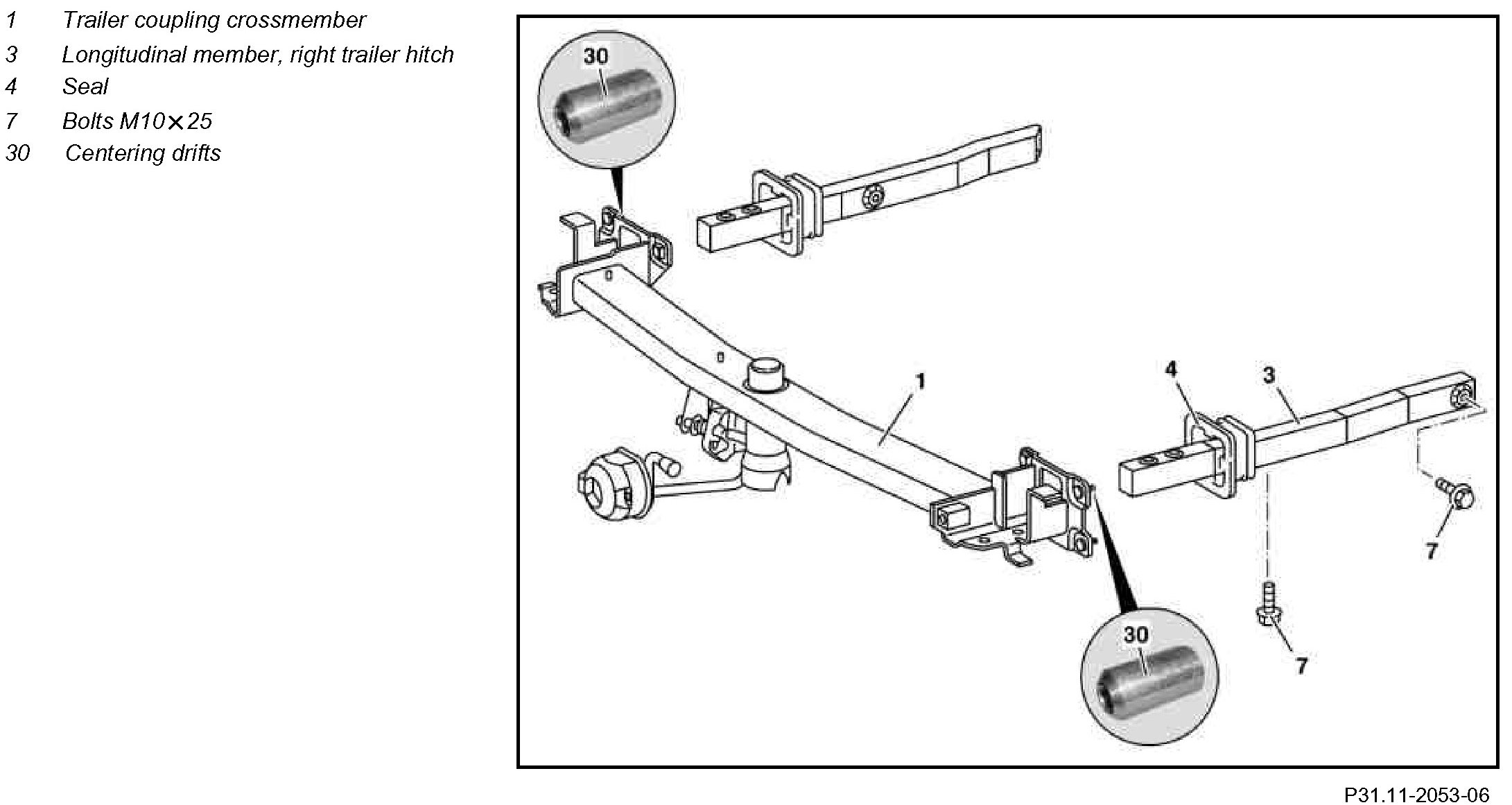

Component Identification:

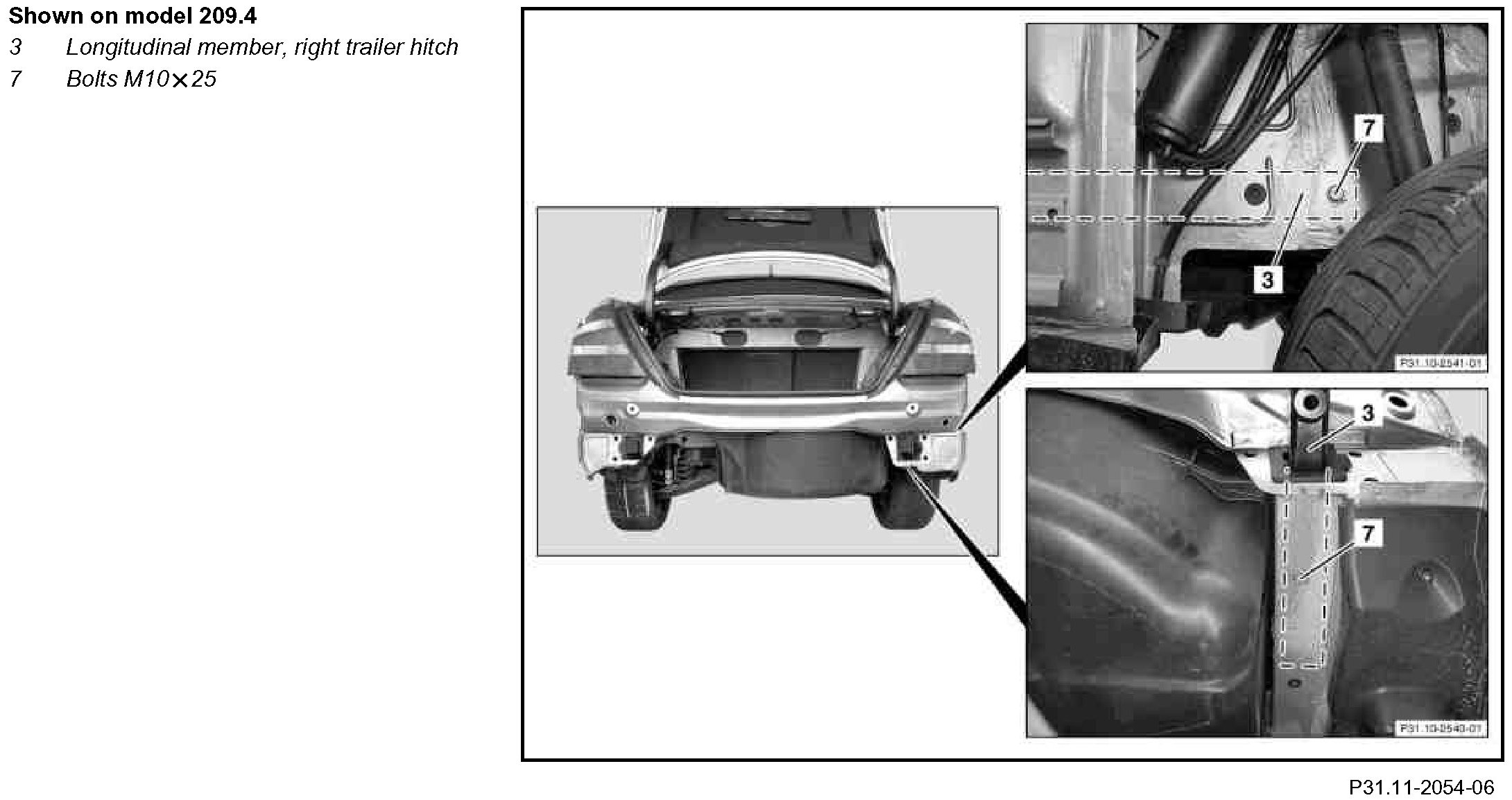

Component Identification:




Modification Notes:

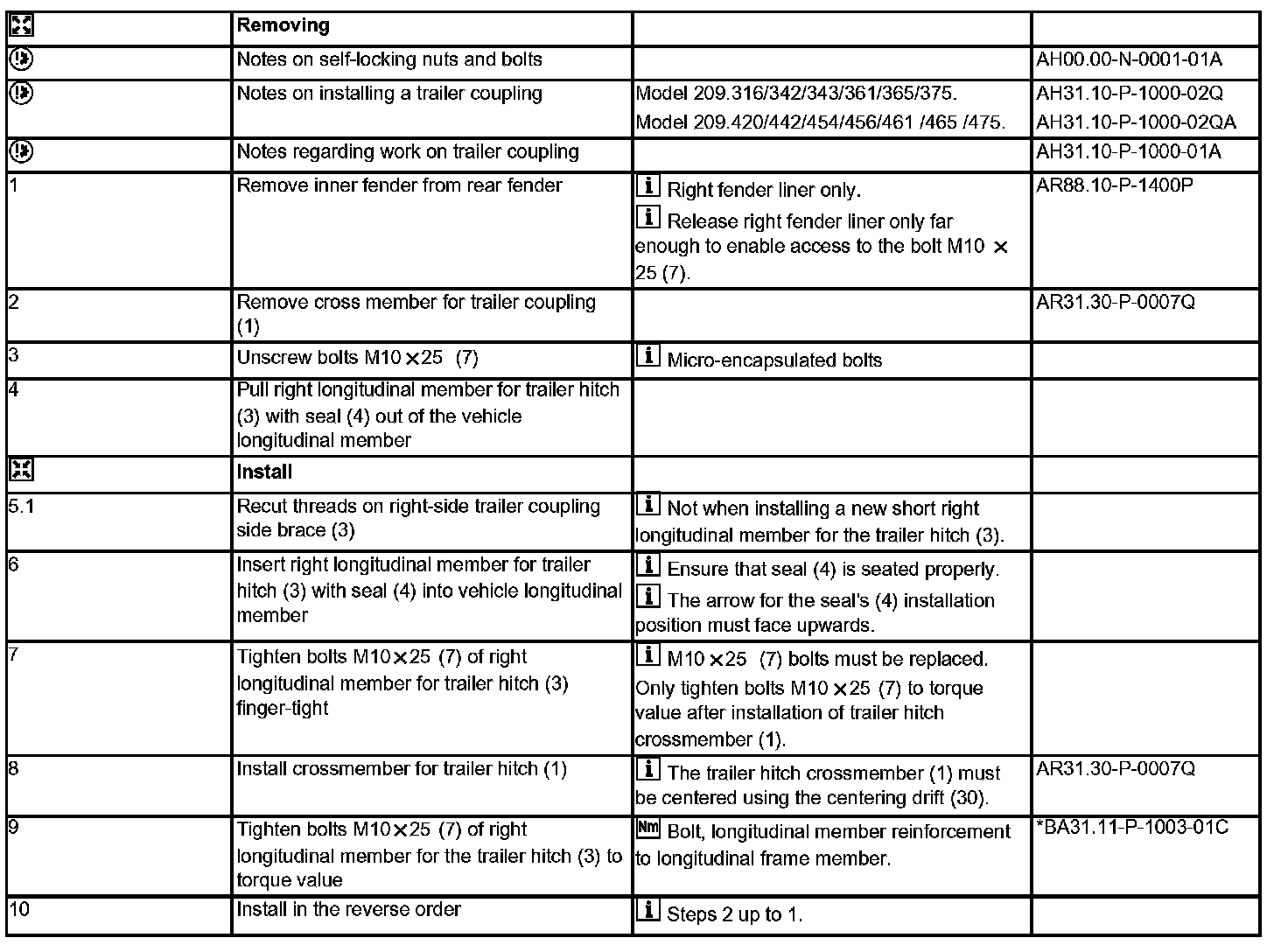

Steps 1 - 10:

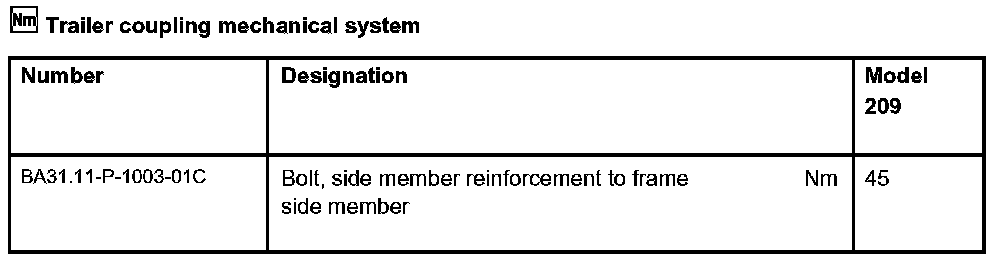

Trailer Coupling Mechanical System:
