AP31.11-P-3121BB Lubricate and Check Operation of Trailer Hitch With Detachable Ball Neck



AP31.11-P-3121BB Lubricate And Check Operation Of Trailer Hitch With Detachable Ball Neck
- with CODE (550) Trailer hitch
- without bumper filler for detachable ball neck

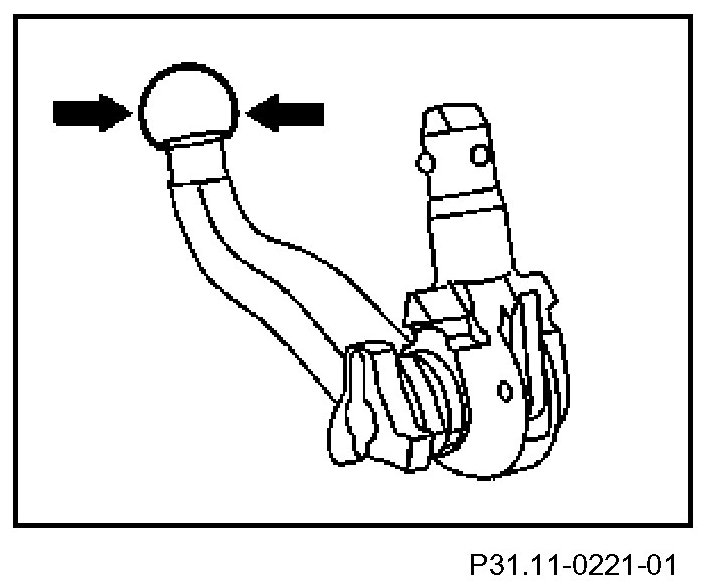

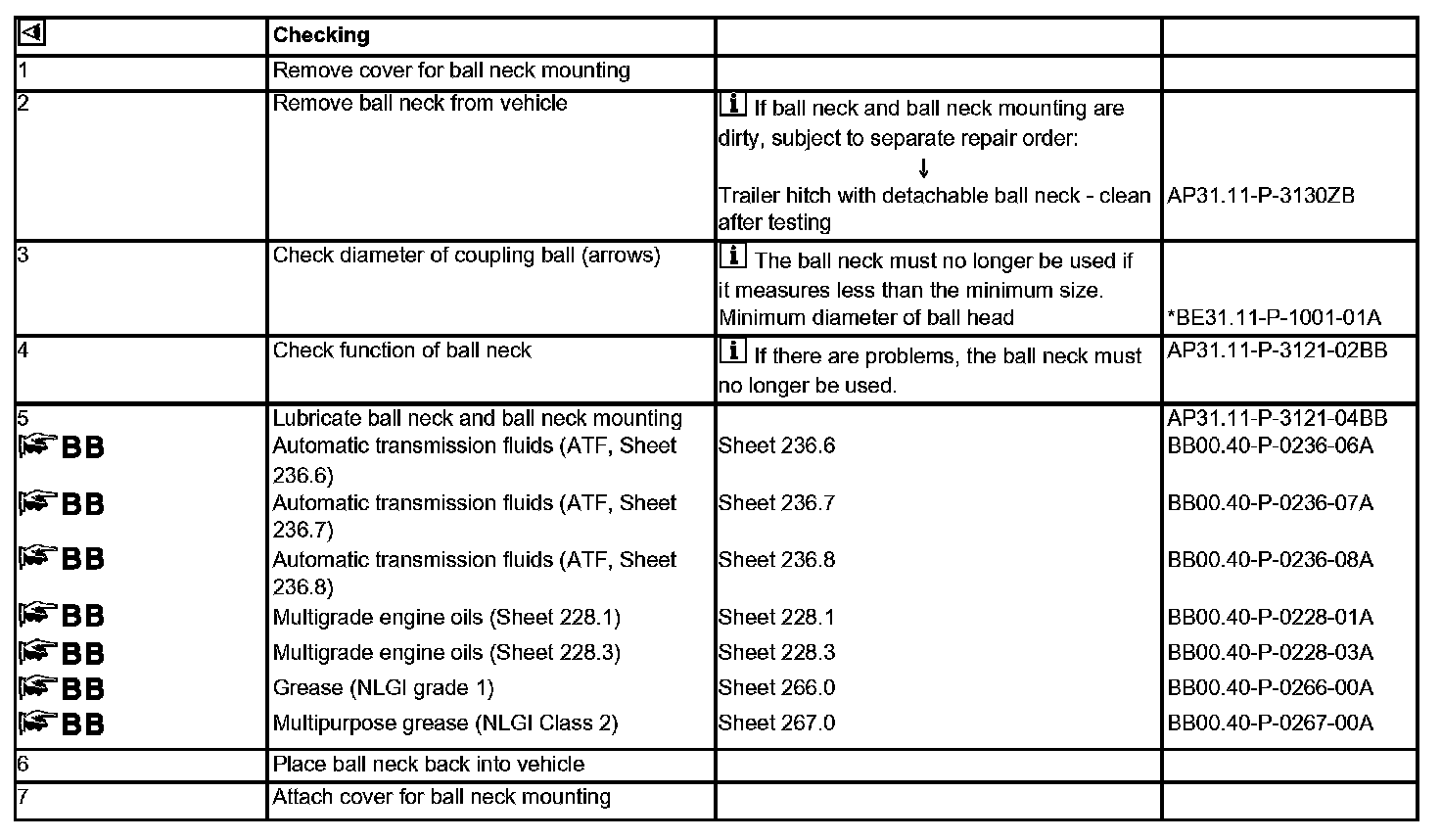

Steps 1 - 7:

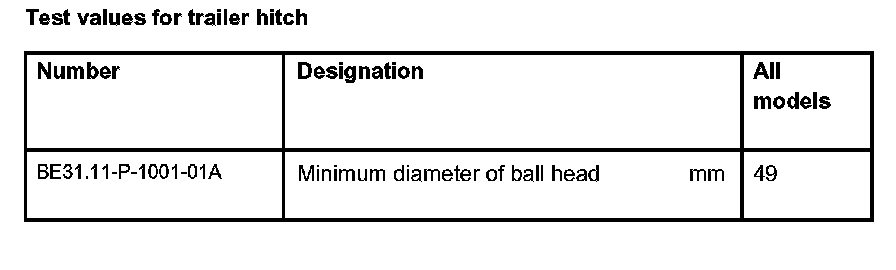

Test Values For Trailer Hitch:
